Sheyenne Manufacturing 1400 Series Swing Away Grain Auger | Model 1410 | Size 8"–10" | Length 60'–80' | High‑Capacity PTO | 50–60 HP | For Tractor

Sheyenne Manufacturing 1400 Series Swing Away Grain Auger | Model 1410 | Size 8"–10" | Length 60'–80' | High‑Capacity PTO | 50–60 HP | For Tractor

$15,930.00
$15,930.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Auger Diameter: 8"–10" sizes for tractor‑powered grain handling.
  • Required Power: 50–60 HP tractors for efficient operation.
  • Hydraulic Pressure: 1200–1500 PSI lift for field positioning.
  • Overall Length: 60"–80" augers for high‑capacity grain transfer.
  • Designed For: Farm tractors moving bulk grain efficiently.
View full details

Product Description

Sheyenne Manufacturing 1400 Series Swing Away Grain Auger | Model 1410 | Size 8"–10" | Length 60'–80' | High‑Capacity PTO | 50–60 HP | For Tractor


DESCRIPTION

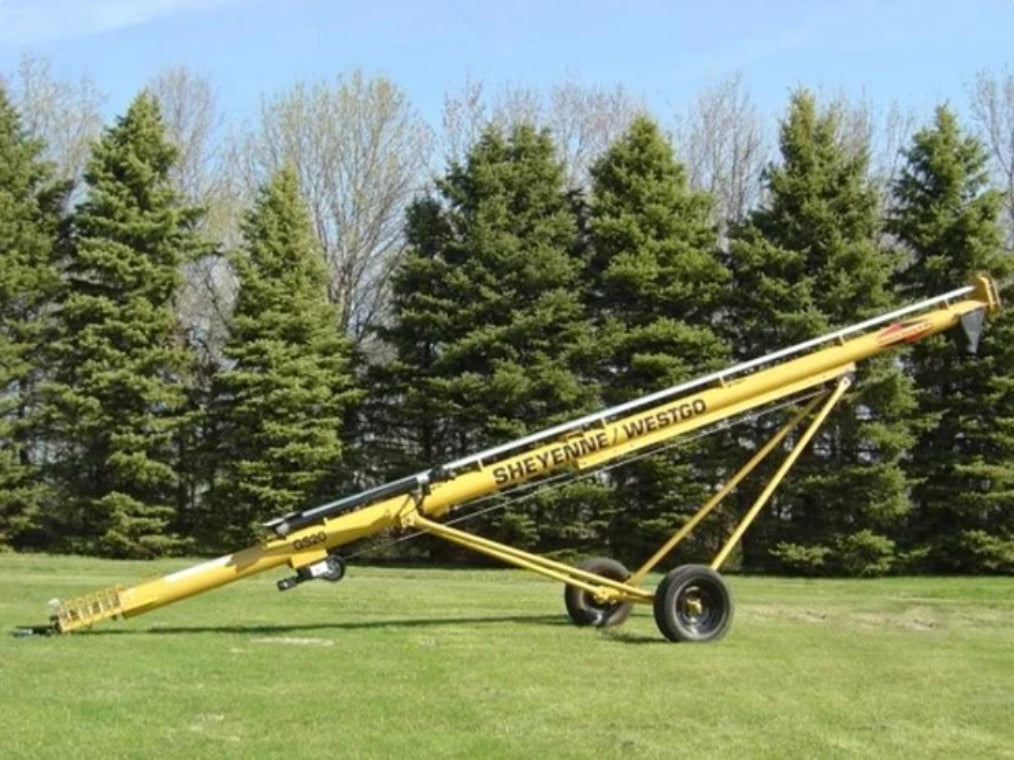

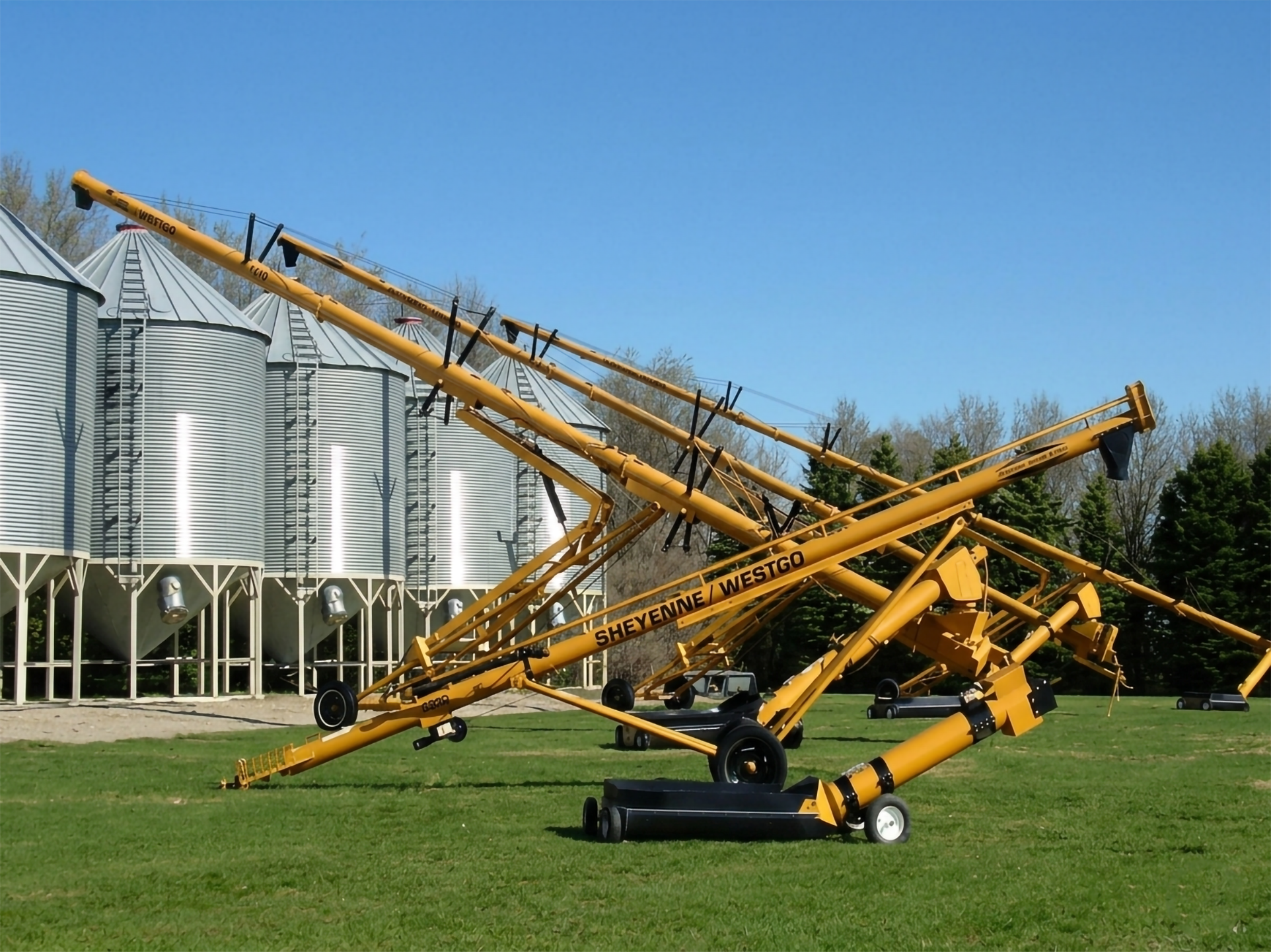

The Sheyenne Manufacturing 1410 Series Swing Away Grain Augers deliver exceptional high‑capacity grain handling, engineered for farmers who demand speed, durability, and smooth operation during peak harvest. Built with a double tapered bearing intake, hydraulic scissor lift, and reinforced truss construction, these augers move between 1,800 and 10,000 bushels per hour depending on diameter and crop type. The ultra‑low‑profile swing‑away hopper, balanced flighting, and double constant‑velocity joints ensure consistent grain flow with reduced vibration. Maintenance is simplified with hanger bearing access doors every 10 ft, while the powder‑coated finish protects against corrosion in harsh field conditions. Compatible with 50–60 HP tractors, the 1410 Series provides reliable, efficient grain transfer for demanding agricultural operations.

Key Features

  • High‑capacity grain movement Handles 1,800–10,000 bushels per hour depending on auger diameter, delivering fast, efficient crop transfer for large‑scale farming operations.
  • Durable powder‑coated finish Fully powder‑coated steel resists corrosion, abrasion, and weather exposure, extending equipment life in demanding agricultural environments.

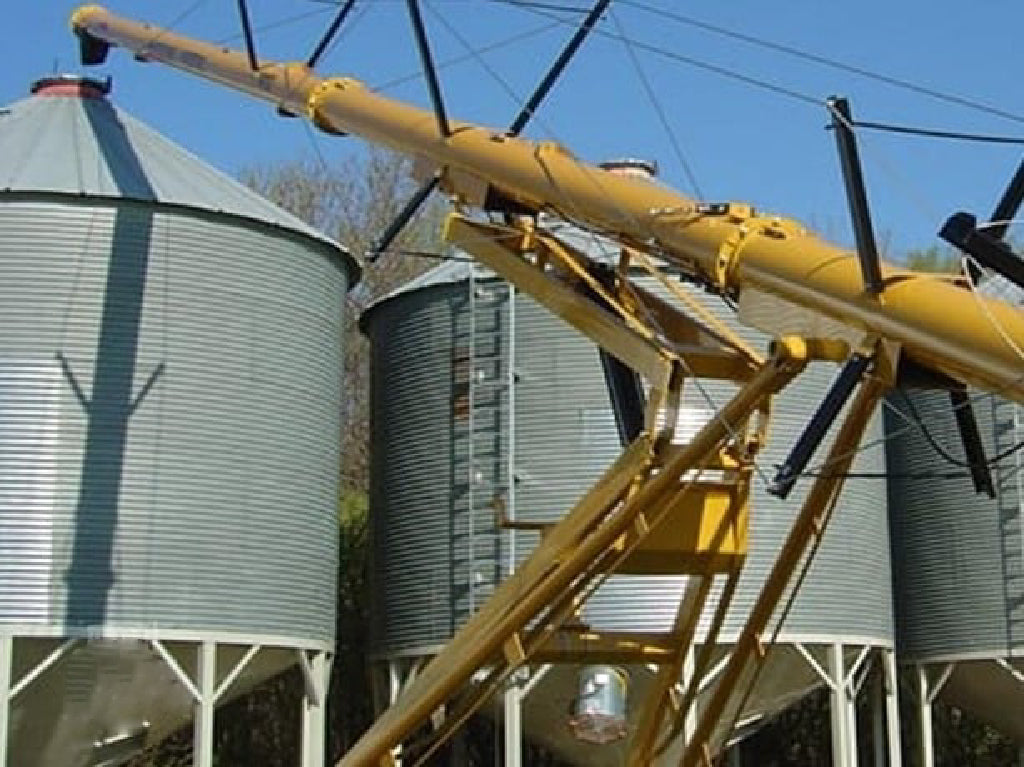

  • Hydraulic scissor lift system Provides smooth, controlled lifting with tractor hydraulics, ensuring safe height adjustments and stable positioning during operation.

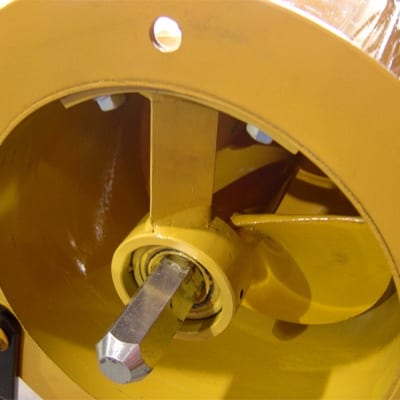

  • Double tapered bearing intake Reduces friction and improves grain flow efficiency, enhancing performance under heavy load conditions.

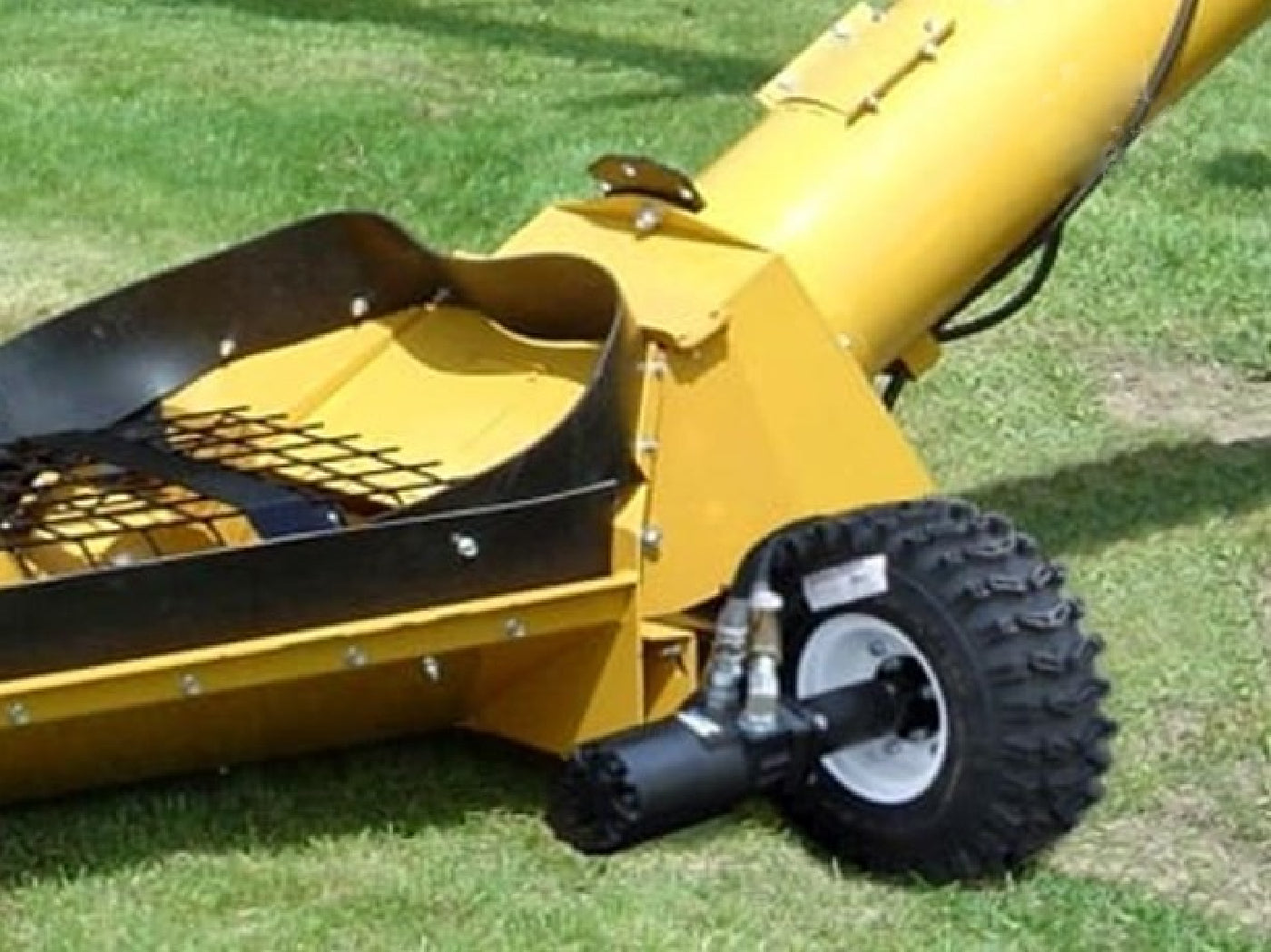

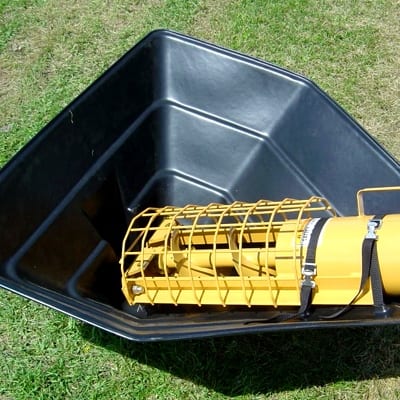

  • Ultra‑low‑profile swing‑away hopper Self‑leveling design improves access under trailers and trucks, reducing spillage and improving loading efficiency.
  • Reinforced truss construction Heavy‑duty trussing increases rigidity, reducing flex and vibration during high‑volume grain movement.
  • Hex shaft drive system Provides superior torque transfer and long‑lasting performance in demanding grain‑handling conditions.

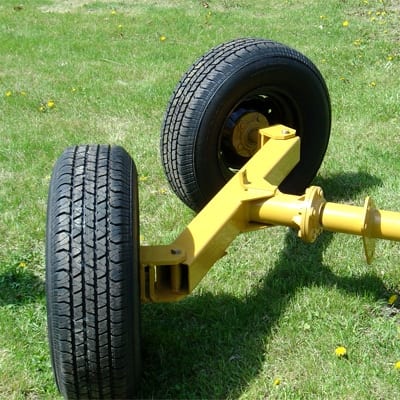

  • Adjustable axle width Enhances stability and maneuverability across varied terrain and storage layouts.
  • Hanger bearing access doors Access every 10 ft simplifies maintenance, lubrication, and inspection for long‑term reliability.
  • Flexible 30° rubber downspout Directs grain precisely where needed, reducing dust, bounce, and grain damage during discharge.
  • Double constant‑velocity joints Ensures smooth, consistent power transfer in both the main shaft and hopper.
  • Lower‑end clean‑out door Allows quick emptying and prevents cross‑contamination between different grain types.
  • Self‑leveling adjustable hitch Maintains proper auger alignment during towing and setup, improving safety and ease of use.

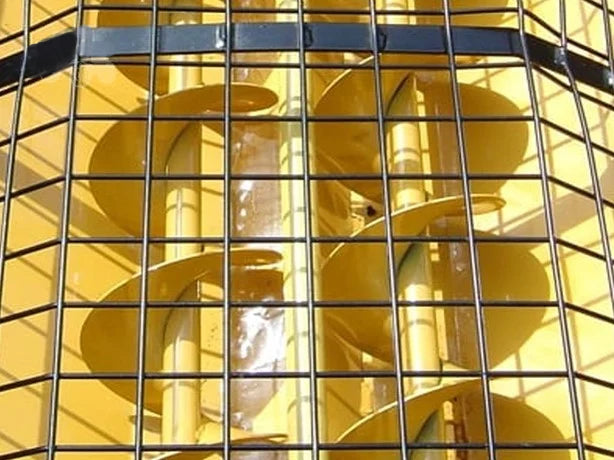

  • Balanced flighting system Reduces vibration, increases bearing life, and ensures smooth rotation during continuous operation.

Detailed Specifications

Specification 1410 8" x 60' (100‑0‑1570) 1410 10" x 60' (100‑0‑1571)
Diameter 8" 10"
Length 60' 60'
Weight 2,990 lbs 3,720 lbs
Tube Gauge 12‑gauge 12‑gauge
Flighting Thickness 3/16" 1/4"
Capacity 1,800–3,800 BPH 3,800–7,000 BPH
Recommended RPM 400–500 RPM 400–500 RPM
Tractor HP 50–60 HP 50–60 HP
Hydraulic Lift Pressure 1200 PSI 1500 PSI
Hydraulic Drive Requirement 1500 PSI @ 10 GPM 1500 PSI @ 10 GPM
Hopper Type Ultra‑low‑profile Ultra‑low‑profile
Downspout 30° flexible 30° flexible

Specification 1410 10" x 70' (100‑0‑1572) 1410 10" x 80' (100‑0‑1576)
Diameter 10" 10"
Length 70' 80'
Weight 4,290 lbs 4,960 lbs
Tube Gauge 12‑gauge 12‑gauge
Flighting Thickness 1/4" 1/4"
Capacity 3,800–7,000 BPH 3,800–7,000 BPH
Recommended RPM 400–500 RPM 400–500 RPM
Tractor HP 50–60 HP 50–60 HP
Hydraulic Lift Pressure 1500 PSI 1500 PSI
Hydraulic Drive Requirement 1500 PSI @ 10 GPM 1500 PSI @ 10 GPM
Hopper Type Ultra‑low‑profile Ultra‑low‑profile
Downspout 30° flexible 30° flexible
