Sicma (Phoenix) 3-Point Super Heavy-Duty Rotary Tiller | T20 Series | Working Width 72", 80" & 90" inches | Horsepower 40-70 HP | For Tractors

Sicma (Phoenix) 3-Point Super Heavy-Duty Rotary Tiller | T20 Series | Working Width 72", 80" & 90" inches | Horsepower 40-70 HP | For Tractors

$6,437.50
$6,437.50
Sale Sold out
Customizable
Fast
24/7 Support
  • Heavy Duty Series 6 PTO with Slip Clutch: Equipped with Eurocardan friction disc technology to protect the driveline and minimize downtime during operations.
  • Lateral Gear Drive in Oil Bath: Ensures smooth, reliable transmission and extends the lifespan of the machine, even under heavy loads.
  • Six Tines per Flange: Provides efficient soil penetration and thorough tilling for maximum productivity.
View full details

Product Description

Sicma (Phoenix) 3-Point Super Heavy-Duty Rotary Tiller | T20 Series | Working Width 72", 80" & 90" inches | Horsepower 40-70 HP | For Tractors

DESCRIPTION

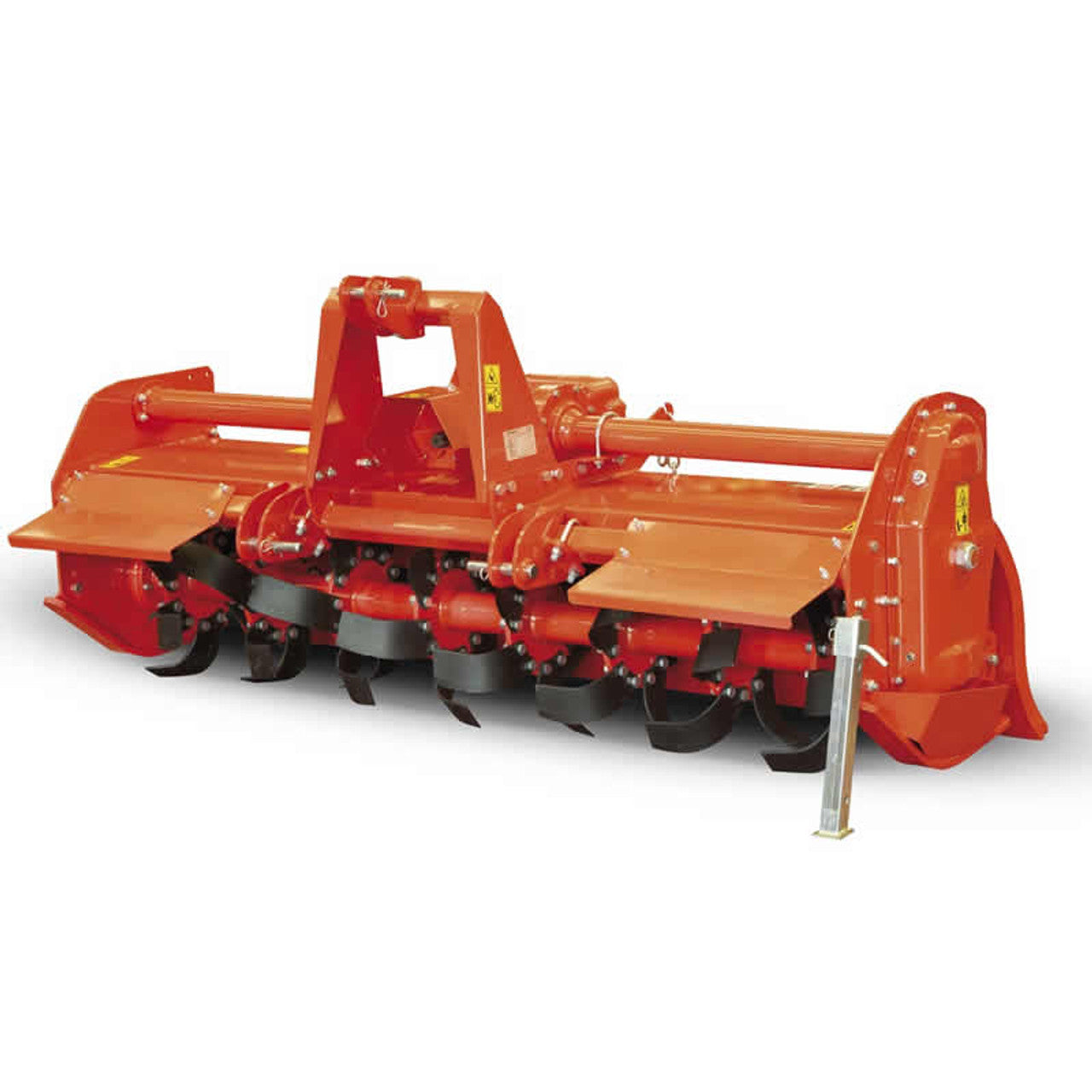

The Phoenix T20 Series Rotary Tillers are built for durability and flawless performance, ensuring years of trouble-free operation under the most challenging soil conditions. Designed with a robust load-bearing frame, these tillers guarantee structural integrity and efficient functioning. Their unique design dramatically reduces the possibility of clogging, even in wet or sticky soil, making them ideal for demanding agricultural tasks. Whether for professional farming or intensive soil preparation, the T20 Series delivers reliable results with enhanced operator convenience.

Key Features

  • Heavy Duty Series 6 PTO with Slip Clutch: Equipped with Eurocardan friction disc technology to protect the driveline and minimize downtime during operations.
  • Lateral Gear Drive in Oil Bath: Ensures smooth, reliable transmission and extends the lifespan of the machine, even under heavy loads.
  • Six Tines per Flange: Provides efficient soil penetration and thorough tilling for maximum productivity.
  • Adjustable Hitch Blocks: Heavy-duty upper and lower hitch blocks allow for customized operation and attachment ease.
  • Drag Board Adjustment System: Features four drag board chains on a two-section drag board, enabling precise leveling and control during tilling.
  • Oversized Sealed Bearings: Enhances durability and ensures smooth operation while reducing maintenance needs.
  • Clogging Prevention: Innovative design reduces the risk of clogging, making it suitable for sticky or wet soil conditions.
  • Rugged Construction: Built to handle the most demanding applications, ensuring long-lasting reliability.

Detailed Specifications

Specification T20-72GE T20-80GE T20-90GE
Working Width (in.) 72 80 90
Working Depth (in.) 7 7 7
Blades/Flange 6 6 6
Total Blades 42 48 54
Side Drive Gear Gear Gear
Driveline Protection Slip Clutch Slip Clutch Slip Clutch
Hitch Cat I and II Cat I and II Cat I and II
PTO Shaft Series 6 6 6
PTO Power Required (HP) 40-70 40-70 40-70
Optimum PTO Speed (RPM) 540 540 540
Rotor Flange Diameter (in.) 6.3 6.3 6.3
Rotor Flange Thickness (in.) 0.5 0.5 0.5
Approximate Weight W/PTO (lbs) 977 1021 1212
