Product Description

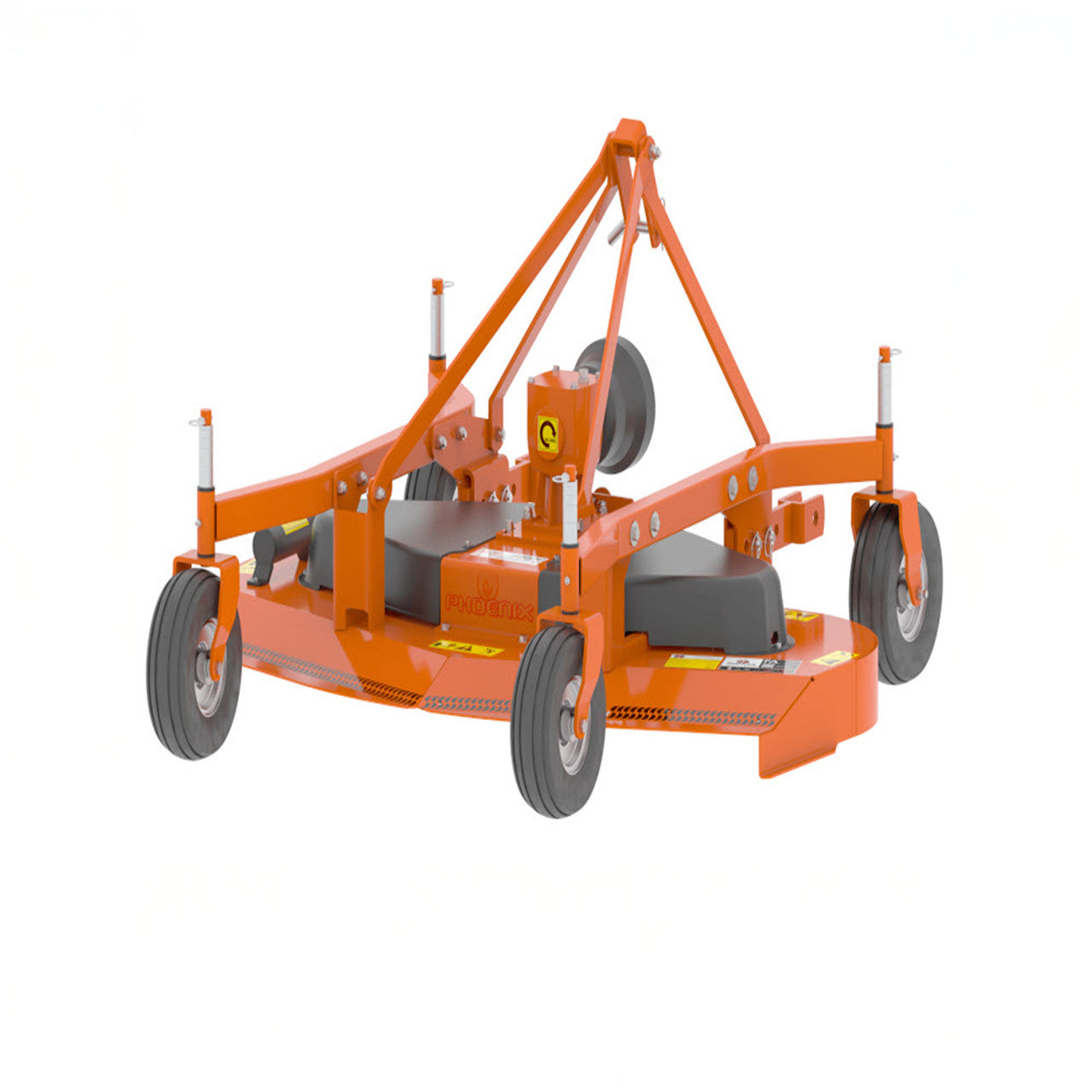

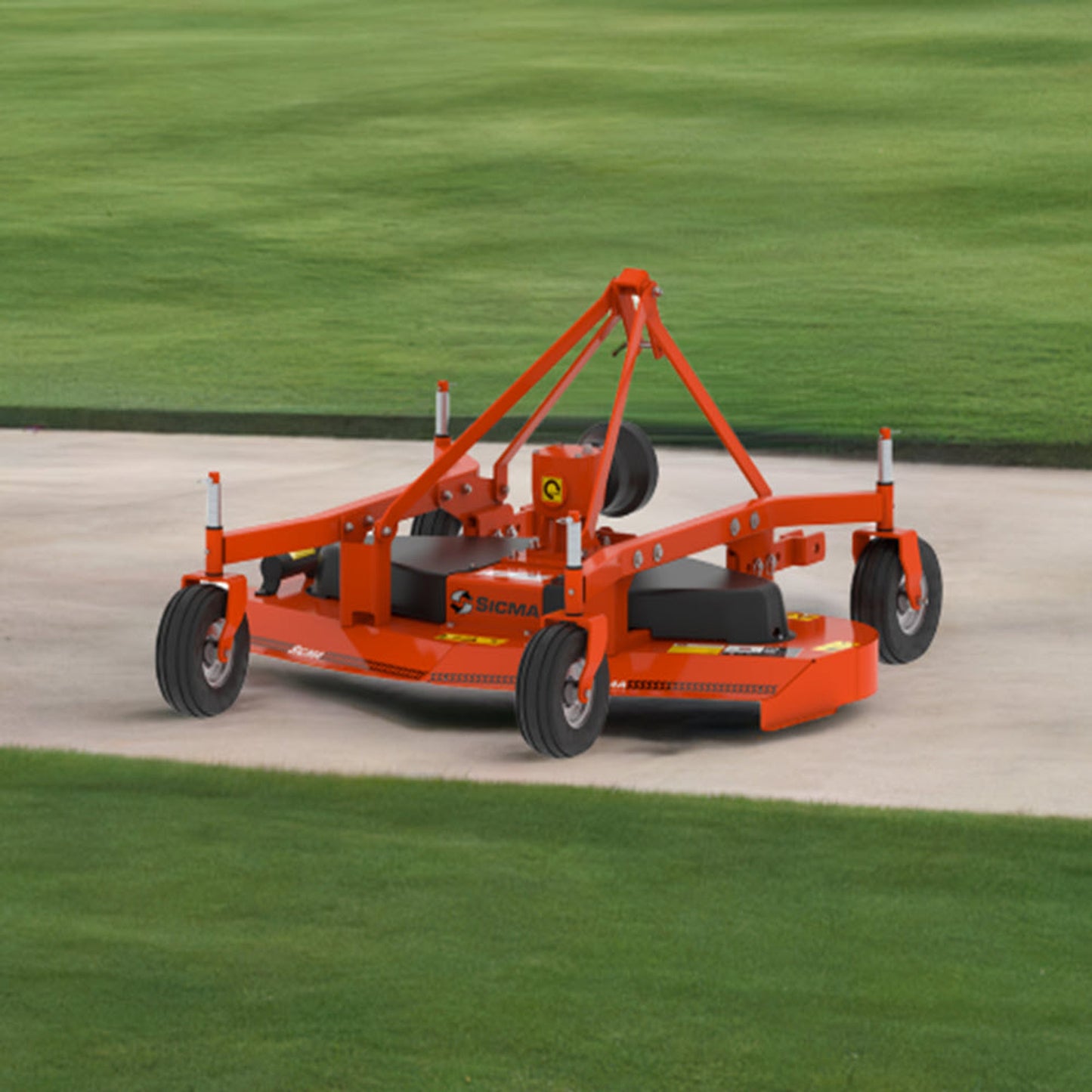

Sicma (Phoenix) Rear Discharge 3 PT. Grooming Mowers | "M" Series | Mowing Width 48", 60", 72" & 84" inches | Horsepower 10-60 HP | For Tractors
Key Features
- PTO Shaft with Slip Clutch: Standard Series 4 PTO shaft by Eurocardan ensures reliable power transmission and protection during operation.
- Floating or Fixed Link Options: Adjustable lower links provide compatibility with various setups, offering both floating and fixed positions.
-
Anti-Scalping Roller:
- Standard on 84-inch models for smooth terrain tracking.
- Optional on models M48, M60, and M72.
- Floating Top Hitch: Guarantees smooth operation on uneven terrain, improving maneuverability.
- Durable Construction: Heavy-duty welded deck provides strength and longevity for demanding mowing tasks.
- Easy Maintenance: One-step grease points allow convenient lubrication without the need to remove safety shields.
- Aesthetic Durability: High-quality powder coat paint finish resists wear and keeps the machine looking new over time.
- Cutting Precision: Three overlapping blades with baffles ensure an even cut and efficient clipping dispersion for a smooth finish.
Detailed Specifications
Model | M48-S | M60-S | M72-S | M84-S |
---|---|---|---|---|
Mowing Width (Inches) | 48 | 60 | 72 | 84 |
Overall Width (Inches) | 50 | 63 | 74 | 86 |
Mowing Height (Inches) | 0.75-4.25 | 0.75-4.25 | 0.75-4.25 | 0.75-4.25 |
Number of Blades | 3 | 3 | 3 | 3 |
Deck Material Thickness | 4/8 MM | 4/8 MM | 4/8 MM | 4/8 MM |
Discharge | Rear | Rear | Rear | Rear |
Hitch | Cat 1 | Cat 1 | Cat 1 | Cat 1 |
PTO Shaft Series | 4 | 4 | 4 | 4 |
PTO Power Required (HP) | 10-30 | 20-40 | 30-50 | 40-60 |
Optimum PTO Speed (RPM) | 540 | 540 | 540 | 540 |
Blade Tip Speed (FPM) | 3130 | 2650 | 2240 | 2030 |
Approximate Weight (LBS) | 450 | 580 | 660 | 898 |
Tire Configuration | Solid | Solid | Solid | Solid |
Anti-Scalp Roller | Optional | Optional | Optional | Standard |
Belt Covers | MDPE | MDPE | MDPE | Metal |
