Sidney

Sidney Root Grapple | Model G3 | Width 44" | 10-20 GPM | Machine Size 1 Ton | For Skid Steers, Loaders & Excavators

Sidney Root Grapple | Model G3 | Width 44" | 10-20 GPM | Machine Size 1 Ton | For Skid Steers, Loaders & Excavators

Regular price $8,310.62
Regular price Sale price $8,310.62
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Weight: 1,250 lbs; For Skid Steers, Loaders & Excavator.
  • Width: 44 inches; 10 Tines for Heavy-Duty Tasks.
  • Machine Size: 1 Ton
  • Hydraulic Flow: 10–20 GPM; Requires 50–60 HP.
  • Grapple Opening: 31.5 inches; Ideal for Concrete, Logs, Rocks.
  • Cylinder: 4" x 8"; High Mechanical Pressure at Tips.
View full details

Product Description

Sidney Root Grapple | Model G3 | Width 44" | 10-20 GPM | Machine Size 1 Ton | For Skid Steers, Loaders & Excavators

DESCRIPTION

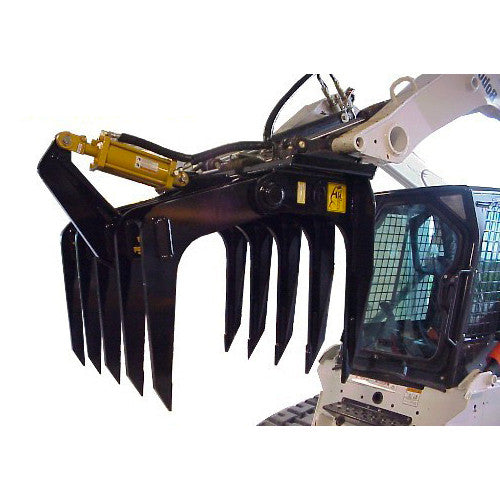

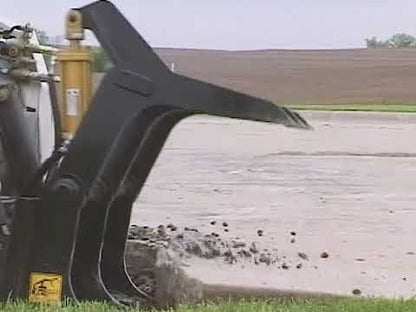

The Sidney G3 Root Grapple is the ultimate tool for heavy-duty lifting and demolition. Built with A572 Grade 50 steel, this high-performance attachment excels in tough environments like concrete removal, rock lifting, logging, and root clearing. Featuring a 44" width and 10 durable tines, it provides superior gripping power for picking up logs, rocks, and other heavy materials, making it ideal for demanding work in confined spaces.

The G3 Root Grapple is a direct evolution of the popular G2 Grapple, now offering enhanced versatility with 5 tines on both the top and bottom jaws. The tines are designed to ensure maximum grip and control, even when handling smaller debris. With a robust weight of 1,250 lbs, it requires a machine with at least 1750 lbs lift capacity to handle the payload, ensuring reliable performance with your skid steer, loader, or excavator.

Perfect for demolition, construction, and cleanup, the Sidney G3 grapple combines commercial-grade materials with innovative design to deliver outstanding durability and functionality. Whether you're tackling rugged terrain or fine-tuning your landscaping project, this grapple is built to last and perform.

Key Features

  • Durable A572 Grade 50 Steel Manufactured from high-quality US steel, ensuring a rugged, long-lasting performance.
  • Heavy-Duty 10 Tines Design The 10 tines provide superior grip, ideal for picking up smaller debris and tough materials.
  • Increased Grip Power Tines open to 31.5", offering excellent material capacity for logs, roots, and more.
  • Greasable Pivot Surfaces The machined pivot points are greasable, ensuring smooth operation and extending the lifespan of the attachment.
  • Commercial-Grade Construction Grade 8 hardware and high-pressure components deliver exceptional strength and dependability.
  • 31.5" Grapple Opening The opening allows for easy gripping of a variety of materials, with overlap and scissor action when closed.
  • Hydraulic Flow of 10-20 GPM This root grapple is engineered for use with machines requiring 10-20 GPM hydraulic flow.
  • Heavy-Duty Cylinder Equipped with a 4" x 8" cylinder, capable of delivering the mechanical force needed to handle heavy loads.
  • Optimal for Tight Spaces Perfect for demolition and cleanup tasks where precision and maneuverability are key.

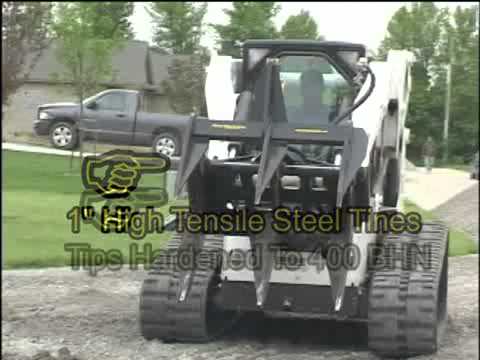

  • 400 Burnell Hardened Tips Featuring hardened tips for enhanced durability and wear resistance.
  • High Mechanical Pressure Generates 39,000 lbs of pressure at the tips, providing maximum holding power.
  • Easy to Maintain All hardware is Grade 8 and the components are designed for easy maintenance, making long-term use hassle-free.
  • Robust 1250 lb Weight Ideal for machines with 50–60 HP and a lift capacity of at least 1750 lbs.

Detailed Specifications

Specification Details
Model 23010TGUN
Number of Tines 10
Width 44"
Weight 1250 lb
Grapple Opening 31.5"
Cylinder 4" x 8"
Hydraulic Flow (GPM) 10–20 GPM
Horsepower Requirements 50–60 HP
Machine Size 1 Ton
Material A572 Grade 50 Steel
Pivot Shaft Diameter 2.5"
Max Pressure at Tips 39,000 lbs
Hardware Grade 8
Tine Design 5 tines top & bottom
Machined Pivot Surfaces Yes, greasable
Burnell Hardened Tips Yes
