Sidney Tree Shear | Model TB-1000-MS | Cutting Capacity 14" | 10" Cutting Capacity | 2-5 Tons | 20-35 HP | 12-20 GPM | For Mini Skid Steers, Backhoes, Mini Excavators & Tractors
Sidney Tree Shear | Model TB-1000-MS | Cutting Capacity 14" | 10" Cutting Capacity | 2-5 Tons | 20-35 HP | 12-20 GPM | For Mini Skid Steers, Backhoes, Mini Excavators & Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Sidney Tree Shear | Model TB-1000-MS | Cutting Capacity 14" | 10" Cutting Capacity | 2-5 Tons | 20-35 HP | 12-20 GPM | For Mini Skid Steers, Backhoes, Mini Excavators & Tractors
DESCRIPTION

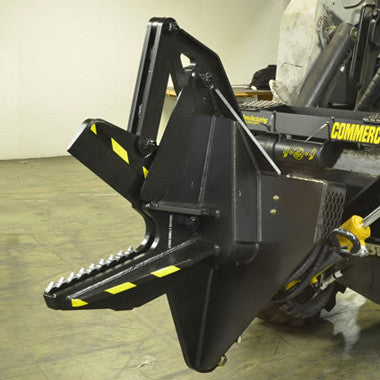

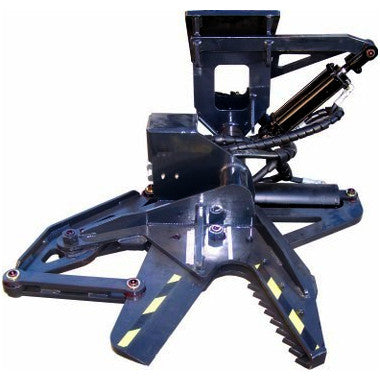

The Sidney TB-1000-MS Mini Skid Steer Tree Shear is engineered for versatility and efficiency, designed to handle a variety of tasks in tree clearing, logging, and timber operations. With a cutting capacity of up to 10" hardwood trees and the ability to rotate 100 degrees, this tree shear allows operators to cut, section, and clear trees with ease. Its compact design is perfect for mini skid steers, backhoes, mini excavators, and tractors, making it a must-have for professionals in landscaping, forestry, and construction. Built to be lightweight yet durable at just 655 lbs, it offers high performance without compromising machine compatibility or lifting capacity.
Featuring T1 steel blades, a 4" x 18" blade cylinder, and a 3" x 8" tilt cylinder, the TB-1000 is perfect for cutting through hardwood and softwood trees, and its built-in 12VDC solenoid valve ensures smooth operation from your machine's hydraulic system. It’s plug-and-play compatible with multiple popular brands like Bobcat, Cat, ASV, John Deere, and more. Easy to install and maintain, the Sidney TB-1000 offers reliable performance for a wide range of tree-cutting applications.
Key Features

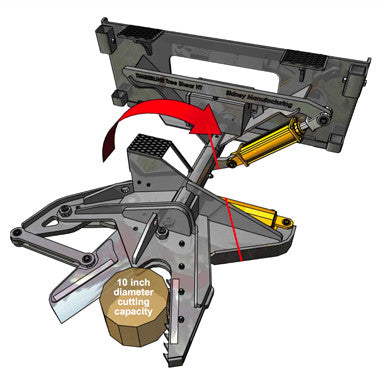

- 10" Hardwood Cutting Capacity Easily cuts through green hardwood trees up to 10" in diameter.
- 100-Degree Rotation Provides full 100-degree rotation to cut, section, and relocate trees quickly.
- Versatile Compatibility Compatible with mini skid steers, backhoes, mini excavators, and tractors.
- Compact Design Weighs just 655 lbs, ensuring optimal performance without excessive weight.
- Durable T1 Steel Blades Built with high-strength T1 steel for reliable cutting and long-term durability.
- Plug-and-Play Installation Directly plugs into machines with Bobcat, Cat, ASV, John Deere, and New Holland connectors.
- Hydraulic System Efficiency Equipped with a 12VDC solenoid valve to switch between shear and pivot modes.
- Efficient Tree Sectioning Cut down trees and rotate the shear to section and clear debris with ease.
- Safety-First Design Secure cutting and operation with enhanced safety features built into the shear.
- Multi-Use Capability Ideal for logging, tree trimming, clearing downed trees, and forestry applications.
- Adjustable Shear Jaws Open up to 14" for larger tree cutting (performance may vary depending on tree hardness).
- Built for Heavy Use Engineered for consistent, high-performance in commercial tree-cutting environments.
- Reduced Machine Stress Lightweight design reduces strain on mini skid steers and lighter machines.
- Time-Saving Operation Capable of cutting, lifting, and moving tree sections all with a single tool.
- Low Maintenance Needs Durable, easy-to-maintain design for hassle-free operation.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | TB-1000-MS |
| Rated Cutting Capacity | 10" (Hardwood) |
| Weight | 655 lbs |
| Blade Cylinder | 4" x 18" |
| Tilt Cylinder | 3" x 8" |
| Solenoid Valve | 12VDC |
| Blade Material | T1 Steel |
| Machine Size | 2 to 5 Tons |
| Horsepower | 20 to 35 HP |
| Hydraulic Flow | 12 to 20 GPM |
| Wiring | Standard Wiring Kit Provided |
| Machine Compatibility | Mini Skid Steers, Backhoes, Mini Excavators, Tractors |
| Hydraulic Requirements | Machine with 1-set hydraulics |
| Jaws Open | Up to 14" (Softwood) |
| Rotation | 100° (Full rotation) |
| Power Source | Hydraulic (via machine's hydraulics) |
| Mounting System | Universal (Plug-and-play options) |
| Max Operating Pressure | 3,000 PSI |
