SmithCo Side Dump Trailer | Model SX3-42-34 | Frame Length 42' | Tub Length 34' | Black Tub
Ripping It is Partnered with Western Truck to provide the best pricing and service for SmithCo.
DESCRIPTION

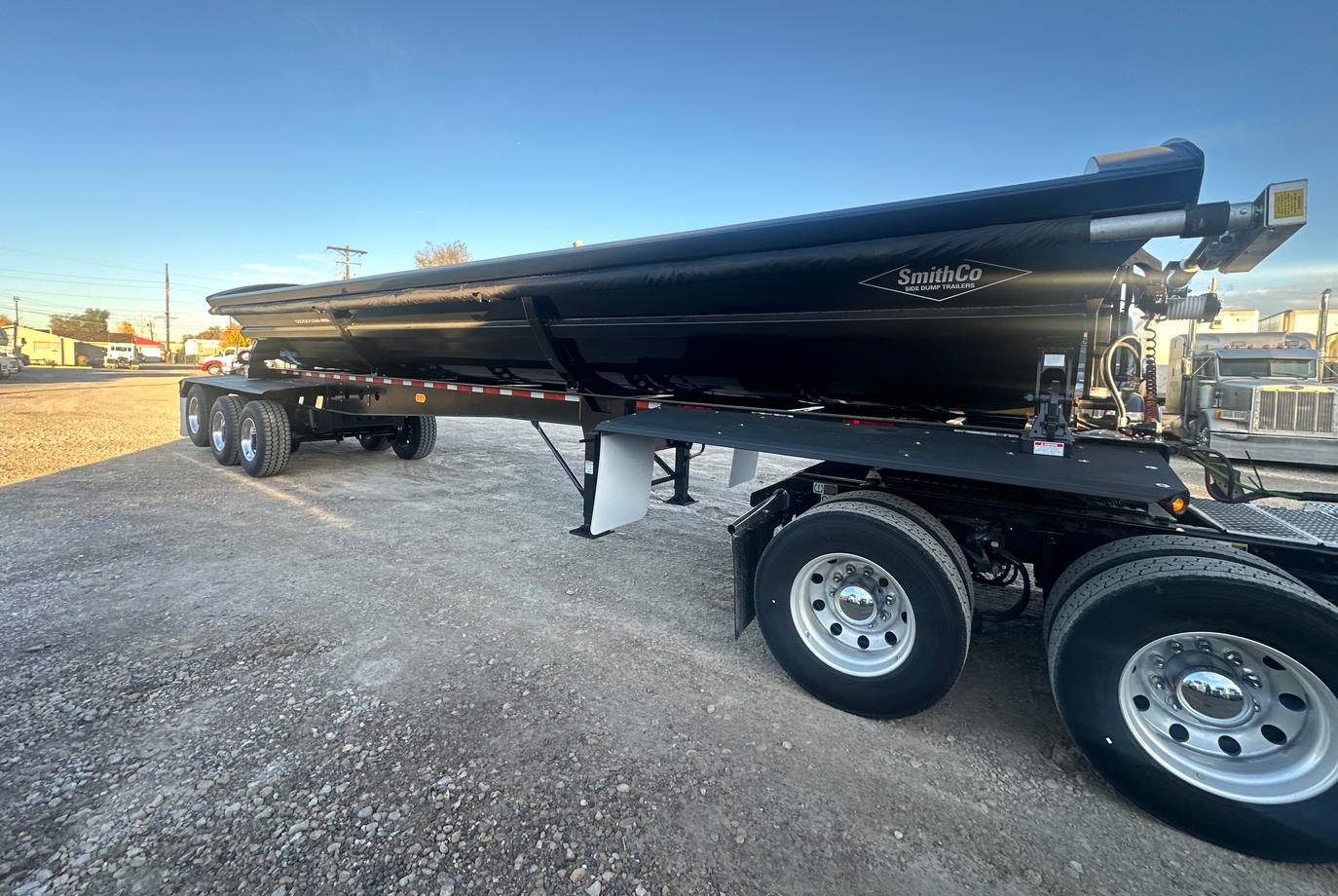

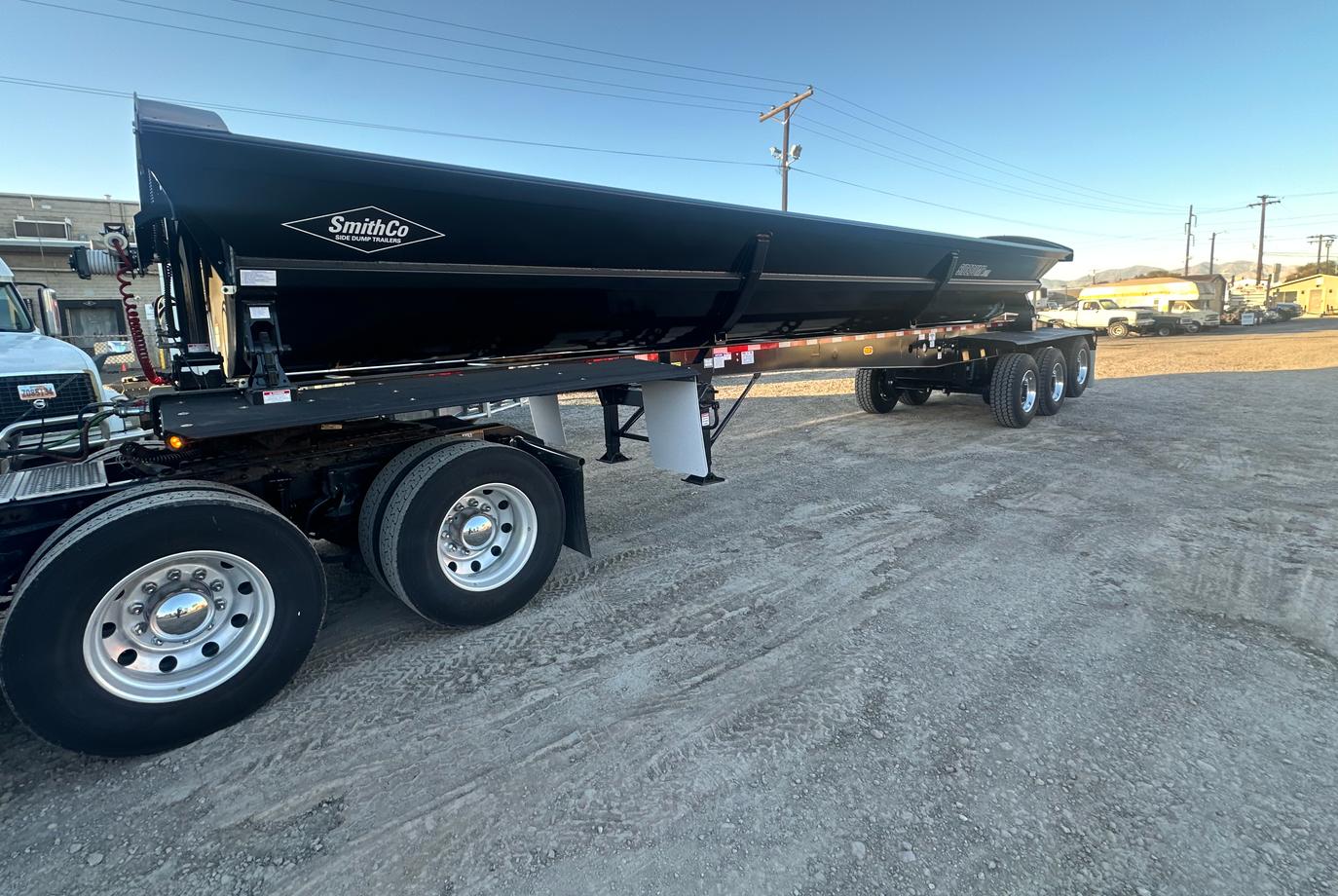

The SmithCo SX3-42-34 is a rugged side dump trailer designed for efficiency and durability in heavy hauling operations. Featuring a 42-foot frame and a 34-foot SX-round bottom tub, it delivers a 23 cubic yard water-level capacity and a 30.3 cubic yard heaped capacity.
Constructed with 1/4" AR400 steel sides and floor, the SX3-42-34 is built to withstand demanding job site conditions. Its Ridewell RW260 suspension, hydraulic control valve system, and 5" hydraulic cylinders ensure smooth dumping performance and reliable operation.
Key Features
- High-Capacity Tub – 34' SX-round bottom tub with 23 cu yd water-level and 30.3 cu yd heaped capacity.
- Durable AR400 Steel Construction – 1/4" AR400 sides and floor for long-lasting strength.
- Advanced Hydraulics – 5" hydraulic cylinders with electric/hydraulic control valve and grease banks front/rear.
- Air Ride Suspension – Ridewell RW260 system with lift axle for stability and control.
- Heavy-Duty Axles – (3) 25K axles (1 ABS, 2 non-ABS) with Duralite hubs and cast steel drums.
- Wheel & Tire Package – Super single aluminum wheels with 385/65R22.5 “J” ply tires.
- Safety & Convenience – Aero mesh tarp system, tarp lockout switch, W-style pushblock, liquid-filled air gauge, and multiple taillights/ID lights.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | SmithCo SX3-42-34 Side Dump Trailer |
| Overall Width | 102" |
| Frame Length | 42 feet |
| Tub Length | 34 feet |
| Tub Style | SX-Round Bottom |
| Side Floor Material | 1/4" AR400 Steel |
| Volume (Water Level) | 22.8 Cubic Yards |
| Volume (Heaped) | 30.3 Cubic Yards |
| Chassis Hydraulics | Binkley Dolly Legs, 5" Hydraulic Cylinders, Air/Hydraulic Control Valve |
| Suspension | Ridewell RW260 |
| Axle Spacing | 49" |
| Lift Axle | 3rd Axle |
| Axles | (1) 25K ABS, (2) 25K Non-ABS |
| Axle Track | 77.5" Standard |
| Hubs | Duralite Standard |
| Brakes | 16 ½" x 7" Drum Brakes |
| Drums | Cast Steel |
| Wheel Style | Hub-Piloted U/M |
| Wheel Type | AL SS 12.25x22.5, 6 Super Single Aluminum |
| Tires | 385/65R22.5 "J" Ply Super Single (6 Units) |
| Fenders | All Plastic |
| Tarp System | Aero Mesh Non-Sealed |
| Tarp Lockout | Yes |
| Push Block | W Style Standard |
| Air Gauge | Large Liquid-Filled on Driver's Side |
| Grease Bank | Hydraulic Cylinders (Front Rear) |

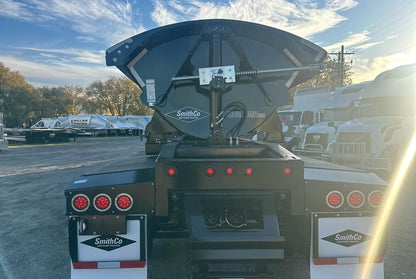

| Tail Lights | 3 Red |
| ID Lights | 5 at Rear |
