Product Description
SmithCo Side Dump Trailer | Model SX4-49-36 | Frame Length 49' | Tub Length 36′ | Air/Hydraulic Control Valve
Ripping It is Partnered with Western Truck to provide the best pricing and service for SmithCo.
DESCRIPTION

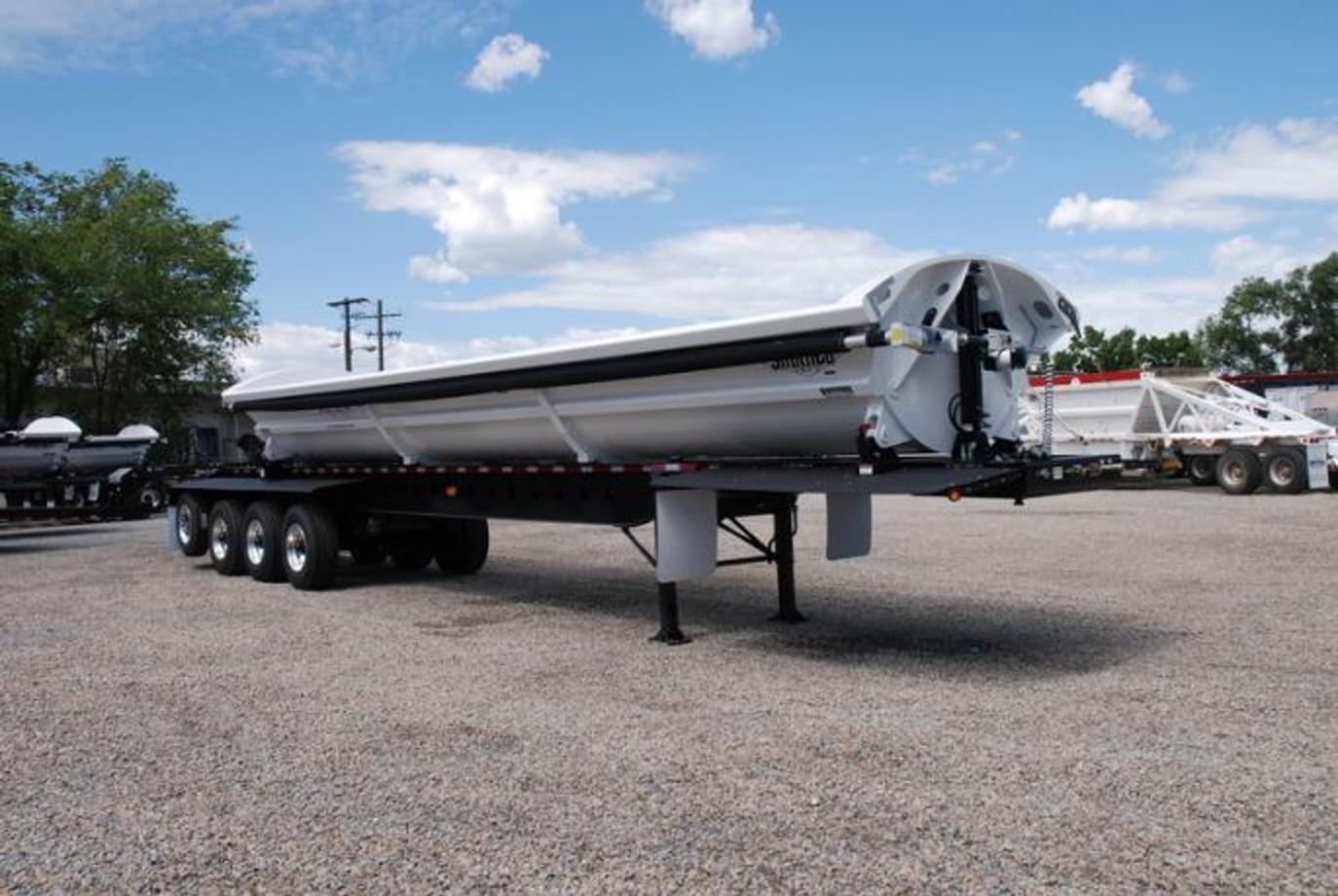

The SmithCo SX4-49-36 is a heavy-duty side dump trailer engineered for durability, efficiency, and versatility in hauling bulk materials. Built on a 49′ frame with a 36′ SX-ROUND BOTTOM tub, it delivers a load capacity of 24.1 cubic yards (water level) and 32 cubic yards (heaped). Constructed with ¼″ AR400 steel sides and floor, the SX4-49-36 is designed to withstand abrasive materials and tough jobsite conditions.

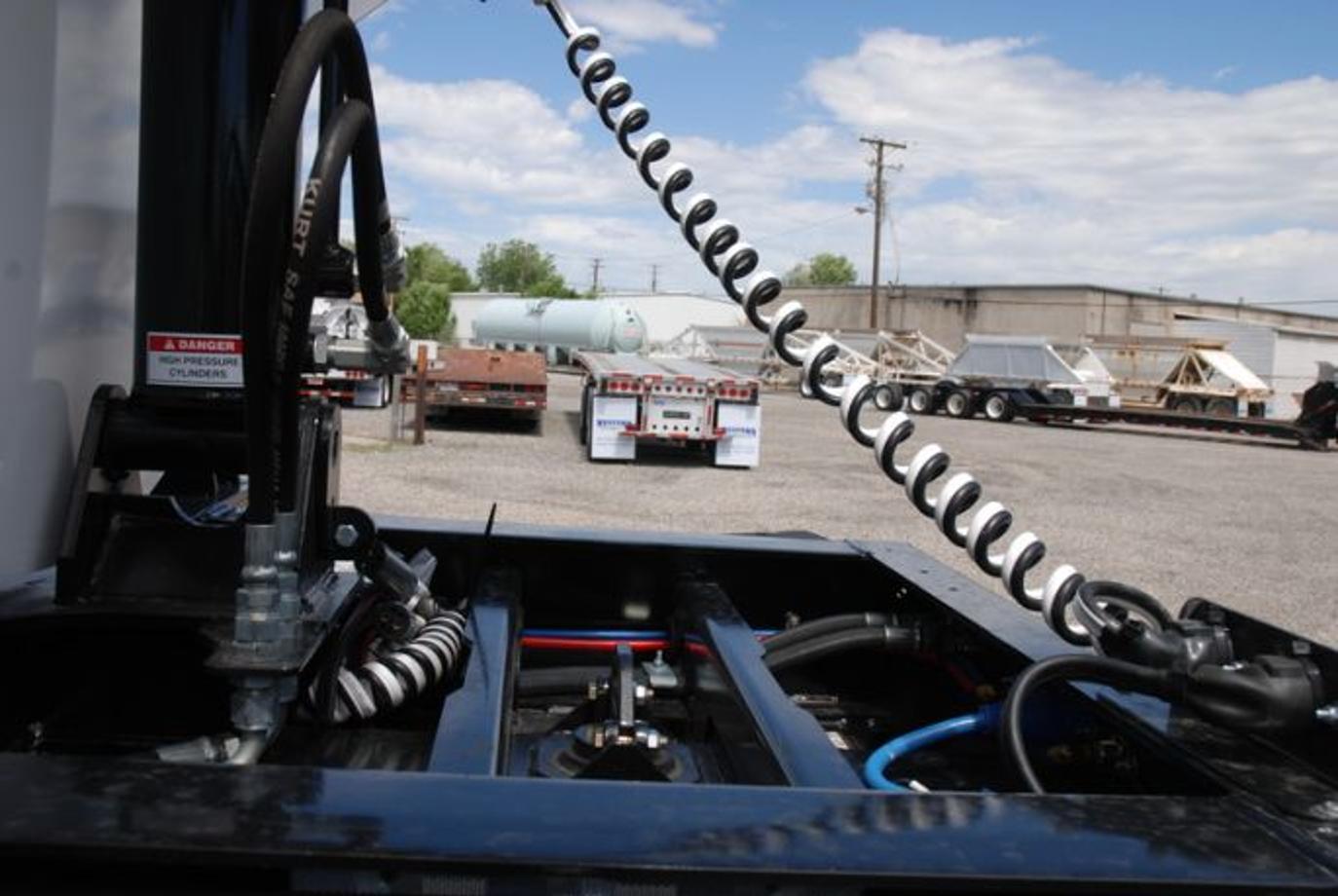

Equipped with 5″ hydraulic cylinders, an air/hydraulic control valve, and Ridewell RW260 suspension, this trailer ensures smooth dumping performance and reliable operation. With lift axles, advanced braking, and durable hubs, the SX4-49-36 is a proven solution for contractors, aggregate haulers, and construction fleets requiring strength, efficiency, and long service life.
Key Features
- High Capacity Tub – 36′ SX-ROUND BOTTOM tub with 24.1 yd³ water level and 32 yd³ heaped capacity.
- Durable AR450 Steel – 1/4″ AR450 sides and floor for maximum wear resistance.

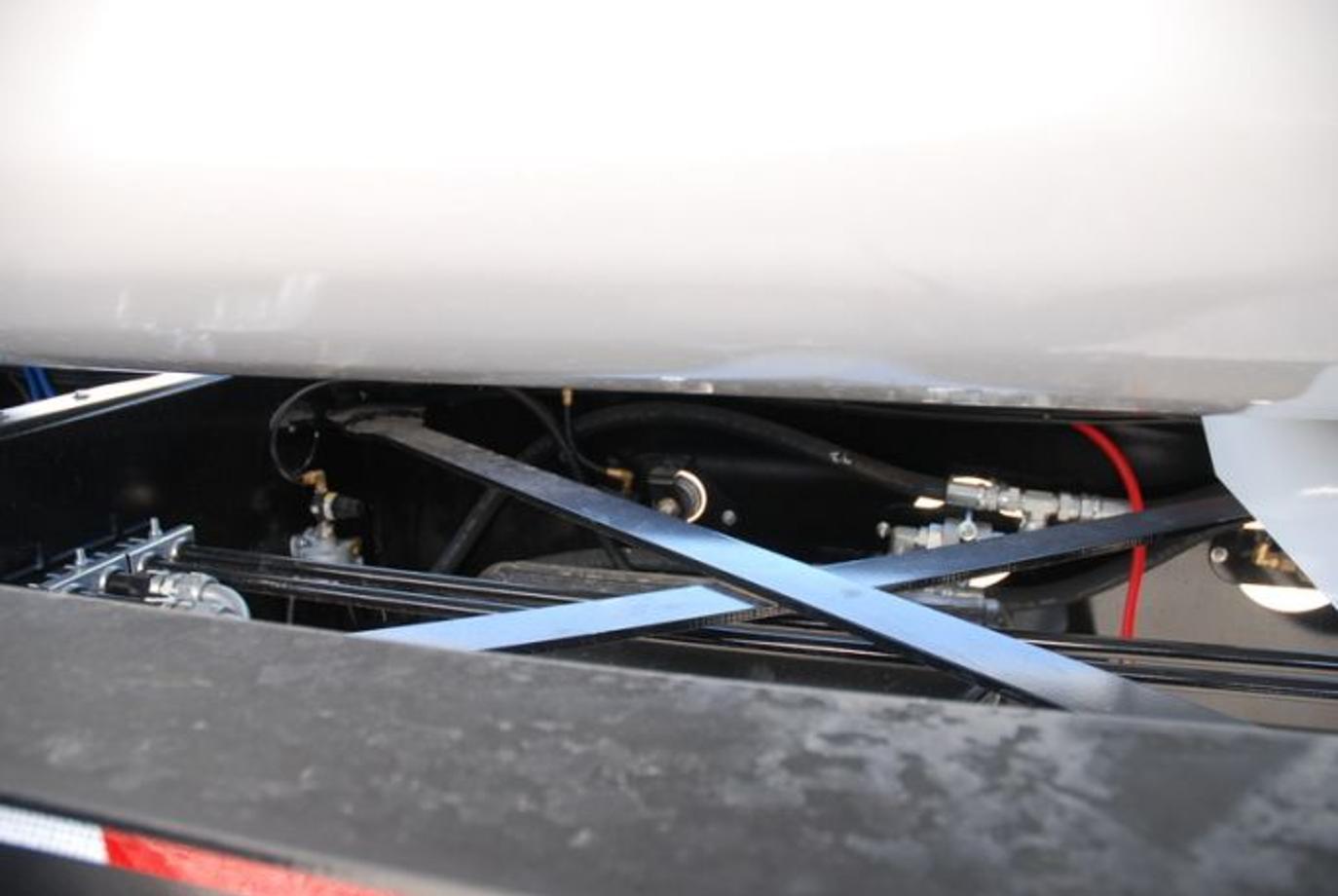

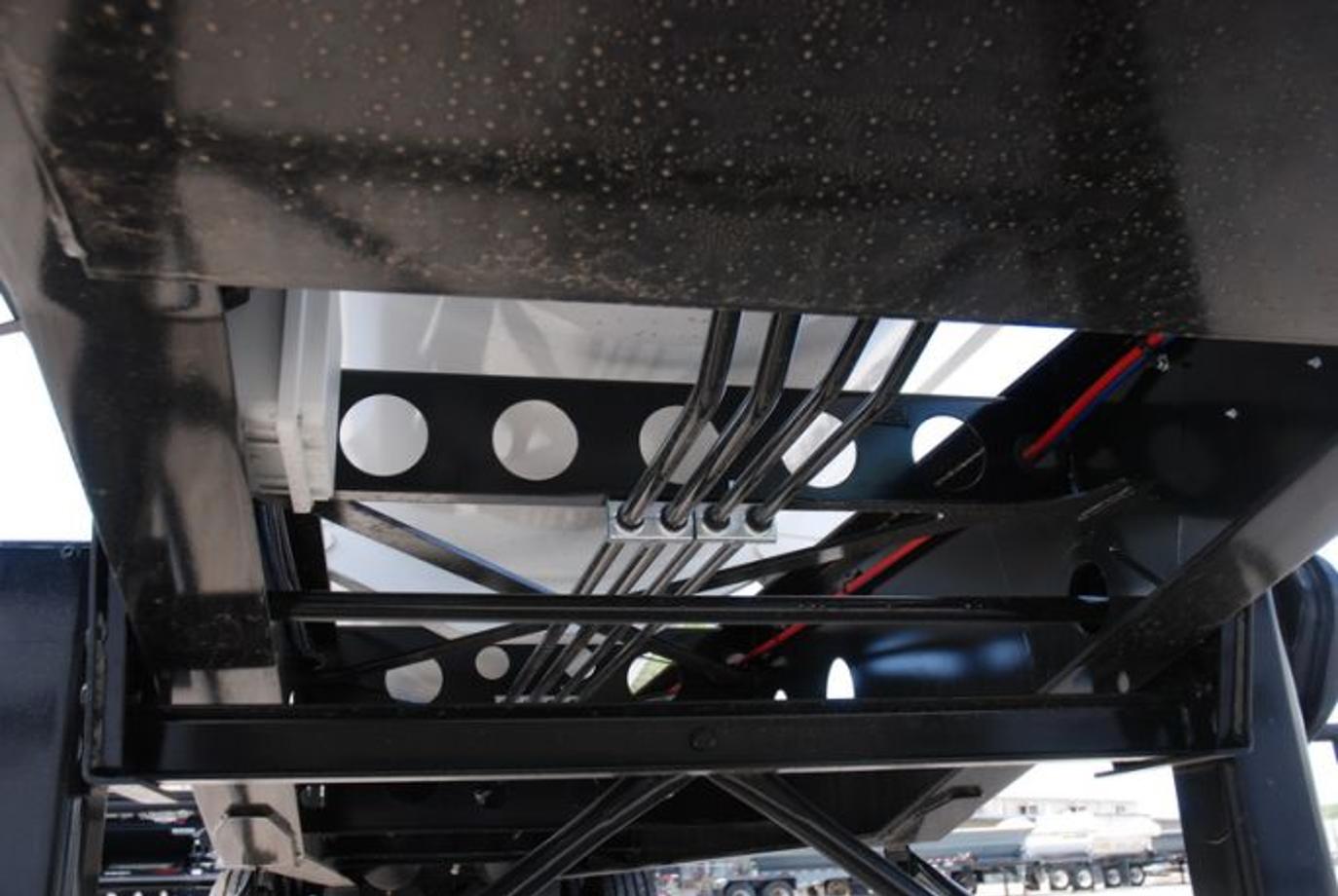

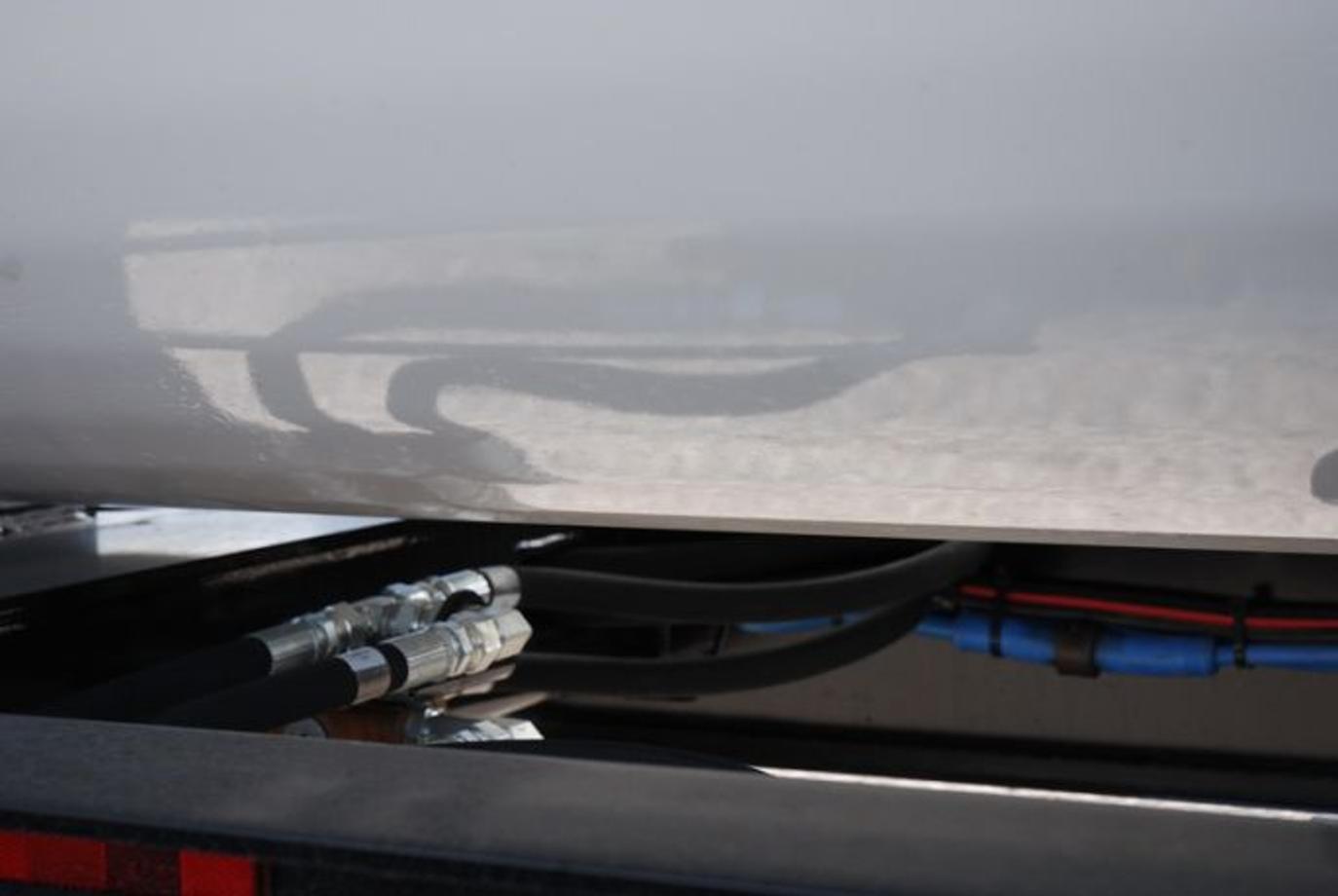

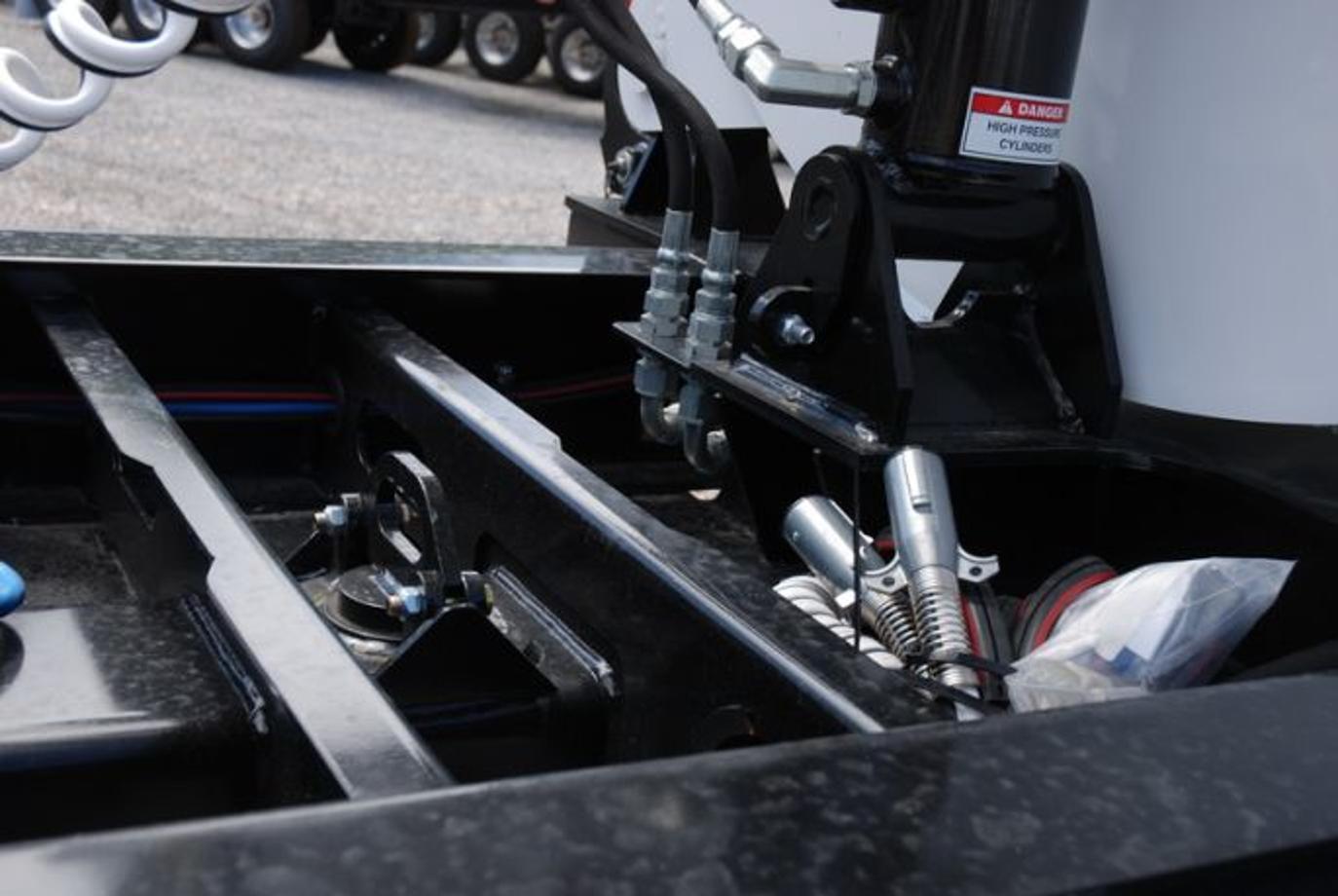

- Hydraulic System – 5″ cylinders with electric/hydraulic control valve mounted on trailer.

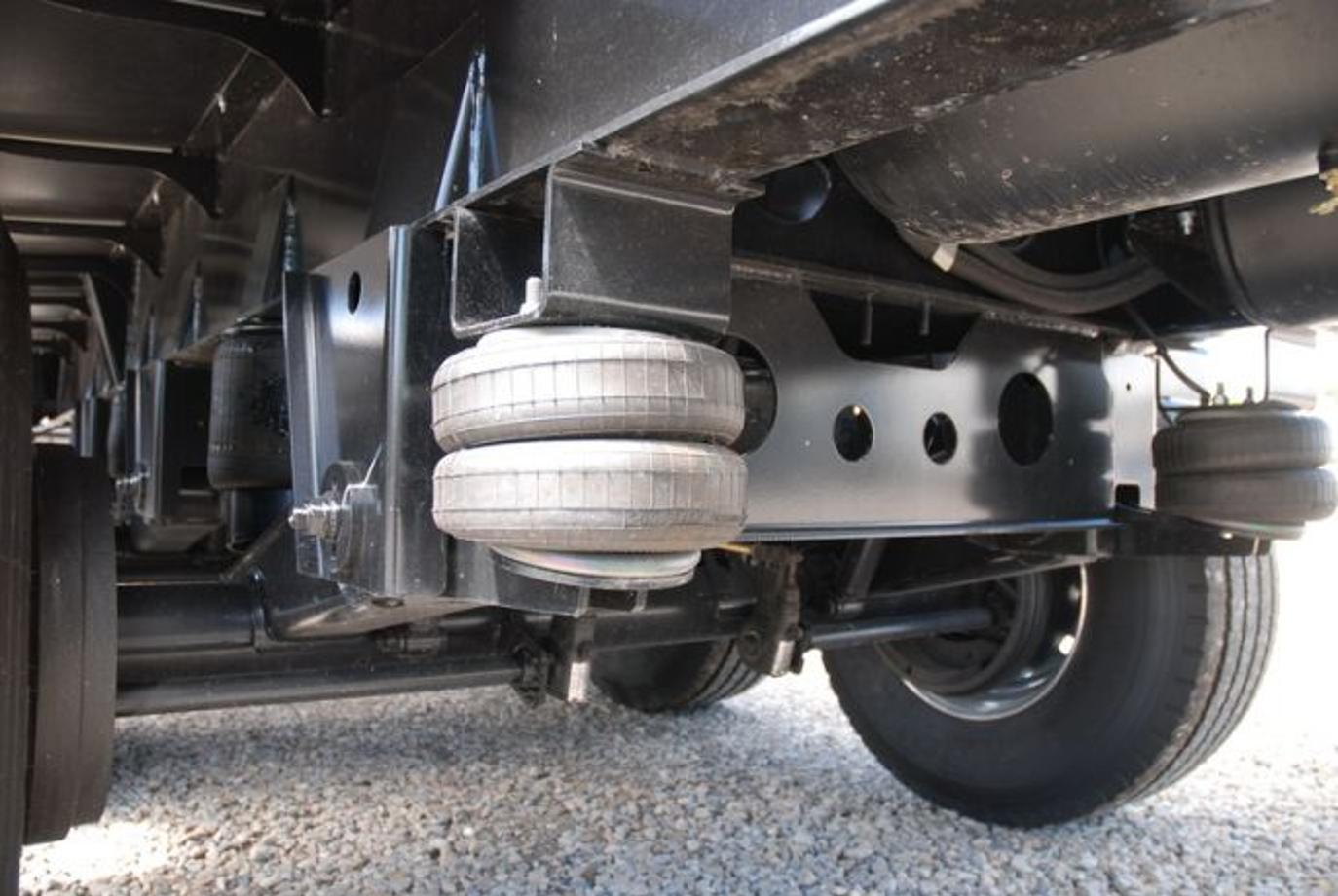

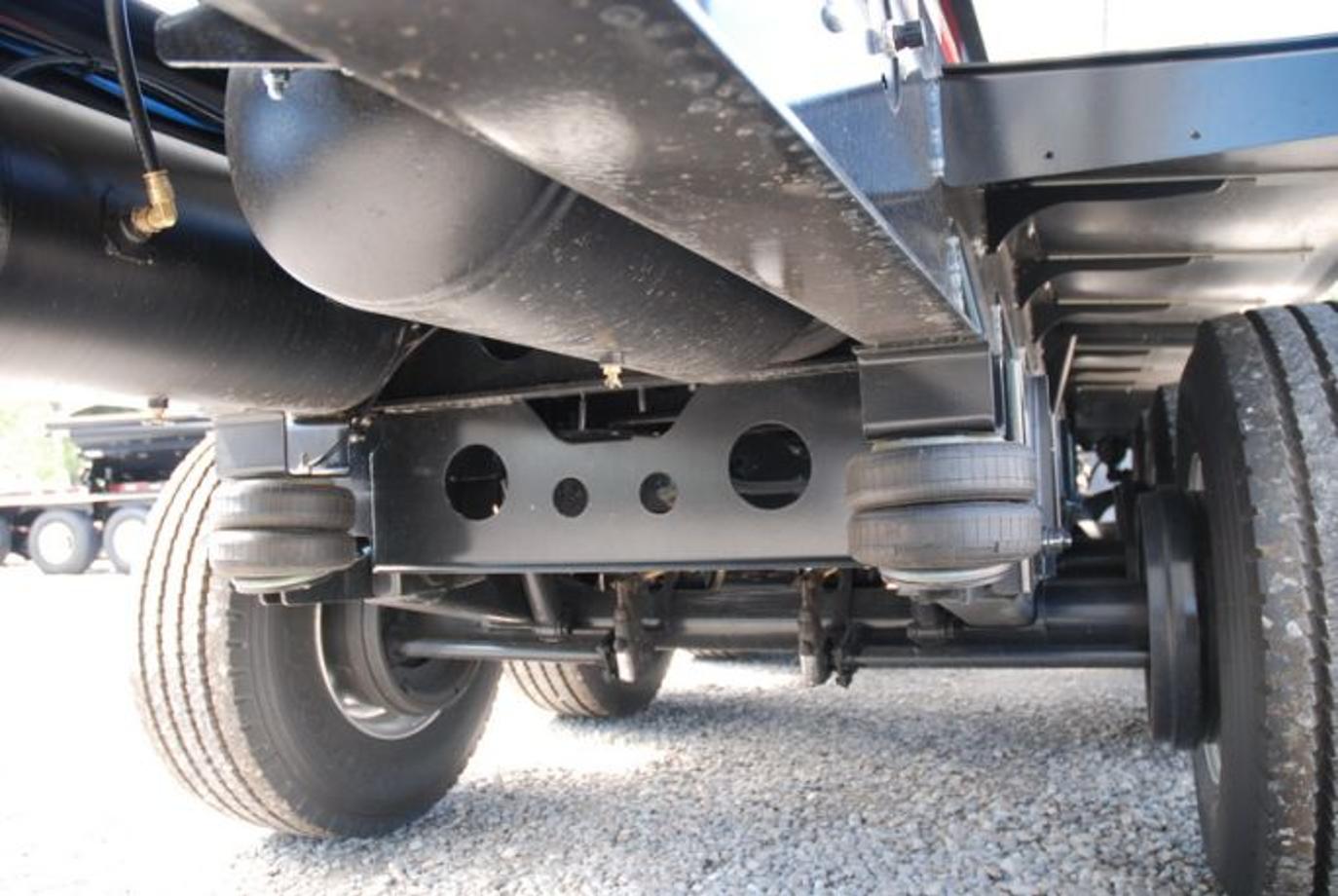

- Efficient Suspension – Ridewell RW260 air ride suspension with optimized axle spacing.
- Lift Axles – 1st standard lift axle and 4th steerable/lift axle (16.6K).
- Braking System – 25K ABS axle + 3 non-ABS axles, 16.5″ × 7″ brakes, cast steel drums.
- Wheels & Tires – Hub-piloted aluminum wheels with super single 385/65R22.5 tires (axles 1–3) and 295/75R22.5 tires (axle 4).

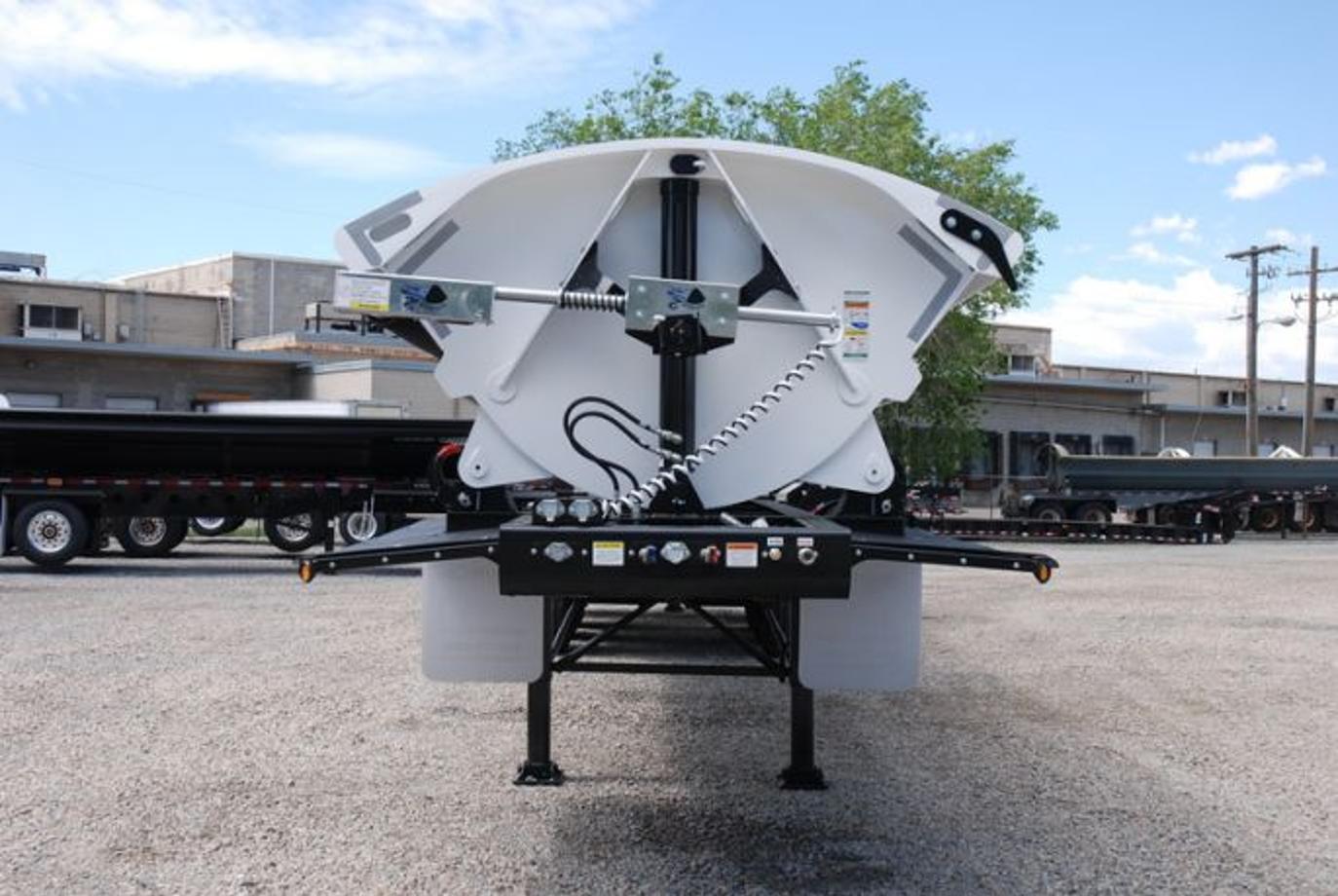

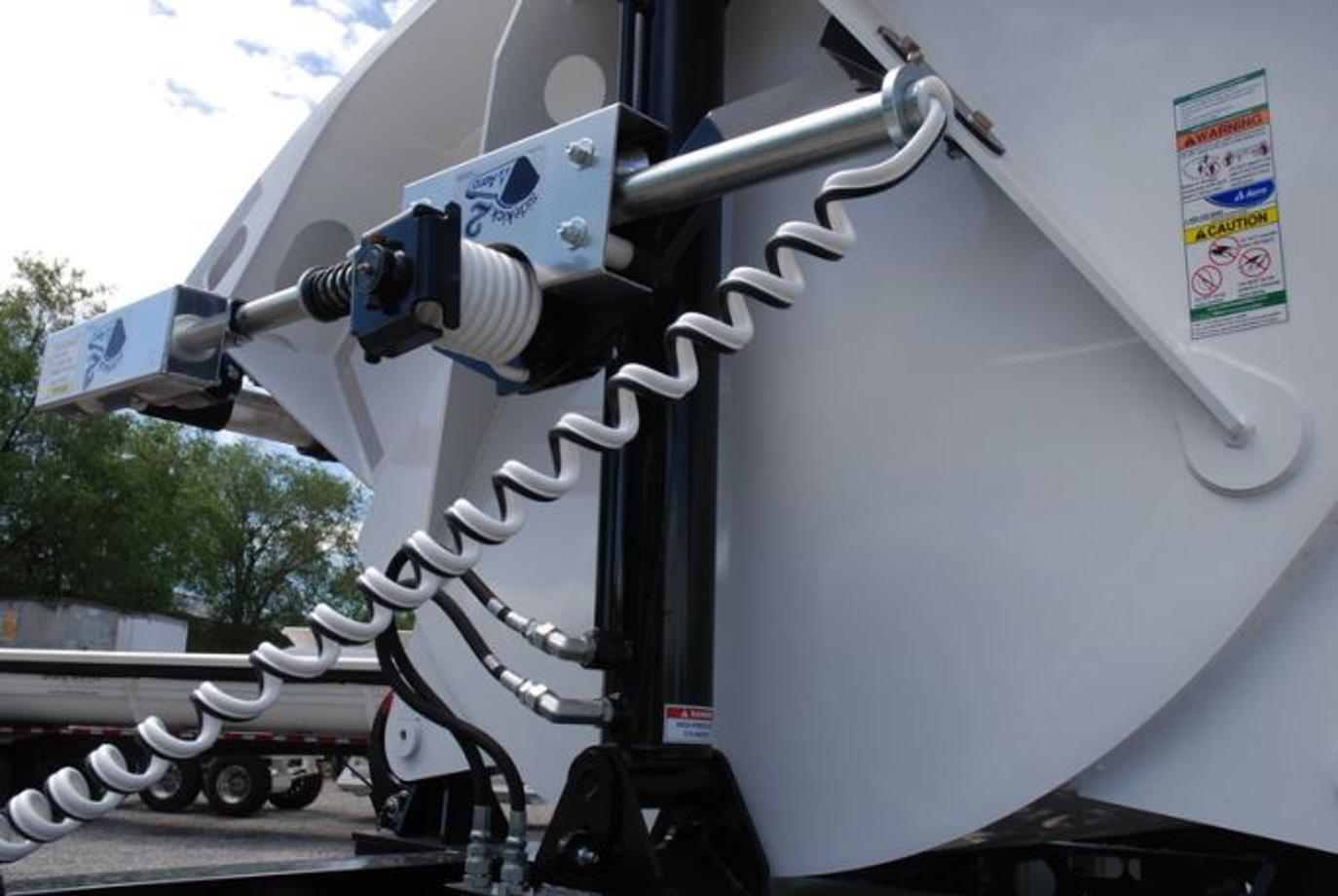

- Safety & Control – Tarp lockout switch, AERO mesh tarp, large liquid-filled air gauge, and multiple taillights/ID lights.

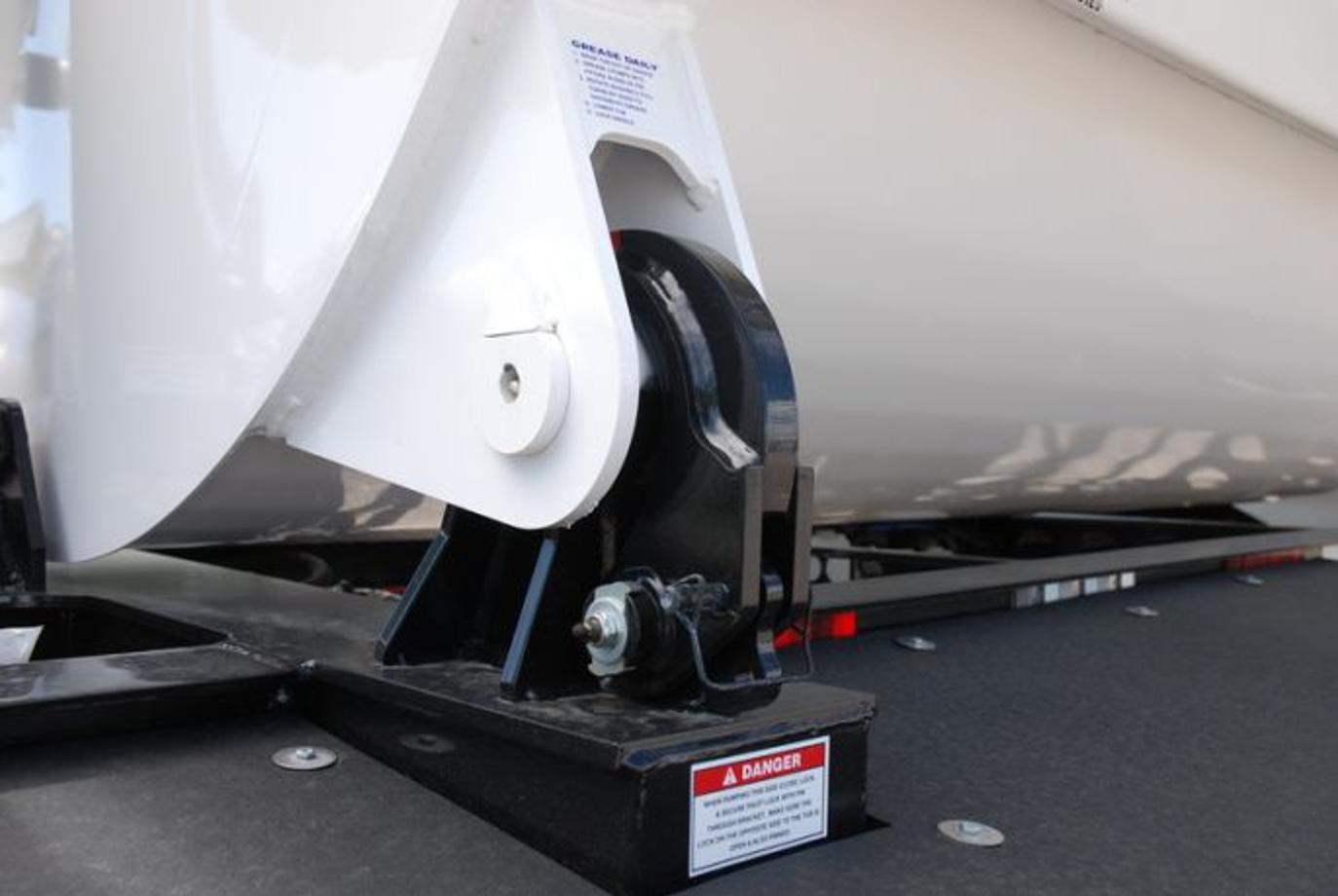

- Additional Features – MARK V dolly legs, grease banks for hydraulic cylinders, W-style pushblock, and plastic fenders.
- Premium Finish – Tub painted DV-19088 (White), frame painted DV-19040-DTM (Black).
Detailed Specifications
| Category | Specification |
|---|---|
| Model | SX4 |
| Category | Side Dump |
| Frame Width | 102″ wide |
| Frame Length | 49′ |
| Tub Length | 36′ |
| Tub Style | SX-ROUND BOTTOM |
| Tub Volume (Water Level) | 24.1 cubic yards |
| Tub Volume (Heaped) | 32 cubic yards |
| Tub Construction | ¼″ AR400 sides & floor, no dividers |
| Tub Paint | DV-19088 (White) |
| Frame Paint | DV-19040-DTM (Black) |

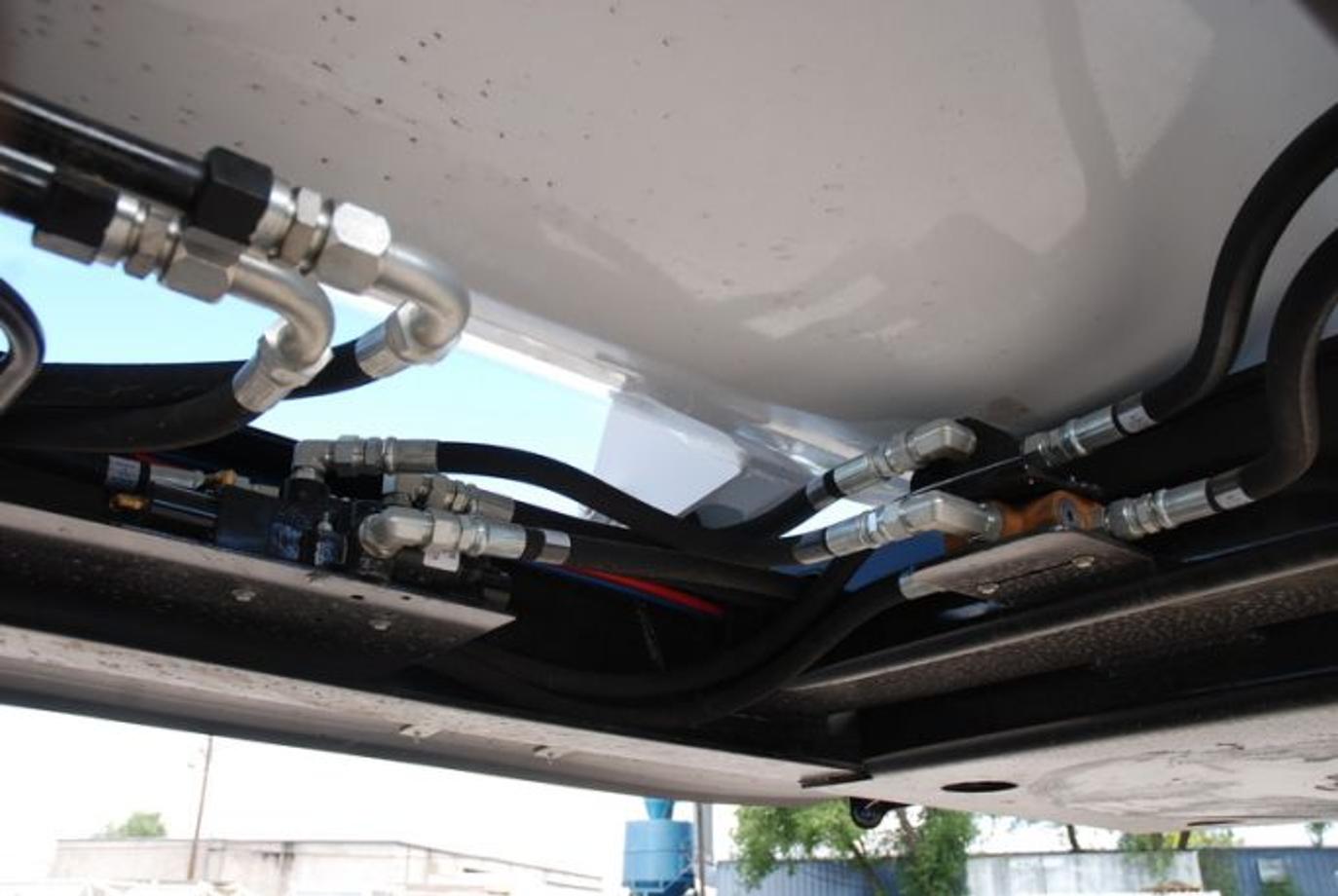

| Hydraulics | 5″ cylinders, air/hydraulic control valve on trailer |
| Grease Bank | Front & rear hydraulic cylinders (standard) |
| Suspension | Ridewell RW260 |
| Axle Spacing | 54″–54″–60″ |
| Lift Axles | 1st standard lift, 4th steerable/lift (16.6K) |
| Axles | 25K ABS (1), 25K non-ABS (3) |
| Axle Track | 77.5″ (standard) |
| Hubs | Duralite (standard) |
| Brakes | 16.5″ × 7″ |
| Drums | Cast steel |
| Wheel Style | Hub-piloted U/M |
| Wheel Type | (6) 12.25×22.5 SS aluminum super singles (triaxle), (2) 9″ aluminum (steers) |
| Tires | (6) 385/65R22.5 “J” ply super singles (triaxle), (2) 295/75R22.5 (steers) |
| Fenders | Plastic |
| Dolly Legs | MARK V |
| Tarp Brand/Type | AERO mesh, non-sealed |
| Lockout Switch | Tarp lockout |
| Pushblock | W-style (standard) |
| Air Gauge | Large liquid-filled, driver’s side (standard) |
| Lighting | 3 red taillights, 5 rear ID lights |
