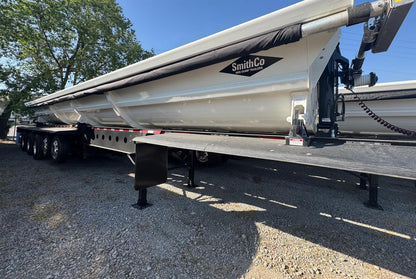

SmithCo Side Dump Trailer | Model SX6-53-40 | Frame Length 53' | Tub Length 40' | Frame Width 102"
Ripping It is Partnered with Western Truck to provide the best pricing and service for SmithCo.
DESCRIPTION

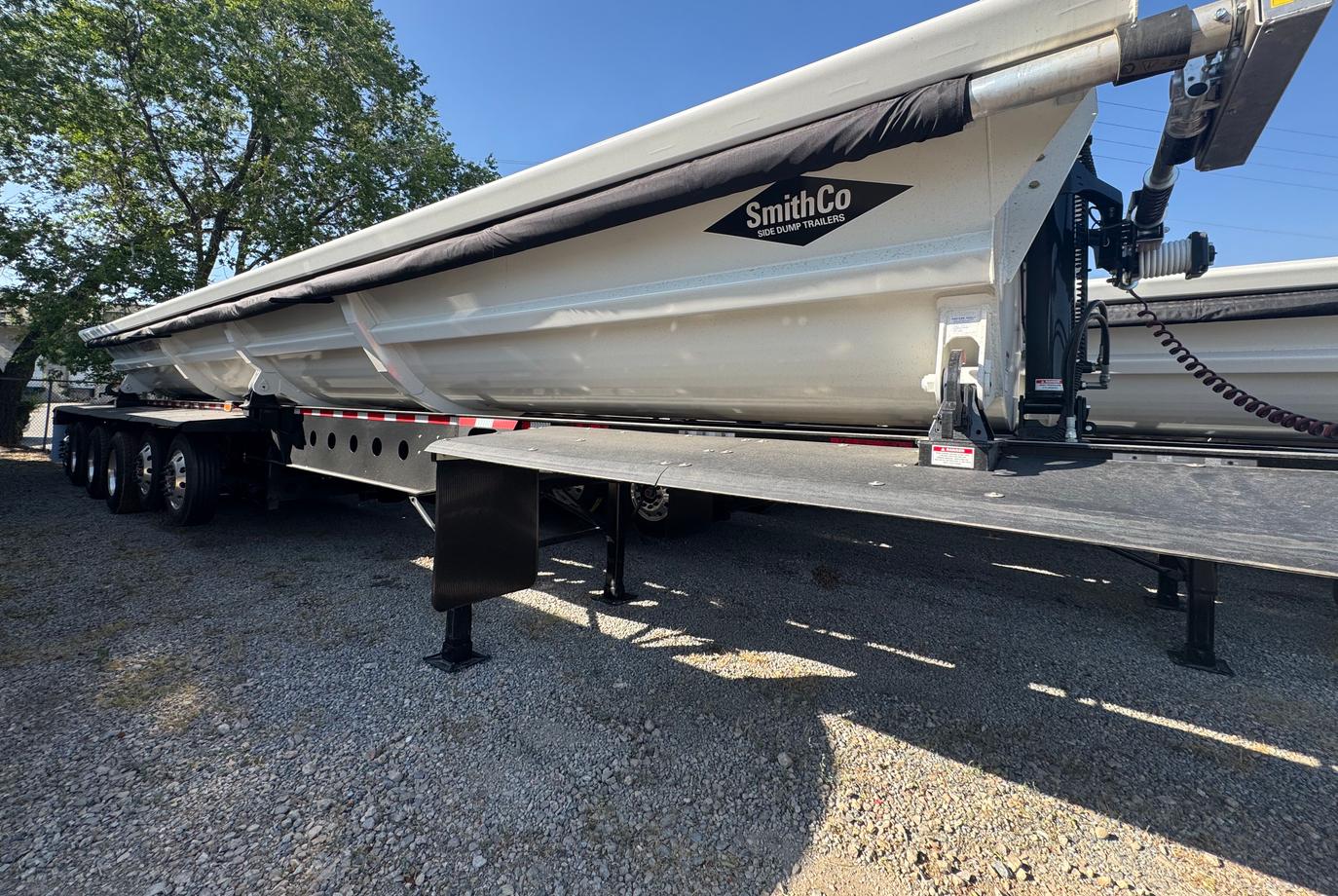

The SmithCo SX6-53-40 is a high-capacity side dump trailer engineered for maximum durability and efficiency in heavy-duty hauling. Built on a 53′ frame with a 40′ SX-ROUND BOTTOM tub, it delivers a load capacity of 26.8 cubic yards (water level) and 35.6 cubic yards (heaped). Constructed with 3/16″ AR450 steel sides and floor, the SX6-53-40 is designed to withstand abrasive materials and demanding jobsite conditions.
Equipped with 6″ hydraulic cylinders, an electric/hydraulic control valve, and Ridewell RW260 air ride suspension, this trailer ensures smooth dumping, reliable performance, and long service life. With multiple steerable lift axles, advanced braking, and durable hubs, the SX6-53-40 is a proven solution for contractors, aggregate haulers, and construction fleets requiring maximum payload and versatility.
Key Features
- Large Capacity Tub – 40′ SX-ROUND BOTTOM tub with 26.8 yd³ water level and 35.6 yd³ heaped capacity.
- Durable AR450 Steel – 3/16″ AR450 sides and floor for superior wear resistance.

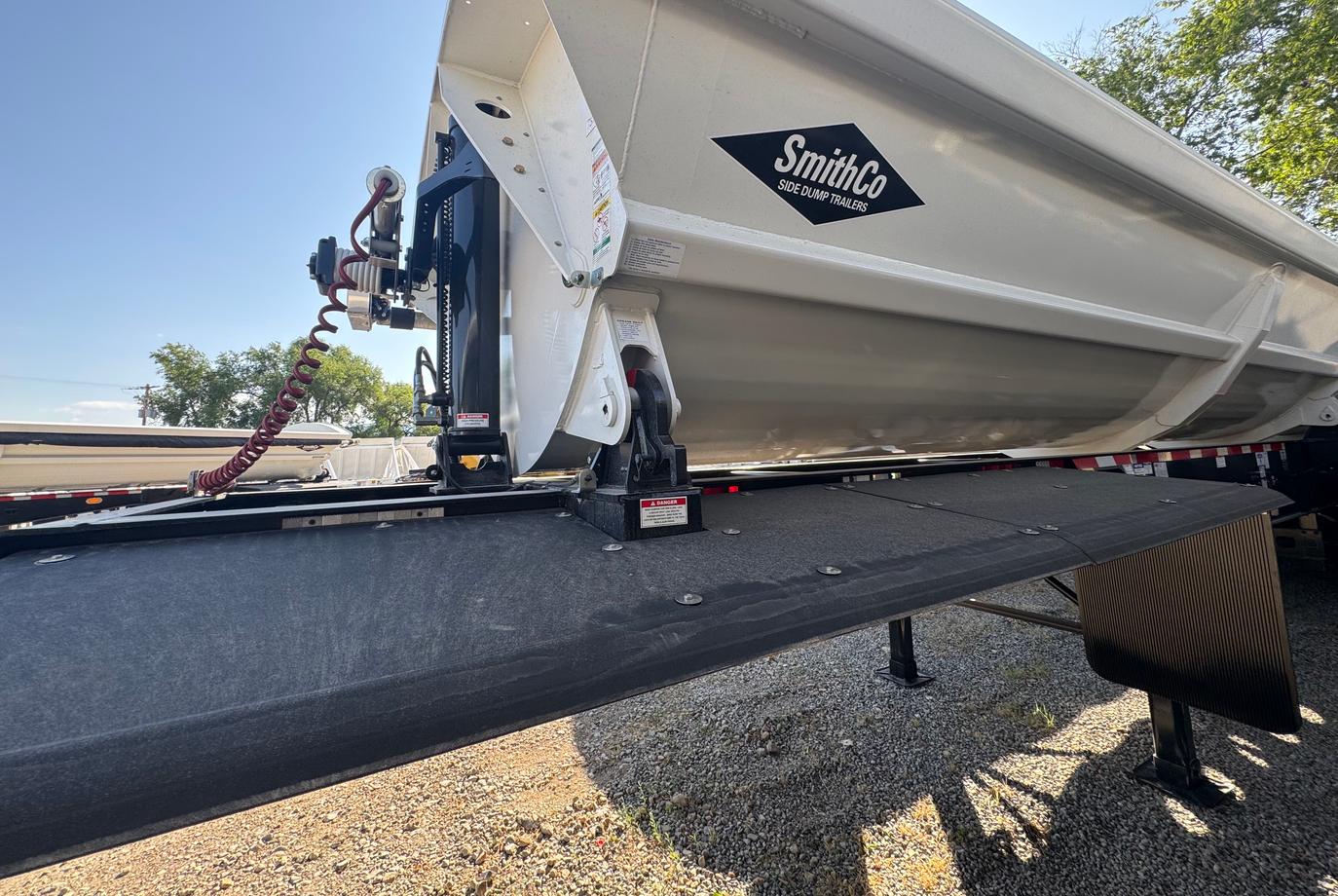

- Hydraulic System – 6″ cylinders with electric/hydraulic control valve mounted on trailer.

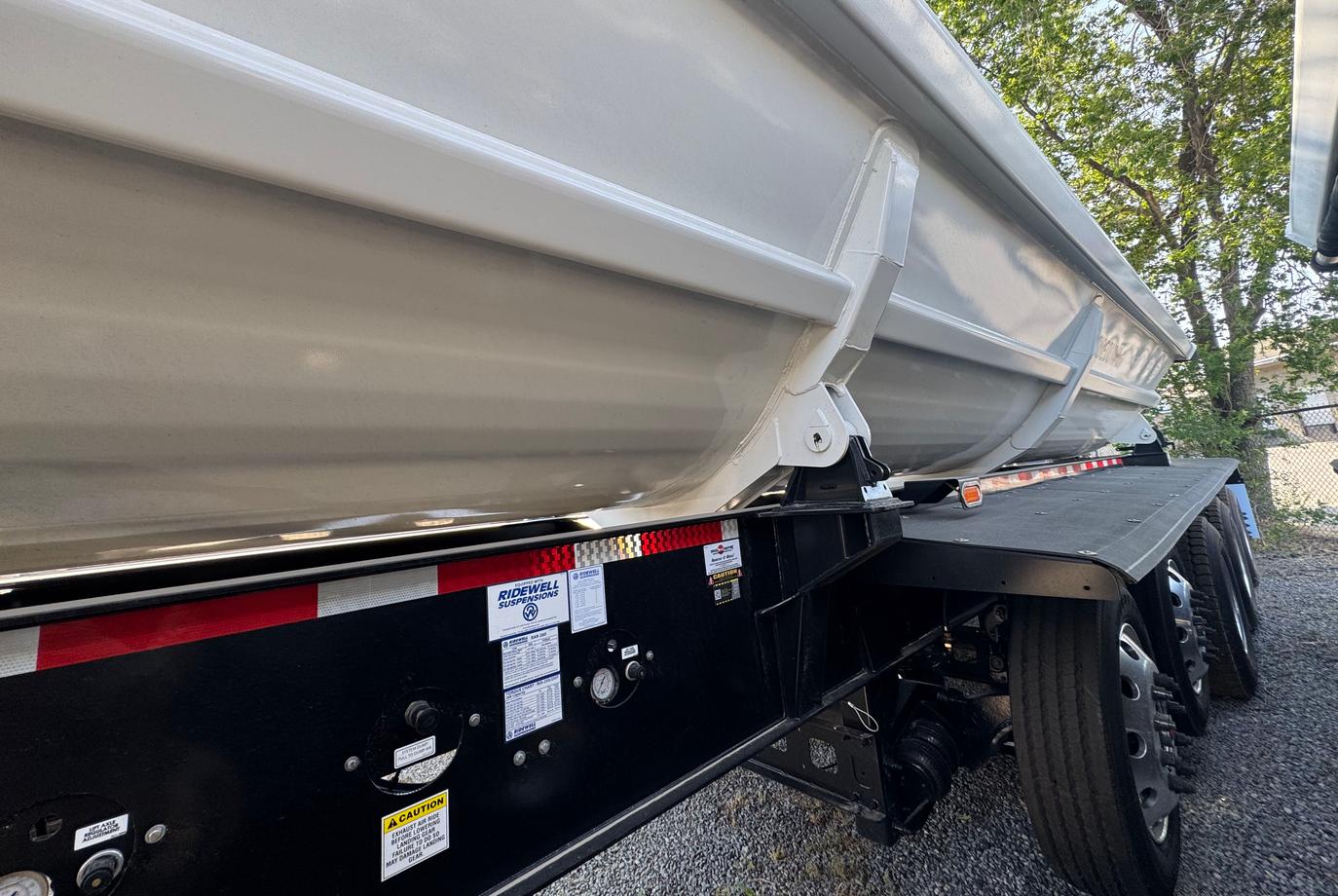

- Efficient Suspension – Ridewell RW260 air ride suspension with optimized axle spacing.
- Steerable Lift Axles – 1st, 2nd, and 6th axles (13.2K HD) on separate switches for maneuverability.
- Braking System – 25K ABS axle + 5 non-ABS axles, 16.5″ × 7″ brakes, cast steel drums.

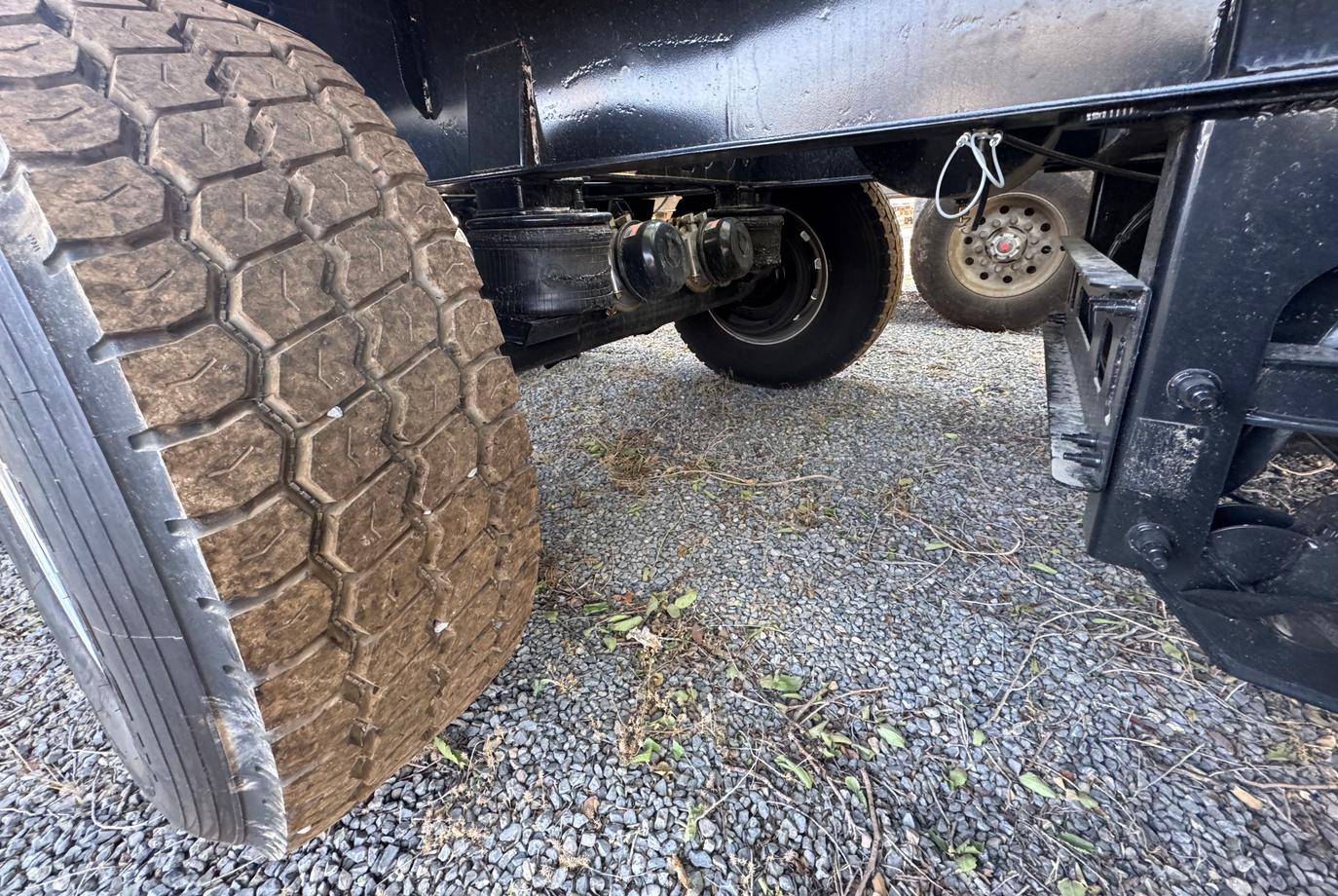

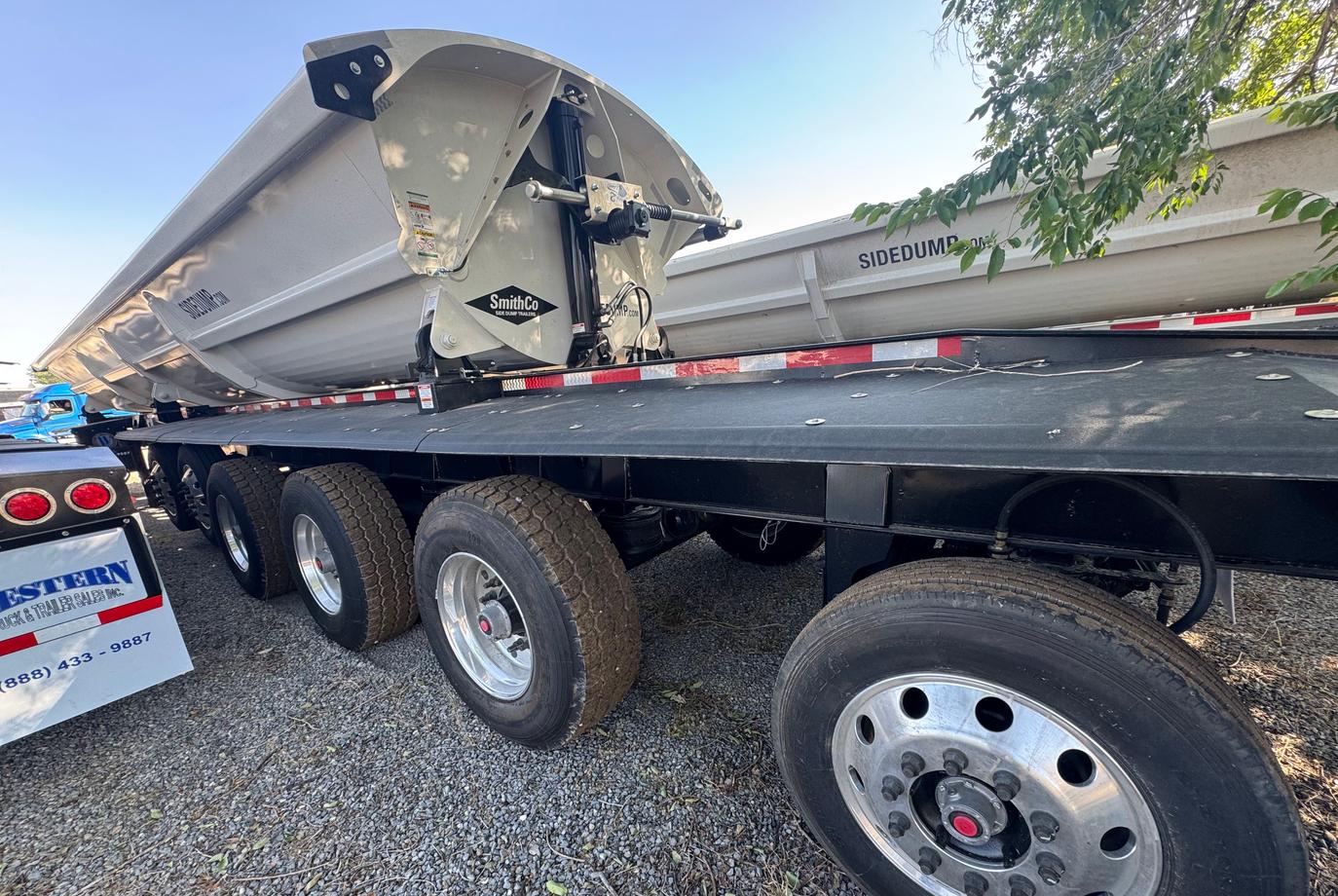

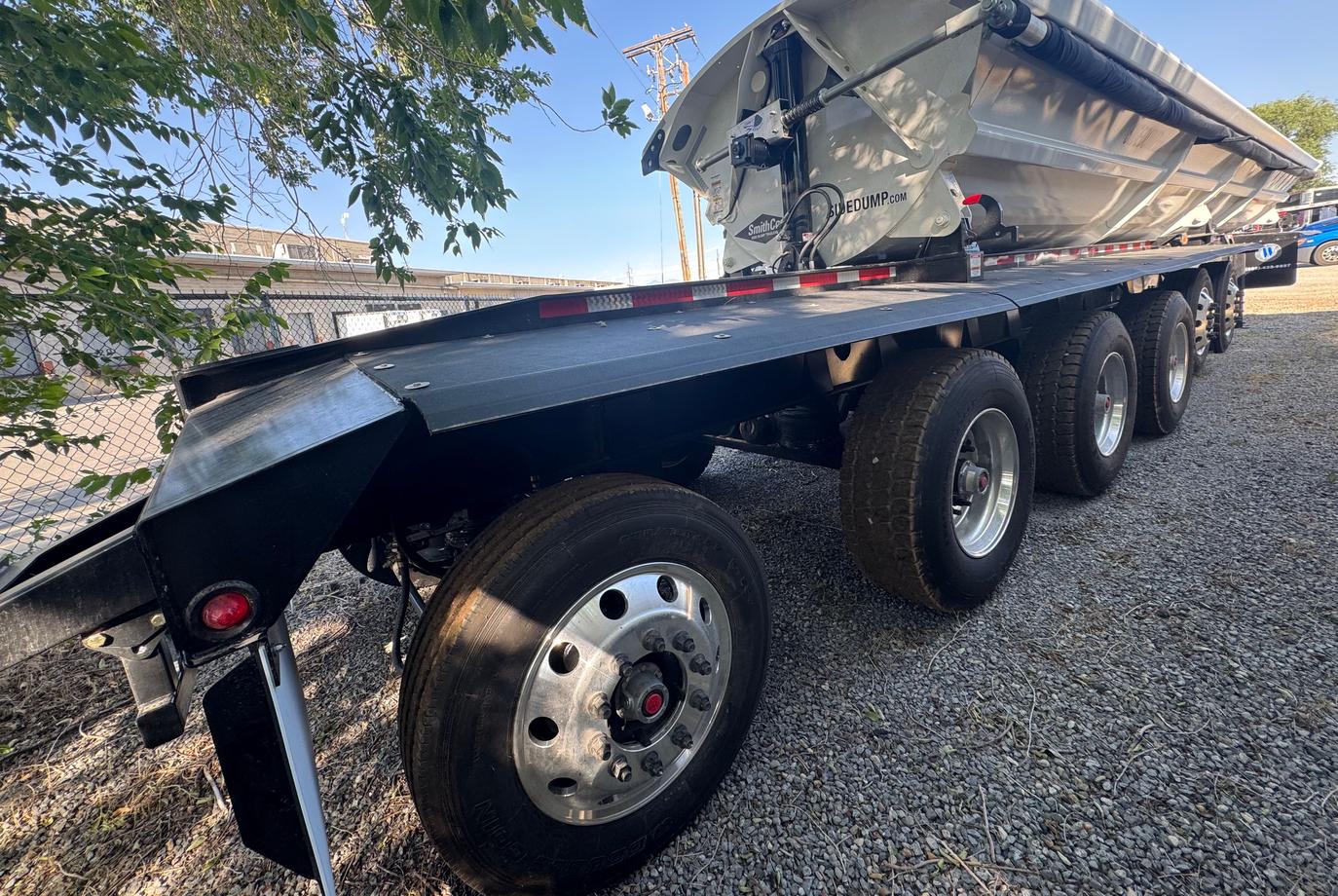

- Wheels & Tires – Hub-piloted aluminum wheels with super single 385/65R22.5 tires (axles 3–5) and 275/70R22.5 tires (axles 1, 2, 6).
- Safety & Control – Tarp lockout switch, AERO mesh tarp, large liquid-filled air gauge, and multiple taillights/ID lights.
- Additional Features – MARK V dolly legs, grease banks for hydraulic cylinders, W-style pushblock, and plastic fenders.
- Premium Finish – Tub painted DV-19088 (White), frame painted DV-19040-DTM (Black).
Detailed Specifications
| Category | Specification |
|---|---|
| Manufacturer | SmithCo |
| Model | SX6U |
| Category | Side Dump |
| Frame Width | 102″ wide |
| Frame Length | 53′ |
| Tub Length | 40′ |
| Tub Style | SX-ROUND BOTTOM |
| Tub Volume (Water Level) | 26.8 cubic yards |
| Tub Volume (Heaped) | 35.6 cubic yards |
| Tub Construction | 3/16″ AR450 sides & floor, no dividers |
| Tub Paint | DV-19088 (White) |
| Hydraulics | 6″ cylinders, electric/hydraulic control valve on trailer |
| Grease Bank | Front & rear hydraulic cylinders (standard) |
| Suspension | Ridewell RW260 air ride |
| Axle Spacing | 52″–52″–62″–62″–64″ |
| Lift Axles | 1st, 2nd & 6th steerable lifts (13.2K HD) |
| Axles | 25K ABS (1), 25K non-ABS (5) |
| Axle Track | 83.5″ |
| Hubs | Duralite (standard) |
| Brakes | 16.5″ × 7″ |
| Drums | Cast steel, zero offset wheels on super singles |
| Wheel Style | Hub-piloted U/M |
| Wheel Type | (6) 12.25×22.5 SS aluminum super singles (axles 3–5), (6) standard aluminum (axles 1, 2, 6) |
| Tires | (6) 385/65R22.5 super singles (axles 3–5), (6) 275/70R22.5 (axles 1, 2, 6) |
| Fenders | Plastic |
| Dolly Legs | MARK V |
| Tarp Brand/Type | AERO mesh, non-sealed |
| Lockout Switch | Tarp lockout |
| Pushblock | W-style (standard) |
| Air Gauge | Large liquid-filled, driver’s side (standard) |

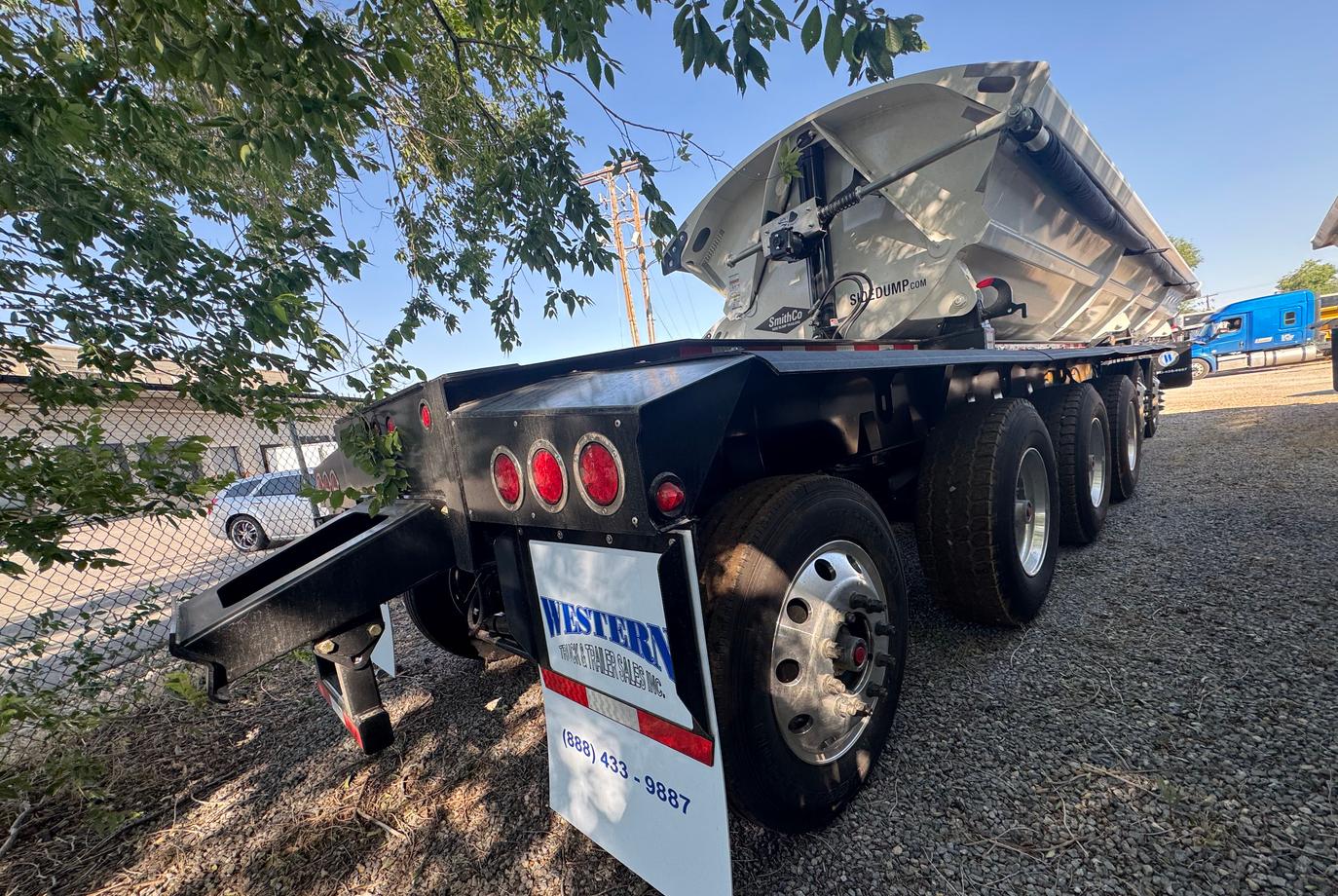

| Lighting | 3 red taillights, 5 rear ID lights |
