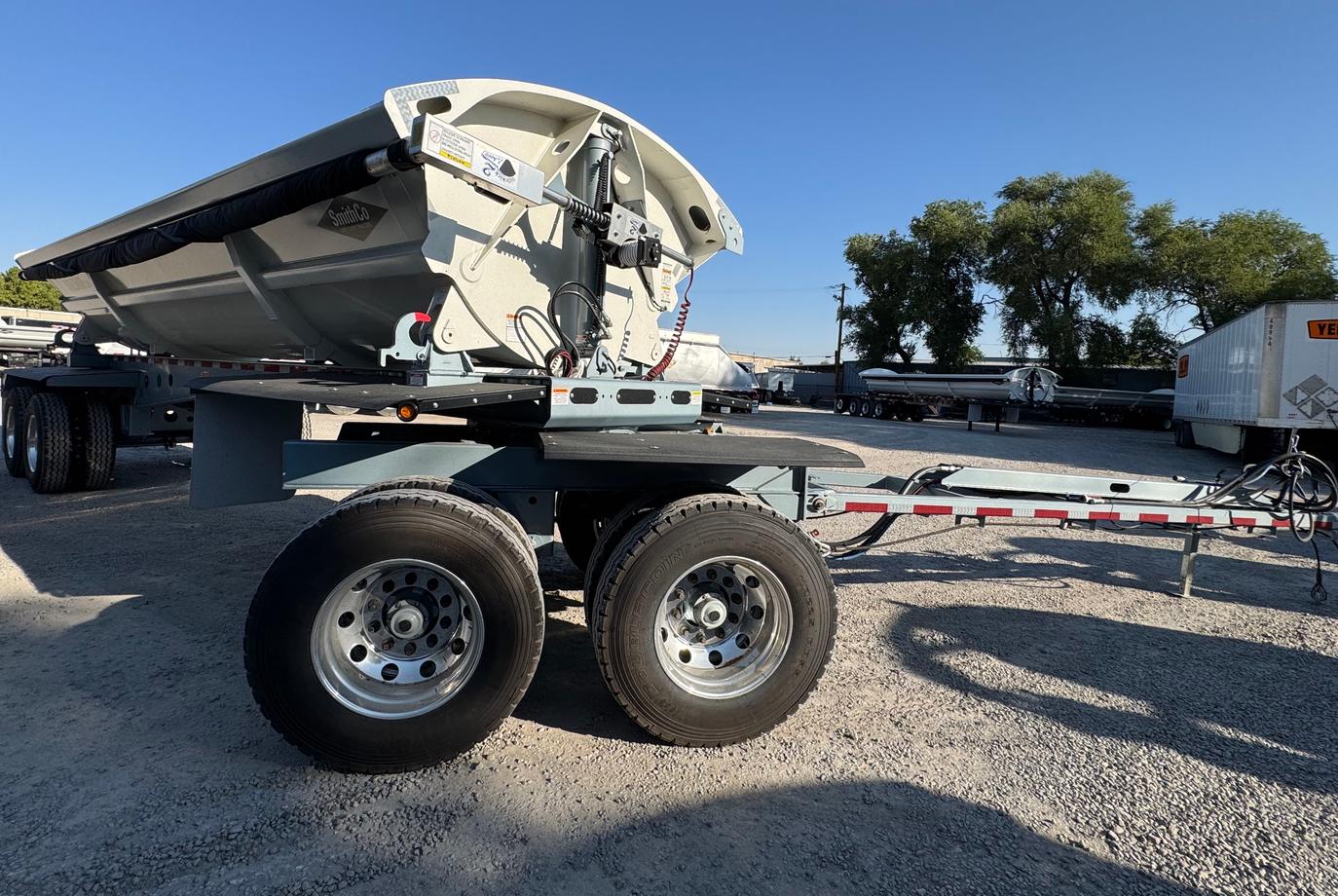

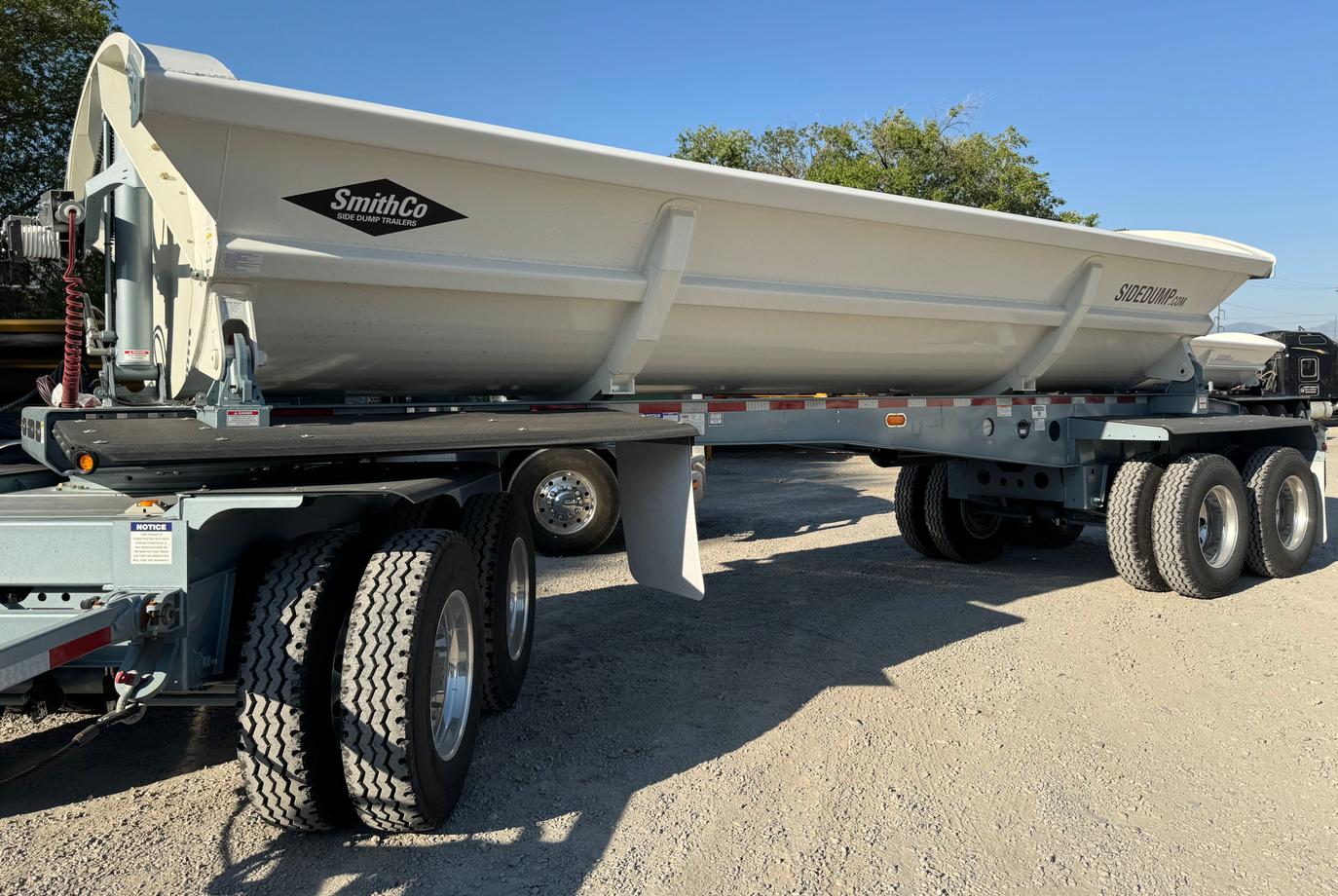

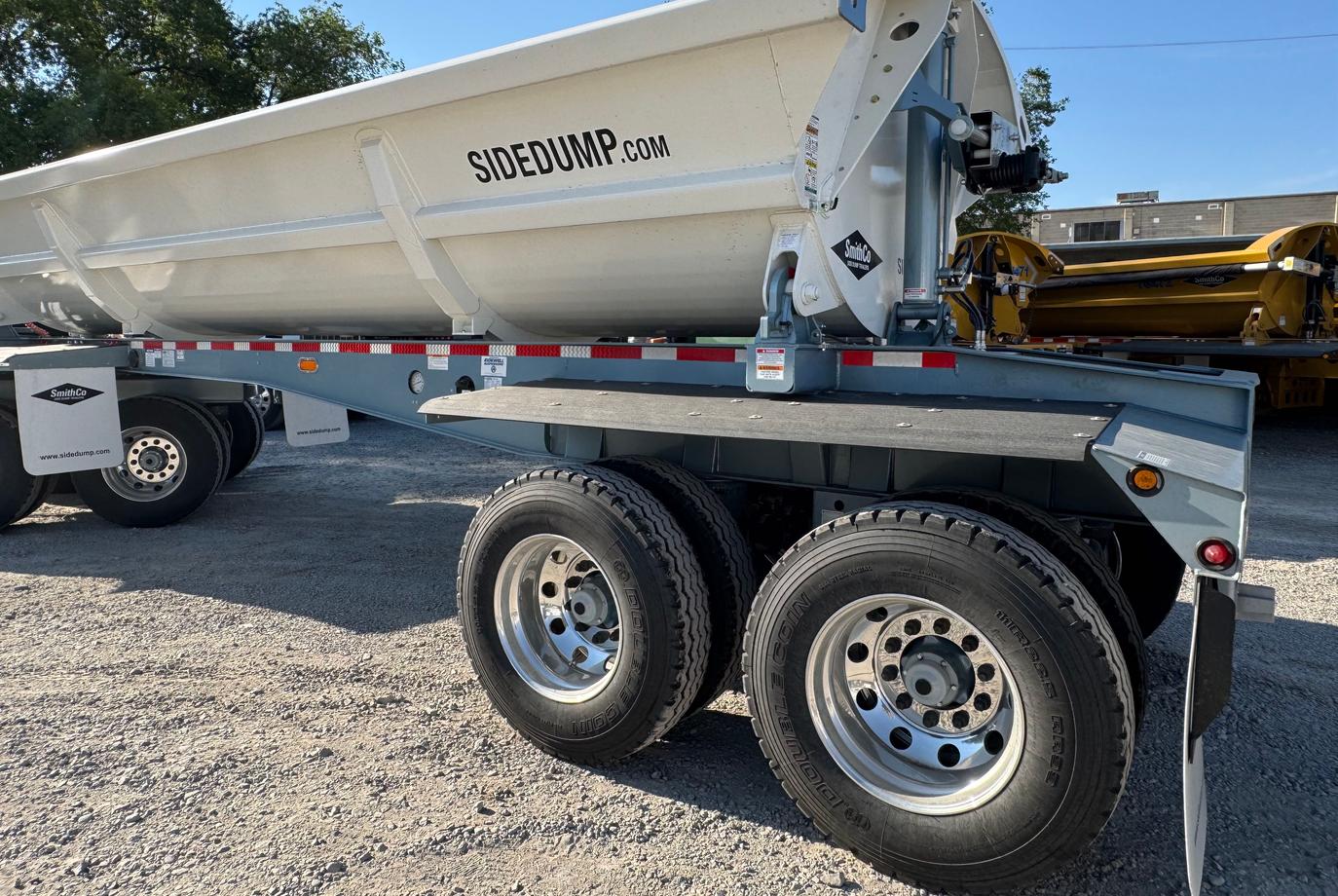

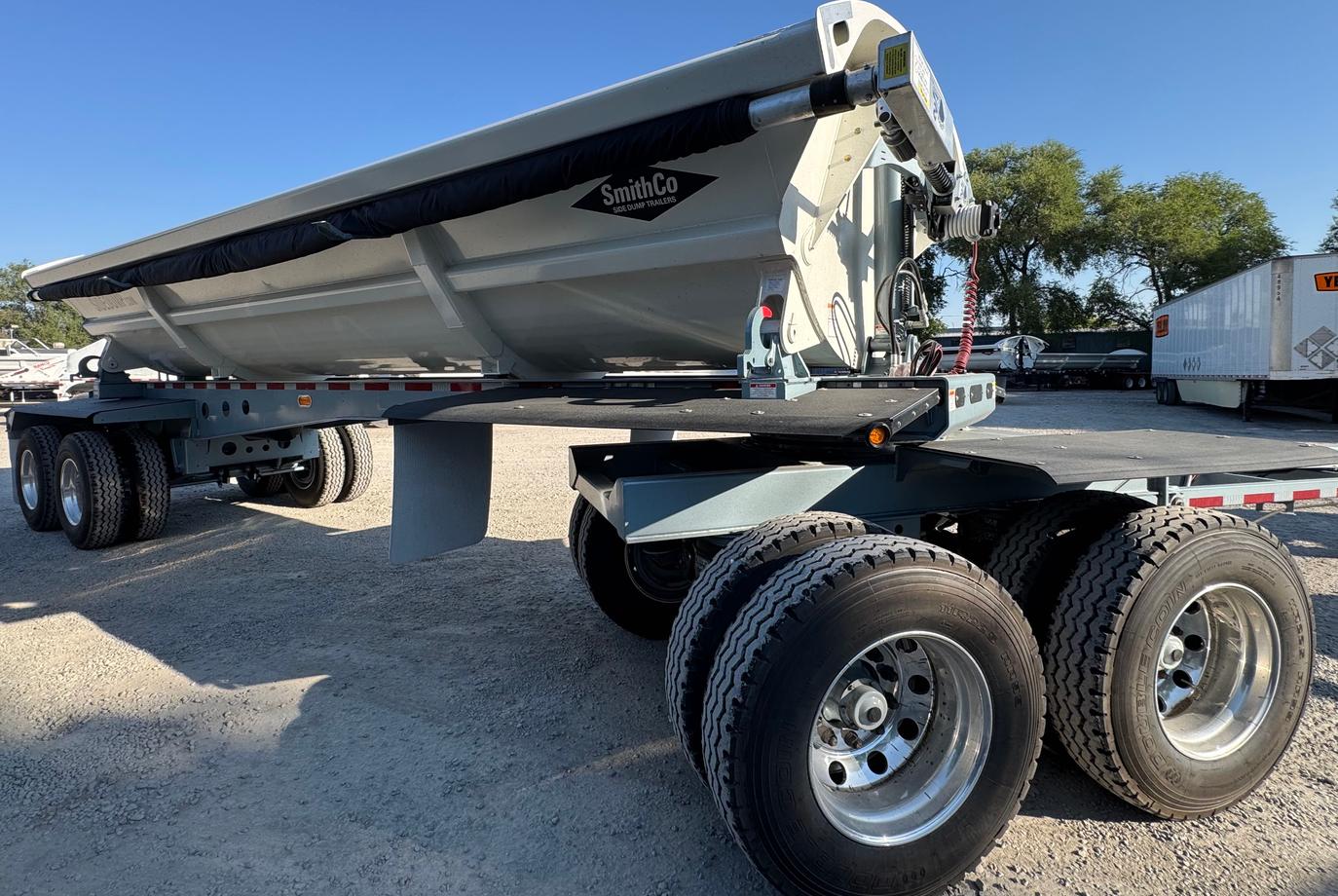

SmithCo Side Dump Trailer | Model SX2FP-30-24 | Frame Length 30′ | Tub Length 24′ | Width 102"

Product Description

SmithCo Side Dump Trailer | Model SX2FP-30-24 | Frame Length 30′ | Tub Length 24′ | Width 102"

Ripping It is Partnered with Western Truck to provide the best pricing and service for SmithCo.

DESCRIPTION

The SmithCo SX2FP-30-24 is a compact yet rugged side dump trailer designed for durability, efficiency, and versatility. Built on a 30′ frame with a 24′ SX-ROUND BOTTOM tub, it offers a load capacity of 16 cubic yards (water level) and 21.4 cubic yards (heaped). Constructed with 1/4″ AR450 steel sides and floor, the SX2FP-30-24 is engineered to withstand abrasive materials and heavy-duty hauling conditions.

Equipped with 5″ hydraulic cylinders, an electric/hydraulic control valve, and Ridewell RW260 air ride suspension, this trailer ensures smooth dumping performance and reliable operation. With oil-filled hubs, polished aluminum wheels, and a custom blue frame finish, the SX2FP-30-24 combines premium durability with standout aesthetics, making it ideal for contractors, aggregate haulers, and fleets seeking both performance and presentation.

Key Features

• Compact High-Capacity Tub – 24′ SX-ROUND BOTTOM tub with 16 yd³ water level and 21.4 yd³ heaped capacity.
• Durable AR450 Steel – 1/4″ AR450 sides and floor for maximum wear resistance.

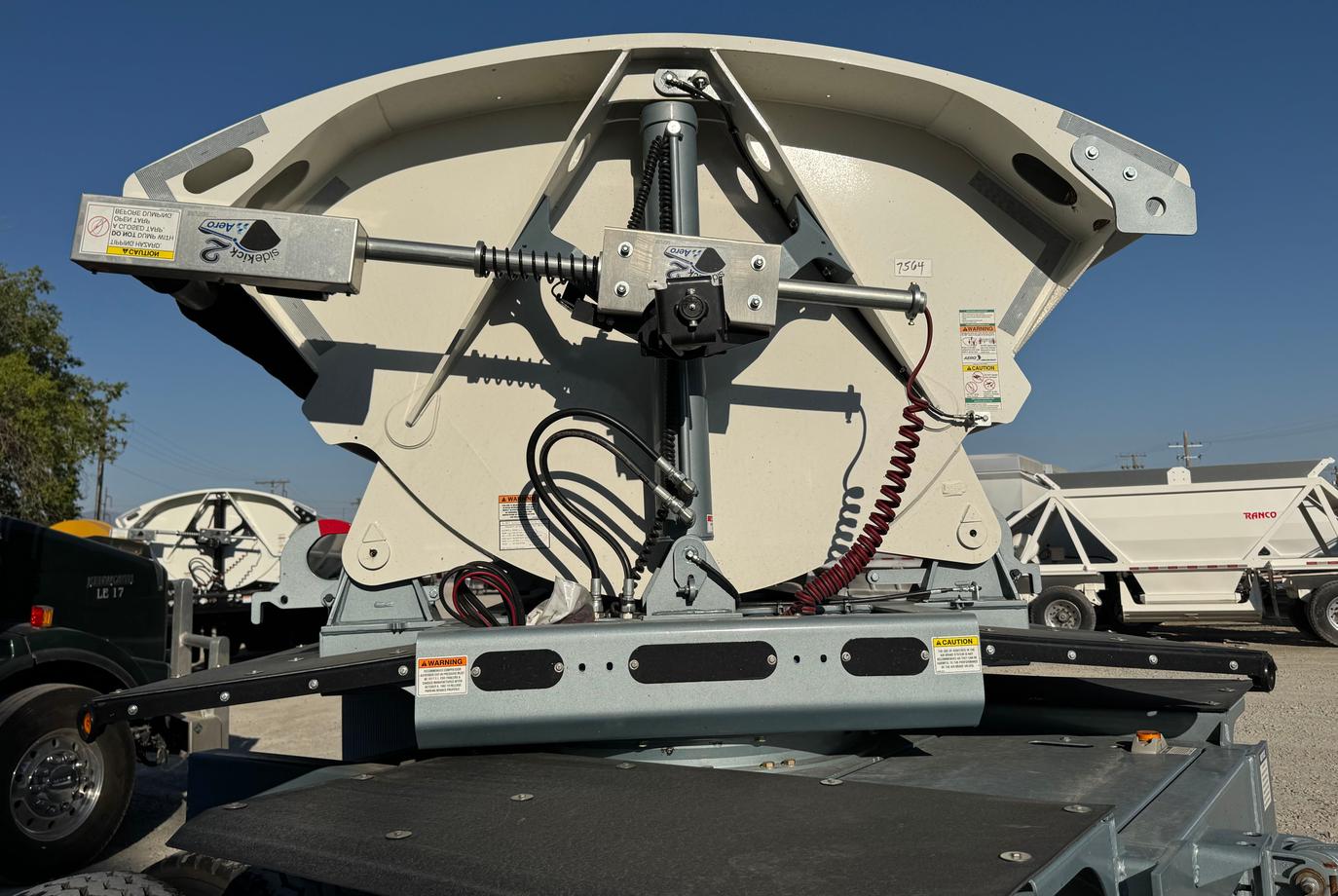

• Hydraulic System – 5″ cylinders with electric/hydraulic control valve mounted on trailer.

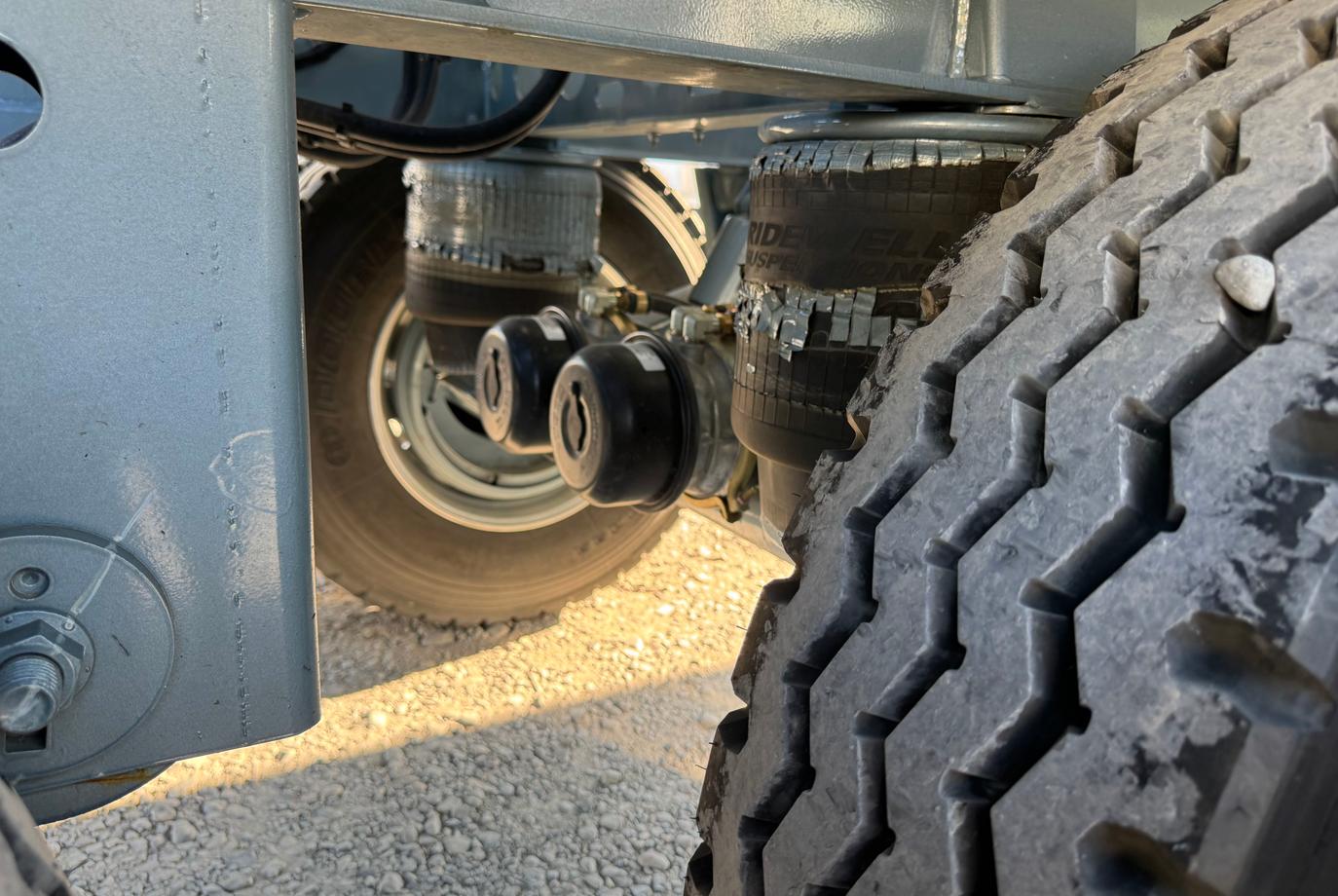

• Efficient Suspension – Ridewell RW260 air ride suspension with 49″ axle spacing.
• Axle Configuration – 2 ABS axles (25K) + 2 non-ABS axles (25K), 77.5″ track.
• Premium Hubs – Duralite oil-filled hubs with solid hub caps for extended service life.
• Braking System – 16.5″ × 7″ brakes with cast steel drums.
• Wheels & Tires – Hub-piloted aluminum wheels, 8 aluminum inner + 8 polished aluminum outer, fitted with Double Coin RR99 11R22.5 tires (16 units).

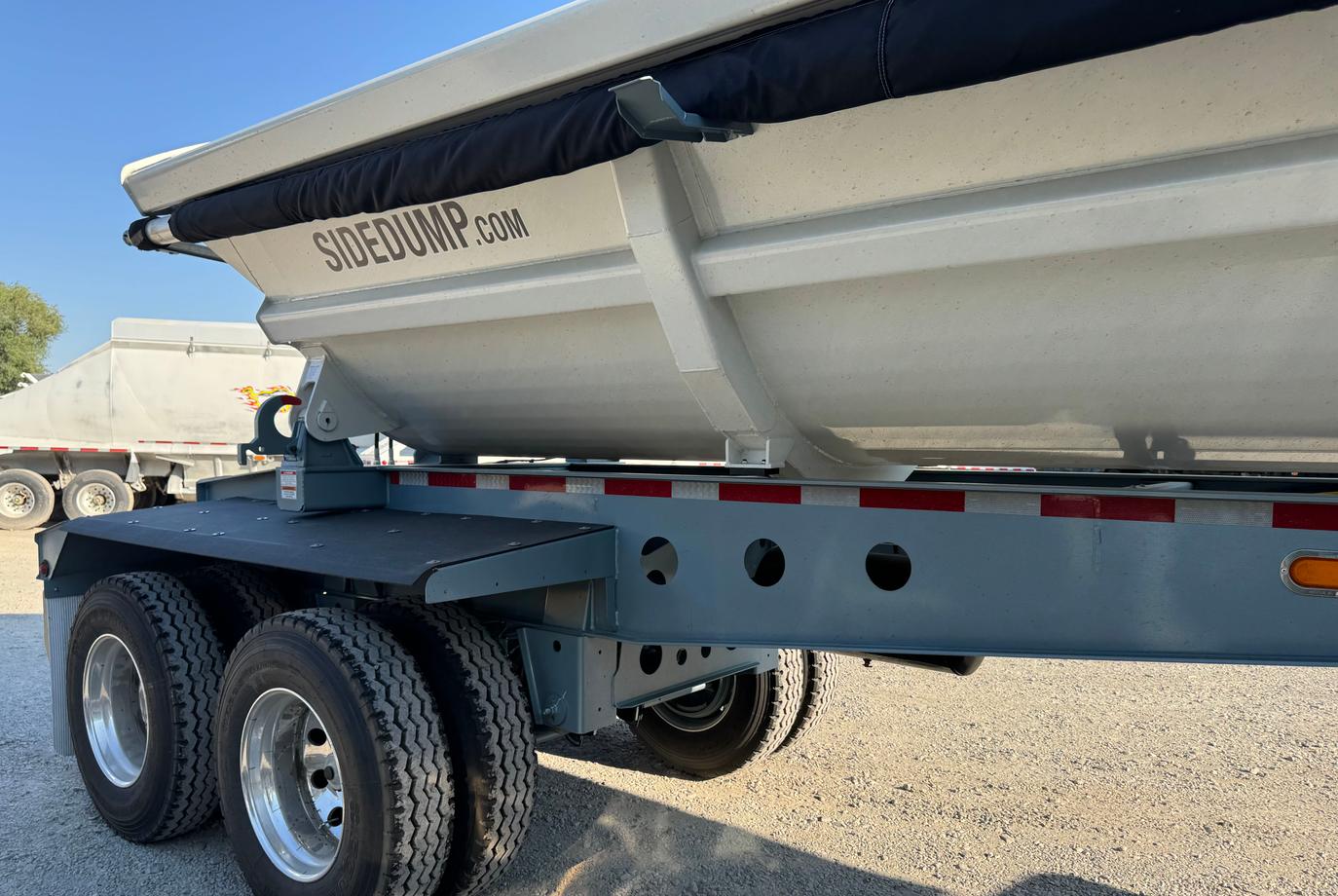

• Safety & Control – Tarp lockout switch, AERO mesh tarp, large liquid-filled air gauge.
• Additional Features – Plastic fenders, grease banks for hydraulic cylinders, no dolly legs for lighter weight.
• Premium Finish – Tub painted DV-19088 (White), frame painted DV-N0334 (Blue, special finish).
