Solesbee’s Hydraulic Progressive Link Thumb | SPT Series | Width 25"-40" | Machine Size 16.5 – 39.5 Tons | For Excavators
Solesbee’s Hydraulic Progressive Link Thumb | SPT Series | Width 25"-40" | Machine Size 16.5 – 39.5 Tons | For Excavators
Regular price
$11,104.53
Regular price
Sale price
$11,104.53
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Solesbee’s Hydraulic Progressive Link Thumb | SPT Series | Width 25"-40" | Machine Size 16.5 – 39.5 Tons | For Excavators
DESCRIPTION

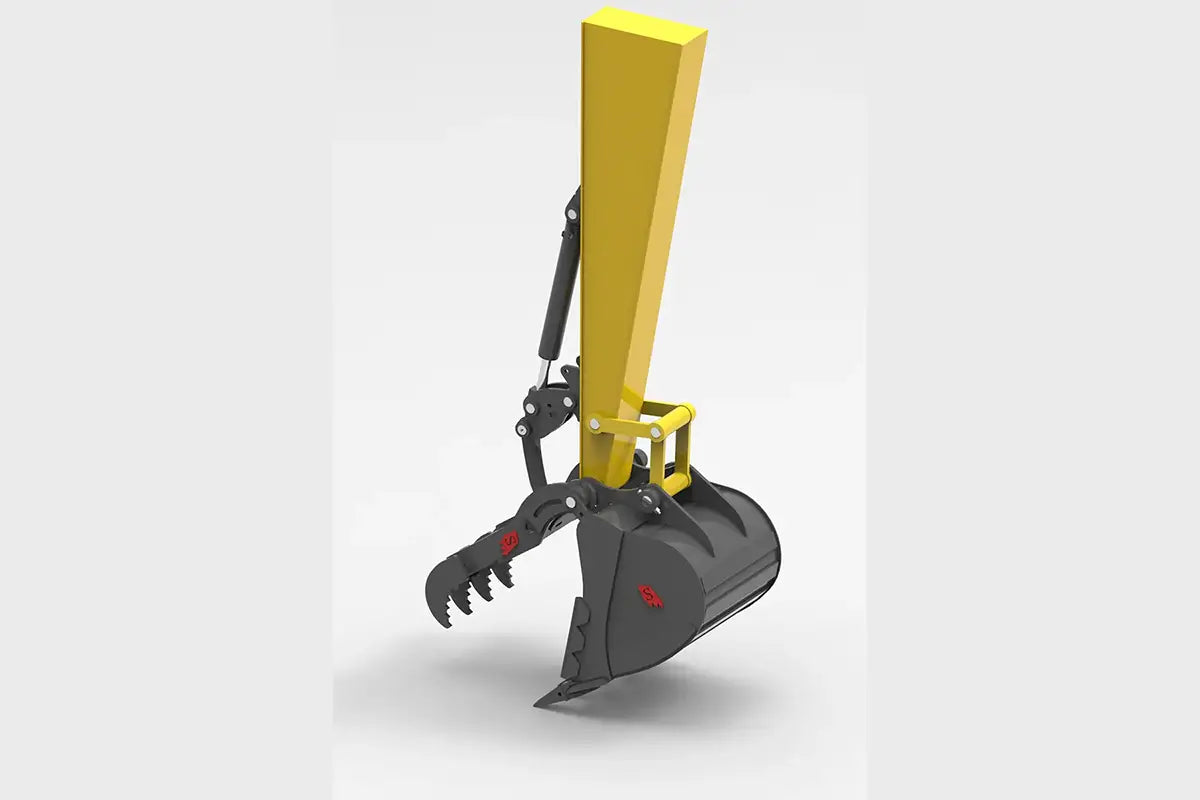

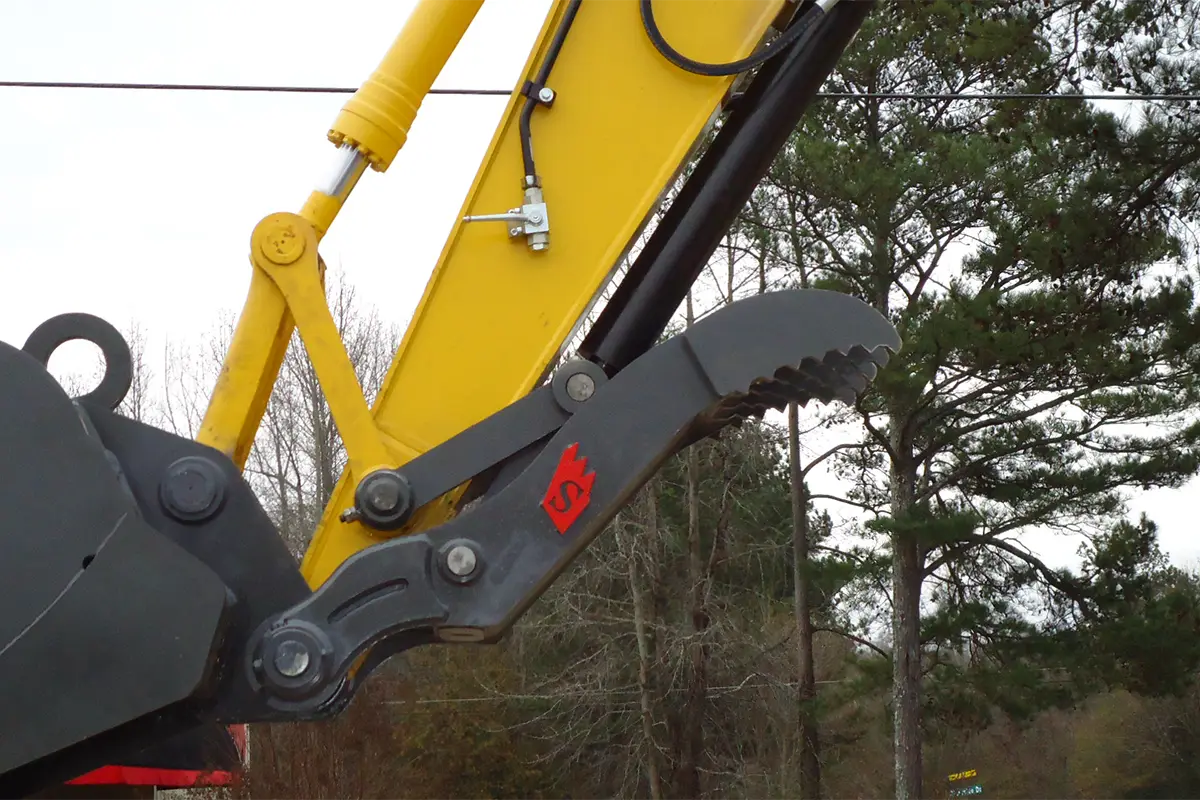

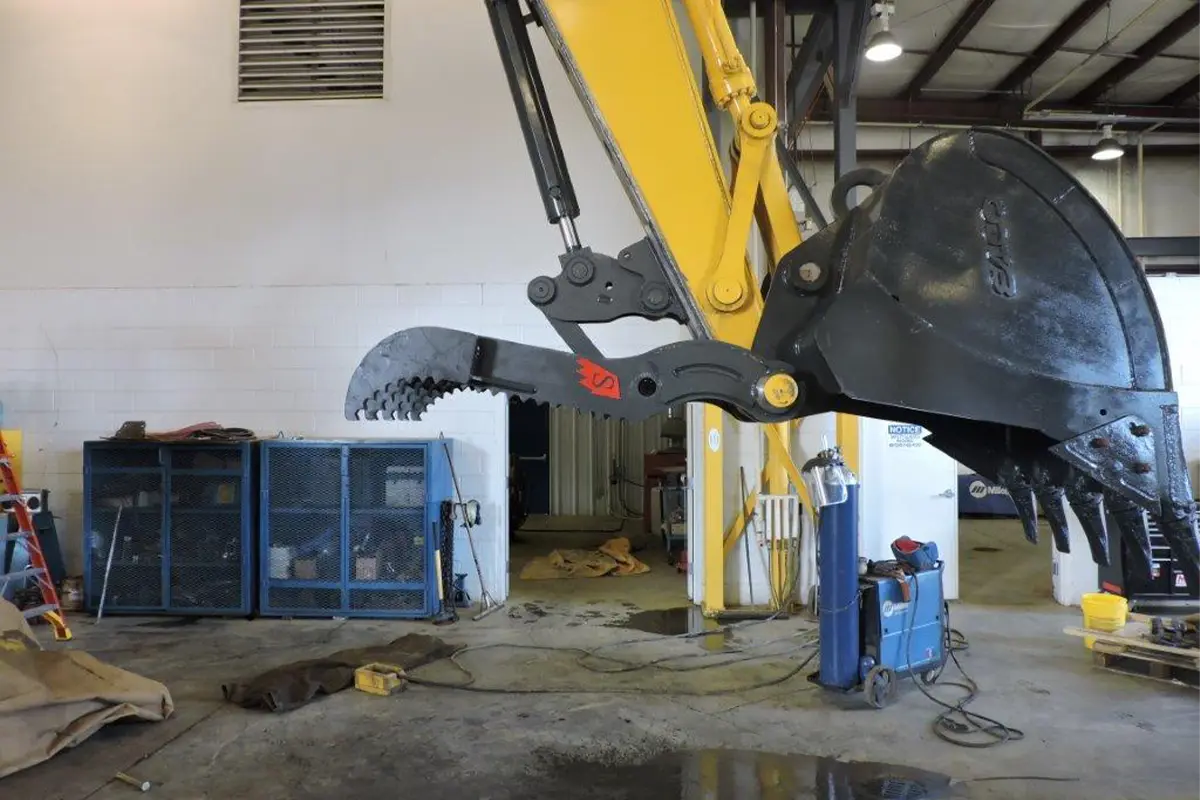

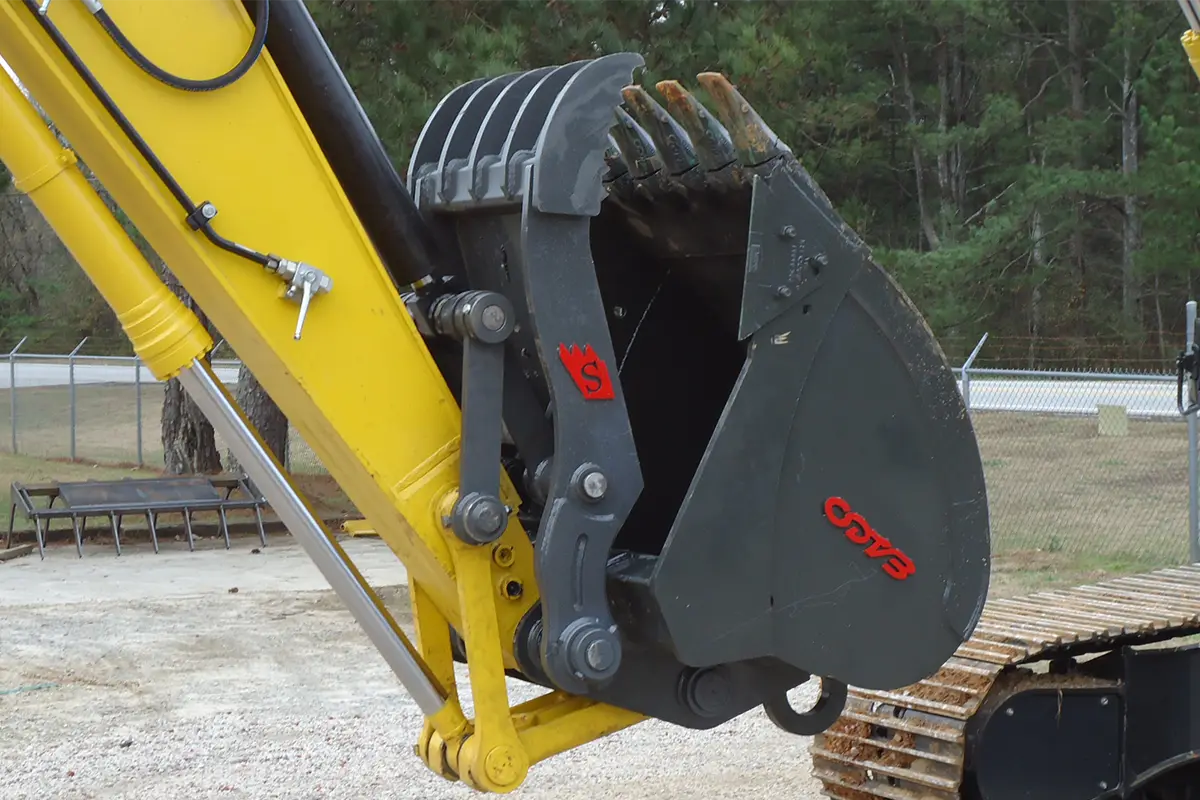

The Solesbee’s Progressive Link Hydraulic Thumb – SPT Series is engineered for maximum versatility, precision, and material‑handling efficiency. Designed for excavators from 33,000 – 79,000 lbs (16.5 – 39.5 tons), this thumb uses a unique progressive linkage system to deliver a full 180° rotation, allowing operators to grip, lift, and position materials with unmatched control.
Whether handling logs, rocks, demolition debris, or irregular loads, the SPT Series folds tightly against the stick when not in use, preserving full digging capability. Built from high‑strength steel and equipped with a USA‑made heavy‑duty hydraulic cylinder, it’s available in multiple widths, lengths, and quick‑coupler configurations to perfectly match your bucket and machine class.
Key Features
- Machine Size Range – Fits excavators from 33,000 – 79,000 lbs (16.5 – 39.5 tons)
- Full 180° Rotation – Enables precise placement and secure handling of materials
- Progressive Linkage System – Maintains optimal grip through the thumb’s full range of motion
- Compact Storage – Folds tight against the stick when not in use
- Hydraulic Operation – Smooth, controlled movement for efficient material handling
- Heavy‑Duty Cylinder – USA‑made for strength and reliability
- Complete Mounting Kit – Includes pins, cylinder, and factory bushings
- Flexible Mounting – Attaches to bucket and boom arm or bucket and coupler
- No Jump Hoses Included – Allows for custom hydraulic setup to match your machine
- Versatile Applications – Ideal for demolition, land clearing, rock handling, and site prep
Detailed Specifications
33,000 – 40,000 lbs Excavator Class (16.5 – 20 t) |
|||||
|---|---|---|---|---|---|
Item Code |
Width (in) |
Length (in) |
No. of Teeth |
Mesh w/ Bucket |
Est. Weight (lbs) |
| SPT-2H/36 | 25 | 48 | 4 | 36/5 | 1,125 |
| SPT-2H/42 | 30 | 48 | 4 | 42/5 | 1,125 |
| SPT-2H/36QC | 25 | 56 | 4 | 36/5 | 1,125 |
| SPT-2H/42QC | 30 | 56 | 4 | 42/5 | 1,125 |
40,000 – 45,000 lbs Excavator Class (20 – 22.5 t) |
|||||
|---|---|---|---|---|---|
Item Code |
Width (in) |
Length (in) |
No. of Teeth |
Mesh w/ Bucket |
Est. Weight (lbs) |
| SPT-2.5H/36 | 25 | 58 | 4 | 36/5 | 1,350 |
| SPT-2.5H/42 | 30 | 58 | 4 | 42/5 | 1,350 |
| SPT-2.5H/48 | 34 | 58 | 4 | 48/5 | 1,350 |
| SPT-2.5H/54 | 40 | 58 | 5 | 54/6 | 1,350 |
| SPT-2.5H/36QC | 25 | 66 | 4 | 36/5 | 1,350 |
| SPT-2.5H/42QC | 30 | 66 | 4 | 42/5 | 1,350 |
| SPT-2.5H/48QC | 34 | 66 | 4 | 48/5 | 1,350 |
| SPT-2.5H/54QC | 40 | 66 | 5 | 54/6 | 1,350 |
46,000 – 59,000 lbs Excavator Class (23 – 29.5 t) |
|||||
|---|---|---|---|---|---|
Item Code |
Width (in) |
Length (in) |
No. of Teeth |
Mesh w/ Bucket |
Est. Weight (lbs) |
| SPT-3H/36 | 25 | 58 | 4 | 36/5 | 1,400 |
| SPT-3H/42 | 30 | 58 | 4 | 42/5 | 1,400 |
| SPT-3H/48 | 34 | 58 | 4 | 48/5 | 1,400 |
| SPT-3H/54 | 40 | 58 | 5 | 54/6 | 1,400 |
| SPT-3H/36QC | 25 | 66 | 4 | 36/5 | 1,400 |
| SPT-3H/42QC | 30 | 66 | 4 | 42/5 | 1,400 |
| SPT-3H/48QC | 34 | 66 | 4 | 48/5 | 1,400 |
| SPT-3H/54QC | 40 | 66 | 5 | 54/6 | 1,400 |
60,000 – 79,000 lbs Excavator Class (30 – 39.5 t) |
||||
|---|---|---|---|---|
Item Code |
Width (in) |
No. of Teeth |
Mesh w/ Bucket |
Est. Weight (lbs) |
| SPT-4H/42 | 30 | 4 | 42/5 | 1,450 |
| SPT-4H/48 | 34 | 4 | 48/5 | 1,450 |
| SPT-4H/54 | 40 | 5 | 54/6 | 1,450 |
| SPT-4H/42QC | 30 | 4 | 42/5 | 1,450 |
| SPT-4H/48QC | 34 | 4 | 48/5 | 1,450 |
| SPT-4H/54QC | 40 | 5 | 54/6 | 1,450 |
Manuals & Documents
- Solebees Excavator Buckets Specification Sheet
- Solesbees Excavator Quick Couplers Specifications Sheet
- Solesbees Excavator Hydraulic Progressive Link Thumb Installation Guide
- Solesbees Excavator Hydraulic Thumbs Parts List
