Product Description
DESCRIPTION

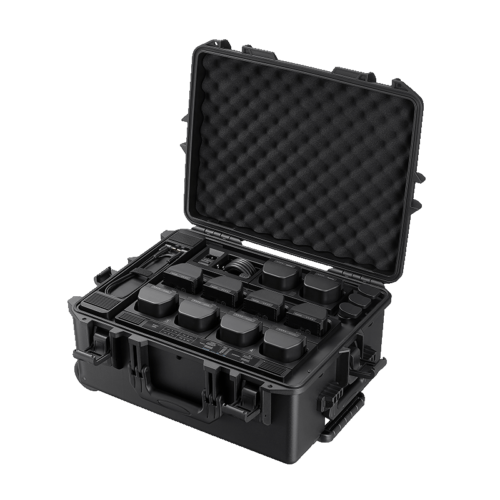

The LBN-H1 Battery Station is designed for professional drone operators flying Sony’s Airpeak S1 drone (1), from film sets to industrial applications. It provides convenient storage and transportation of up to ten Airpeak S1 battery packs (LBP-HS1), while providing intelligent and fast charging for eight battery packs (charging four at a time) and discharging up to eight batteries simultaneously for transporting or extended storage.
Dimensions & Weight
- Body: Approx. 21.8 x 16.7 x 10.2 inches (including projecting parts)
- Power cord: Approx. 98.4 inches
- Weight: Approx. 33 lb 8.2 oz
Key Features
- Enhanced Charging Modes: Quick charging reduces downtime, while Full mode ensures complete battery readiness.
- Simultaneous Discharge: Supports 8-slot discharging to prepare batteries for storage or transport.
- Portable Design: Built-in wheels and handle for easy transportation.
- Accessory Charging Support: 3 auxiliary sockets for additional devices.
- Cooling System: Built-in fan for optimal battery temperature during charging.
- Enhanced Charging Capabilities

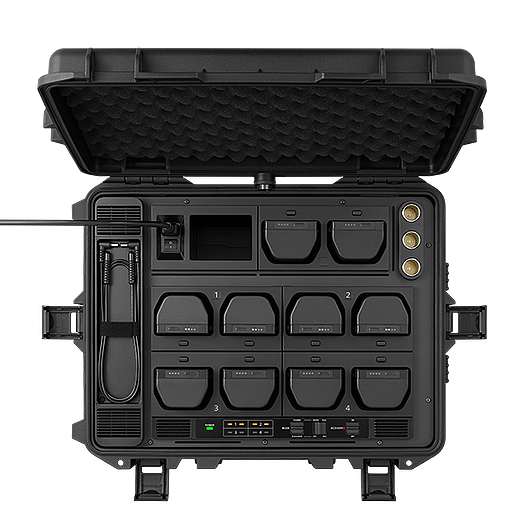

The LBN-H1 Battery Station includes built-in charging cables for two remote controllers (RCR-VH1) and equipped with three standard auxiliary power outlet accessory sockets that can support a variety of accessories, including 12V outlets that can charge mobile devices, cameras, and other USB accessories (2). The accessory socket cap can also be used as a stopper to prevent the lid from accidentally shutting due to wind or other factors while using this product.
- Fast charging for efficient workflow
The pack includes two charging modes based on the operator’s needs. This include (QUICK) mode, for shorter charging time, which will charge up to four LBP-HS1 battery packs from 20% to 90% in approximately 30 minutes and (FULL) mode, which will charge up to four LBP-HS1 battery packs from 0% to 100% in approximately 55 minutes or from 20% to 100% in approximately 50 minutes. A built-in fan automatically cools the batteries.
- Discharge mode for storage and air transportation
Up to eight battery packs can be discharged simultaneously whether the battery station power is on or off. (50%) mode can be used for long-term storage and will take approx. 17 hours to discharge from 100% to 50%. (25%) mode for air transportation will take approximately 27 hours to discharge from 100% to 25%.
- Convenient and Durable
The Battery Station comes in a robust travel case with wheels and an extendable handle to conveniently transport up to ten battery packs.
Detailed Specifications
| Feature | Details |
|---|---|
| Supported Battery Packs | LBP-HS1, LBP-HM1 |
| Charging Slots | 4 groups of 2 slots (8 total) |
| Charging Output Rating | Up to 42 V, 4 A |
| Remote Controller Charging | 2 ports, 14 V, up to 2.6 A per port |
| Accessory Socket Output | 3 ports, 12.7 V per port, up to 4.5 A per port |
| Max Power Consumption | 1,000 W |
| Dimensions | Approx. 21.8 x 16.7 x 10.2 inches |
| Weight | Approx. 33 lb 8.2 oz |
| Operating Temperature | 32°F - 104°F |
Charging Times:
| Battery Type | Mode | Charge Time |
|---|---|---|
| LBP-HS1 | Full (0%-100%) | Approx. 55 minutes |
| Full (20%-100%) | Approx. 50 minutes | |
| Quick (20%-90%) | Approx. 30 minutes | |
| LBP-HM1 | Full (0%-100%) | Approx. 75 minutes |
| Full (20%-100%) | Approx. 65 minutes | |
| Quick (20%-90%) | Approx. 40 minutes |
Discharge Times:
| Battery Type | Mode | Discharge Time |
|---|---|---|
| LBP-HS1 | 50% Mode | Approx. 17 hours |
| 25% Mode | Approx. 27 hours |
In Package
- 1x Sony LBN-H1 Battery Station
- 1x Power Cord
- 3x Accessory Socket Caps
- 1x Operating Instructions Manual
- 1x Warranty
Note:
- Operating a drone in the United States is subject to federal law and regulations. State and local ordinances may also apply to certain operations. When operating an aircraft, it is the remote pilot/operator's responsibility to always comply with applicable laws, regulations, and ordinances.
- Commercially available chargers for auxiliary power outlet accessory sockets (cigarette lighter sockets) (12 V) are required. The accessory socket does not support outputs of 50 W or more.
Manuals & Documents
Product Manual
Product Instructions
