Star Industries Crane Forks | Fork Frame & Tine | 46" & 47" | For Cranes
DESCRIPTION

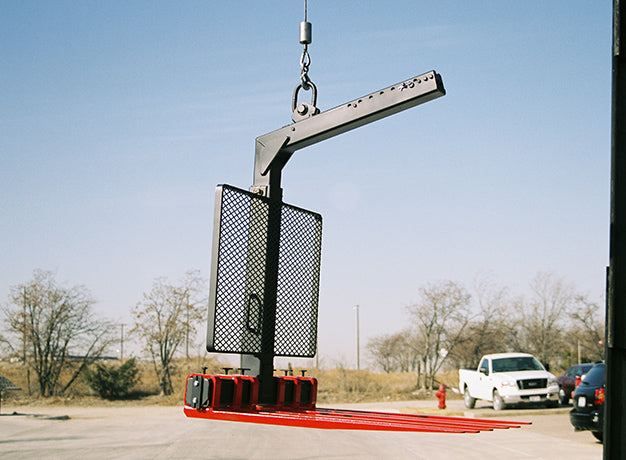

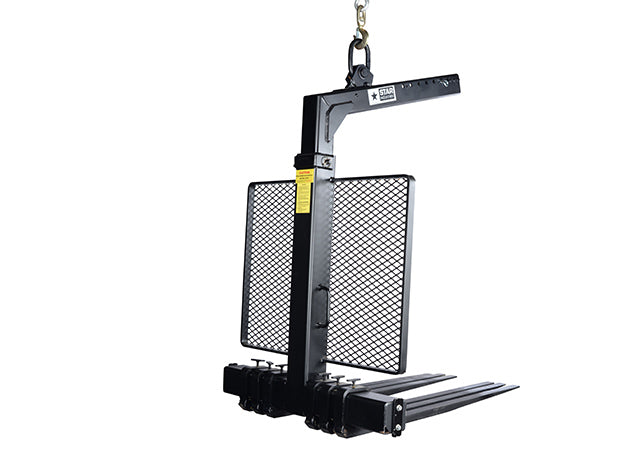

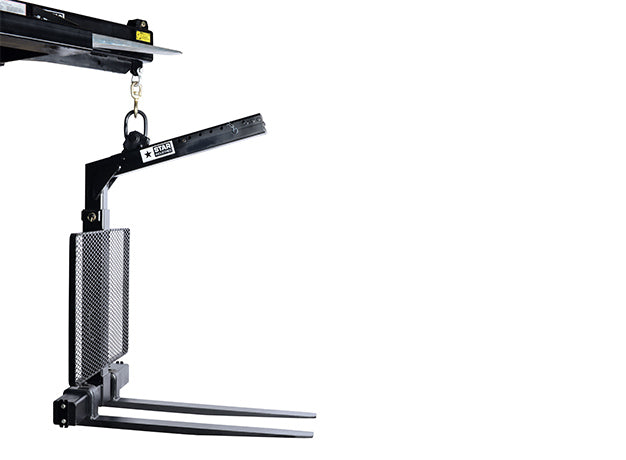

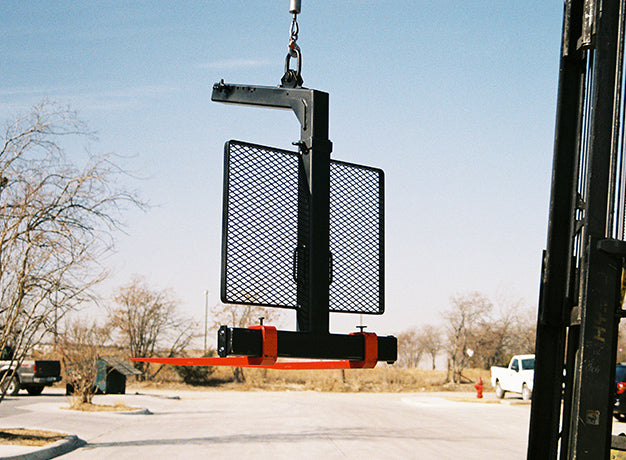

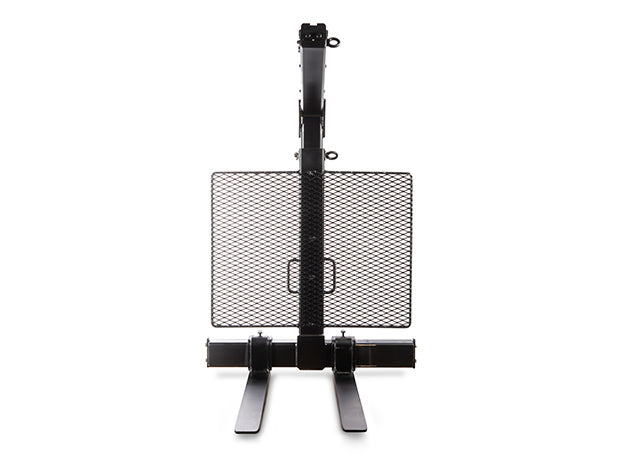

The Star Industries Crane Forks attachment allows cranes to safely lift and transport palletized loads, effectively turning your crane into a forklift. Featuring built‑in vertical post handles for guiding forks into loads and a self‑shifting load‑leveling trolley, the forks remain stable whether empty or loaded. Designed for 36″, 40″, and 48″ pallets, the crane forks accommodate up to a 5‑ton hook and adjust for load heights from 48″ to 68″. With rugged steel construction and optional tine styles, they provide versatility for construction, logistics, shipping, and agricultural operations.
Key Features
- Transform Crane into Forklift: Converts crane into a pallet‑handling forklift attachment

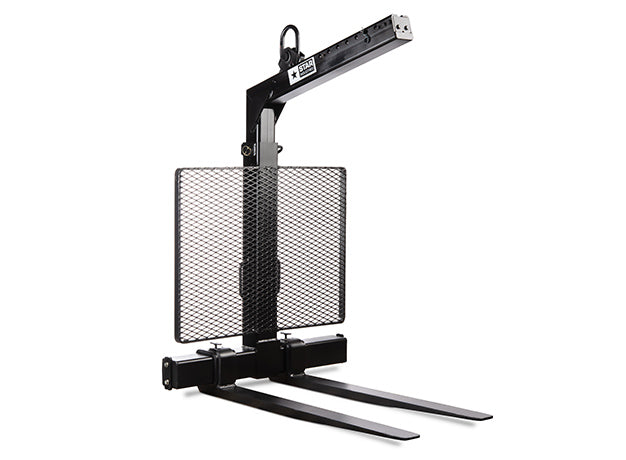

- Self‑Balancing Trolley: Spring‑loaded load‑leveling pickup trolley keeps forks level when empty and maintains payload center of gravity

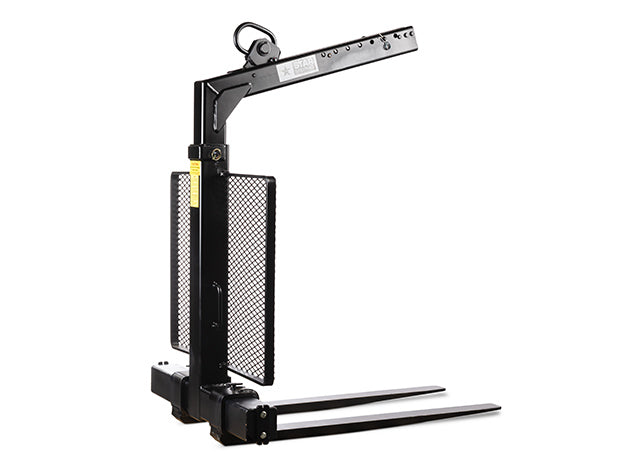

- Adjustable King Post: Adjusts for load heights from 48″ to 68″
- Pallet Compatibility: Adjustable stop accepts 36″, 40″, and 48″ pallets
- Fork Spread: Forks spread up to 40″ wide (out‑to‑out) for versatile load handling
- Minimum Load Requirement: Trolley requires 1,500–1,750 lbs minimum load to function properly

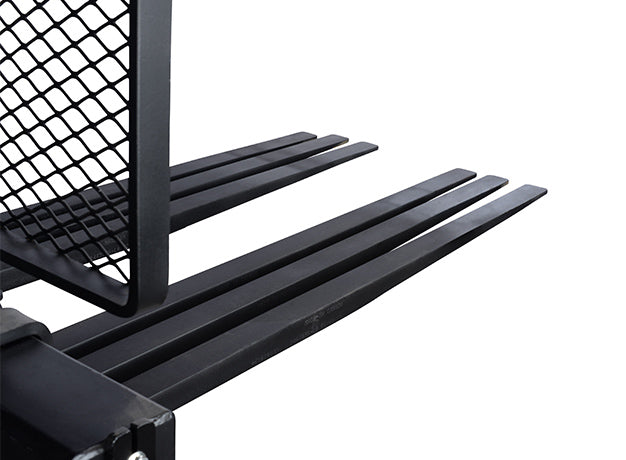

- Tine Options: Available in General Purpose (46″ forks) or Block Tines (47″ forks) for cubed/banded block handling
- High Load Capacity: Rated up to 6,000 lbs depending on tine set
- Robust Steel Construction: Heavy‑duty forged forks and reinforced frame for industrial durability
- Warranty: 5‑year manufacturer warranty – made in USA
Detailed Specifications
| Model | Description | Capacity | Weight |
|---|---|---|---|
| 660 (Frame) | King Post Frame with backstop (requires tines) | — | 300 lbs |
| 660‑01 (Tines) | General Purpose – Pair of 2 forged forks (1½″ × 4″ × 46″) | 6,000 lbs | 188 lbs |

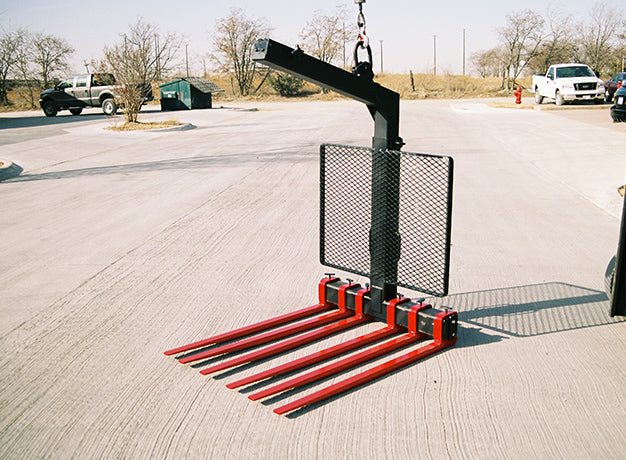

| 660‑02 (Tines) | Block – Set of 6 forged forks (1½″ × 2″ × 47″) | 6,000 lbs | 258 lbs |
