Product Description
Star Industries Load-N-Tow Forklift Towing Attachment | Model 1398 | Width 48" x Depth 48" | Towing Capacity Up To 12,000 lbs | For Forklift
DESCRIPTION

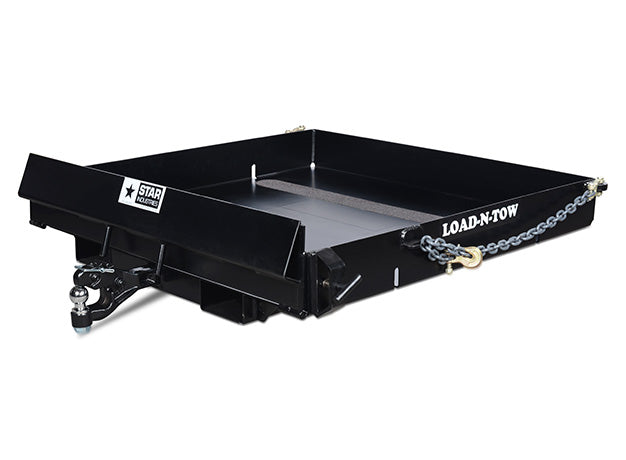

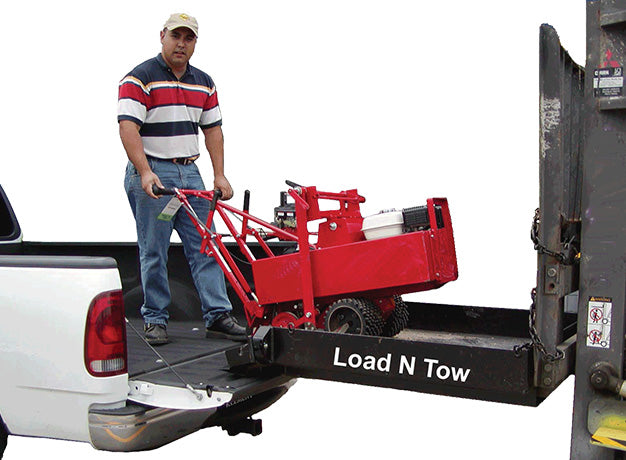

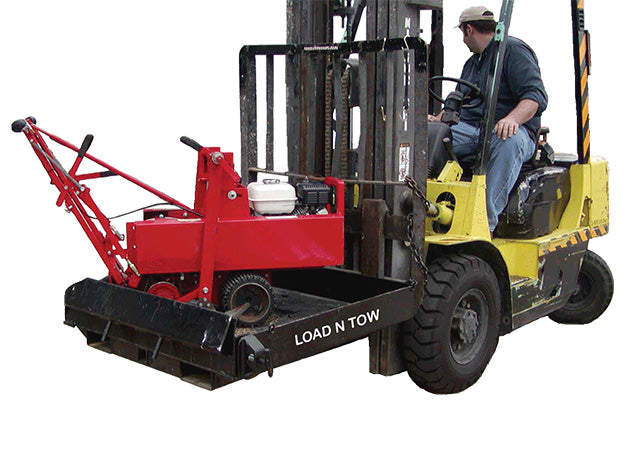

The Star Industries Load-N-Tow Forklift Towing Attachment Model 1398 is a versatile forklift accessory designed to transform standard forklifts into efficient towing and material-handling solutions. Built for rental equipment yards, warehouses, construction sites, and industrial applications, this forklift tow hitch attachment allows operators to quickly load, unload, and move heavy or awkward equipment with improved productivity and safety. The slide-on fork design enables fast installation, while the built-in receiver hitch supports moving trailer-mounted equipment using a standard 2-inch square trailer adapter. Featuring lowering ramps for easy loading, a spring-loaded locking pin for secure transport, and included 3-foot safety chain with grab hook, the Load-N-Tow helps reduce manual handling, minimize equipment damage, and improve jobsite efficiency. With its durable steel construction, compact 48-inch x 48-inch dimensions, and 330 lbs empty weight, this forklift towing attachment is an ideal solution for expanding forklift capabilities without adding dedicated towing equipment.
Key Features
- Forklift Towing Attachment Converts forklifts into versatile towing machines for trailers, carts, rental equipment, and industrial loads.
- Built-In Receiver Hitch Features integrated receiver for moving trailer-mounted equipment with compatible 2-inch square trailer adapters.
- Easy Fork Installation Slide-on design allows quick attachment to forklift forks for efficient operation.

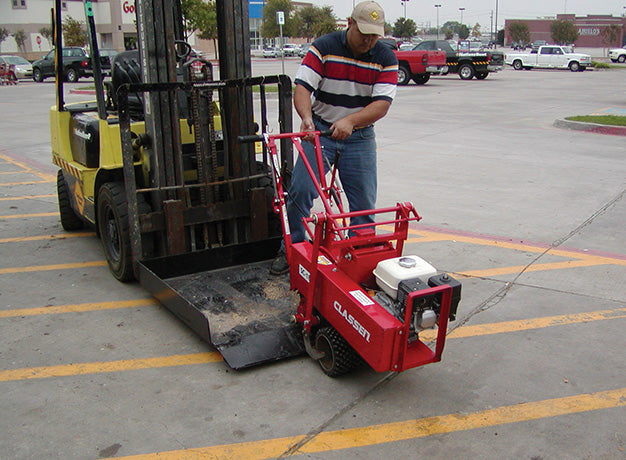

- Heavy Equipment Moving Solution Helps maneuver awkward rental equipment, carts, and trailers safely around worksites.

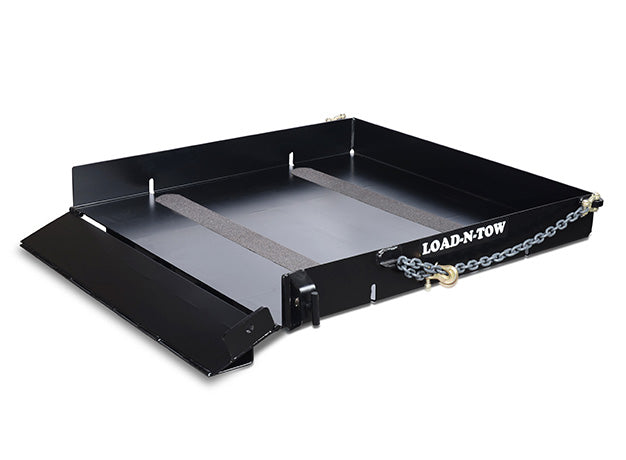

- Load and Unload Faster Lowering ramp design simplifies loading and unloading of equipment with minimal effort.

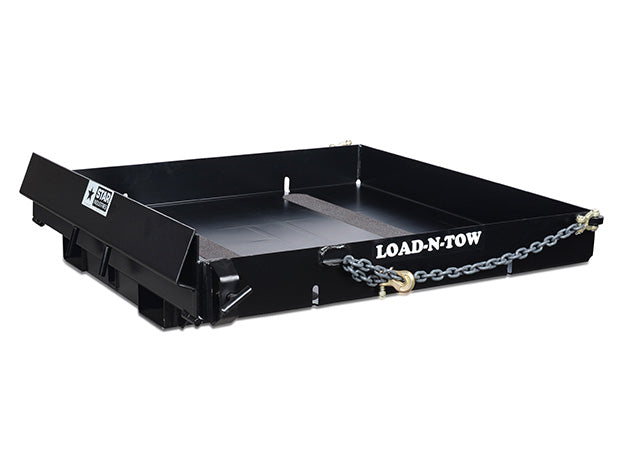

- Secure Transport Design Spring-loaded pin locks ramp in raised position for safer equipment movement.
- Improves Workplace Efficiency Reduces machine switching and helps complete towing tasks with existing forklifts.
- Reduces Labor Requirements Allows one operator to move heavy and difficult-to-handle equipment.
- Enhanced Forklift Versatility Expands forklift functionality beyond lifting and transporting applications.
- Industrial Grade Construction Built for demanding warehouse, rental, and construction environments.
- Safety Chain Included Supplied with 3-foot safety chain and grab hook for secure towing operation.
- Compact Forklift Accessory 48-inch width and depth provide practical storage and handling.
- Rental Yard Equipment Solution Ideal for loading and unloading rental machinery quickly and safely.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Star Industries |
| Product Name | Load-N-Tow Forklift Towing Attachment |
| Model | 1398 |
| Attachment Type | Forklift Towing Attachment / Tow Hitch |
| Application | Trailer, cart, and rental equipment movement |
| Compatibility | Forklifts with compatible fork dimensions |
| Overall Width | 48 inches |
| Overall Depth | 48 inches |
| Empty Weight | 330 lbs |
| Towing Capacity | Up to 12,000 lbs (depending on forklift capability) |
| Receiver Type | Built-in receiver hitch |
| Receiver Size | 2 inches square trailer adapter compatible |
| Ramp Feature | Lowering loading ramp |
| Locking System | Spring-loaded ramp locking pin |
| Safety Equipment Included | 3-foot safety chain and grab hook |
| Construction | Heavy-duty steel design |
| Primary Equipment Compatibility | Forklifts, industrial material handlers |
| Recommended Applications | Warehouses, construction sites, manufacturing, rental yards |
Hitch Adapter Specifications
| Specification | Model 1391 | Model 1391LD |
|---|---|---|
| Product Type | Ball Hitch Adapter | Light Duty Ball Hitch Adapter |
| Compatible Equipment | Lift-N-Tow / Load-N-Tow Attachments | Lift-N-Tow / Load-N-Tow Attachments |
| Hitch Style | 2" Ball Hitch | 2" Ball Hitch |
| Adapter Weight | 10 lbs | 11 lbs |
| Maximum Gross Towing Capacity | 10,000 lbs | 10,000 lbs |
| Maximum Vertical Lift Capacity | 600 lbs | 600 lbs |
| Horizontal Center of Gravity | 28" | 28" |
| Construction | Heavy-Duty Steel | Heavy-Duty Steel |
| Application | Trailer towing and equipment movement | Light-duty trailer towing applications |
| Compatible Models | 1390B Lift-N-Tow / Load-N-Tow Series | 1390B Lift-N-Tow / Load-N-Tow Series |
| Specification | Model 1392 | Model 1393 |
|---|---|---|
| Product Type | Pintle Hitch Adapter | Combination Hitch Adapter |
| Compatible Equipment | Lift-N-Tow / Load-N-Tow Attachments | Lift-N-Tow / Load-N-Tow Attachments |
| Hitch Style | Pintle Hitch | Combination Ball & Pintle Hitch |
| Adapter Weight | 15 lbs | 20 lbs |
| Maximum Gross Towing Capacity | 10,000 lbs | 10,000 lbs |
| Maximum Vertical Lift Capacity | 2,000 lbs | 2,000 lbs |
| Horizontal Center of Gravity | 29" | 30" |
| Construction | Heavy-Duty Steel | Heavy-Duty Steel |
| Application | Heavy-duty towing operations | Multi-purpose towing applications |
| Compatible Models | 1390B Lift-N-Tow / Load-N-Tow Series | 1390B Lift-N-Tow / Load-N-Tow Series |
| Specification | Model 1394PH | Model 1394CH |
|---|---|---|
| Product Type | Super Duty Pintle Hitch Adapter | Super Duty Combination Hitch Adapter |
| Compatible Equipment | Lift-N-Tow / Load-N-Tow Attachments | Lift-N-Tow / Load-N-Tow Attachments |
| Hitch Style | Pintle Hitch | Combination Ball & Pintle Hitch |
| Adapter Weight | 21 lbs | 25 lbs |
| Maximum Gross Towing Capacity | 16,000 lbs | 16,000 lbs |
| Maximum Vertical Lift Capacity | 3,000 lbs | 3,000 lbs |
| Horizontal Center of Gravity | 29" | 30" |
| Construction | Reinforced Heavy-Duty Steel | Reinforced Heavy-Duty Steel |
| Application | Super Duty towing operations | Heavy-duty combination towing operations |
| Compatible Models | 1395B Super Duty Lift-N-Tow | 1395B Super Duty Lift-N-Tow |
| Specification | Model 1396C-PH |
|---|---|
| Product Type | Navy Lift-N-Tow Pintle Hitch Adapter |
| Compatible Equipment | Lift-N-Tow / Load-N-Tow Attachments |
| Hitch Style | Pintle Hitch |
| Adapter Weight | Not Specified |
| Maximum Gross Towing Capacity | 30,000 lbs |
| Maximum Vertical Lift Capacity | 6,000 lbs |
| Construction | Maximum Strength Heavy-Duty Steel |
| Application | Extreme-duty industrial and heavy equipment towing |
| Compatible Models | 1396C Navy Lift-N-Tow |
