Steelwrist

Steelwrist Compactors | Model HCX-6 To HCX-26 | Width 18.50" To 30" inches | For Excavators

Steelwrist Compactors | Model HCX-6 To HCX-26 | Width 18.50" To 30" inches | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High Compaction Force: Engineered to deliver exceptional compaction force, making soil and trench compaction effortless.
  • Optimized for Tiltrotators: Designed to operate smoothly with unmatched low hydraulic flow, making it perfect for use with a tiltrotator. This allows for precise control and efficient material handling.
  • Energy Efficient Design: Ensures lower fuel consumption, enhancing overall efficiency.
  • Pallet Fork Lifting Points: Equipped with lifting points for easy handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Steelwrist Compactors | Model HCX-6 To HCX-26 | Width 18.50" To 30" inches | For Excavators

Description

The Steelwrist Compactors for excavators are engineered to deliver unparalleled high compaction force, making soil and trench compaction seamless and effortless. These compactors are designed to be used with excavators ranging from 2 to 26 tonnes.

Key Features

  • High Compaction Force: Engineered to deliver exceptional compaction force, making soil and trench compaction effortless.
  • Optimized for Tiltrotators: Designed to operate smoothly with unmatched low hydraulic flow, making it perfect for use with a tiltrotator. This allows for precise control and efficient material handling.
  • Energy Efficient Design: Ensures lower fuel consumption, enhancing overall efficiency.
  • Versatile Applications: Ideal for road construction, foundation work, trench backfilling, and landfill compaction. The excavator operator can easily switch between digging and compaction using the same machine.
  • Smooth and Intuitive Maneuverability: Designed with the excavator operator in mind, offering smooth and precise positioning with less vibration and noise transmitted to the excavator arm and cab.
  • Pallet Fork Lifting Points: Equipped with lifting points for easy handling.
  • Modular Design for SQ/Open-S Upgrade: Available with an interface following the symmetrical standard (S standard). Can be upgraded from S-type (from S50) to SQ-type for high-performing automatic oil connection technology.
  • Optional Widening Kit: An optional widening kit is available for retrofit, enhancing the compactor's versatility.

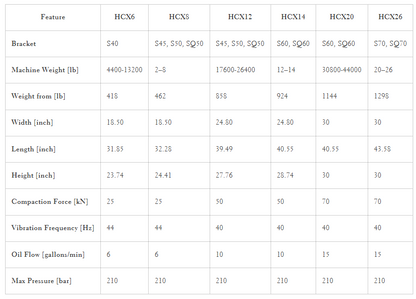

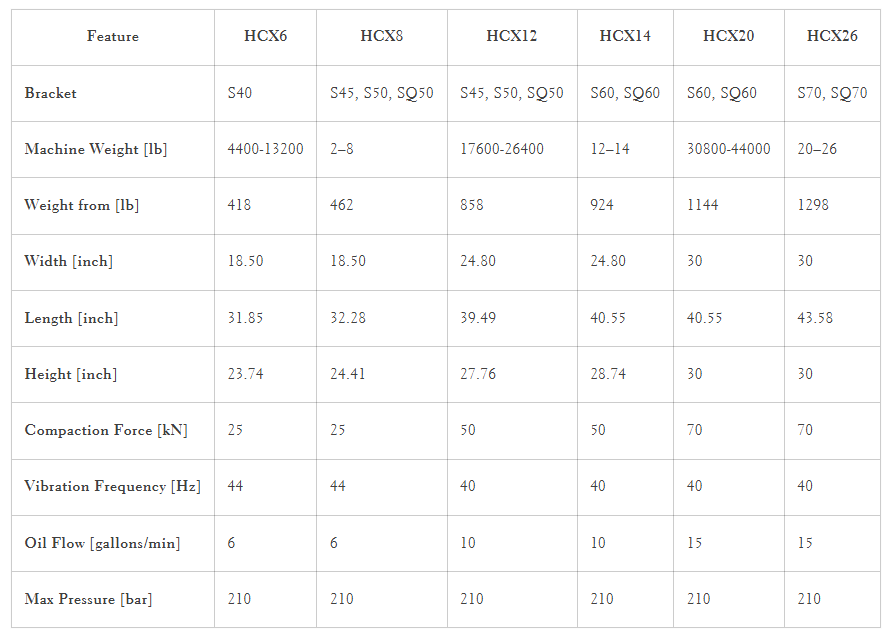

Detailed Specifications

Feature HCX6 HCX8 HCX12 HCX14 HCX20 HCX26
Bracket S40 S45, S50, SQ50 S45, S50, SQ50 S60, SQ60 S60, SQ60 S70, SQ70
Machine Weight [lb] 4400-13200 2–8 17600-26400 12–14 30800-44000 20–26
Weight from [lb] 418 462 858 924 1144 1298
Width [inch] 18.50 18.50 24.80 24.80 30 30
Length [inch] 31.85 32.28 39.49 40.55 40.55 43.58
Height [inch] 23.74 24.41 27.76 28.74 30 30
Compaction Force [kN] 25 25 50 50 70 70
Vibration Frequency [Hz] 44 44 40 40 40 40
Oil Flow [gallons/min] 6 6 10 10 15 15
Max Pressure [bar] 210 210 210 210 210 210

    Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

    Videos

    Shipping

    $1 Shipping Quote Info:

    • Contact Us For Shipping Quotes. All $1 products are listed as quote only because we can not display their pricing online.
    • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx) & Top Private Drivers
    • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
    • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
