Steelwrist Finger Grapples | Model FG20-5 To FG40-7 | Width 219" To 1727" inches | For Excavators

Steelwrist Finger Grapples | Model FG20-5 To FG40-7 | Width 219" To 1727" inches | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Heavy-Duty Universal Application: Ideal for handling stumps, debris, scrap, and shrubbery.
  • High Clamping Force: Ensures secure handling of materials, with load holding valves and an accumulator for the highest safety levels.
  • Wide Opening and By-Passing Jaws: Allows for handling large items with ease and fully closing by-passing jaws to grip thin objects securely.
  • Durable Construction: Made with Hardox 500 wear plates and jaws with hard facing 600 Hb welding for extended lifetime.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Steelwrist Finger Grapples | Model FG20-5 To  FG40-7 | Width 219" To 1727" inches | For Excavators

Description

The Steelwrist finger grapple is a heavy-duty universal grapple designed for handling stumps, debris, scrap, and shrubbery. It is available in both seven-finger and five-finger versions to meet the diverse needs of operators.

Key Features

  • Heavy-Duty Universal Application: Ideal for handling stumps, debris, scrap, and shrubbery.
  • High Clamping Force: Ensures secure handling of materials, with load holding valves and an accumulator for the highest safety levels.
  • Wide Opening and By-Passing Jaws: Allows for handling large items with ease and fully closing by-passing jaws to grip thin objects securely.
  • Durable Construction: Made with Hardox 500 wear plates and jaws with hard facing 600 Hb welding for extended lifetime.
  • Expander Plates and Self-Lubricating Bearings: Enhances durability and reduces maintenance needs.
  • 5° Angle Bracket: Levels the grapple with the tiltrotator rotation plane for efficient operation.
  • Optimized for SQ-Technology: Works seamlessly with Steelwrist SQ technology for quick and secure tool changes.

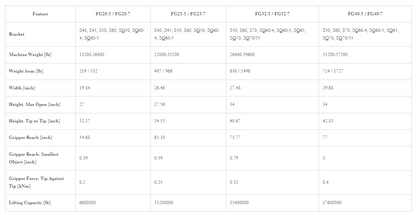

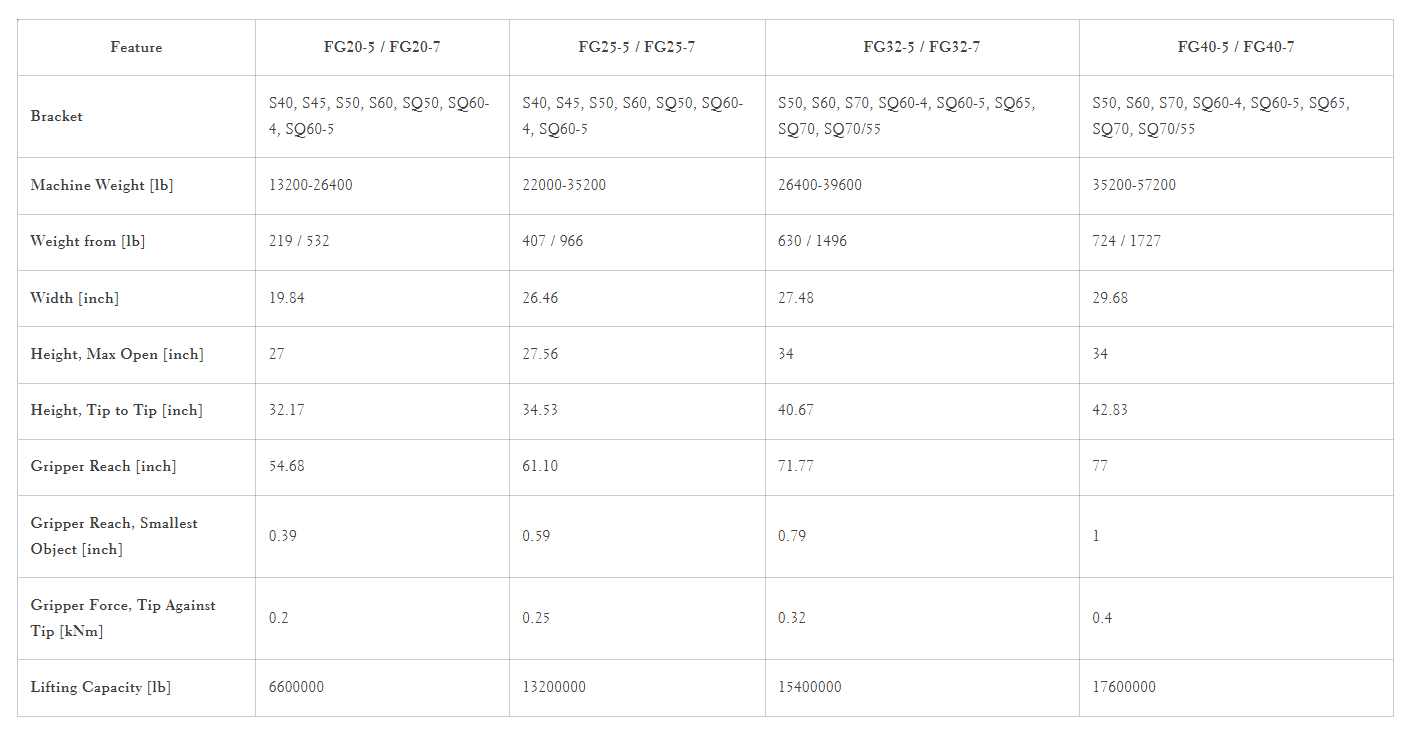

Detailed Specifications


    Feature FG20-5 / FG20-7 FG25-5 / FG25-7 FG32-5 / FG32-7 FG40-5 / FG40-7
    Bracket S40, S45, S50, S60, SQ50, SQ60-4, SQ60-5 S40, S45, S50, S60, SQ50, SQ60-4, SQ60-5 S50, S60, S70, SQ60-4, SQ60-5, SQ65, SQ70, SQ70/55 S50, S60, S70, SQ60-4, SQ60-5, SQ65, SQ70, SQ70/55
    Machine Weight [lb] 13200-26400 22000-35200 26400-39600 35200-57200
    Weight from [lb] 219 / 532 407 / 966 630 / 1496 724 / 1727
    Width [inch] 19.84 26.46 27.48 29.68
    Height, Max Open [inch] 27 27.56 34 34
    Height, Tip to Tip [inch] 32.17 34.53 40.67 42.83
    Gripper Reach [inch] 54.68 61.10 71.77 77
    Gripper Reach, Smallest Object [inch] 0.39 0.59 0.79 1
    Gripper Force, Tip Against Tip [kNm] 0.2 0.25 0.32 0.4
    Lifting Capacity [lb] 6600000 13200000 15400000 17600000
