Steelwrist Heavy Duty Sorting Grapples Models: SGX-8, SGX-14, SGX-20 & SGX-28 | Width: 20", 23", 27" & 29" | Compatible with Excavators

Description

The Steelwrist sorting grapple is excellent for handling tougher materials like rocks, large stones, timber and scrap, as well as for recycling, sorting and medium-duty demolition. It is light in weight but still strong, and has a compact design.

Steelwrist grapples are optimized for use with a tiltrotator. The tiltrotator enables you to tilt and rotate your work tool, making it easier to reach awkward angles and work in confined spaces, with more precise control over the handling of materials. This is very practical in tasks where accuracy is crucial, such as sorting and placing objects in areas where space is limited. The need for frequent repositioning of the excavator is reduced. The bracket has a 6 degree angle for level alignment with the tiltrotator rotation plane.

The sorting grapple has a lightweight yet strong construction, and an impressive grip width that makes it possible to handle larger items with ease. Small objects can be picked up efficiently thanks to the tip-to-tip closing of the grip and the refined shape of the tip. The hydraulic design is safe and robust with shock relief- and load holding valves.

The grapple is available with an interface following the symmetrical standard (S standard), which is the fastest growing standard internationally. Thanks to the modular design it is possible to upgrade the grapple from S-type (from S50) to SQ-type. Steelwrist SQ is our high performing automatic oil connection technology used to easily change and connect hydraulic work tools on the excavator. Naturally all SQ products comply with the Open-S standard.

Key Features

• Optimized for Tiltrotators: Designed to be used with a tiltrotator, allowing for tilt and rotation of the work tool to reach awkward angles and work in confined spaces. This ensures precise control over material handling, reducing the need for frequent repositioning of the excavator.
• Compact and Robust Construction: Lightweight yet strong, with an impressive grip width for handling larger items easily. The tip-to-tip closing of the grip and refined tip shape allow for efficient picking of small objects.
• Enhanced Hydraulic Design: Features shock relief and load holding valves for safe and robust operation.
• 6 Degree Angle Bracket: The bracket is angled for level alignment with the tiltrotator rotation plane, enhancing operational efficiency.
• Modular Design for SQ/Open-S Upgrade: Available with interfaces following the symmetrical standard (S standard). The modular design allows for an upgrade from S-type (from S50) to SQ-type. Steelwrist SQ technology offers high-performing automatic oil connection for easy change and connection of hydraulic work tools, complying with the Open-S standard.

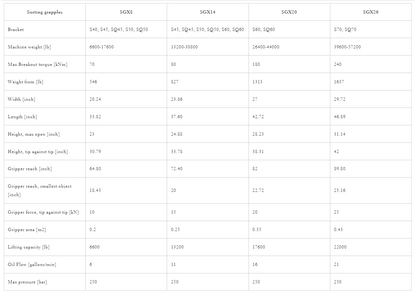

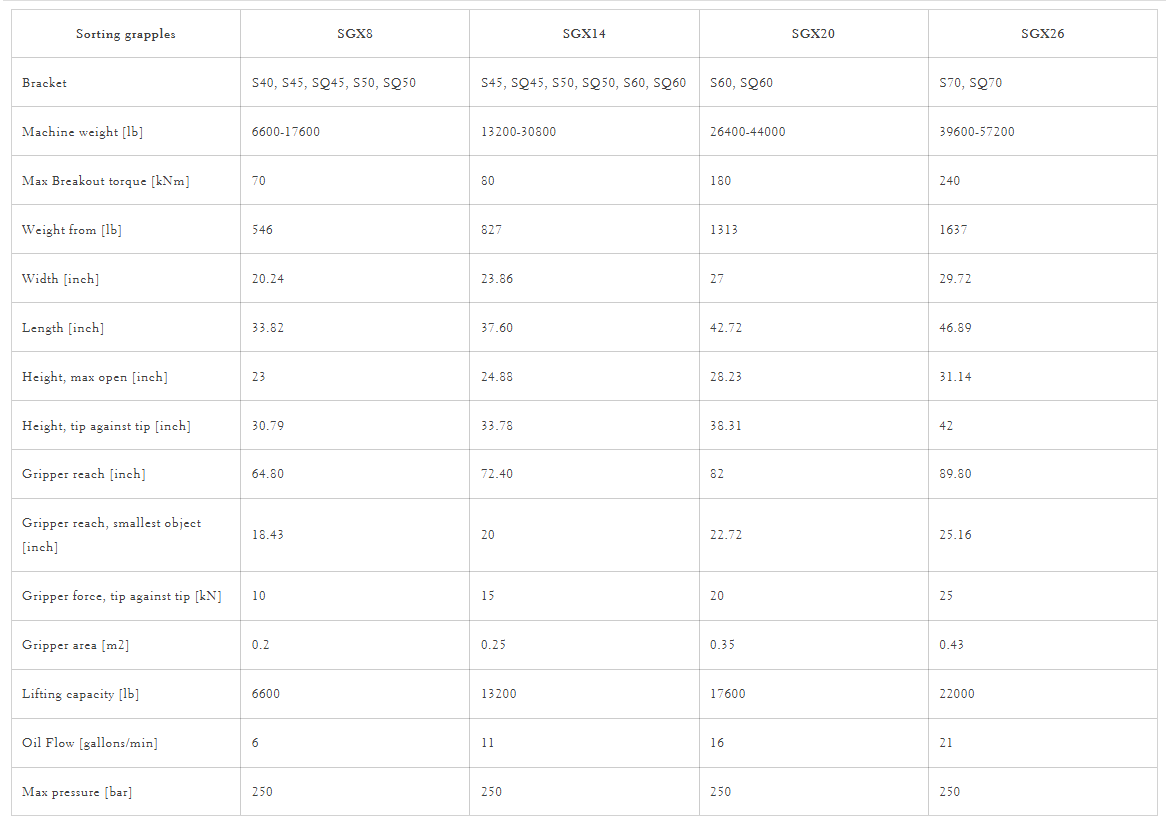

Detailed Specifications

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!
