Product Description

Steelwrist Tilt- and Rotor Coupler | Model Rotor couplers XR | Machine Weight Up-To 44,000 Lbs | For Excavators

Description

Steelwrist rotor couplers bring a new level of versatility and precision compared to a standard coupler. The flexibility provided by the XR rotor couplers makes your excavator able to take on a variety of tasks, maximizing the utilization of the machine. Designed to perform, our robust gearbox allows for precise and efficient rotation of any work tool. With 360° full rotation freedom you get maximum manoeuvrability and effectiveness.

Excavators equipped with rotor couplers become more versatile machines that can easily change work tools for digging, lifting, crushing or using a grapple, making them suitable for a broad range of applications in construction, demolition, landscaping, and more.

The Steelwrist rotor coupler has a robust design and still a low building height and weight. Installation is fast and easy as no separate control system is required. The machine needs to be equipped with minimum one dual connection auxiliary line, and an additional auxiliary line can be used to operate the gripper unit (option) or a hydraulic work tool under the rotor coupler.

The XR20 rotor coupler is available with interfaces following the symmetrical standard (S standard), which is the fastest growing standard internationally. Thanks to the modular design it is possible to upgrade the rotor coupler from S-type to SQ-type. Steelwrist SQ is our high performing automatic oil connection technology used to easily change and connect hydraulic work tools on the excavator. Naturally all SQ products comply with the Open-S standard.

Key Features

• Enhanced Flexibility for Excavators: Designed for excavators in the 4-20 tonne range, providing full 360° rotation for maximum maneuverability and effectiveness.
• Versatile Applications: Suitable for a broad range of tasks including digging, lifting, crushing, and using a grapple, making it ideal for construction, demolition, landscaping, and more.
• Robust Gearbox: Allows for precise and efficient rotation of any work tool, ensuring high performance and durability.
• Compact Design: Features a low building height and weight, making it easy to install without the need for a separate control system.
• Modular Design for SQ/Open-S Upgrade: Can be upgraded from S-type to SQ-type, enabling the use of high-performing automatic oil connection technology, compliant with the Open-S standard.
• High Flow Swivel Joint: Enables the use of high flow-demanding work tools such as hydraulic breakers, compactors, and grapples, ensuring maximum flow efficiency.
• Innovative LockSense Technology: Patented sensor-based system that indicates if the work tool is securely locked, providing a robust and secure solution for safe work tool changes.
• Optional Gripper Cassette: Downward angled 3-finger gripper extends the reach of the excavator, offering precise object handling with improved geometry.
• Absolute Rotation Sensor (Optional): Provides improved accuracy, control, and integration with Machine Control Systems (MCS).

Detailed Specifications

Manual & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

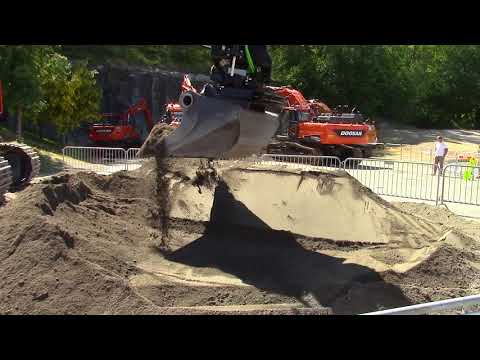

Videos
