Steelwrist Tilt-Rotators | Model X07 | Building Height 14.6" inches | Machine Weight Up-To 15400 Lbs | For Compact Excavators

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Steelwrist Tilt-Rotators | Model X07 | Building Height 14.6" inches | Machine Weight Up-To 15400  Lbs | For Compact Excavators

Description

Steelwrist small tiltrotators are developed with a focus on flexibility, building height and low weight, that is so important for compact excavators. With a steel cast structure, the weight can be reduced, while strength is maximized.

Compact excavators are often used in different construction projects like landscaping, material handling, stump removal or light demolition. With the tiltrotator you increase the ability to reach tight spaces, and save time and reduce wear on both machine and surroundings as the need for machine movements at the worksite is minimized. The tiltrotator is exceptionally useful when digging trenches and for sewer lines in utility work, and in combination with a grapple you have a versatile setup for removing debris, or placing and removing trees.

A compact excavator with a tiltrotator is a good choice for construction work at busy and confined sites in the city, with workers and citizens on the move nearby. The tiltrotator brings more manoeuvrability in a sensitive area, while delivering excellent earthmoving capacities and efficiency for the excavator. A Direct Fit configuration is often chosen for compact excavators, where the tiltrotator is permanently mounted to the dipper arm.

Steelwrist quick couplers and tiltrotators follow the symmetrical standard (S-standard), the fastest growing coupler type internationally. The attachment coupler on the tiltrotator has Front Pin Hook (FPH) or Front Pin Lock (FPL), depending on coupler size, for safe work tool changes. The tiltrotator is delivered with a control system that fits your excavator regardless if you need a two or four hose solution.

Key Features

• Optimized Design: The X07 is specifically developed for compact excavators in the 5-7 tonne range, ensuring low weight and reduced build height for better performance.
• Steel Cast Structure: Provides maximum strength while minimizing weight, enhancing the durability and efficiency of the tiltrotator.
• Versatile Applications: Ideal for a variety of construction tasks, including landscaping, material handling, stump removal, light demolition, trench digging, and sewer line installation.
• Enhanced Maneuverability: Allows compact excavators to reach tight spaces and reduces wear on the machine by minimizing the need for movements at the worksite.
• Direct Fit Configuration: Often chosen for compact excavators, permanently mounting the tiltrotator to the dipper arm for seamless integration.
• Symmetrical Standard (S-Standard): Follows the fastest-growing coupler type internationally, with Front Pin Hook (FPH) or Front Pin Lock (FPL) for safe tool changes.
• Advanced Control Systems: Quantum system for ergonomics and fuel efficiency, and a four-hose proportional machine control for a basic setup.
• Optional Gripper Cassette: Adds flexibility with a finger gripper for precise object handling, which can be retrofitted.
• Central Lubrication (Optional): Factory-fitted option compatible with all central lubrication systems, reducing maintenance needs.
• Coupler Interface Options: Available with Verachtert (CW) or Lehnhoff (HS) coupler interface, always in Direct Fit configuration for Verachtert (CW).

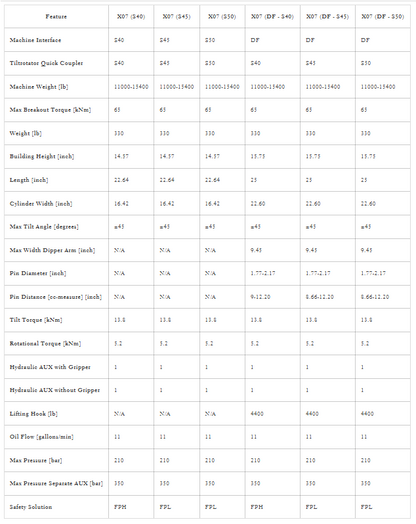

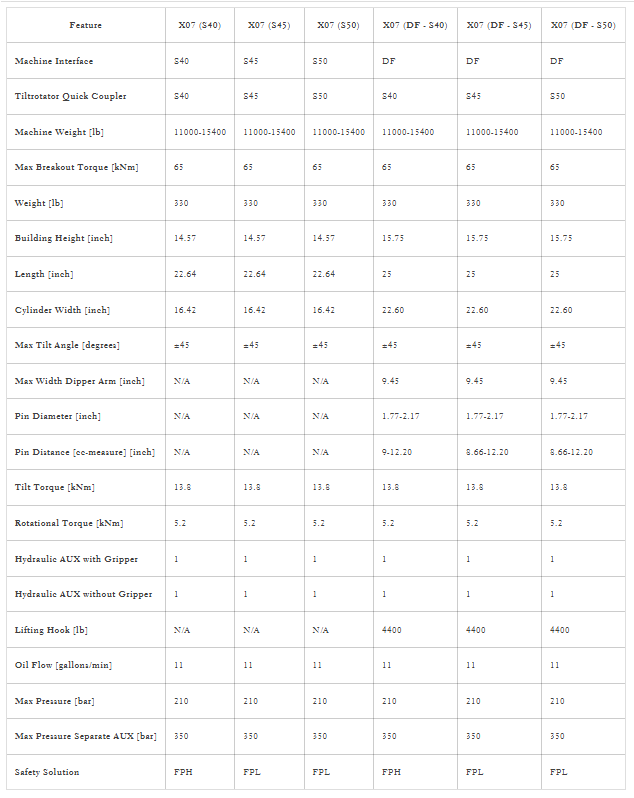

Detailed Specifications

Manual & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!
