Product Description
Steelwrist Tilt-Rotators | Model XTR2 | Building Height 10.75" inches | Machine Weight Up-To 4400 Lbs | For Compact Excavators
Description

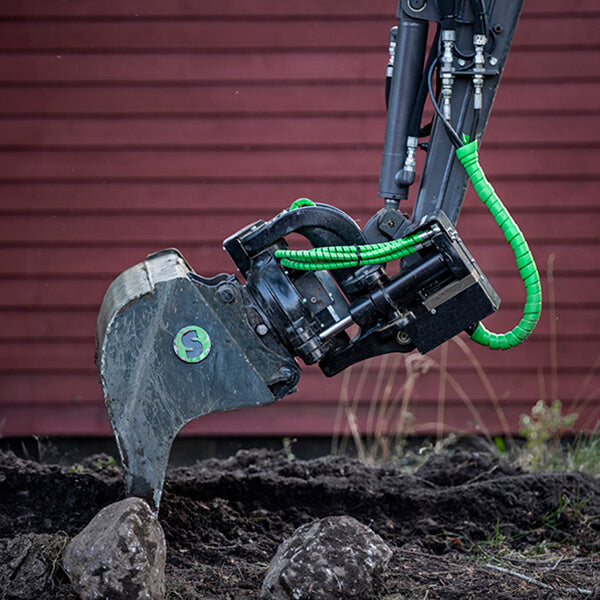

Steelwrist small tiltrotators are developed with a focus on flexibility, building height and low weight that is so important for compact excavators. The XTR2 is positioned between the smallest TCX tilt coupler for machines below 2 tonnes and the X04 tiltrotator for excavators from 2,5 to 4 tonnes. A compact excavator with a tiltrotator is a good choice for construction work at busy and confined sites in the city, with workers and citizens on the move nearby. The tiltrotator brings more manoeuvrability in a sensitive area, while delivering excellent earthmoving capacities and efficiency for the excavator.
The XTR2 tiltrotator has a number of innovative design solutions and comes with either a Direct Fit or an S30 top for the connection to the excavator. The coupler side (bottom) of the tiltrotator is available in a hydraulic locking for S30. The hydraulic lock version with the integrated Front Pin Hook is probably the only tiltrotator in this class that has work tool safety to support CE requirements. A Direct Fit configuration is often chosen for compact excavators, where the tiltrotator is permanently mounted to the dipper arm.
Key Features
- Ultra-Compact Design: The XTR2 is specifically engineered with a low build height and lightweight construction, making it perfect for compact excavators and allowing for easy operation in tight spaces and urban environments.
- Enhanced Flexibility: Offers a ±40° tilt and 360° rotation, providing exceptional maneuverability for a wide range of construction tasks. This makes it ideal for projects that require precision and versatility.
- Hydraulic Locking System: Equipped with a robust hydraulic locking mechanism, ensuring secure attachment of work tools. The integrated Front Pin Hook (FPH) enhances safety and meets CE requirements, giving operators peace of mind.
- Direct Fit and S30 Top Options: Available with either a Direct Fit or an S30 top for connection to the excavator, allowing for seamless integration and compatibility with various machines.
- Optimized for Compact Excavators: Designed to be used with machines between 0-2 tonnes, making it a great choice for smaller excavators that need to maintain high performance and efficiency.
- Durable and Reliable: Built with high-quality materials and innovative design solutions to withstand demanding work conditions, ensuring longevity and consistent performance.
- Efficient Earthmoving: Delivers excellent earthmoving capacities, improving the overall efficiency of the excavator and reducing the time and effort required for tasks.
Detailed Specifications
| Feature | S30 DF | S30 |
|---|---|---|
| Machine Interface | S30 DF | S30 |
| Tiltrotator Quick Coupler | S30 | S30 |
| Machine Weight [lb] | 0-4400 | 0-4400 |
| Max Breakout Torque [kNm] | 28 | 28 |
| Weight from [lb] | 176 | 176 |
| Building Height [inch] | 10.75 | 10.75 |
| Length [inch] | 17.48 | 17.48 |
| Cylinder Width [inch] | 14.45 | 13.19 |
| Height Cylinder [inch] | 9 | 9 |
| Max Tilt Angle [degrees] | ±40 | ±40 |
| Max Width Dipper Arm [inch] | - | 5 |
| Pin Diameter [inch] | - | 1-1.38 |
| Pin Distance [cc-measure] [inch] | - | 3.35-7.28 |
| Pin Distance [cc-measure] [mm] | - | 85-185 |
| Tilt Torque [kNm] | 4.7 | 4.7 |
| Rotational Torque [kNm] | 1.4 | 1.4 |
| Hydraulic AUX without Gripper | 1 | 1 |
| Lifting Hook [lb] | - | 0.75 |
| Oil Flow [gallons/min] | 5 | 5 |
| Max Pressure [bar] | 210 | 210 |
| Safety Solution | FPH | FPH |
