Product Description
Steelwrist Tilt-Rotators | Model XTR20 | Building Height 22.9" inches | Machine Weight Up-To 44,100 Lbs | For Excavators
Description
The steelwrist third generation tiltrotators, introduced in 2024, have best in class tilt geometry, LockSense patented safety solution for work tool locking and OptiLube – an onboard lubrication system. These are only some of the technical developments of the third generation tiltrotators. Naturally, they have the low building height that is typical for all Steelwrist tiltrotators.
With a midsized excavator you can take on projects of varying sizes, from small scale landscaping tasks to roadwork or foundation work on construction sites. The XTR20 tiltrotator enhances the efficiency of the excavator as it enables you to rotate a work tool 360 degrees and tilt 45 degrees in each direction, with top of the class precision and controllability. This facilitates the work and makes you flexible to take on a variety of challenging new jobs.
Key Features
- Optimized for 15-20 Tonne Excavators: Specifically designed for excavators weighing between 15-20 tonnes, ensuring robust performance and flexibility.
- Steel Cast Components: Provides a low build height and high tilt angle, with an excellent strength-to-weight ratio due to the steel cast structure.
- 360° Rotation and 45° Tilt: Enables precise positioning of work tools, enhancing efficiency and flexibility on diverse projects.
- Advanced Tilt Geometry: Ensures smooth and high-torque movement by minimizing cylinder spread throughout the tilt stroke.
- LockSense Safety Technology: Features a state-of-the-art sensor system for secure work tool locking, with a wireless design to eliminate exposed cables and connectors.
- OptiLube Lubrication System: Onboard system that automatically takes care of lubrication, reducing friction and extending the lifetime of the tiltrotator.
- Modular Design: Allows for upgrade from S-type to SQ-type, enabling the use of high-performing automatic oil connection technology.
- Easy Installation: Intuitive mobile app provides step-by-step instructions for straightforward setup in most languages.
- Advanced Control System: Delivered with the Quantum control system for ergonomics, easy installation, fuel efficiency, remote support, and automatic tool recognition.
- Optional Gripper Cassette: Downward angled 3-finger gripper extends the reach of the excavator and offers precise object handling.
- Central Lubrication Option: Factory-fitted option compatible with all central lubrication systems, reducing maintenance needs.

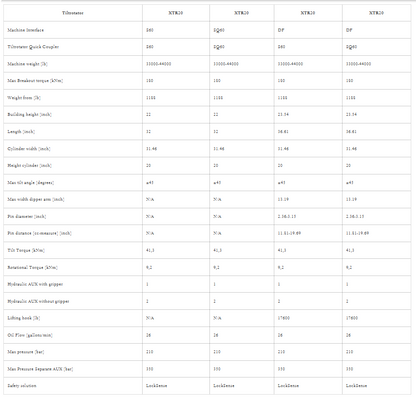

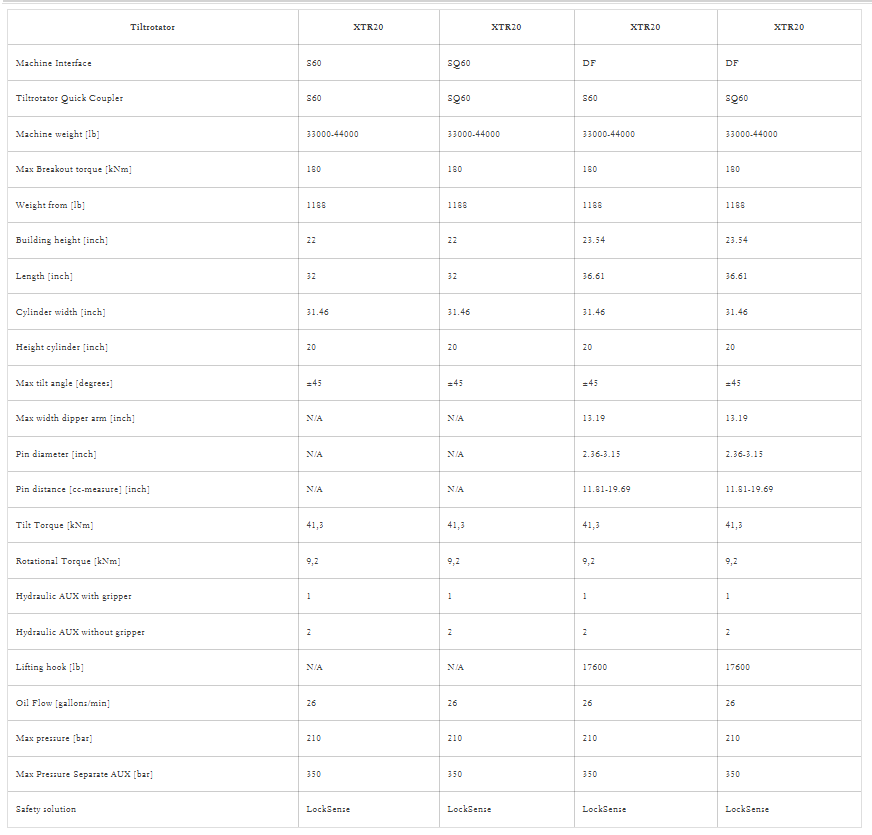

Detailed Specifications
| Tiltrotator | XTR20 | XTR20 | XTR20 | XTR20 |
|---|---|---|---|---|
| Machine Interface | S60 | SQ60 | DF | DF |
| Tiltrotator Quick Coupler | S60 | SQ60 | S60 | SQ60 |
| Machine weight [lb] | 33000-44000 | 33000-44000 | 33000-44000 | 33000-44000 |
| Max Breakout torque [kNm] | 180 | 180 | 180 | 180 |
| Weight from [lb] | 1188 | 1188 | 1188 | 1188 |
| Building height [inch] | 22 | 22 | 23.54 | 23.54 |
| Length [inch] | 32 | 32 | 36.61 | 36.61 |
| Cylinder width [inch] | 31.46 | 31.46 | 31.46 | 31.46 |
| Height cylinder [inch] | 20 | 20 | 20 | 20 |
| Max tilt angle [degrees] | ±45 | ±45 | ±45 | ±45 |
| Max width dipper arm [inch] | N/A | N/A | 13.19 | 13.19 |
| Pin diameter [inch] | N/A | N/A | 2.36-3.15 | 2.36-3.15 |
| Pin distance [cc-measure] [inch] | N/A | N/A | 11.81-19.69 | 11.81-19.69 |
| Tilt Torque [kNm] | 41,3 | 41,3 | 41,3 | 41,3 |
| Rotational Torque [kNm] | 9,2 | 9,2 | 9,2 | 9,2 |
| Hydraulic AUX with gripper | 1 | 1 | 1 | 1 |
| Hydraulic AUX without gripper | 2 | 2 | 2 | 2 |
| Lifting hook [lb] | N/A | N/A | 17600 | 17600 |
| Oil Flow [gallons/min] | 26 | 26 | 26 | 26 |
| Max pressure [bar] | 210 | 210 | 210 | 210 |
| Max Pressure Separate AUX [bar] | 350 | 350 | 350 | 350 |
| Safety solution | LockSense | LockSense | LockSense | LockSense |
Manual & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

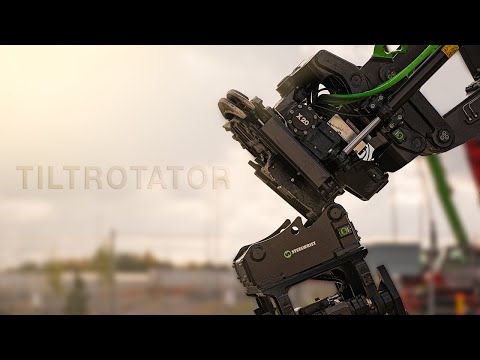

Videos
