STOUT | HD Brush & Root Grapple | 8" Tine Spacing | Model 72" Width | Hydraulic Flow 15–25 GPM | For Skid Steer

Product Description

STOUT | HD Brush & Root Grapple | 8" Tine Spacing | Model 72" Width | Hydraulic Flow 15–25 GPM | Power Requirement 22–30 kW / 30–40 HP | For Skid Steer

DESCRIPTION

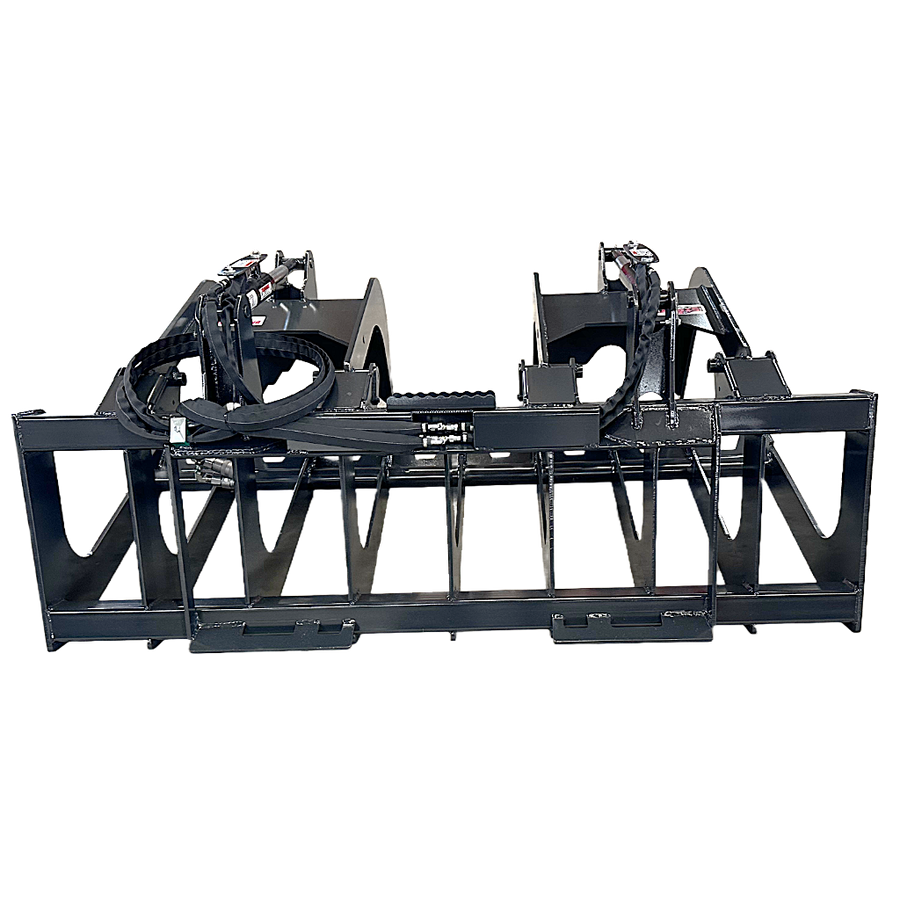

The Stout Skid Steer HD-72-8 Brush and Root Grapple with 8" Tine Spacing is a high-performance, heavy-duty attachment engineered to take on the toughest tasks in brush clearing, root removal, and debris handling. Perfect for use in agriculture, land development, construction, or property maintenance, this versatile grapple maximizes operational efficiency and rugged durability in the field.

Power Requirement: Optimized for skid steer machines in the 22–30 kW / 30–40 HP range with hydraulic flow rates between 15–25 GPM, it performs seamlessly under demanding conditions without sacrificing control or strength.

Constructed entirely from Grade 50 high-strength steel (50,000 psi), this grapple combines structural integrity with reliable hydraulic performance. Its 8-inch tine spacing is ideal for clearing large material while minimizing clogging from loose debris. The dual grapple arms feature a 32-inch opening for gripping uneven loads, powered by hydraulic cylinders with 2" bore and 8" stroke, operating at 2500 PSI working pressure. With a bucket width of 72 inches, the HD-72-8 is built to conquer rugged jobs while maintaining excellent maneuverability.

Key Features

• Power Requirement: Optimized for skid steers with universal quick-attach compatibility and hydraulic systems up to 2500 PSI. Best used with machines rated at 22–30 kW / 30–40 HP and 15–25 GPM hydraulic flow.
• Durable Construction: Made entirely from Grade 50 high-strength steel for long-lasting performance in demanding environments.
• 8-Inch Tine Spacing: Ideal for general-purpose use efficiently clears brush and debris while allowing finer materials to fall through.
• Heavy-Duty Grapple Arms: Grapple opening: 32" And Grapple width: 18"
• Fully greaseable grapple pivots ensure smooth, long-term operation.
• Optimized Dimensions: Bucket width: 72", Height: 30" & Depth: 38"
• Hydraulic System: Hydraulic cylinders: 2" Bore x 8" Stroke & Automatically adjusts to uneven bucket loads for superior control. Fully greaseable pivot and cylinder points.
• Operator-Focused Design: Hoses fully sleeved for protection. Hose keeper prevents hydraulic line pinch points. 1/2" flat face couplers included for seamless connection
• Reliable & Lightweight: Unit weight: 665 lbs & Shipping weight: 700 lbs
• Made in the USA: Proudly built with premium craftsmanship and quality steel.
