STOUT | Light Duty Brush & Root Grapple | 9" Tine Spacing | Model 66-9 | Width 66" Inches | Hydraulic Flow 15–25 GPM | For Skid Steer

Product Description

STOUT | Light Duty Brush & Root Grapple | 9" Tine Spacing | Model 66-9 | Width 66" Inches | Hydraulic Flow 15–25 GPM | For Skid Steer

DESCRIPTION

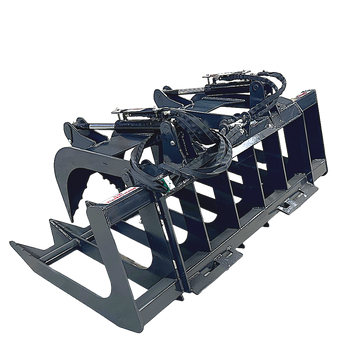

The Stout Skid Steer Brush and Root Grapple 66-9 is purpose-built for light to medium-duty land clearing, debris handling, and material removal tasks. Whether you're a landowner managing brush or a contractor prepping job sites, this grapple offers the ideal blend of performance, precision, and protection—all crafted from Grade 50 high-strength steel (50,000 PSI) to ensure long-lasting durability.

Engineered for smaller skid steers and compact machines, the 66-9 model features 9-inch tine spacing for effective sifting and sorting of materials, while still holding large debris like logs, stumps, and branches with ease. Its 66-inch bucket width, 32-inch grapple opening, and 15-inch grapple width provide ample capacity and grabbing strength for a variety of tasks. The hydraulic cylinders (2" x 8") are protected with fully sleeved hoses and integrated hose keepers automatically adjusting to uneven loads for smooth, responsive control.

Power Requirement: Optimized for skid steers with 15–22 kW / 20–30 HP and hydraulic flow rates of 15–25 GPM, this grapple is an excellent match for machines with lift capacities under 1600 lbs.

Lightweight yet powerful, weighing only 480 lbs, it offers enhanced maneuverability without compromising functionality—perfect for tighter spaces and delicate terrain. Like all Stout attachments, the 66-9 Brush Grapple is proudly Made in the USA, ensuring quality, reliability, and performance you can trust.

Key Features

• Power Requirement: Designed for machines with 15–22 kW / 20–30 HP and 15–25 GPM hydraulic flow.
• Optimized for Compact Machines: Best suited for skid steers under 1600 lbs lift capacity.
• Durable Build: Crafted entirely from Grade 50 High-Strength Steel (50,000 PSI).
• Universal Compatibility: Skid Steer Quick Attach (J2513) for easy installation.
• Large Working Capacity:
  • Bucket Width: 66"
  • Grapple Opening: 32"
  • Grapple Width: 15"
• Precision Handling:
  • 9" tine spacing for effective sifting and lifting.
  • Hydraulic cylinders adjust to uneven loads automatically.
• Heavy-Duty Hydraulic System:
  • Cylinder Bore x Stroke: 2" x 8"
  • Working PSI: 2500
  • Fully greaseable pivot points for long-lasting use.
• Operator-Focused Design:
  • Fully sleeved hydraulic hoses + hose keeper
  • Cylinder guards available
• Lightweight Frame: Just 480 lbs for greater mobility and fuel efficiency.
• Made in the USA: Trusted quality, built for tough environments.
