Product Description
STOUT | Light Duty Rock Bucket Grapple | 3" Tine Spacing | Model 48" & 55" Widths | Weight 410-440 Lbs | Hydraulic Flow Around 10-15 GPM | For Skid Steer
DESCRIPTION

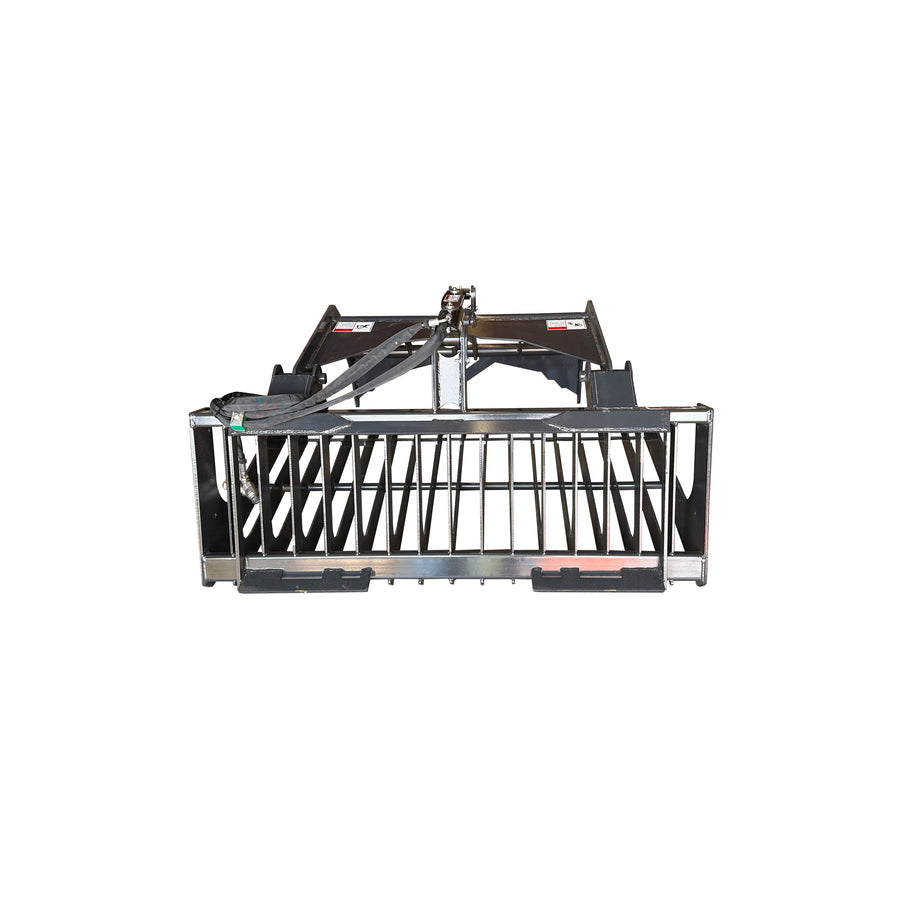

The Stout Skid Steer Light Duty 3" Tine Spacing Utility Rock Bucket Grapple is the ultimate attachment for light-duty tasks, combining durability, efficiency, and versatility. This tool is specifically designed for agricultural, landscaping, and property maintenance jobs, making it an invaluable asset for clearing rocks, debris, brush, and small logs. Whether you need it as a tractor grapple or skid loader grapple, this utility grapple handles a variety of tasks with ease.The Stout Skid Steer Light Duty 3" Tine Spacing Utility Rock Bucket Grapple does not have specific GPM (gallons per minute) requirements explicitly listed in the available information. However, light-duty attachments like this typically operate efficiently with a hydraulic flow rate of around 10-15 GPM, depending on the skid steer or tractor being used.
Manufactured entirely with Grade 50 high-strength steel (50,000 psi), this attachment is both lightweight and robust, making it perfect for lighter workloads while maintaining resilience. Featuring a 3-inch tine spacing, it efficiently separates debris larger than 3 inches, while allowing loose soil to fall through. With optional add-ons like bolt-on side plates and a cylinder guard, you can customize it for your unique needs. Powered by hydraulic cylinders, this light-duty grapple ensures smooth operation and reliable performance. Available in 48" and 55" widths, it’s a reliable and adaptable choice for operators looking for quality and efficiency in their equipment.
Key Features
Key Features
- Power Requirement: Recommended for machines with a lift capacity of up to 1,600 lbs, hydraulic flow rate of around 10-15 GPM, depending on the skid steer or tractor being used, making it ideal for light-duty applications.
- Durable Construction: Crafted from Grade 50 high-strength steel for long-lasting durability and performance.
- 3-Inch Tine Spacing: Effectively separates debris larger than 3 inches while allowing loose soil to fall through, optimizing efficiency.
-
Customizable Options:
- Optional bolt-on side plates add 30 lbs, enhancing versatility and debris containment.
- Optional cylinder guard adds 10 lbs, providing additional protection for hydraulic components.
-
Efficient Grapple Arm Design:
- Grapple arm thickness: 1/2".
- Grapple width: 35".
- Grapple opening: 39".
- Compact and Lightweight: Weighs approximately 410 lbs (48") and 440 lbs (55"), ensuring compatibility with smaller machines.
- Hydraulic Cylinder: Bore x Stroke: 2"x8" for consistent and reliable operation.
- Operator-Friendly Design: Hoses fully encased in protective sleeves with a hose keeper for added safety.
- Made in the USA: Designed and manufactured with uncompromising quality standards.
Detailed Specifications
| Specification | 48" Width | 55" Width |
|---|---|---|
| Weight (lbs.) | 410 lbs. | 440 lbs. |
| Shipping Weight (lbs.) | 445 lbs. | 475 lbs. |
| Height (in.) | 28" | 28" |
| Depth (in.) | 41" | 41" |
| Tine Spacing (in.) | 3" | 3" |
| Center Tine Thickness (in.) | 1/4" | 1/4" |
| Outside Tine Thickness (in.) | 3/8" | 3/8" |
| Grapple Width (in.) | 35" | 35" |
| Grapple Opening (in.) | 39" | 39" |
| Optional Side Plates (lbs.) | +30 lbs. | +30 lbs. |
| Optional Cylinder Guard (lbs.) | +10 lbs. | +10 lbs. |
