STOUT | XHD Brush & Root Grapple | 4" Tine Spacing | Model 72" Width | Hydraulic Flow 15–25 GPM | For Skid Steer

Product Description

STOUT | XHD Brush & Root Grapple | 4" Tine Spacing | Model 72" Width | Hydraulic Flow 15–25 GPM | For Skid Steer

DESCRIPTION

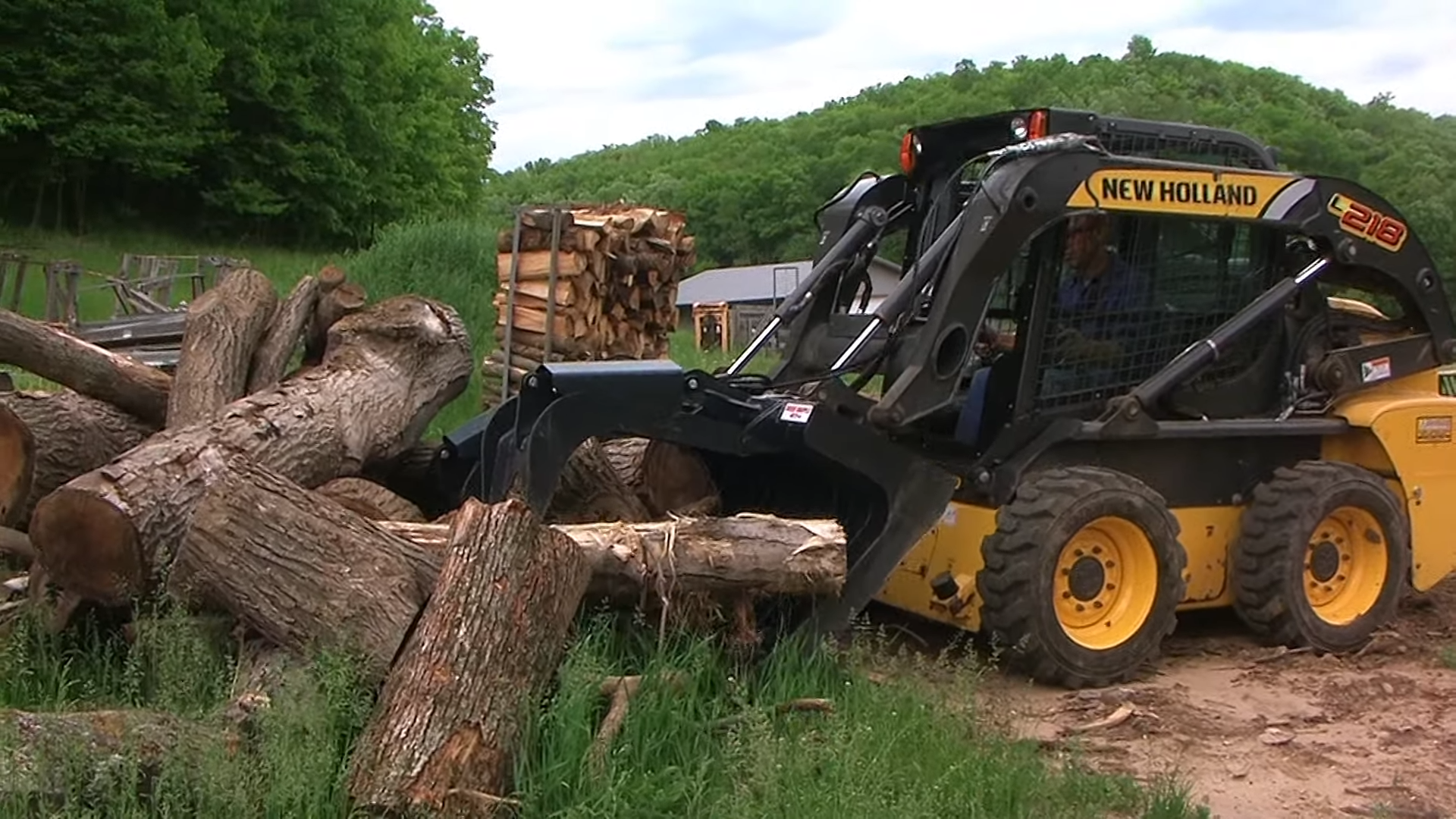

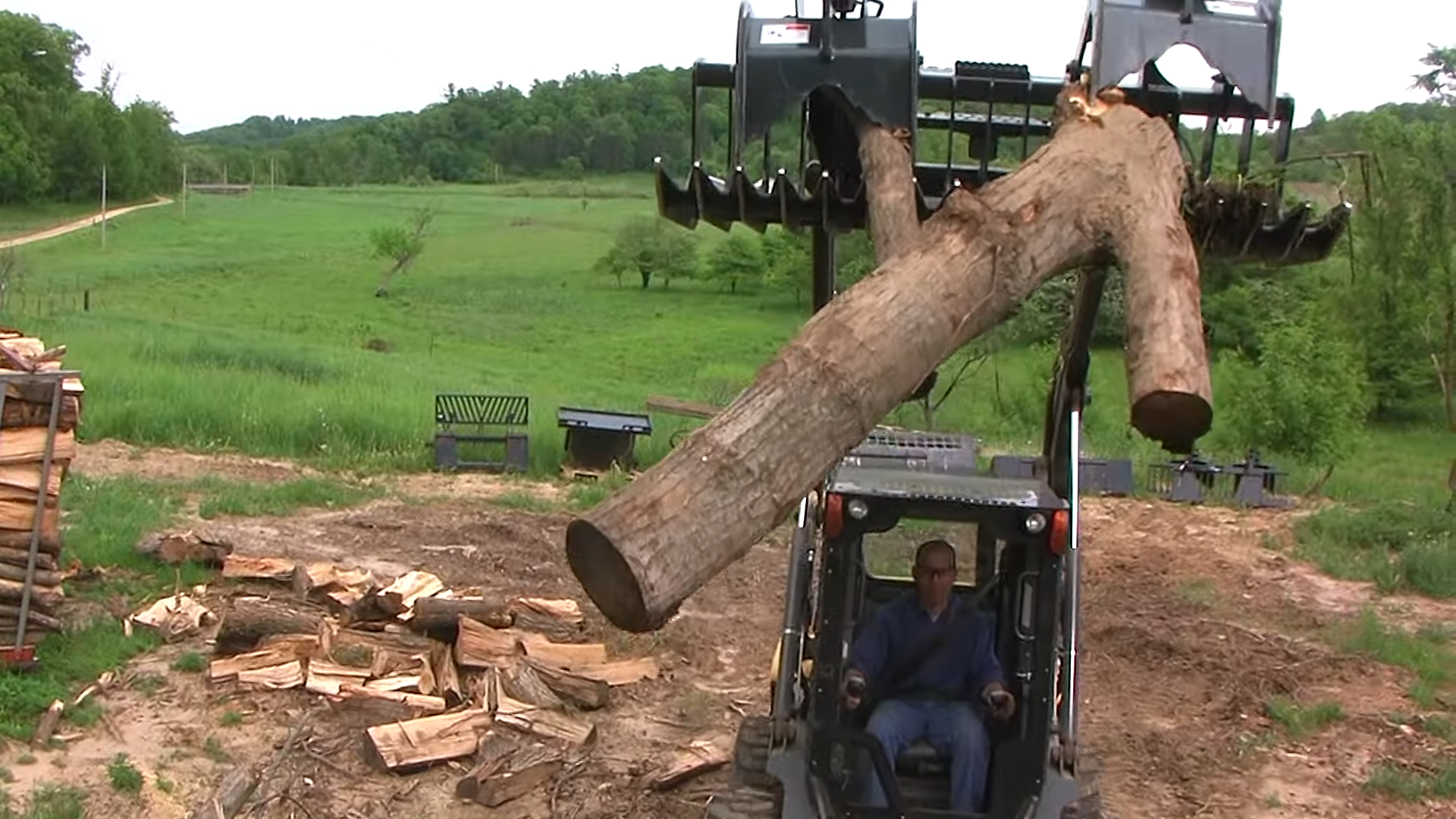

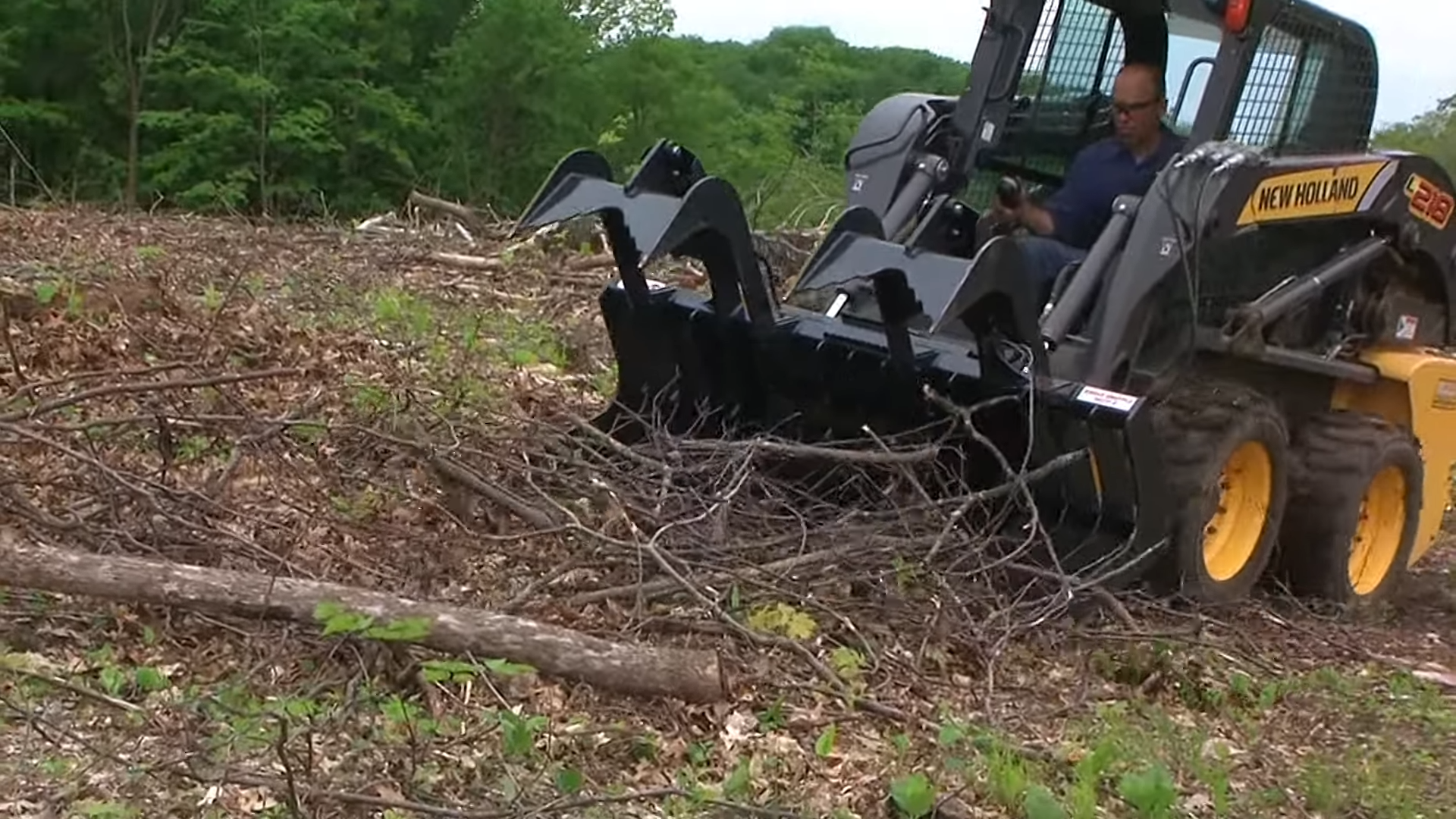

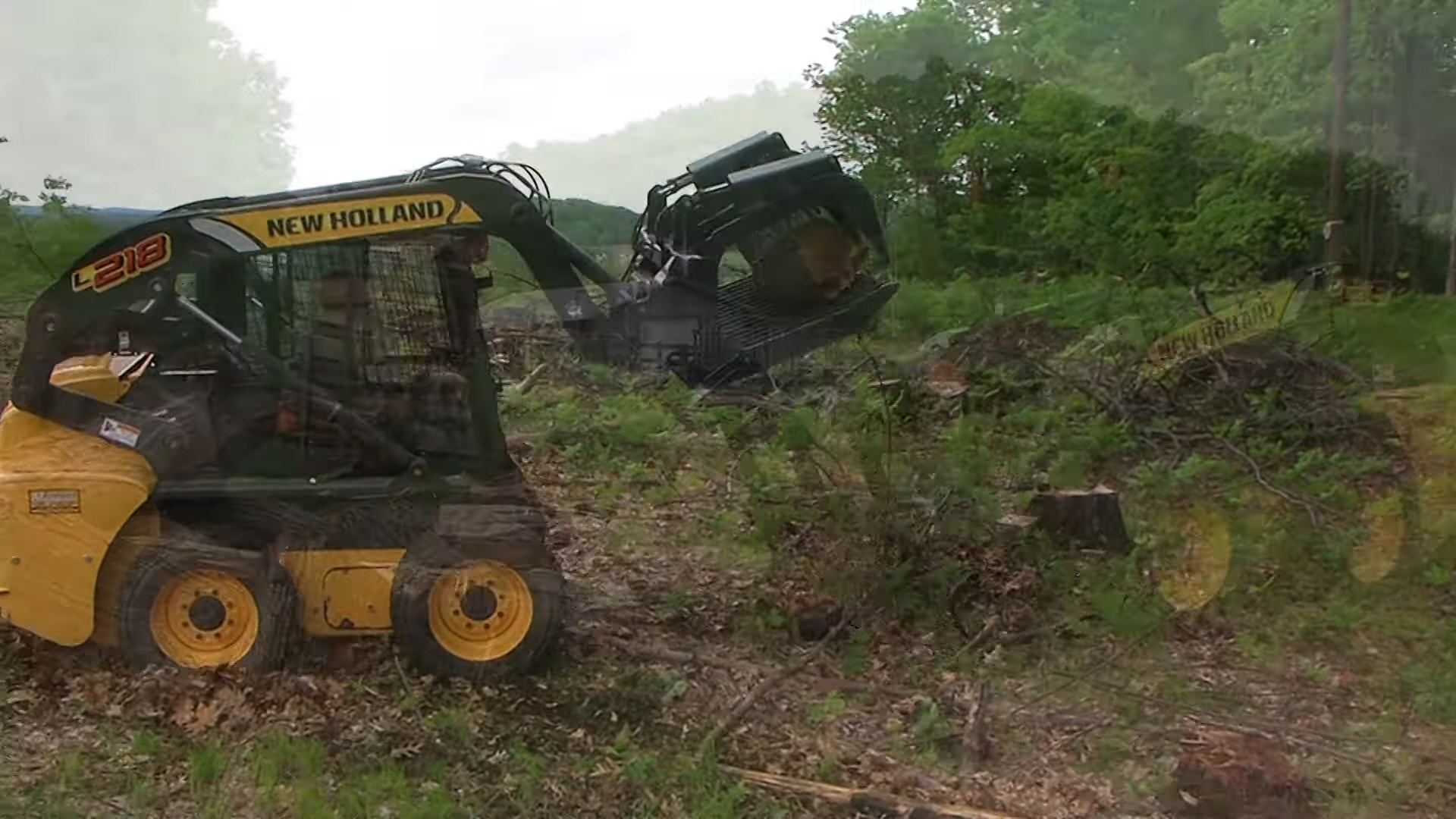

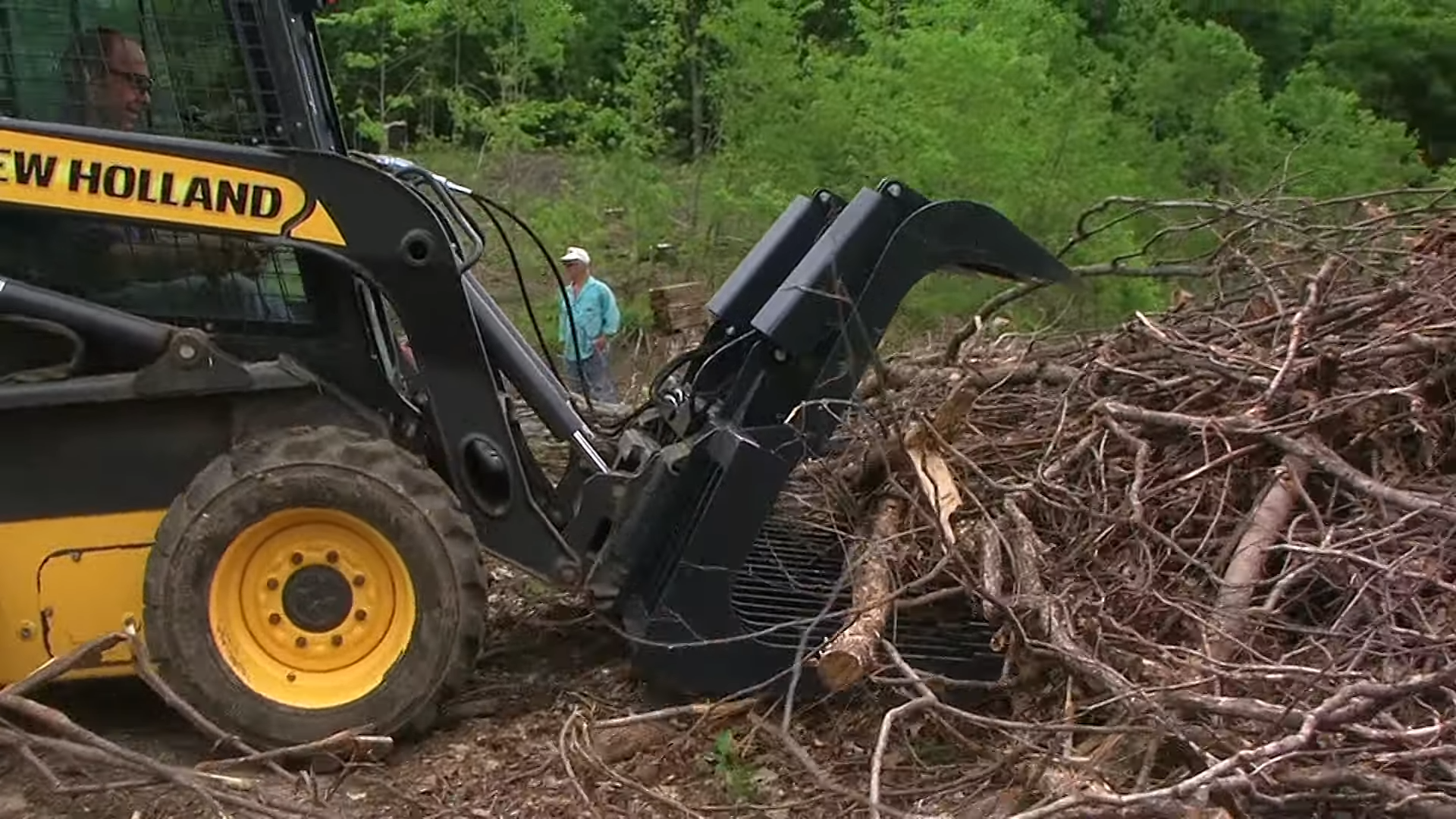

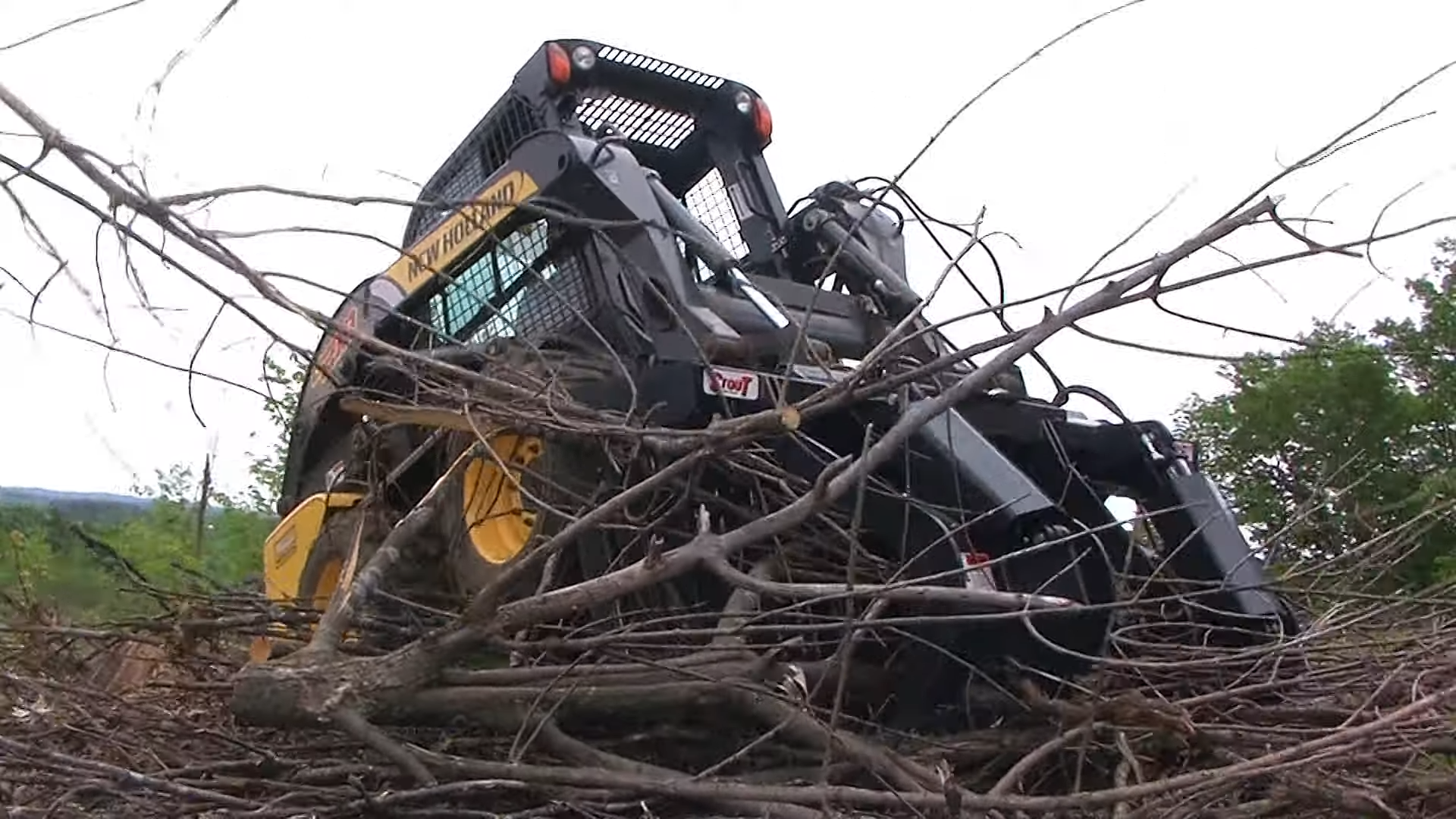

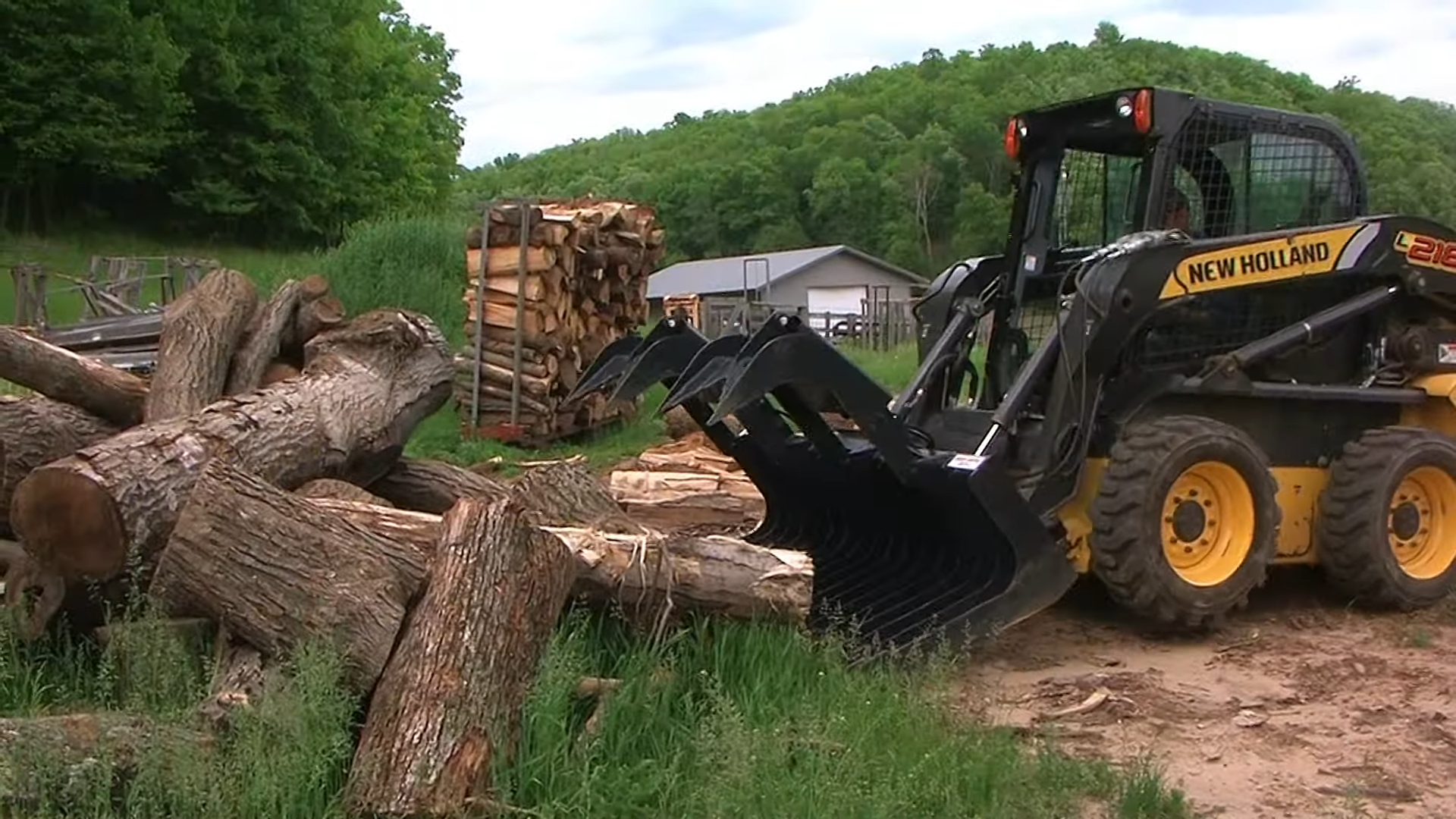

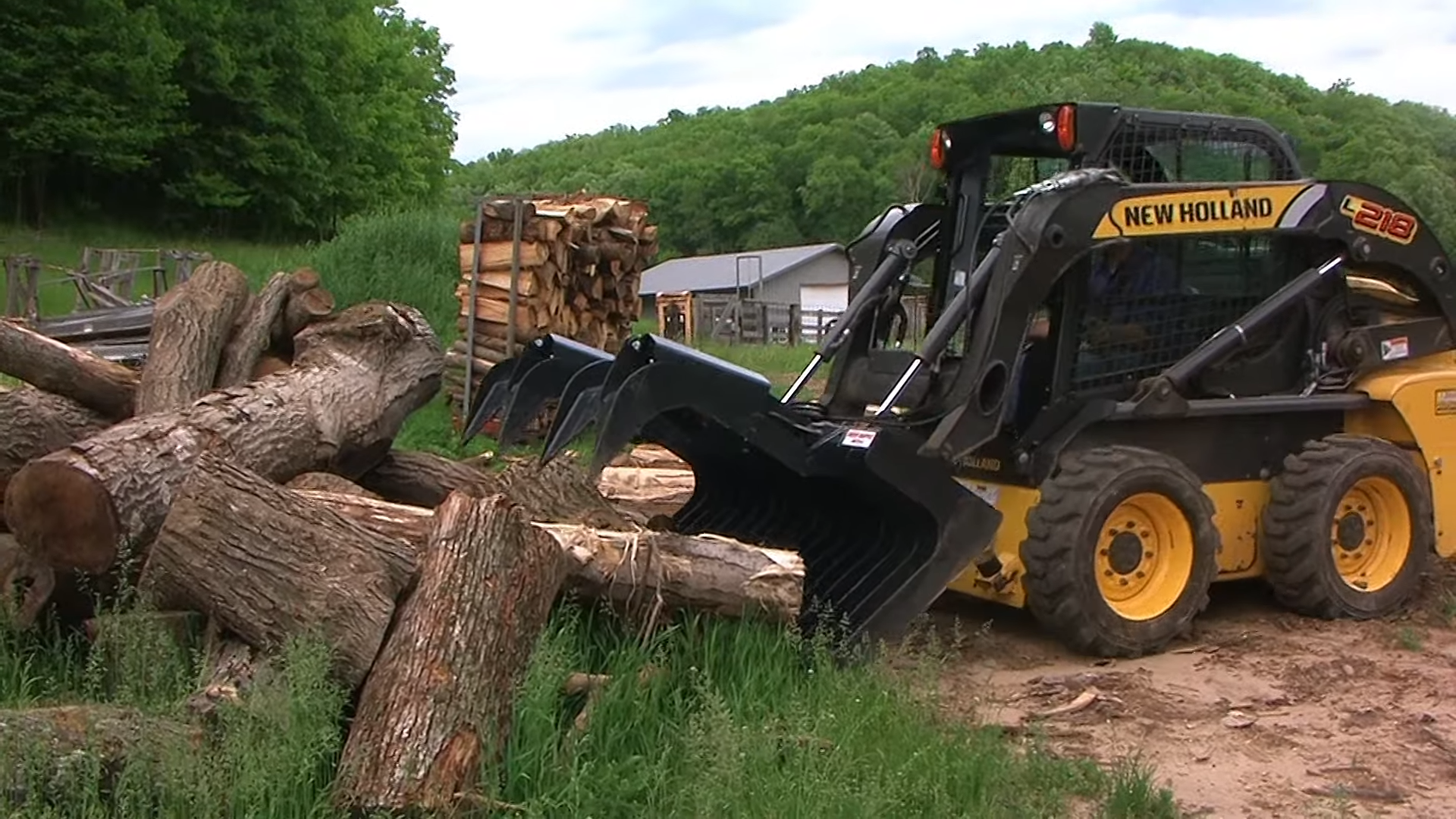

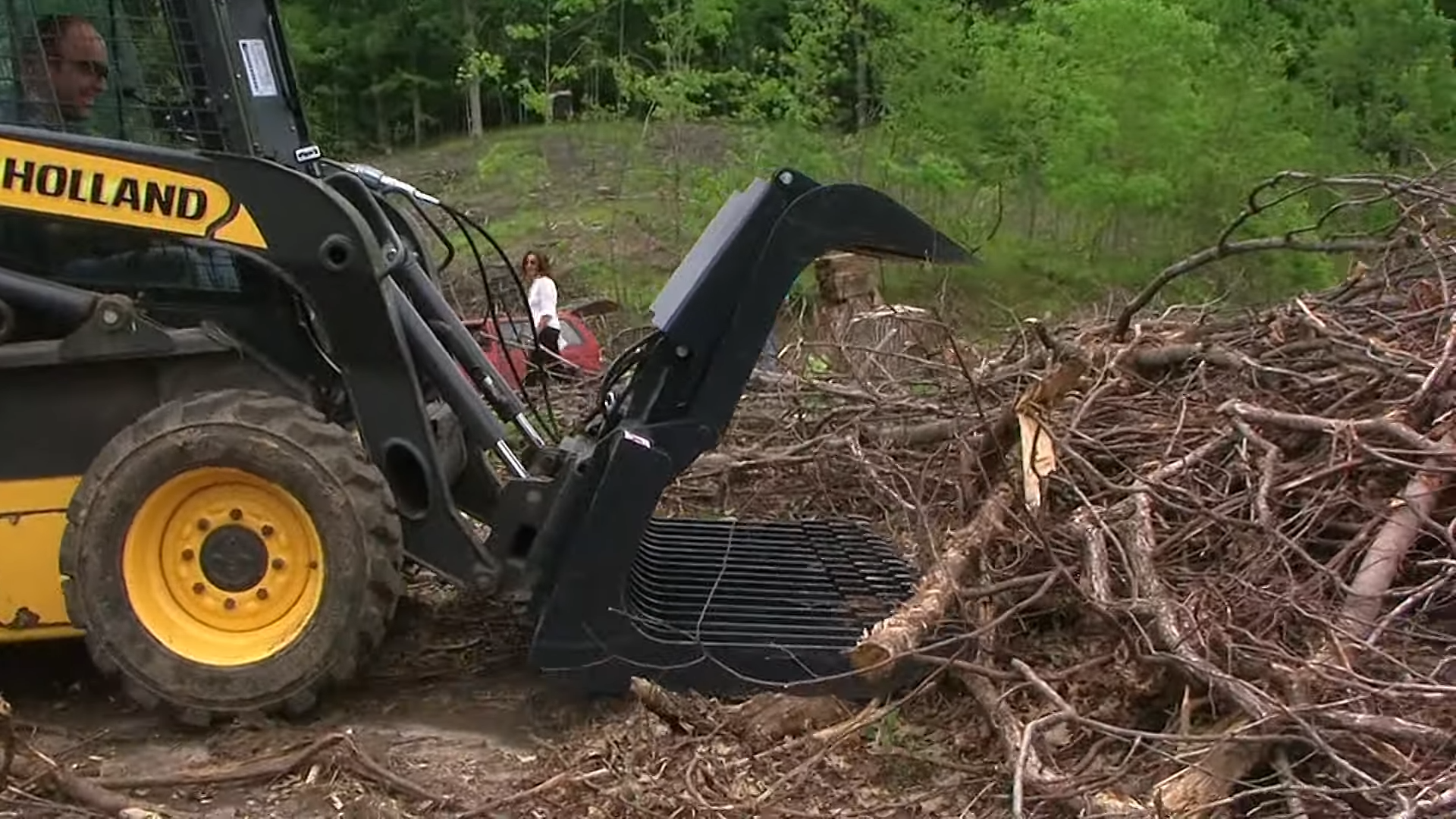

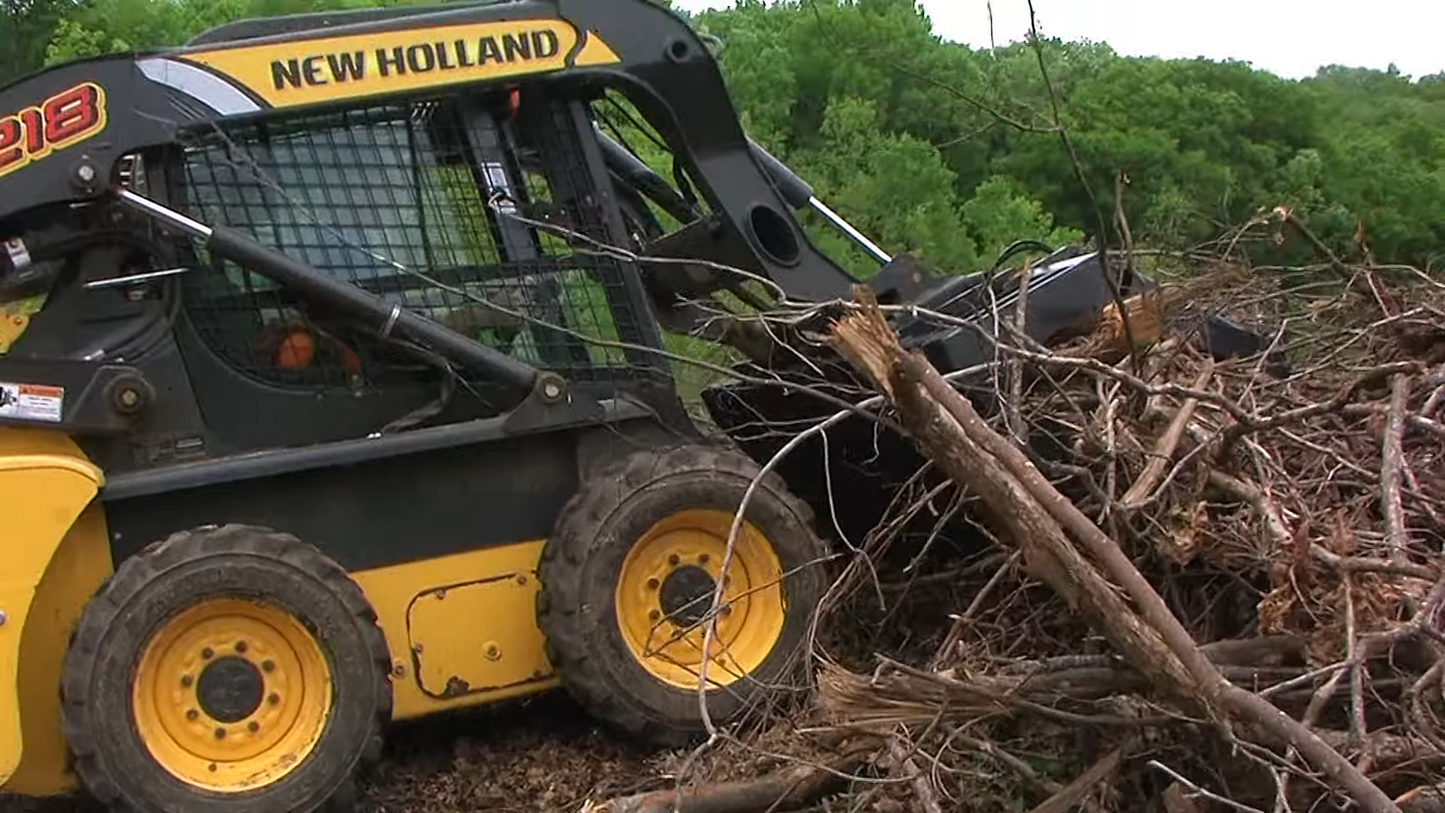

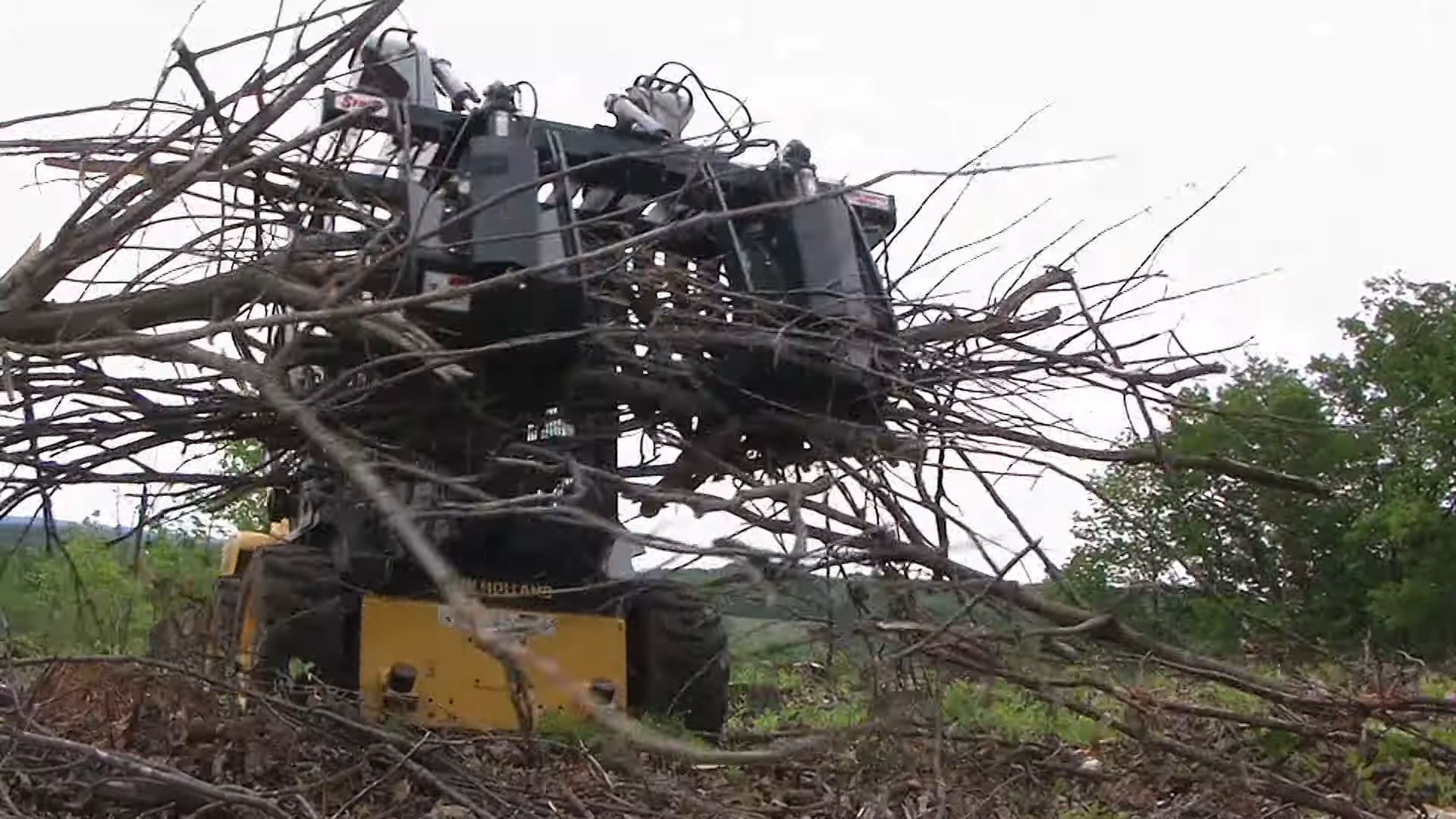

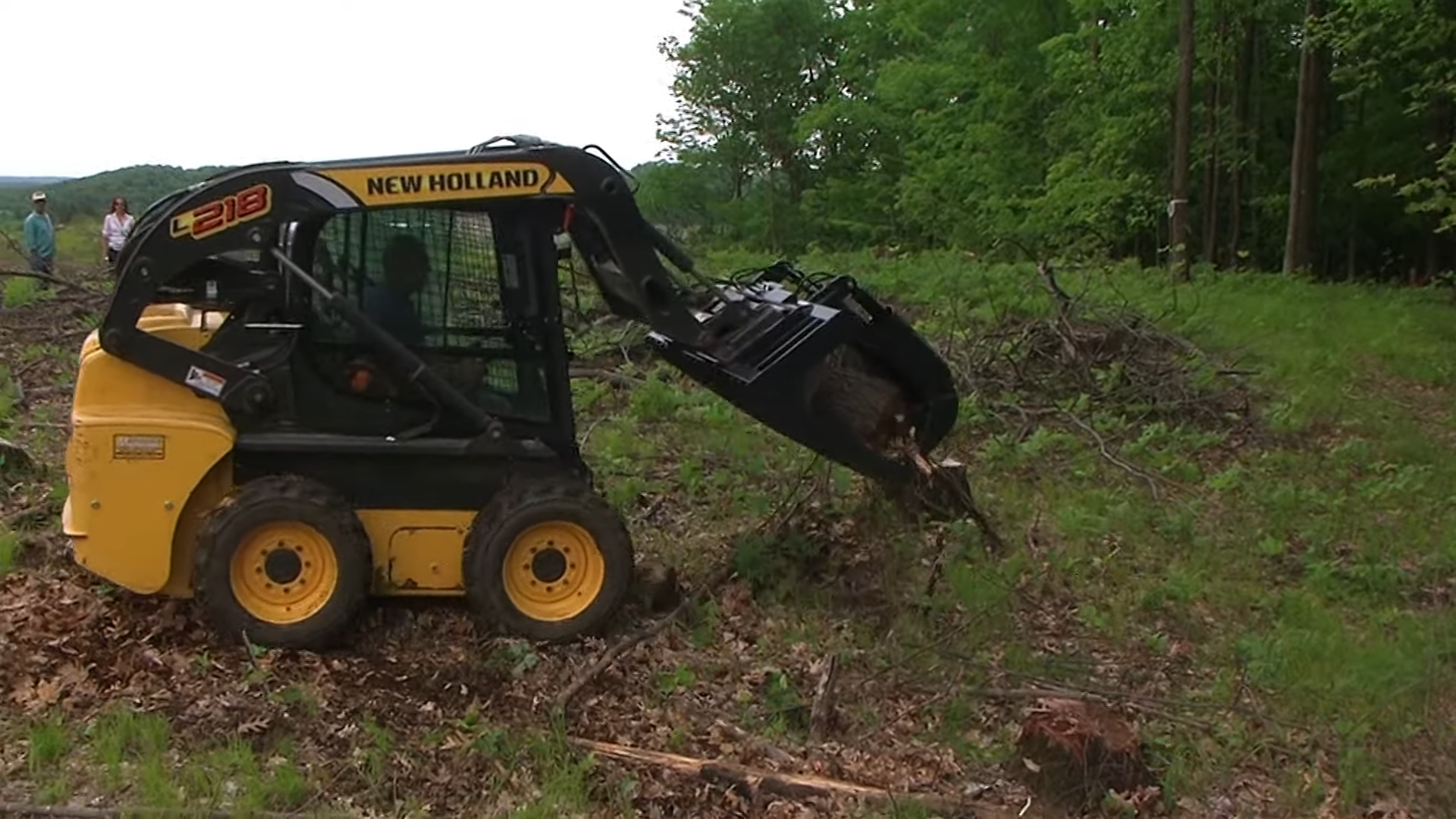

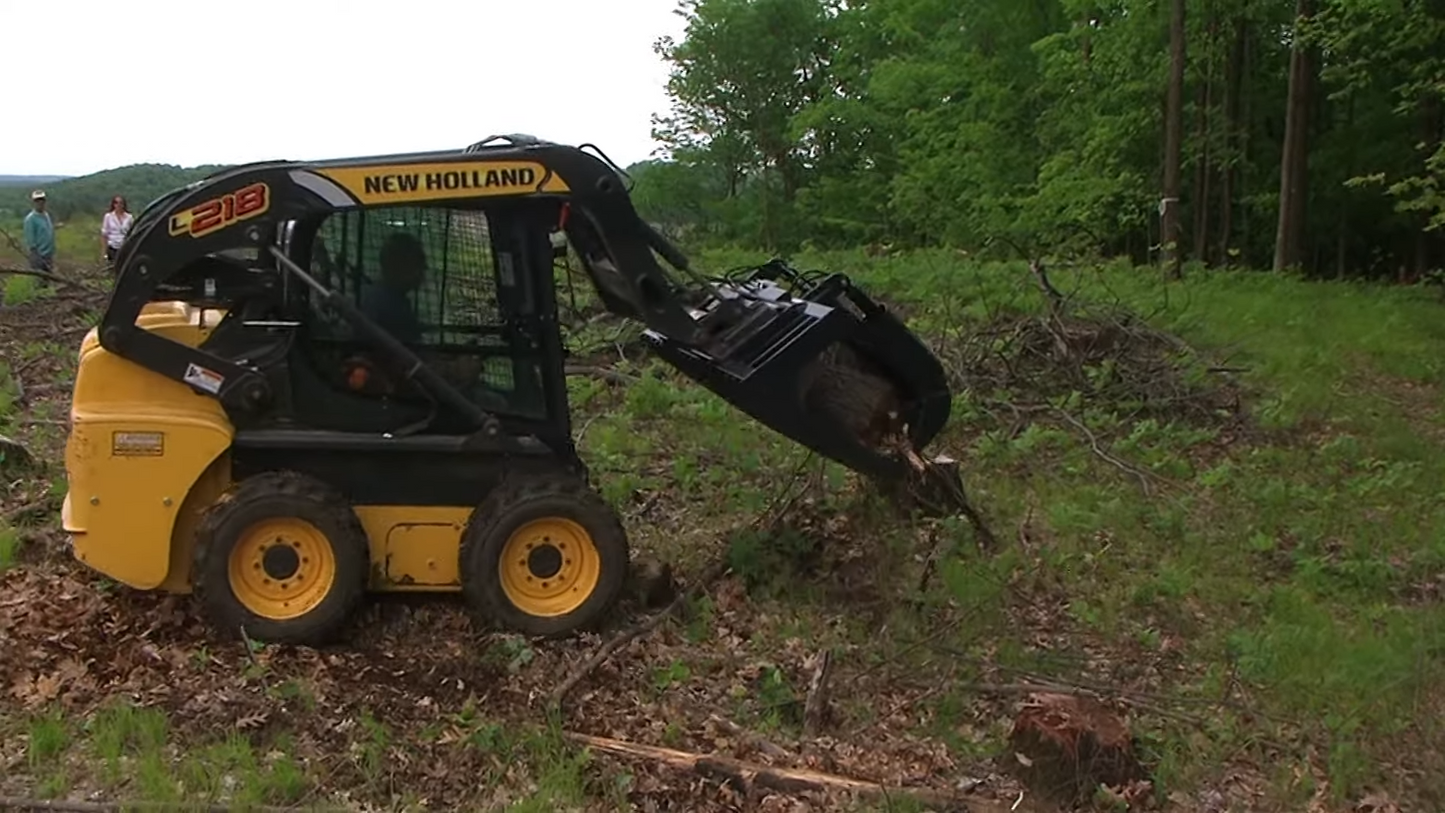

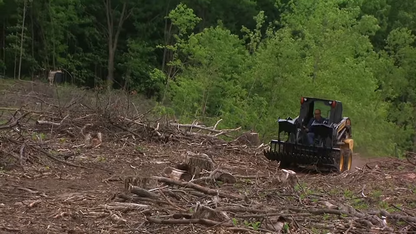

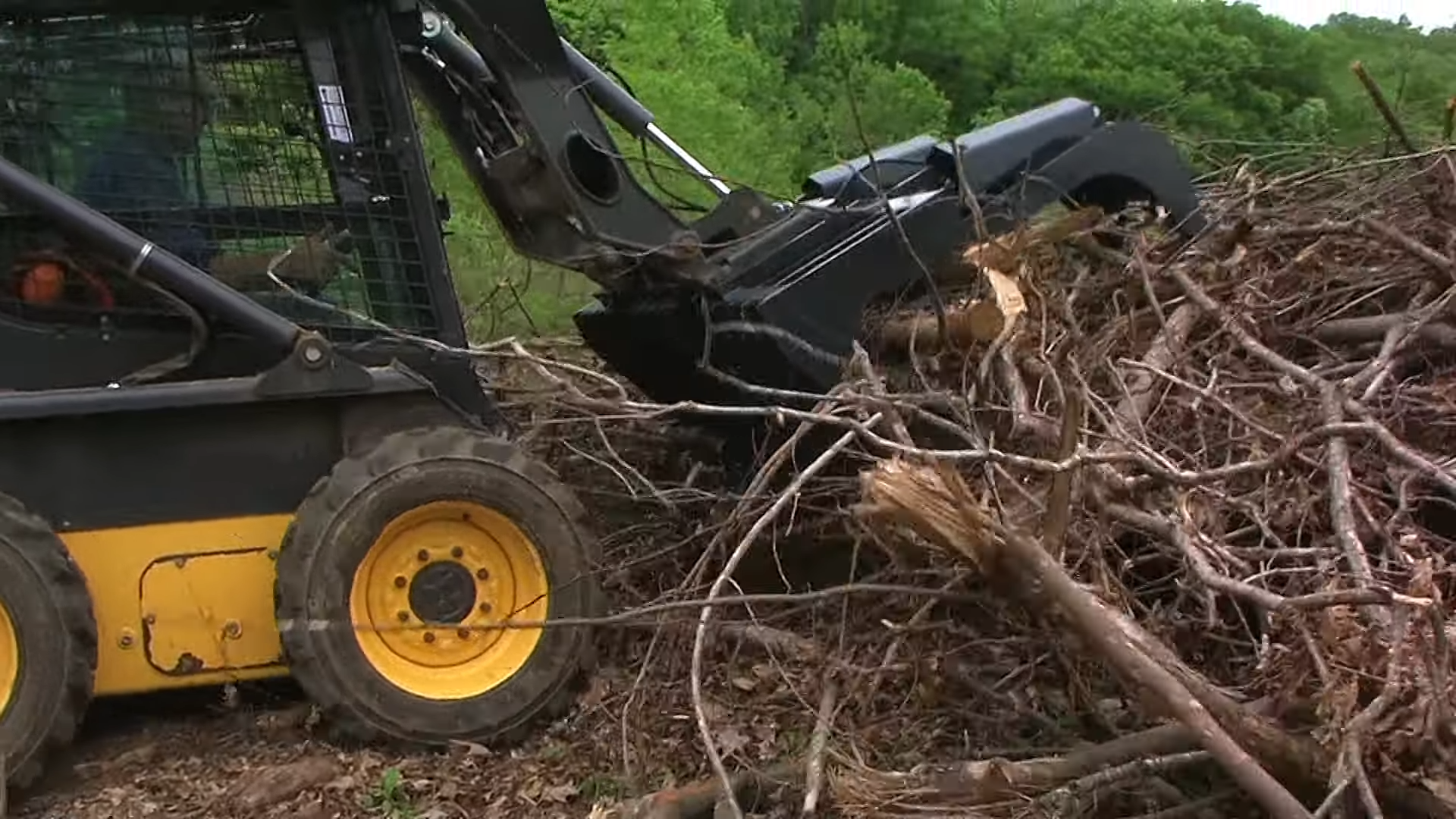

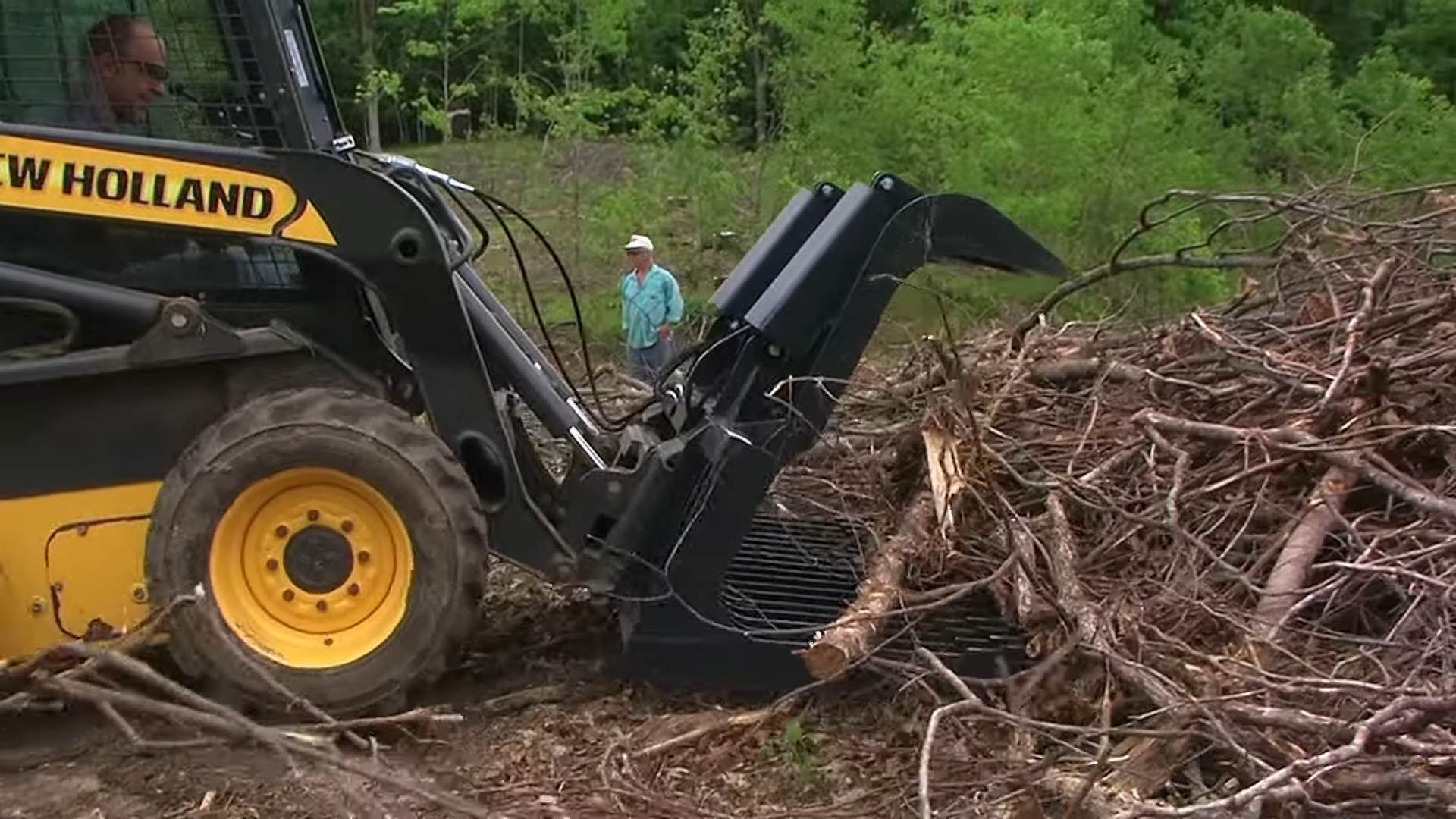

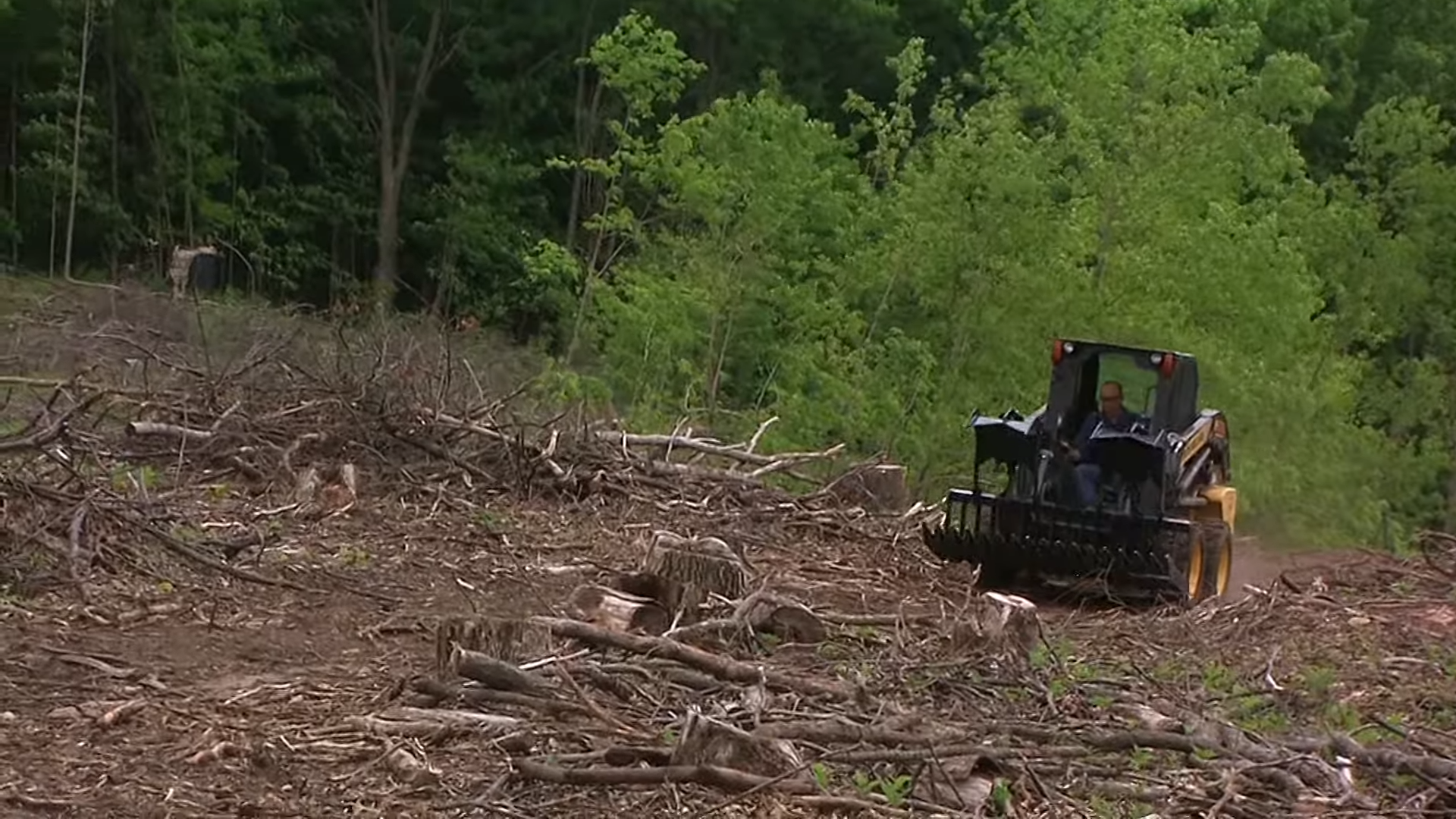

The Stout Skid Steer XHD Brush and Root Grapple with 4" Tine Spacing is an exceptionally durable and versatile attachment designed to tackle demanding brush, root, and debris removal tasks with unmatched efficiency. Perfectly suited for large-scale property maintenance, landscaping, and heavy-duty agricultural applications, this grapple is built to perform under extreme conditions.Power Requirement: Designed for skid steers with hydraulic flow rates of 15–25 GPM, it performs best with machines in the 26–37 kW / 35–50 HP range.

Constructed entirely from Grade 50 high-strength steel (50,000 psi), it combines durability and robustness for long-lasting use. With 4-inch tine spacing, this attachment is perfect for clearing brush, roots, and debris larger than 4 inches while allowing loose soil to fall through, ensuring maximum efficiency. The grapple arms are equipped with fully grease-able pivot points for smooth operation, and all hydraulic hoses are encased in protective sleeves for enhanced durability. This heavy-duty grapple bucket is powered by hydraulic cylinders capable of 2500 working PSI, ensuring superior performance. Available with a 72" bucket width, this grapple is designed for operators who demand reliability and strength.

Key Features

• Power Requirement: Compatible with skid steers equipped with universal quick-attach systems and hydraulic flow rates of 15–25 GPM, it performs best with machines in the 26–37 kW / 35–50 HP range and hydraulic pressure up to 2500 PSI.
• Durable Build: Made entirely of Grade 50 high-strength steel for uncompromising durability and heavy-duty performance.
• 4-Inch Tine Spacing: Clears brush, roots, and debris larger than 4 inches while allowing finer material to pass through, optimizing efficiency.
• Heavy-Duty Grapple Design:
  • Tine thickness: 3/8" for center tines, 1/2" for end tines.
  • Grapple arm thickness: 1/2" with 3/8" web.
  • Grapple opening: 32".
  • Grapple width: 18".
• Compact and Versatile: Bucket width of 72", height of 30", and depth of 38", making it perfect for heavy-duty tasks while maintaining manageability.
• Hydraulic Cylinder: Bore x Stroke: 2"x8", with automatic adjustment to uneven loads for seamless operation.
• Fully Grease-able Pivot Points: Ensures long-lasting durability and smooth functionality.
• Operator-Friendly Features:
  • Protective sleeves for hydraulic hoses.
  • Hose keeper for safe and clean operation.
• Advanced Frame Design:
  • 3"x3" square tubes for rear frame stability.
  • Forward tube diameter: 2.5".
• Made in the USA: Engineered with exceptional craftsmanship and superior quality standards.

Detailed Specifications

Manuals & Documents

 General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

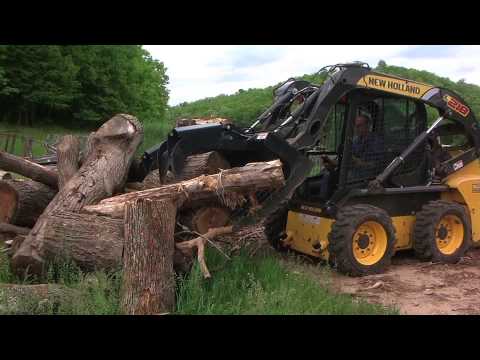

Videos
