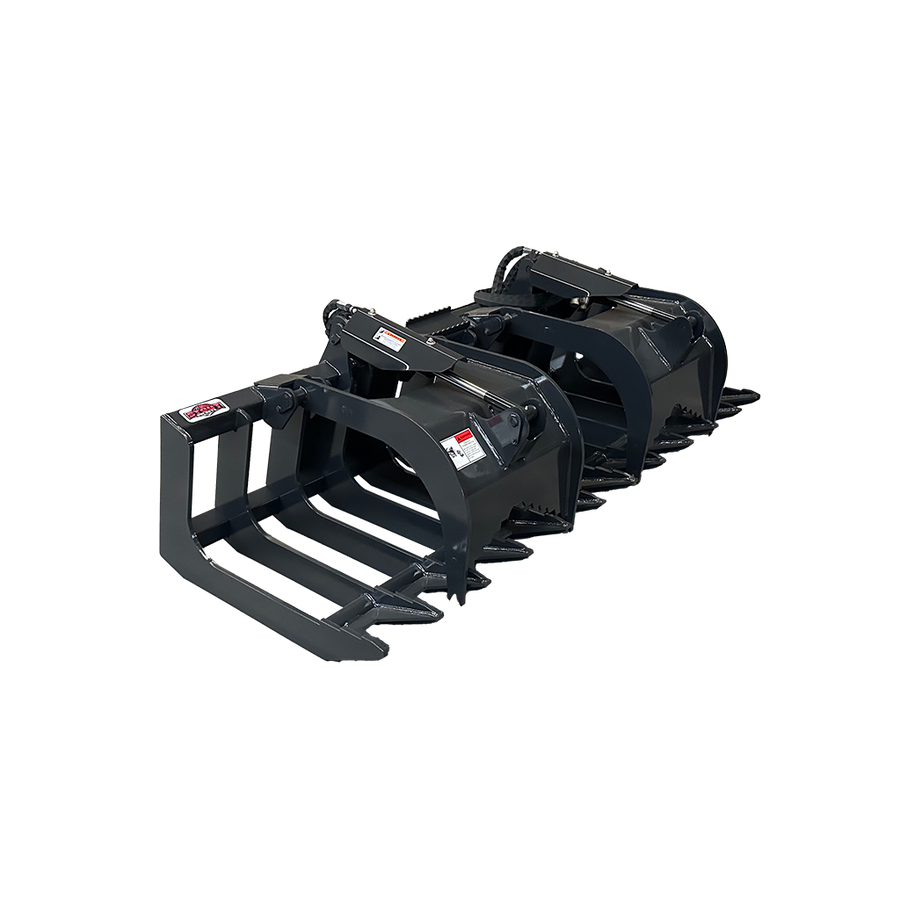

STOUT | XHD Brush & Root Grapple | 6" Tine Spacing | Model 84" Width | Hydraulic Flow 15–25 GPM | Power Requirement 30–40 kW / 40–55 HP | For Skid Steer

Product Description

STOUT | XHD Brush & Root Grapple | 6" Tine Spacing | Model 84" Width | Hydraulic Flow 15–25 GPM | Power Requirement 30–40 kW / 40–55 HP | For Skid Steer

DESCRIPTION

The Stout Skid Steer XHD Brush and Root Grapple with 6" Tine Spacing is an ultra-durable attachment designed to meet the toughest challenges of brush, root, and debris removal. Whether you’re working on a farm, ranch, construction site, or property maintenance project, this heavy-duty grapple is built to maximize efficiency, reliability, and performance. Power Requirement Optimized for machines in the 30–40 kW / 40–55 HP range with hydraulic flow rates of 15–25 GPM.

Engineered entirely from Grade 50 high-strength steel (50,000 psi), it combines resilience with exceptional functionality, making it the ultimate choice for demanding tasks. Featuring 6-inch tine spacing, it efficiently clears debris and brush while allowing loose material to sift through. The grapple arms boast a 1/2-inch thickness with a 32-inch opening, making light work of even the most stubborn loads. This attachment is powered by hydraulics with 2500 PSI working pressure, ensuring smooth and precise operation. With a bucket width of 84 inches, the XHD Brush and Root Grapple is designed for operators who demand strength and durability for every job.

Key Features

• Power Requirement: Compatible with skid steers using a universal quick-attach system and hydraulic pressure of up to 2500 PSI for optimal performance. And optimized for machines in the 30–40 kW / 40–55 HP range with hydraulic flow rates of 15–25 GPM.
• Durable Construction: Built entirely from Grade 50 high-strength steel for long-lasting resilience in heavy-duty applications.
• 6-Inch Tine Spacing: Clears large debris while allowing finer material to pass through, ensuring maximum efficiency in brush and root removal.
• Heavy-Duty Grapple Arms:
  • Tine thickness: 1/2".
  • Grapple opening: 32".
  • Grapple width: 21".
• Large Bucket Dimensions:
  • Bucket width: 84".
  • Height: 30".
  • Depth: 38".
• Hydraulic System:
  • Bore x Stroke: 2"x8".
  • Automatically adjusts to uneven bucket loads for seamless functionality.
  • Fully grease-able cylinder and pivot points for extended durability.
• Operator-Friendly Design:
  • Hoses are fully sleeved for protection and feature a hose keeper to prevent pinch points.
  • Includes hydraulic cylinder covers/guards for additional durability.
• Advanced Frame Design: Reinforced with 3"x3" square tubes for stability and reliability.
• Compact Yet Powerful: Weighs 910 lbs. (unit weight) and 945 lbs. (shipping weight), ensuring robust performance without compromising maneuverability.
• Made in the USA: Crafted with the highest quality standards for unmatched reliability and excellence.

Detailed Specifications
