Product Description

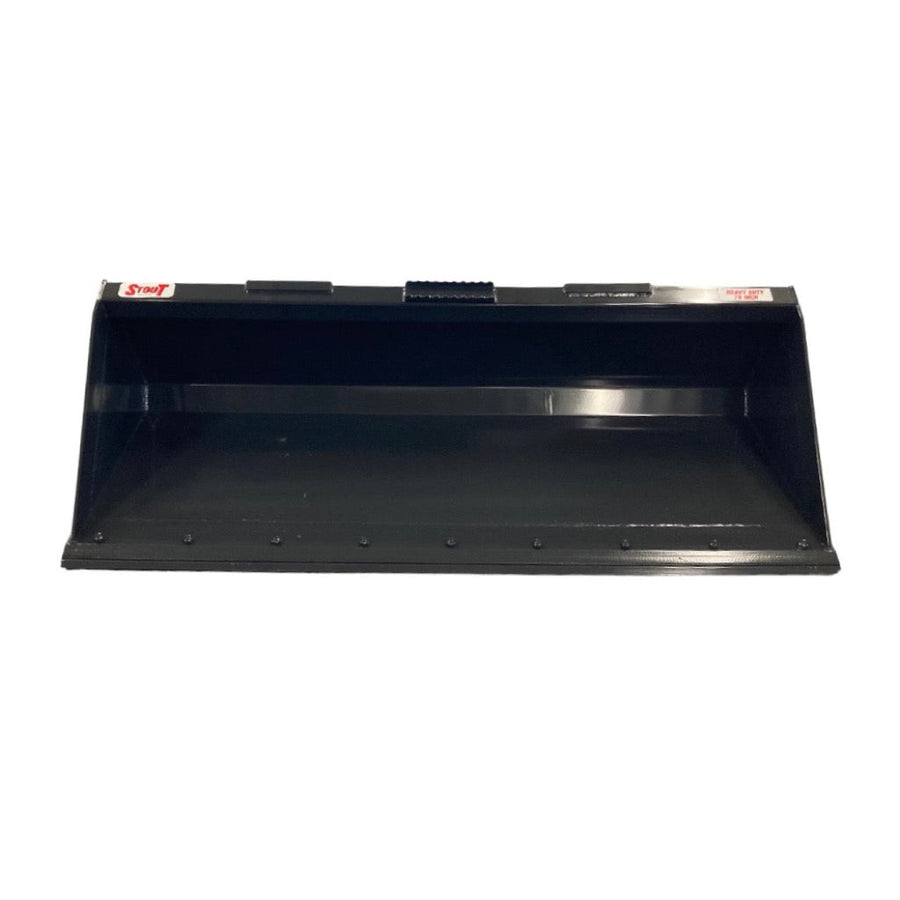

STOUT | Xtreme Material Bucket | Double Edge | Model 72", 78", 84" & 96" Widths | For Skid Steer
DESCRIPTION
Take your material handling to the next level with the STOUT Xtreme Material Bucket built for those who demand power, precision, and durability on every job. Designed with a double bevel reversible bolt-on cutting edge, this bucket doesn’t just scrape it dominates.
Crafted entirely from high-strength Grade 50 steel (50,000 PSI), this bucket is engineered for extreme conditions, heavy-duty loads, and long-term use. Whether you’re moving gravel, snow, debris, or dirt, the STOUT Xtreme Material Bucket ensures superior breakout force and effortless control with power compatibility between 22 kW and 41 kW (30–55 HP) perfect for most mid- to high-powered skid steers.
Its reinforced structure with thick sidewalls, wear bars, and welded-in edge make it the go-to choice for contractors, landscapers, and farmers who simply refuse to compromise on performance.
Key Features
- Heavy-Duty Grade 50 Steel 50,000 PSI strength for unbeatable durability.
- Double Edge Advantage Welded-in edge with bolt-on, reversible cutting edge.
- Optimized for Skid Steers Compatible with all J2513 universal quick attach mounts.
- Bolt-On Wear Bars Extra protection against ground friction.
- Wide Range of Sizes Available in 72”, 78”, 84”, and 96” widths.
- Power Requirement: 22–41 kW (30–55 HP) Perfect for mid- to high-powered skid steers.
- Made in the USA Premium craftsmanship and American-built strength.
Detailed Specifications
| Specification | Detail |
|---|---|
| Width Options | 72", 78", 84", 96" |
| Approx. Weight (Empty / Ship) | 560 lbs / 600 lbs (72") 610 / 650 (78") 660 / 700 (84") 730 / 770 (96") |
| Depth | 32" |
| Height | 20" |
| Side & Bucket Thickness | 1/4" |
| Stiffener Thickness | 3/8" |
| Wear Bars | 3 (72", 78") 4 (84") 5 (96") |
| Welded Edge | 3/4"x6" with Bolt Pattern |
| Bolt-On Cutting Edge | 1/2"x6" Reversible, Double Bevel |
| Top Tube | 3"x3" Reinforced |
| Mount Type | Universal Skid Steer Quick Attach (J2513) |
| Material | Grade 50 Steel (50,000 PSI Yield Strength) |
| Power Requirement | 22–41 kW (30–55 HP) |
| Country of Manufacture | USA |
Comparison Chart
| Feature | 72" Model | 78" Model | 84" Model | 96" Model |
|---|---|---|---|---|
| Approx. Weight (lbs) | 560 lbs / 600 ship | 610 lbs / 650 ship | 660 lbs / 700 ship | 730 lbs / 770 ship |
| Wear Bars | 3 | 3 | 4 | 5 |
| Ideal Use | Mid-range tasks, general use | Balanced heavy-duty work | Large job sites, material loading | Max load capacity, commercial-grade |
| Power Requirement | 22–30 kW (30–40 HP) | 26–32 kW (35–43 HP) | 28–37 kW (38–50 HP) | 30–41 kW (40–55 HP) |
