Garmin STRIKER™ Plus 4 and 5 Ice Fishing Bundle Dual Beam-IF and GT8HW-IF Transducer

Product Description

Garmin STRIKER™ Plus 4 and 5 Ice Fishing Bundle Dual Beam-IF and GT8HW-IF Transducer

DESCRIPTION

GET CLEAR, HIGH-CONTRAST VIEWS ANYWHERE YOU FISH

Key Features

See in Vivid Color

• 7 high-contrast color options enhance underwater visuals, ensuring every fish and structure detail is visible.
• Available in display sizes ranging from 4” to 9”, offering crystal-clear WVGA resolution.

Advanced Sonar Capabilities

• Garmin CHIRP traditional sonar ensures detailed fish arches and target separation.
• CHIRP ClearVü and SideVü deliver high-definition imaging up to 200’ on each side.
• Bottom lock, A-Scope, and water temperature log enhance sonar performance.

Integrated Navigation Tools

• High-sensitivity GPS for route planning, waypoint marking, and boat speed tracking.
• Quickdraw Contours mapping lets you create and store detailed maps of your fishing areas.

Wireless Connectivity

• Sync with the ActiveCaptain® app for seamless waypoint transfers, notifications, and Quickdraw™ Community access.

Rugged and User-Friendly

• Water-resistant (IPX7) design for durability in challenging environments.
• Includes tilt/swivel mount and transom/trolling motor mounting hardware for easy setup.

MARK IT. NAME IT. FIND YOUR WAY BACK.

Catch more fish and mark your favorite spots to find your way back — even on ice — with the portable STRIKER Plus 5 ice fishing bundle.

Catch more fish under the ice and in open water.

Striker Plus 5:

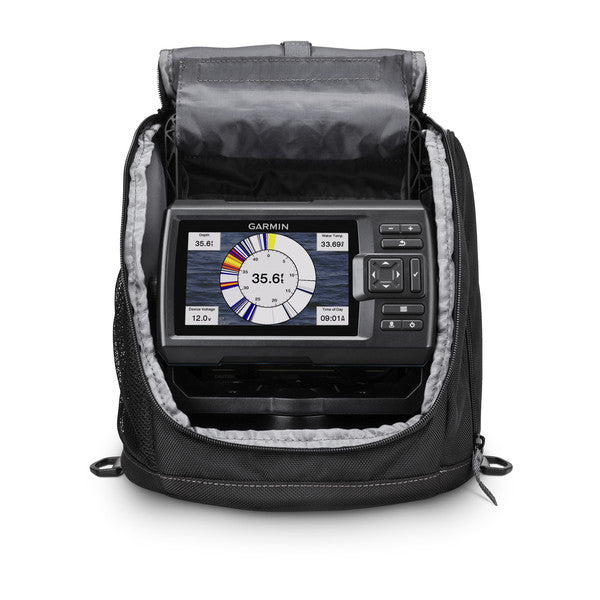

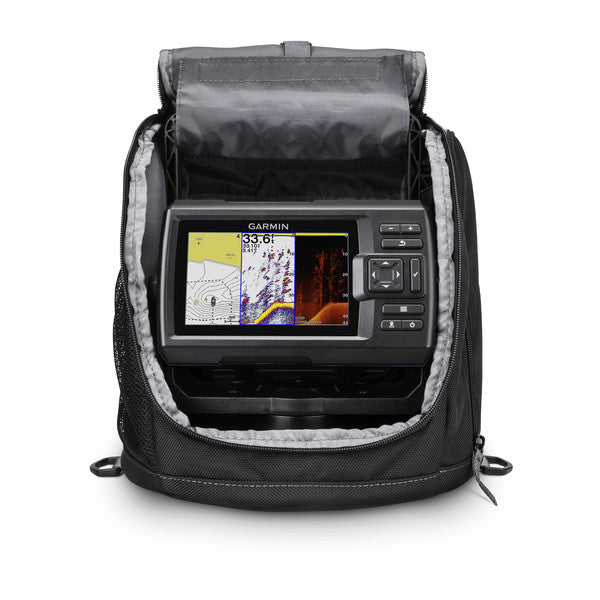

This ice fishing bundle includes the STRIKER Plus 5 fishfinder with a bright 5” display and built-in GPS.

High Wide Transducer:

The bundle also includes a high wide CHIRP ice fishing transducer for crystal-clear images and remarkable target separation.

Waypoint Marking:

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

Quickdraw Contours:

Nobody knows the waters you fish in better than you. STRIKER Plus 5 can now store up to 2 million acres of maps with 1’ contours.

Fish Year-Round:

Part of the appeal of this bundle is that it’s not just made for the ice. Get a Garmin GT8 or GT15 transducer (each sold separately), and the STRIKER Plus 5 fishfinder works on open water.

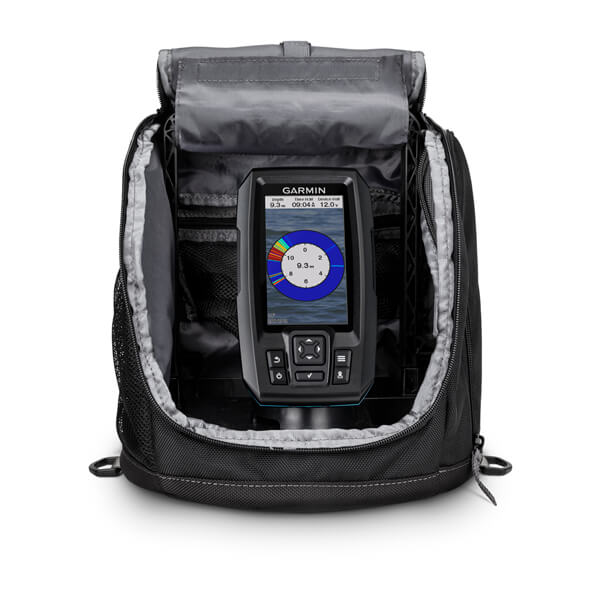

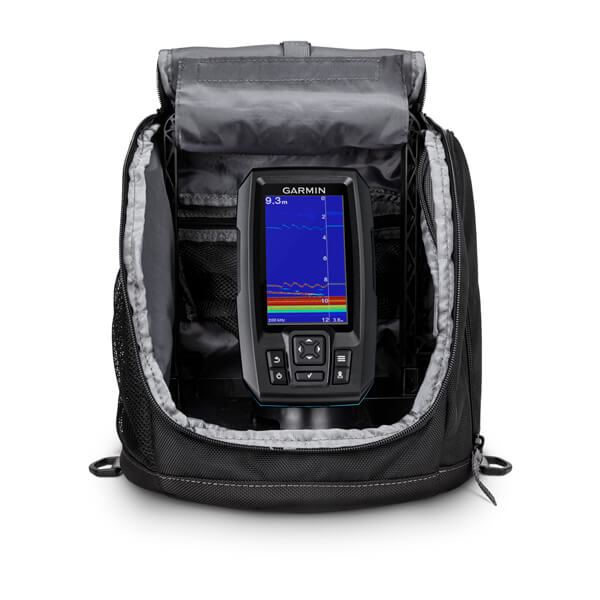

Carrying Case:

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Detailed Specifications

General
Dimension	7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
Weight	9.5 lbs (4.3 kg)
Water rating	IPX7
Display Type	WVGA, IPS
Display Size	4.3" x 2.6" (10.9 x 6.6 cm)
Display resolution	800 x 480 pixels
Input	Keyed



Maps & Memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100



Ice Fishing Details
Battery type, size	SLA, 7Ah
Bag size	S
Included transducer	DB-IF
Transducer holding feature	Foam float



Sensors
GPS	yes
GLONASS	yes
Galileo	yes
Has built-in receiver	yes
Receiver	5 Hz
NMEA 2000 Compatible	yes
Supports WAAS	yes



Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)



Optional Map Support
Garmin Navionics+™	yes
Garmin Navionics Vision+™	yes
TOPO 100K	yes
Standard Mapping	yes
Garmin Quickdraw Contours	yes



Chartplotter Features
ActiveCaptain® compatible	yes



Electrical Features
Power Input	9 to 18 Vdc



Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	built-in 260/455/800/1000/1200 kHz



Connections
4-pin transducer ports	1
Garmin Wi-Fi network (local connection)



Additional
Additional	Garmin Navionics+ Inland & Coastal:  55cv Canada Garmin Navionics + (Inland): 53cv U.S. Lakes

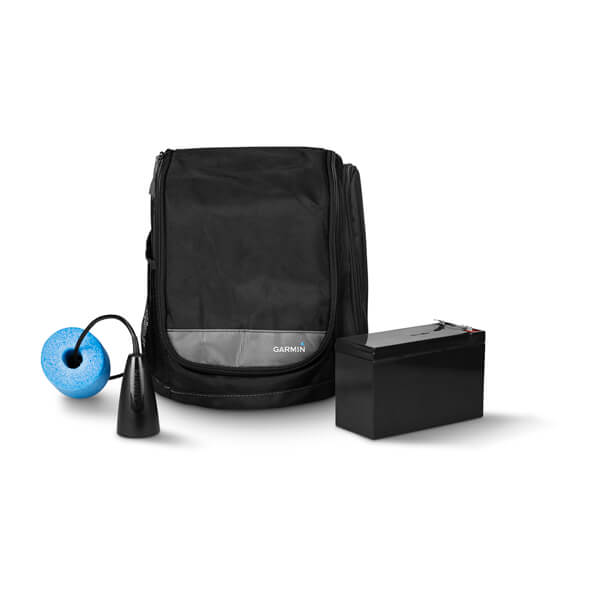

In Package

• ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
• Dual Beam-IF transducer
• Tilt/swivel mount
• Portable bag
• Base/handle
• Foam float
• Power cable
• Rechargeable battery
• Battery charger
• Documentation
