Product Description
Sveaverken | F100H Steer Ready Auto Steer System | 10.1" Terminal | 9 To 36 V Power Supply | 0.1 To 26 km/h Speed Range | Horsepower 150 To 500 HP | For Hydraulic Controlled Tractors
DESCRIPTION
Revolutionize the way you farm with the Sveaverken F100H Steer Ready Auto Steer System an advanced, plug-and-play auto-steering solution engineered for hydraulic-steering tractors. Whether you're planting, spraying, or harvesting, the F100H offers seamless precision guidance that helps you maximize yield, minimize input waste, and eliminate operator fatigue without altering your tractor’s original steering system.
Built specifically for steer-ready tractors, the F100H gives you fully automated steering control straight from the cab. It delivers sub-inch accuracy using RTK and PPP correction signals, ensuring straight lines, optimal headlands, and perfect passes across all field conditions from flat plains to rugged, uneven terrain.
With ISOBUS compatibility, fast GIS data transfer, and support for various implement operations like harrowing, sowing, and spraying, this system is the perfect partner for modern, data-driven farming. Best of all? No complicated overhauls or steering column replacements needed. Just plug in, calibrate, and start farming smarter.
Key Features
- Plug-and-Play Installation Quick setup with no major mechanical modifications; ideal for steer-ready hydraulic tractors.
- Precision Auto-Steering Boost productivity and eliminate overlaps with high-accuracy RTK and PPP support.

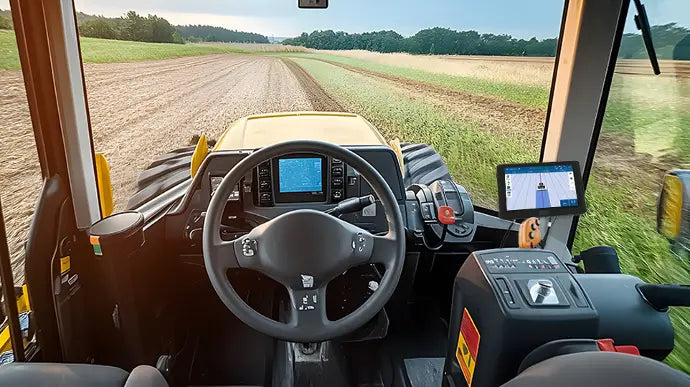

- Preserves Tractor Integrity No need to remove or replace your tractor's original steering wheel or motor.
- Optimized for Field Efficiency Perfect for sowing, spraying, harrowing, and harvesting applications.
- ISOBUS Compatibility Seamlessly connects with ISOBUS implements for full data sharing and control.

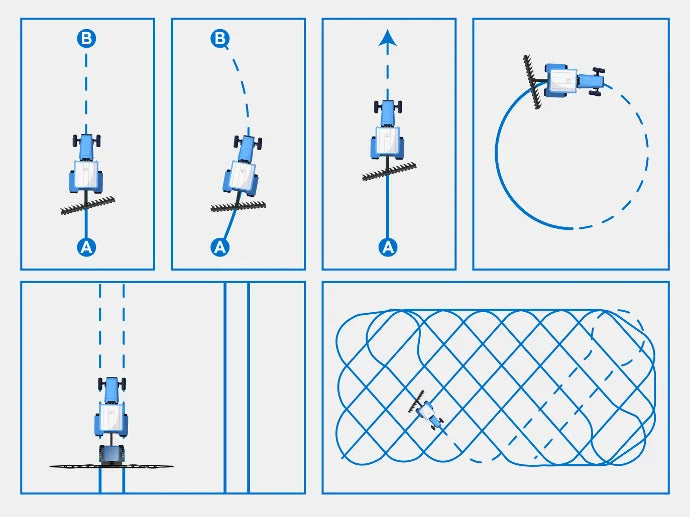

- Flexible Guidance Line Modes Multiple path-planning options, including straight, curve, pivot, and headland turns.
- Full GIS Data Integration Easily import/export field maps and manage zones with GIS tools.

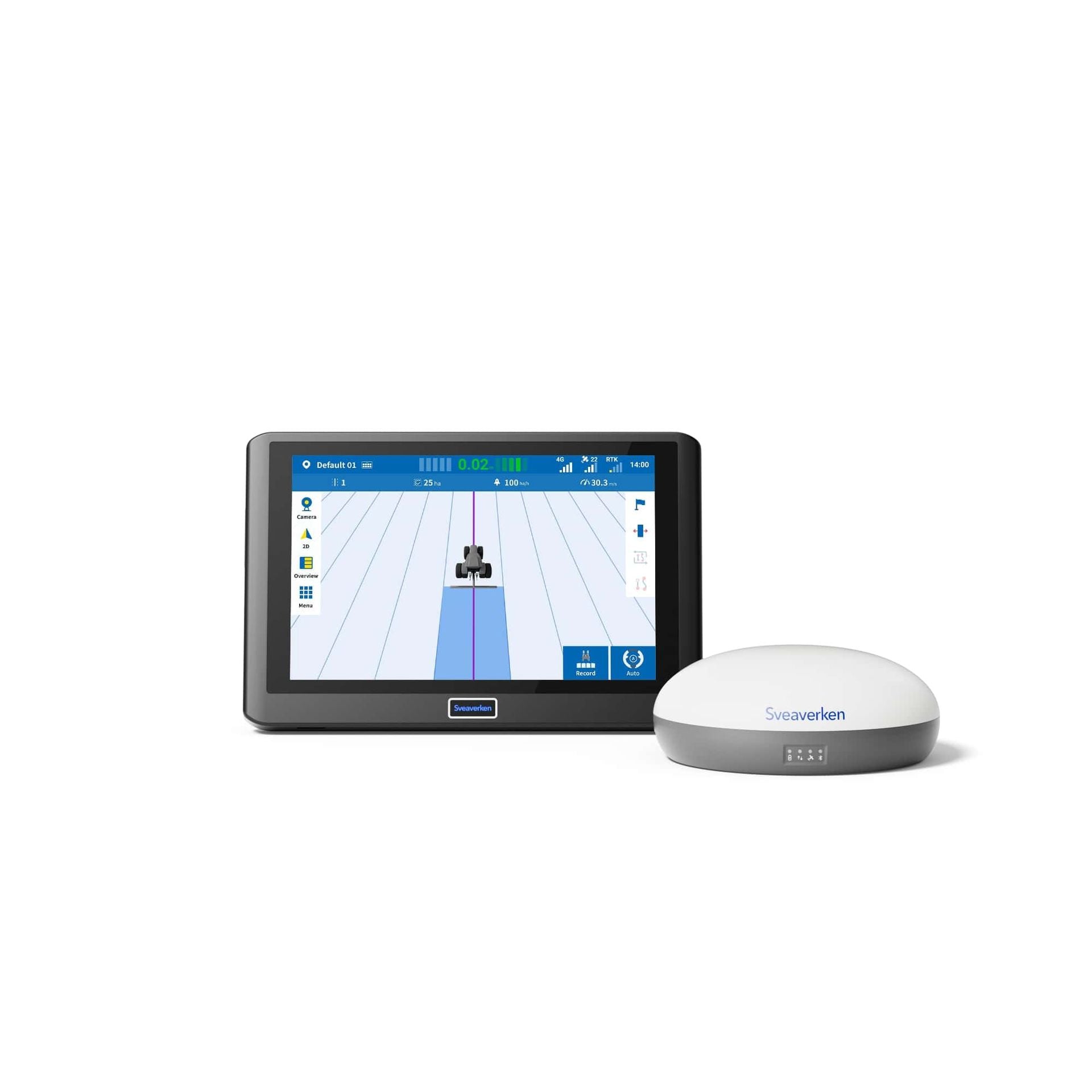

- Large 10.1" LED Touchscreen Display Clear, high-brightness interface readable in any field condition.
- All-Weather Performance With IP65/IP66 protection and -20°C to 70°C working range, it's ready for any season.
- Wide Operating Speed Range Handles speeds from 0.1 to 26 km/h, adapting to all farming tasks.
- Steady on Uneven Terrain Designed for consistent performance on hills, slopes, and rough fields.
- Precise U-Turn Functionality Automates headland turns for consistent and efficient coverage.

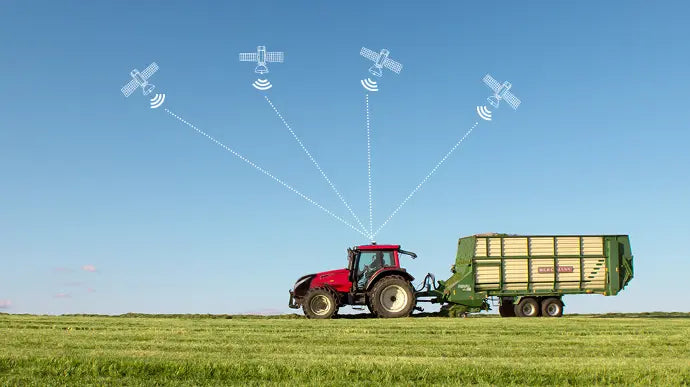

- Real-Time Satellite Tracking Multi-constellation GNSS with GPS, GLONASS, Galileo, and BeiDou.
- Efficient Power Usage Operates on a 9 To 36V power supply with energy-efficient performance.
- Ideal for Large-Scale Farming Perfect for farms running 150 To 500 HP tractors and managing high-acreage operations.
Detailed Specifications
| Component | Specification |
|---|---|
| Control Terminal | |
| Display Size | 10.1" LED Touchscreen (>500 nits brightness) |
| Resolution | 1280 × 800 pixels |
| Dimensions | 275 × 180 × 40 mm |
| Power Supply | 9 To 36 V |
| Waterproof Rating | IP65 |
| Operating Temp | -20°C to 70°C |
| Storage Temp | -40°C to 85°C |
| GNSS Receiver | |
| Supported Frequencies | GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5b |
| Dimensions | 162 × 78 mm |
| Waterproof Rating | IP66 |
| Operating Temp | -20°C to 70°C |
| Storage Temp | -40°C to 85°C |
| Machine Compatibility | |
| Tractor Type | Steer-Ready Hydraulic Tractors |
| Horsepower Range | 150 To 500 HP |
| Speed Range | 0.1 To 26 km/h |
| ISOBUS Compatibility | Yes |
| Field Applications | Harrowing, Sowing, Spraying, Harvesting |
