Product Description

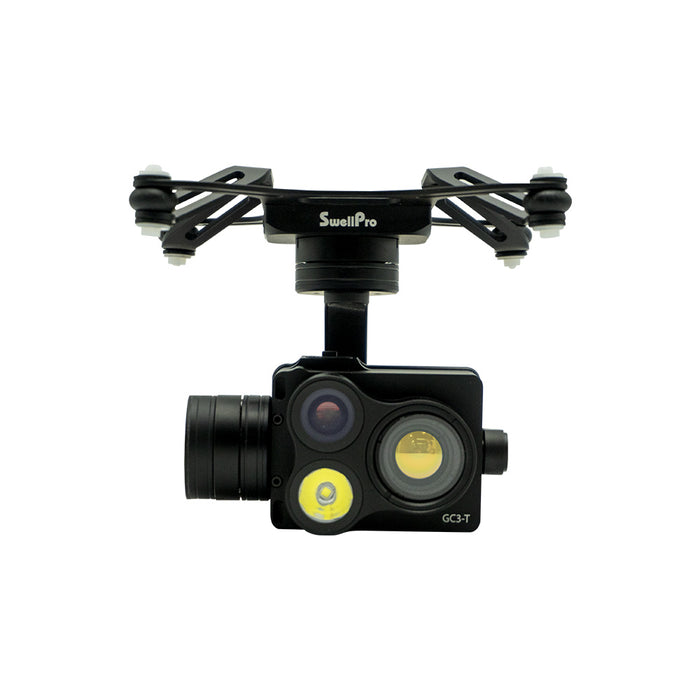

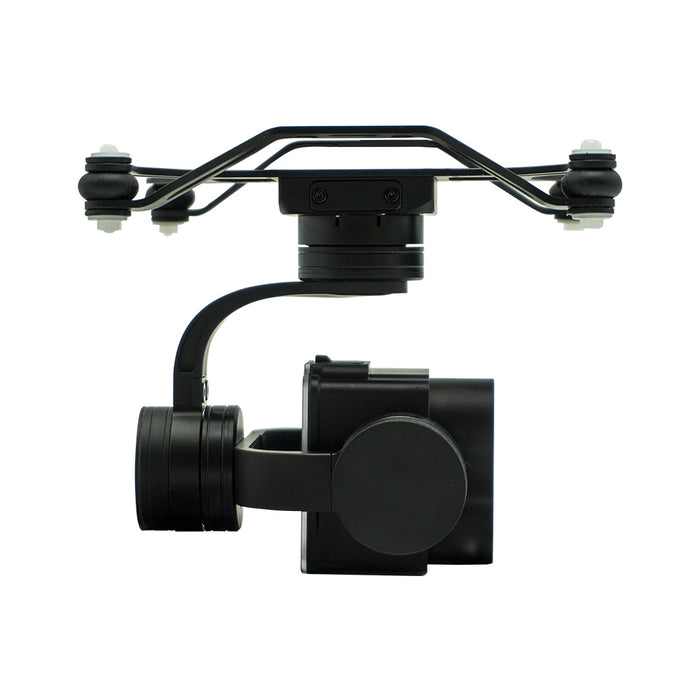

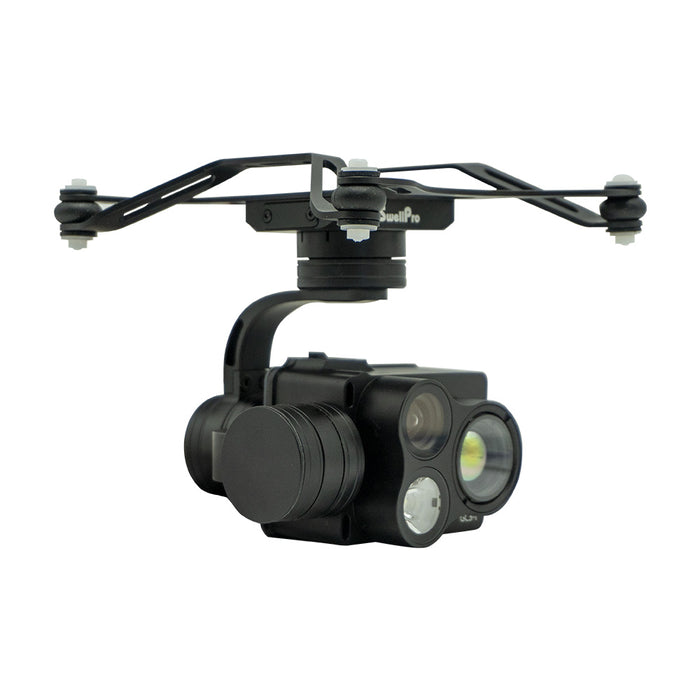

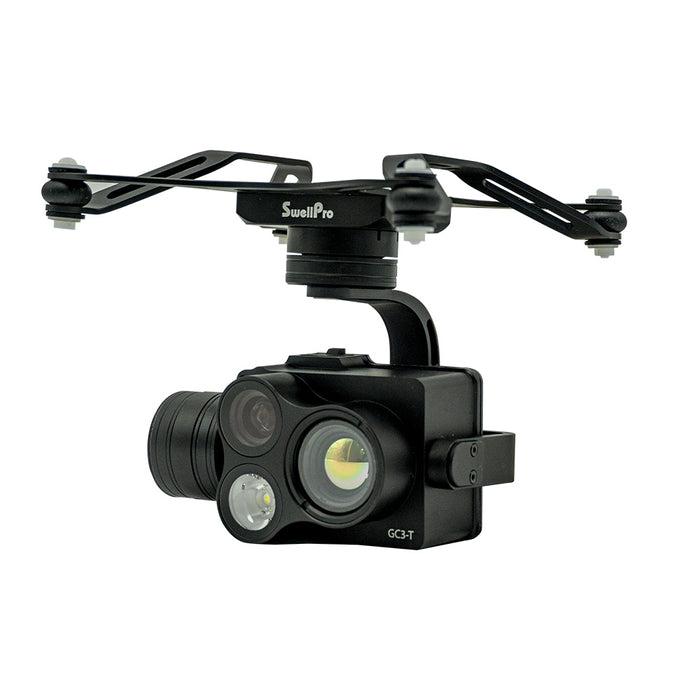

SwellPro GC3-T Waterproof 3-Axis Thermal Camera
DESCRIPTION
SwellPro GC3-T is the world’s first waterproof drone thermal camera. When adding GC3-T to SplashDrone 4, they present a powerful & affordable aerial thermal imaging solution for various industrial jobs. The dual-sensor provides both smooth infrared image and low-light image simultaneously, allowing operators to quickly identify objects and analyze situations in hard-to-reach locations with less time, less cost and little risks.

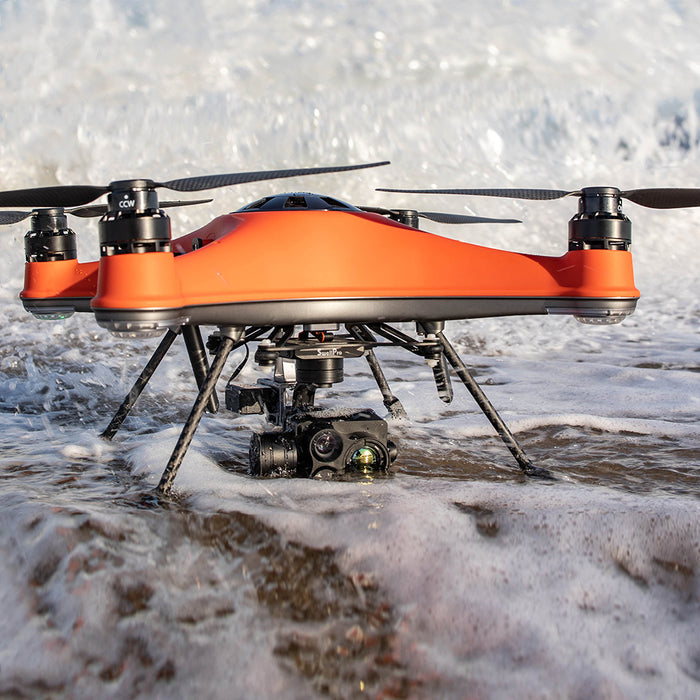

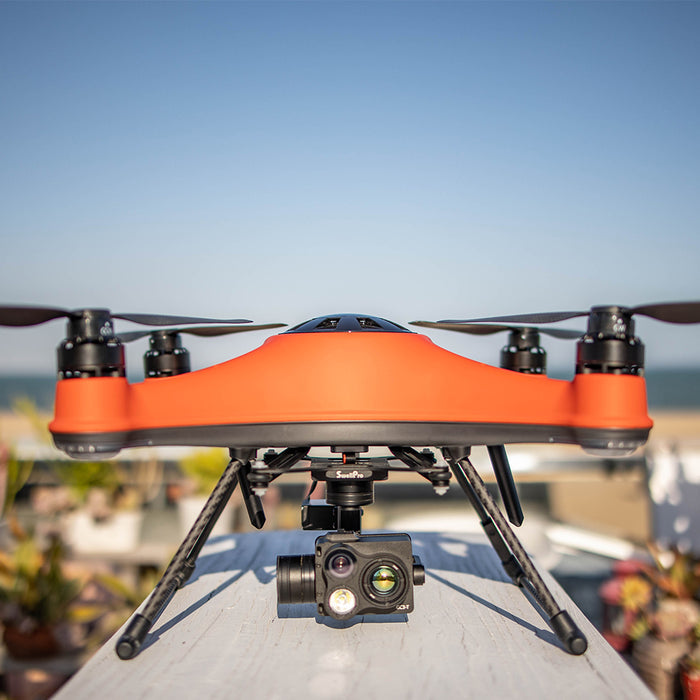

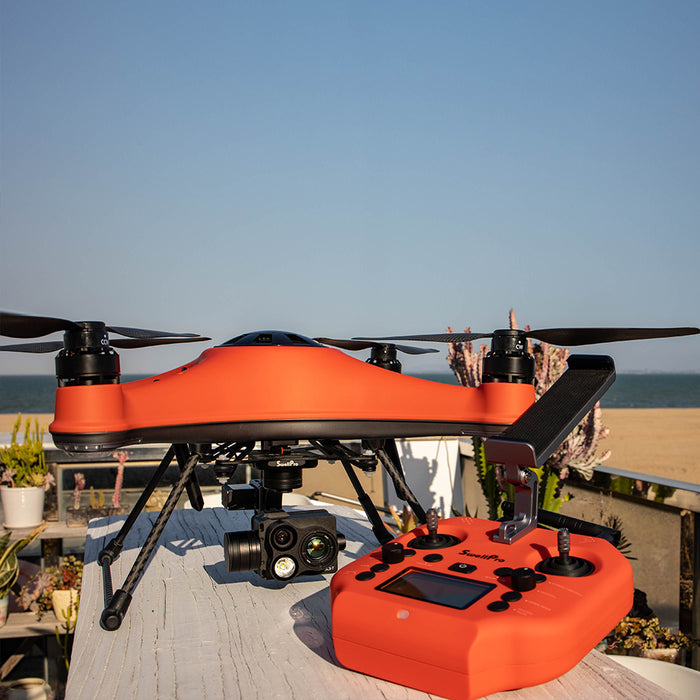

The SwellPro GC3-T Waterproof 3-Axis Thermal Camera is the world’s first thermal camera built exclusively for waterproof drones, redefining aerial imaging in industrial and critical operations. Designed to pair seamlessly with the SplashDrone 4, the GC3-T provides a powerful and affordable thermal imaging solution, enabling operators to capture high-quality visuals and data in hard-to-reach or hazardous locations.
With its dual-sensor capability, the GC3-T captures both high-resolution infrared thermal images and 1080P low-light visuals, ensuring accurate identification and analysis. The real-time on-screen display delivers critical data, including maximum, minimum, average, and center temperatures, streamlining decision-making in the field.
The camera is fully IP67 waterproof and boasts a robust 3-axis gimbal for smooth, stable footage, even in extreme environments. Whether you’re conducting search-and-rescue missions, monitoring industrial equipment, or surveying remote areas, the GC3-T is your reliable partner for unparalleled aerial imaging.
Key Features
- The thermal sensor captures high resolution (640 x 512) and high sensitivity (≤ 50mk@f/1.0) infrared thermal images. It can detect temperature ranging from -20℃ to 150℃ / -4℉ to 932℉ with an accuracy of ±3℃ in real time.
- The low-light sensor captures 1080P true color images. When operators cannot identify the object of interest in the thermal image, they can switch to the low-light sensor to a further visual confirm.
- The built-in dimmable LED flashlight literally turns night into day, enabling the low-light sensor to capture more details in total darkness.
- Real-time on-screen display can provide data of the maximum, minimum, average and center temperatures detected by the thermal camera.
- Like the SplashDrone 4, GC3-T is fully IP67 waterproof and can work safely above the water and in all kinds of weather.
- Receive alerts with different color marks on the image when the object temperature goes above or below a set limit.
- Select different high contrast color palettes in various conditions to quickly find obvious anomalies.
- Smooth footage stabilized by 3-axis gimbal.
Detailed Specifications
SplashDrone 4 Specifications
| Feature | Details |
|---|---|
| Waterproof Rating | IP67 (aircraft), IP66 (remote controller) |
| Max Takeoff Altitude | 120 m (GPS), No limitation (ATTI) |
| Max Flight Speed | 22 m/s (ATTI), 10 m/s (GPS) |
| Max Flight Time | Up to 20 minutes |
| Max Flight Distance | 5 km |
| Max Payload Capacity | 2 kg |
| Operating Frequency | 5180 - 5875 MHz |
| Working Temperature | -10°C to 40°C |
GC3-T Camera Specifications
| Feature | Details |
|---|---|
| Waterproof Rating | IP67 |
| Stabilization | 3-axis (tilt, pan, roll) |
| Weight | 430 g |
| Size | 134.5 x 134.5 x 117 mm |
| Memory Card | Micro SD, up to 128GB, write speeds ≥ 40 MB/s, Class 10 or UHS-1 recommended |
| Working Temperature | -10°C to 40°C |
Thermal Sensor Specifications
| Feature | Details |
|---|---|
| Thermal Imager | Uncooled VOx Microbolometer |
| Sensor Resolution | 640 x 512 @ 50FPS |
| Focal Length | 19 mm |
| Aperture | f/1.0 |
| Field of View (FOV) | 22°H x 18°V |
| Instantaneous Field of View (IFOV) | 0.63 mrad |
| Pixel Pitch | 12 μm |
| Sensitivity (NETD) | ≤50 mK @ 25°C, f/1.0 (≤40 mK configurable) |
| Scene Range | -20°C to +150°C (± 3°C) |
Low-Light Sensor Specifications
| Feature | Details |
|---|---|
| Sensor | 1/2" 2M Starlight CMOS |
| Lens FOV | 92.6° |
| Burst Mode | 3/5/10 shots |
| Video Resolution | FHD: 1920 x 1080 @ 50FPS, HD: 1280 x 720 @ 50FPS |
| Anti-Flicker | Auto, 50Hz, 60Hz |
| Max Data Stream | 64 Mbps |
| Photo Format | JPEG |
| Video Format | MP4, MOV |
| Spectral Band | 8 ~ 14 μm |
