TAG Manufacturing Inc.

TAG Hydraulic Tilting Ditch Bucket | 30"–48" Width | Bucket Weight 428–585 lbs | 45° Hydraulic Rotation | 3–7 Ton | For Excavators

TAG Hydraulic Tilting Ditch Bucket | 30"–48" Width | Bucket Weight 428–585 lbs | 45° Hydraulic Rotation | 3–7 Ton | For Excavators

Regular price $5,930.00
Regular price Sale price $5,930.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Machine Class Compatibility: For 3–7 ton excavators (6000–14,000 lbs operating weight).

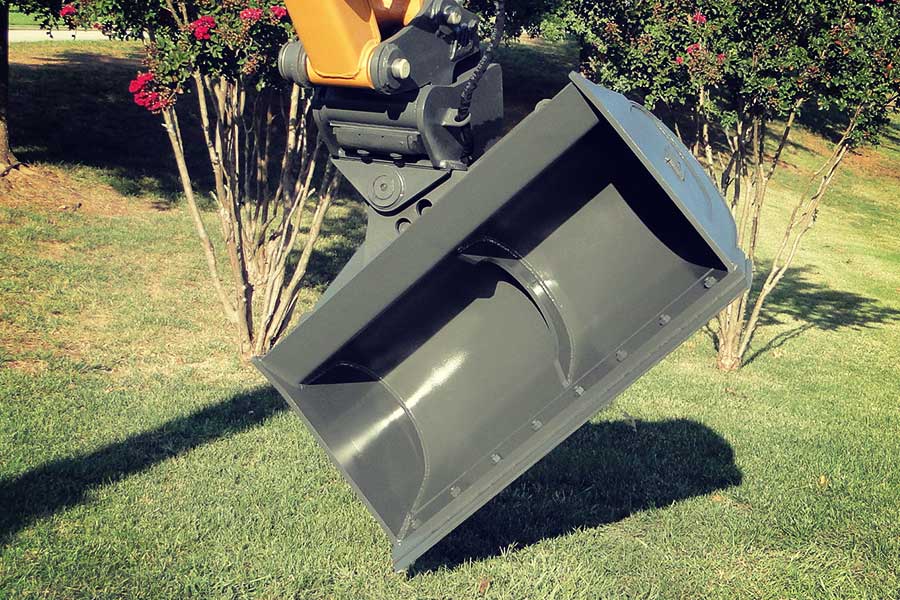

  • Tilting Operation: Dual hydraulic cylinders allow 45° tilt in both directions.
  • Mounting Style: OEM-style pin-on configuration.
View full details

Product Description

TAG Hydraulic Tilting Ditch Bucket | 30"–48" Width | Bucket Weight 428–585 lbs | 45° Hydraulic Rotation | 3–7 Ton | For Excavators

DESCRIPTION

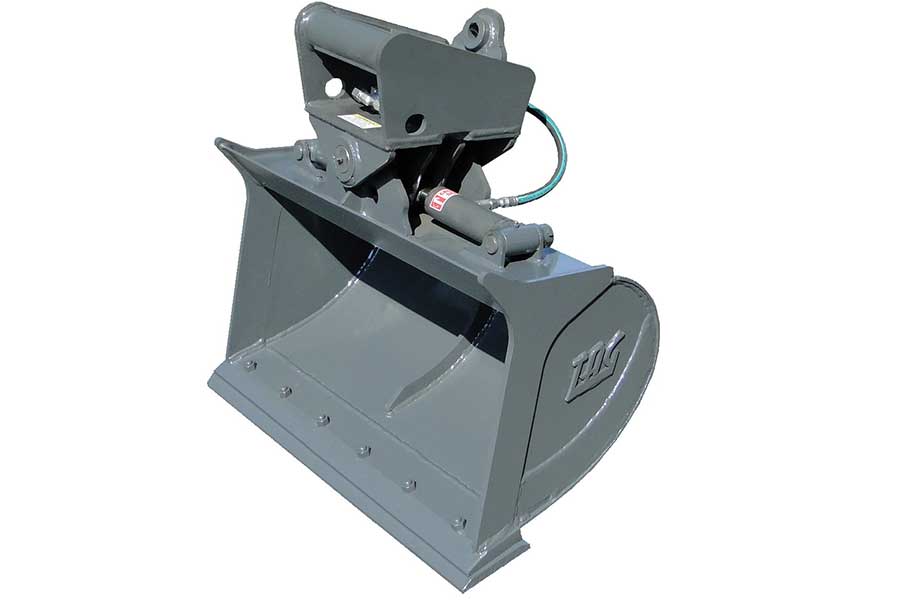

The TAG Hydraulic Tilt Bucket Series offers a powerful grading and shaping solution for excavators in the 6000–14,000 lb (3–7 ton) class. Designed with a robust dual-cylinder tilt head, these buckets allow up to 45 degrees of tilt left and right, streamlining slope adjustments and precision trench shaping without needing to reposition the machine.

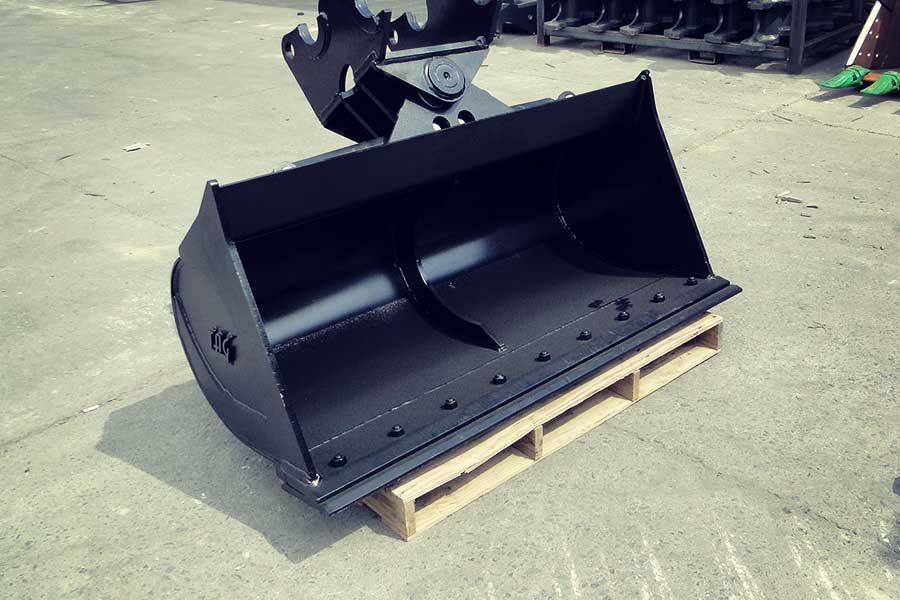

Each bucket is crafted with a double-bottom shell for maximum durability and includes internal rib reinforcements to resist distortion and enhance structural integrity in wide-format models. Featuring a smooth and unobstructed opening, double-radius taper profile, and a double-beveled reversible bolt-on cutting edge, this bucket series is built for clean cuts, efficient flow, and long service life.

Key Features

  • Machine Class Compatibility: For 3–7 ton excavators (6,000–14,000 lbs operating weight).
  • Tilting Operation: Dual hydraulic cylinders allow 45° tilt in both directions.
  • Mounting Style: OEM-style pin-on configuration.
  • Shell Construction: Double-bottom steel shell for enhanced durability. Internal ribs on wide models add stiffness and resist twisting.
  • Edge Design: Reversible double-beveled bolt-on cutting edge simplifies maintenance and extends lifespan.
  • Bucket Geometry: Double radius and dual taper profile improves fill and trench flow.
  • Opening Shape: Smooth, clean interior minimizes carry-back and promotes efficient grading.
  • Typical Uses: Ditch shaping, slope grading, finish work, trench cleanup.

Detailed Specifications

Model # Excavator Class (lbs) Bucket Width (in) Series Class Capacity (yd³) Weight (lbs)
3005TTB 6,000–10,000 30" CL05 0.18 428
3605TTB 6,000–10,000 36" CL05 0.22 487
Model # Excavator Class (lbs) Bucket Width (in) Series Class Capacity (yd³) Weight (lbs)
4205TTB 10,000–14,000 42" CL25 0.26 536
4805TTB 10,000–14,000 48" CL25 0.30 585

Host Machine Compatibility

CLASS MODEL 8000 TO 12000 LB
MAKE MODELS
BOBCAT 337,341,435ZHS,E42,E45,E50,E55

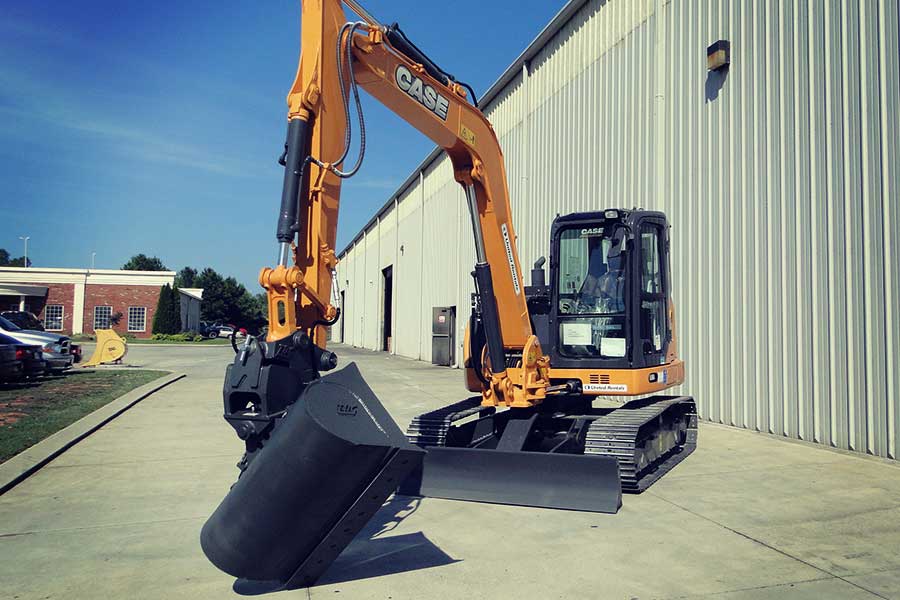

CASE CX50B, CX50, CX47
CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
DEERE 50ZTS, 50C, 50D, 50G
DOOSAN 55V, 55W
HITACHI EX50, ZX50
HYUNDAI R55-7, R55W-7
IHI 45NX, 55NX
JCB 8052
KOBELCO 50SR-3, SK045, SK050
KOMATSU PC40MR-2, PC50MR-2, PC58UU-3, PC45
KUBOTA KX61, KX161-3, U45
NEW HOLLAND  E50, EC45, EH45
TAKEUCHI TB145, TB33FR, TB250, TB153FR
TEREX HR16/TC35, HR3.7/TC37, TC48, TC50, TC60
VOLVO EC45PRO, EC50BPRO, ECR58, EW55B, EC55B
YANMAR VIO40-3, VIO50-3
CLASS MODEL 12000 TO 14000 LB
MAKE MODELS
BOBCAT
CASE
CAT
DEERE 60D, 60G
DOOSAN DX63
HITACHI ZX60
HYUNDAI
IHI
JCB 8055, 8065, 57C-1
KOBELCO
KOMATSU
KUBOTA
NEW HOLLAND
TAKEUCHI TB145, TB153, TB250, TB260
TEREX
VOLVO ECR58
YANMAR
