Product Description
TAG Rock Bucket | Severe Duty High-Capacity | 2½" Lip | 30" To 84" Width | 40 To 60 Ton | For Excavators
DESCRIPTION

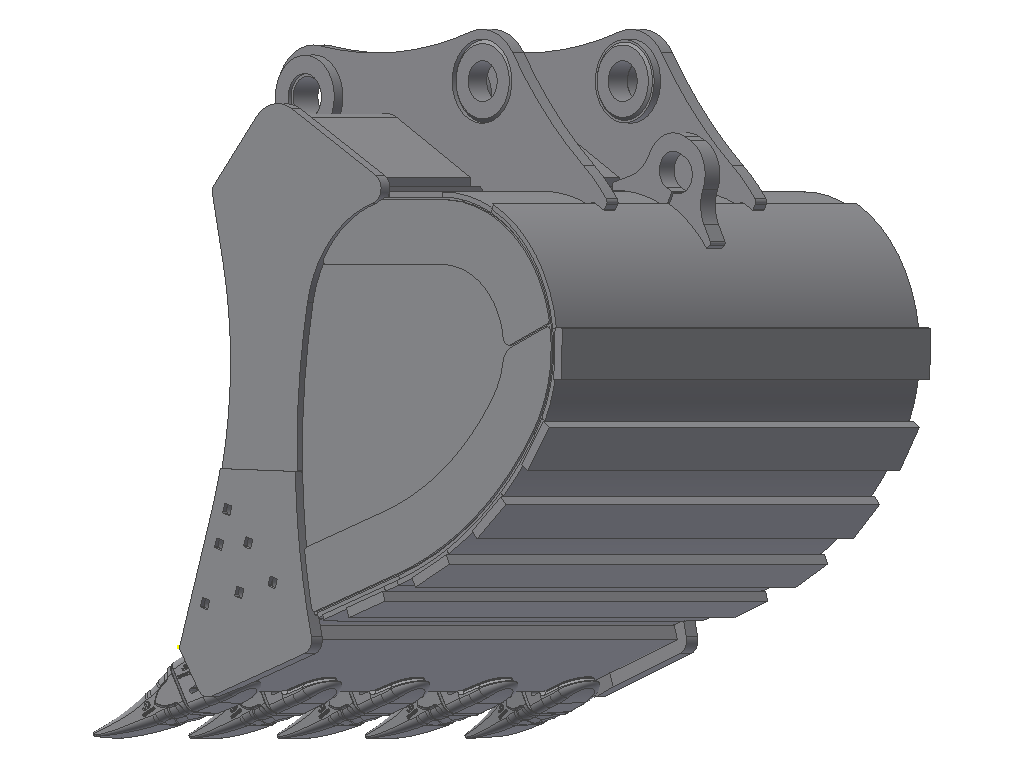

The TAG Severe Duty High Capacity Rock Buckets are designed specifically for heavy-duty applications with excavators ranging from 80,000 to 120,000 lbs. Built to handle the toughest excavation and loading conditions, these buckets allow for faster loading times and maximize yardage per pass. The Severe Duty line is designed with durability in mind, featuring larger structural components, full-width transverse wear strips, and extended bucket ears for enhanced stability and longevity in harsh environments.The Following Added Benefits:
- Larger Triangles
- Full Width Replaceable Transverse Wear Strips
- Extended Bucket Ears
- Full Side Wear Plates
With full side wear plates and replaceable components, these buckets reduce maintenance costs and downtime while ensuring optimal performance. Designed with OEM mounting styles, these buckets are compatible with most major brands and models. Available in various widths and capacities, TAG Severe Duty Rock Buckets are versatile solutions for demanding job sites.
Key Features
- Enhanced Strength: Reinforced for severe-duty applications.
- Faster Loading: Maximizes yardage per pass for greater efficiency.
- Extended Bucket Ears: Adds stability and support during operation.
- Transverse Wear Strips: Full-width strips for wear resistance.
- Larger Triangles: Strengthens bucket for heavy loads.
- Replaceable Wear Plates: Reduces long-term maintenance.
- Multiple Widths: Available in sizes from 30" to 84" for flexibility.
- OEM Mounting Style: Pin-on with (2) horizontal pins.
- Multiple Tooth Options: Choose based on ground conditions.
- Durability: High-grade materials to withstand harsh environments.
Detailed Specifications
| Spec / Model | 30501H3 | 36501H3 |
|---|---|---|
| Width | 30″ | 36″ |
| Capacity (cubic yards) | 1.750 | 2.125 |
| No. of Teeth | 3 | 3 |
| Weight | 1.88 Tons (3760 lbs) | 1.98 Tons (3960 lbs) |
| Spec / Model | 42501H3 | 48501H3 |
|---|---|---|
| Width | 42″ | 48″ |
| Capacity (cubic yards) | 2.500 | 2.750 |
| No. of Teeth | 4 | 4 |
| Weight | 2.21 Tons (4410 lbs) | 2.55 Tons (5090 lbs) |
| Spec / Model | 54501H3 | 60501H3 |
|---|---|---|
| Width | 54″ | 60″ |
| Capacity (cubic yards) | 3.125 | 3.500 |
| No. of Teeth | 5 | 5 |
| Weight | 2.71 Tons (5410 lbs) | 2.93 Tons (5860 lbs) |
| Spec / Model | 66501H3 | 72501H3 |
|---|---|---|
| Width | 66″ | 72″ |
| Capacity (cubic yards) | 3.875 | 4.125 |
| No. of Teeth | 6 | 6 |
| Weight | 3.21 Tons (6410 | 3.56 Tons (7110 lbs) |
| Spec / Model | 78501H3 | 84501H3 |
|---|---|---|
| Width | 78″ | 84″ |
| Capacity (cubic yards) | 4.625 | 5.000 |
| No. of Teeth | 7 | 7 |
| Weight | 3.91 Tons (7813 lbs) | 4.26 Tons (8518 lbs) |
Host Machine Compatibility
| BRAND | MODELS |
| CASE | CX450, CX460, 9060B |
| CAT | 345BL, 345CL, 350F/G, 235/B/C/D |
| DAEWOO | S450-III, S470LCV |
|
DEERE |
470G, 450D, 450CLC, 992E |
| DOOSAN | DX420, DX480 |
| HITACHI | ZX470, EX450-V, Z450LC |
|
HYUNDAI |
4500-7, R450LC-7, R450LC-3 |
| JCB | JS450, JS460 |
|
KOBELCO |
SK480LC-DA, SK400LC |
| KOMATSU | PC400-7, PC450-6 |
| LINK BELT | 460LX, 5800Q |
|
NEW HOLLAND |
EX450LC |
| TEREX | TXC420, TXC470, TXC480 |
| VOLVO | EC460B |
Mountings
| STYLE | PHOTO |
|---|---|
|
Pin On - OEM mounting style, (2) horizontal pins typically a pin kit is added if using coupler |
 |
