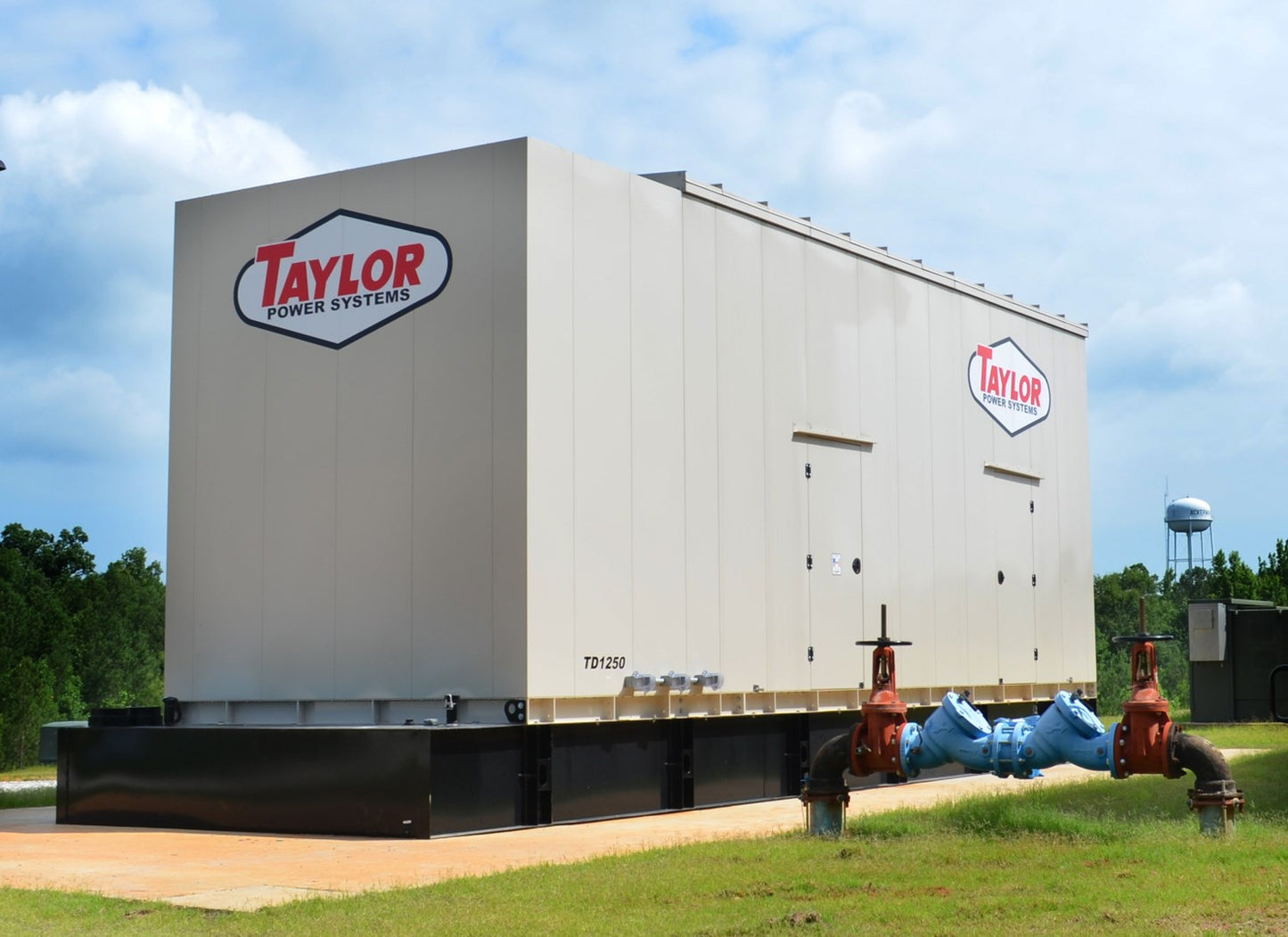

The Taylor TD1250 Standby Diesel Generator offers robust and reliable performance with a rated power of 1250kW. Equipped with the Mitsubishi S12R-Y2PTAW-1 V-12 Turbocharged engine, it delivers maximum efficiency and dependability for emergency standby applications. Certified to UL2200 standards, this generator is versatile, featuring a wide range of output power options to meet diverse customer needs.
Taylor Power System Standby-Diesel Generators | Model TD-1250 | Horsepower 1814 HP | Power Output 1250kW (1563kVA) | Open & Enclosed Unit
Taylor Power System Standby-Diesel Generators | Model TD-1250 | Horsepower 1814 HP | Power Output 1250kW (1563kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-1250 | Horsepower 1814 HP | Power Output 1250kW (1563kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
- Engine: Mitsubishi S12R-Y2PTAW-1, 49.03L Turbocharged V-12, EPA Tier 2 Certified
- Horsepower: 1814 HP at 1800 RPM for powerful performance
- Output Power Options: Multiple voltage configurations up to 1563 kVA
- Sturdy Construction: Heavy-duty steel base with vibration isolators
- Fuel Efficiency: Operates on low-sulfur diesel with Mitsubishi PS6 fuel injection
- Cooling System: High ambient unit-mounted radiator with large coolant capacity
- Durability: Factory powder coating, thoroughly test-certified
- Ease of Maintenance: Oil drain valve with extension, battery rack, and cables
- Emission Compliance: EPA Certified for stationary emergency use
- Sound Level: Operates at 110 dBA at 3.2 ft (1M)
- Safety Features: Under-frequency, over-voltage, and over-excitation protection
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Category | Details |
|---|---|
| Engine Make | Mitsubishi S12R-Y2PTAW-1 |
| Engine Type | 49.03L Turbocharged V-12, Tier 2 |
| Fuel Type | Diesel |
| Horsepower | 1814 HP @ 1800 RPM |
| Output Ratings | 1250kW/1563kVA |
| Cooling Capacity | 34.3 gal (129.8 L) |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 103.6 gal/hr (392 L/hr) at 100% load |
| Alternator Type | Marathon PMG with hybrid analog/digital voltage regulator |
| Voltage Regulation | ±0.25% |
| Temperature Rise | 125°C Standby |
| Heat Rejection | To coolant: 511 kW (29,045 BTUM) |
| Sound Level | 110 dBA @ 3.2 ft |
 |
Open Unit | Overall Size: 204”L x 88”W x 105”H Approximate Weight: 26,800 lbs. |
 |
Standard Enclosed Unit | N/A |
