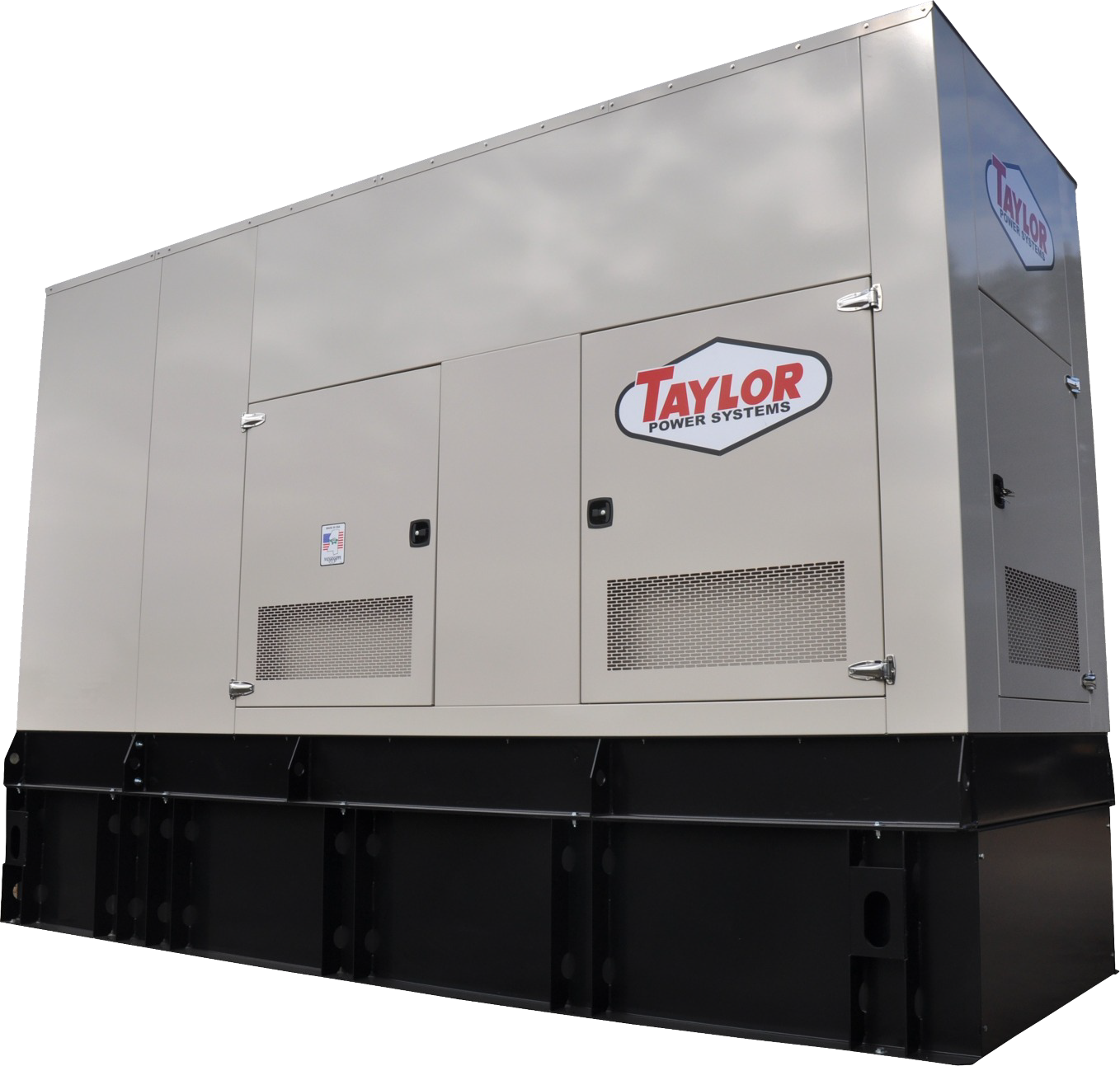

Taylor Power System Standby-Diesel Generators | Model TD-350 | Horsepower 511 HP | Power Output 350kW (438kVA) | Open & Enclosed Unit

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Taylor Power System Standby-Diesel Generators | Model TD-350 | Horsepower 511 HP | Power Output 350kW (438kVA) | Open & Enclosed Unit

DESCRIPTION

Key Features

• Massive Power Output:
  • Rated at 350/438 kW/kVA, ideal for powering heavy-duty operations and ensuring reliability in emergency situations.
  • Versatile voltage options include 277/480V, 120/208V, and 120/240V, supporting both single-phase and three-phase setups.
• Powerful Perkins Engine:
  • Driven by the Perkins 2206D-E13TAG2 turbocharged engine, delivering an impressive 511.08 horsepower at 1800 RPM.
  • Advanced air-to-air charge cooling improves efficiency and ensures long-lasting performance.
  • Isochronous governor offers precise speed regulation with a ±0.25% variance.
• Cutting-Edge Alternators:
  • Stamford PMG: Provides top-notch voltage regulation, with accuracy of 1.0% for single-phase and 0.5% for three-phase, requiring a cooling airflow of 2,100 CFM.
  • Marathon PMG: Ensures stability under all loads with hybrid analog/digital regulation and <0.25% voltage variance.
• Optimized Fuel Efficiency:
  • Maintains peak efficiency with fuel consumption of 24.57 gal/hr at 100% load, and operates on low-sulfur diesel fuel for compliance with EPA Tier 3 standards.
• Advanced Control Panels:
  • Choose between DeepSea 7310 MKII and Basler DGC2020, both offering Modbus RTU compatibility and programmable inputs/outputs for enhanced operational control.
  • Designed for easy setup and real-time monitoring of generator performance.
• Reduced Noise Levels:
  • Open unit operates at 104.6 dBA at 1 meter.
  • Optional sound-attenuated enclosure reduces noise to 80.3 dBA at 7 meters, making it suitable for environments with noise constraints.
• Customizable Configurations:
  • Available in open or enclosed designs with a range of accessories to fit your unique requirements.

Control Panels	Feature	Description
	DeepSea 7310 MKII	Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified
	Basler DGC2020	SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available
	Taylor Analog	Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights

Detailed Specifications

Enhanced Alternator Features

• Stamford Alternator:
  • NEMA H insulation with IP23 enclosure for enhanced durability.
  • Dynamically balanced for reliable, vibration-free operation.
• Marathon Alternator:
  • Features NEMA N insulation and complies with BS5000 and IEC 34-1 standards.
  • Cooling airflow requirement: 1,020 CFM for stable performance.

• Customizable Control Panels
  • DeepSea 7310 MKII:
    • Fully configurable via USB, RS232/485, with Modbus RTU support.
    • IP65 rating for excellent resistance to dust and water.
  • Basler DGC2020:
    • NFPA 110 Level 1 compliant, offering advanced diagnostics for seamless operation.
    • Multiple programmable outputs enhance functionality.

• Customization Options
  • Open Unit Accessories:
    • Radiator duct flanges, flexible exhaust, and critical silencers.
  • Enclosed Unit Enhancements:
    • Includes sound attenuation, sub-base fuel tanks, and load centers with GFI receptacles.
  • Miscellaneous Accessories:
    • Battery heaters, spring isolators, and oil pan heaters for additional adaptability.

	Open Unit	Overall Size: 133”L x 53”W x 78”H Approximate Weight: 7,150 lbs.
	Standard Enclosed Unit	Overall Size: 176”L x 66”W x 102”H Approximate Weight: 10,000 lbs.
