Product Description

Taylor Power System Standby-Diesel Generators | Model TD-400 | Horsepower 583 HP | Power Output 400kW (500kVA) | Open & Enclosed Unit

DESCRIPTION

Key Features

• Massive Power Capacity:
  • Rated at 400/500 kW/kVA, meeting the needs of large-scale operations.
  • Offers multiple voltage configurations such as 277/480V, 120/208V, and 120/240V, in both single and three-phase setups.
• Powerful Perkins Engine:
  • Powered by the Perkins 2206D-E13TAG3 turbocharged engine, generating an impressive 583.03 horsepower at 1800 RPM.
  • Features air-to-air charge cooling for enhanced performance and fuel efficiency.
  • Isochronous governor ensures speed regulation precision with ±0.25%.
• Advanced Alternator Options:
  • Stamford PMG: Features superior voltage regulation, with up to 1.0% accuracy (single-phase) and 0.5% (three-phase), requiring high cooling airflow of 2,780 CFM.
  • Marathon PMG: Provides exceptional hybrid analog/digital regulation with <0.25% voltage variance, requiring 1,020 CFM airflow.
• High Fuel Efficiency:
  • Operates efficiently at 27.74 gal/hr at 100% load, using low-sulfur diesel to comply with EPA Tier 3 standards.
• Modern Control Panels:
  • Options include DeepSea 7310 MKII and Basler DGC2020, both with Modbus RTU support, programmable inputs/outputs, and user-friendly operation.
  • Designed for seamless control, real-time monitoring, and easy diagnostics.
• Noise Management Options:
  • Open unit produces 104.6 dBA at 1 meter.
  • Optional sound-attenuated enclosure reduces noise to 80.3 dBA at 7 meters, making it suitable for urban and noise-restricted zones.

Control Panels	Feature	Description
	DeepSea 7310 MKII	Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified
	Basler DGC2020	SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available
	Taylor Analog	Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights

Detailed Specifications

Enhanced Alternator Features

• Stamford Alternator:
  • Built to handle high-performance needs with NEMA H insulation.
  • IP23 enclosure ensures durability in harsh environments.
  • Dynamically balanced for vibration-free operation.
• Marathon Alternator:
  • Robust design with NEMA N insulation.
  • Adheres to BS5000 and IEC 34-1 standards for high reliability.

• Customizable Control Panels
  • DeepSea 7310 MKII:
    • Supports USB, RS232, and RS485 connections for seamless configuration.
    • IP65-rated for excellent resistance to environmental factors.
  • Basler DGC2020:
    • NFPA 110 Level 1 compliant, offering advanced monitoring and fault detection.
    • Modbus-compatible with multiple programmable outputs.

• Customization Options
  • Open Unit Accessories:
    • Radiator duct flanges, critical silencers, and flex exhaust systems.

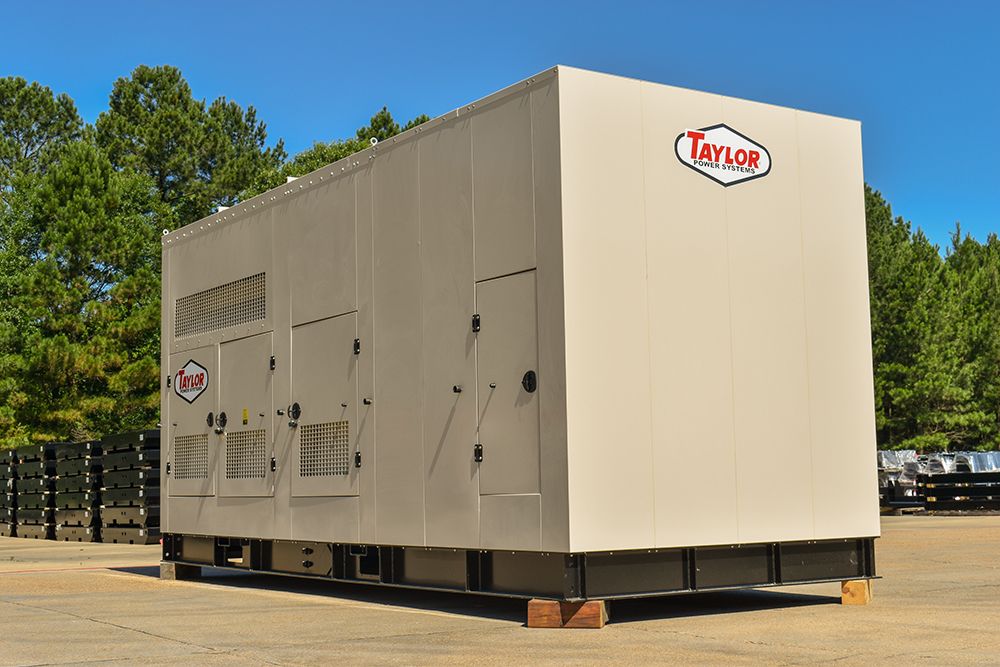

  • Enclosed Unit Features:
    • Sound attenuation, sub-base fuel tanks, and load centers with GFI receptacles.
  • Additional Accessories:
    • Includes oil pan heaters, vibration isolators, and battery chargers for optimized functionality.

	Open Unit	Overall Size: 133”L x 53”W x 78”H Approximate Weight: 7,150 lbs.
	Standard Enclosed Unit	Overall Size: 176”L x 66”W x 102”H Approximate Weight: 10,000 lbs.
