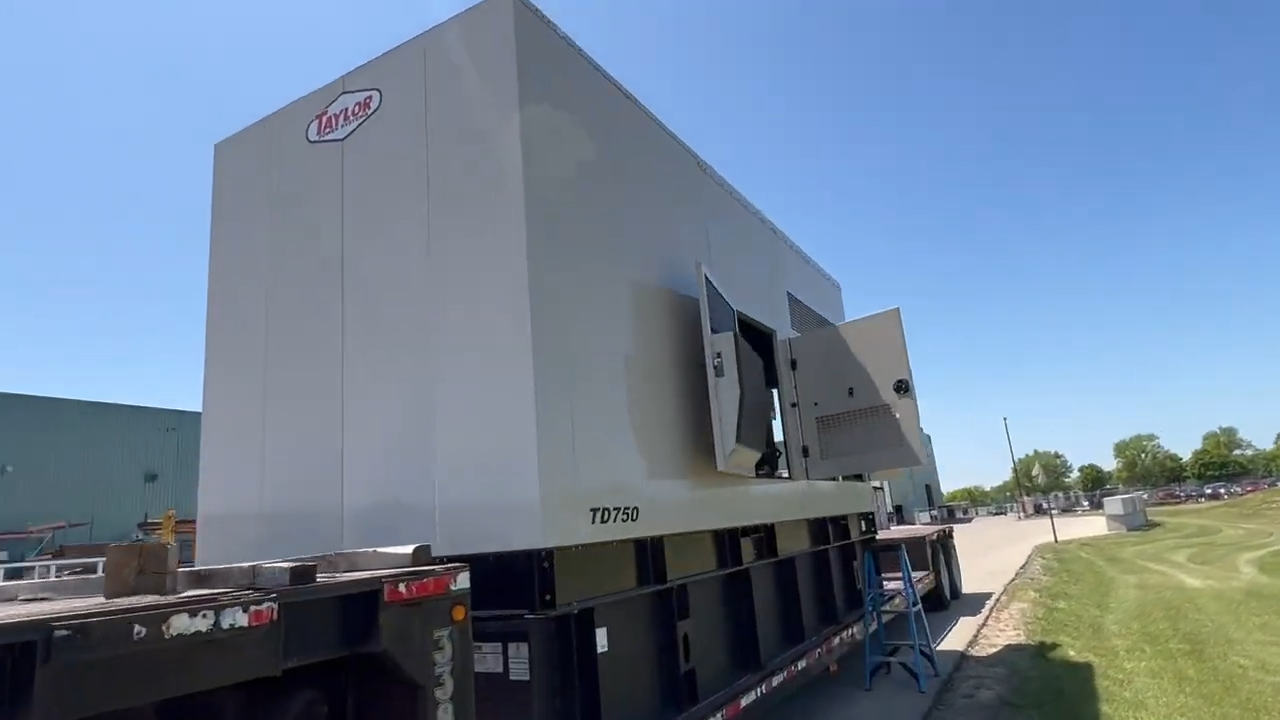

The Taylor Power TD750 is a high-performance standby diesel generator, certified to UL2200 standards. Built for reliability, it delivers up to 750kW of standby power, meeting the varied requirements of residential, commercial, and industrial applications. Equipped with a Perkins 2806C-E18TTAG7 engine and a Stamford alternator, this generator is designed for durability and efficiency.
Taylor Power System Standby-Diesel Generators | Model TD-750 | Horsepower 1059 HP | Power Output 750kW (938kVA) | Open & Enclosed Unit
Taylor Power System Standby-Diesel Generators | Model TD-750 | Horsepower 1059 HP | Power Output 750kW (938kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-750 | Horsepower 1059 HP | Power Output 750kW (938kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
- Engine: 18.1L Inline Turbocharged 6-Cylinder Perkins engine, Tier 2 compliant
- Output Power: 750 kW standby rating
- Fuel Type: Diesel
- Alternator: Stamford PMG, insulation class NEMA H, voltage regulation ±1.0%
- Cooling System: High ambient unit-mounted radiator
- Durability: Heavy-duty steel base, vibration isolators, and factory powder coating
- Certifications: ETL certified to UL2200, EPA Tier 2 compliant
- Safety and Testing: Factory-tested, overvoltage and underfrequency protection
- Ease of Maintenance: Oil drain valve with extension, multiple filters, and battery rack & cables
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Category | Details |
|---|---|
| Engine Make | Perkins 2806C-E18TTAG7 |
| Engine Type | Turbocharged 6-Cylinder |
| Displacement | 18.1L (1106.36 in³) |
| Output Power | 750 kW / 938 kVA |
| Voltage Options | 277/480V, 120/208V, 120/240V |
| Fuel Consumption | 54.16 gal/hr (205.00 L/hr) at 100% load |
| Sound Level | 104.3 dBA at 3.2 ft (1M) (open unit) |
| Exhaust Gas Temp | 917.60°F (492.00°C) |
| Alternator Type | Stamford PMG, Insulation Class H |
| Battery System | 24V DC, 1100 CCA, 2 batteries |
| Cooling Capacity | 28.93 gal (109.50 L) |
| Certifications | UL2200, EPA Tier 2 |
Enhanced Alternator Features
-
Stamford Alternator:
- NEMA H insulation for superior durability.
- Complies with global standards such as BS EN 60034 and IEC 34-1.
- Designed to withstand overspeeds of up to 125%.
-
Marathon Alternator:
- Features NEMA N insulation and hybrid analog/digital regulation.
- Provides robust performance with <0.25% voltage variance.
Customizable Control Panels
-
DeepSea 7310 MKII:
- Fully configurable using USB, RS232, and RS485 connections.
- IP65-rated for resistance against dust and water ingress.
-
Basler DGC2020:
- NFPA 110 Level 1 compliant, offering advanced diagnostics and fault monitoring.
- Modbus-compatible with programmable outputs for enhanced control.
Customization Options
-
Open Unit Accessories:
- Radiator duct flange, critical silencers, and flexible exhaust configurations.
-
Enclosed Unit Features:
- Sound attenuation, sub-base fuel tanks, and load centers with GFI receptacles.
-
Additional Accessories:
- Includes vibration isolators, battery heaters, oil pan heaters, and block heaters for optimal performance in challenging environments.
 |
Open Unit | Overall Size: 145”L x 73”W x 108”H Approximate Weight: 15,900 lbs. |
 |
Standard Enclosed Unit | Overall Size: 235”L x 93”W x 114”H Approximate Weight: 16,900 lbs. |
