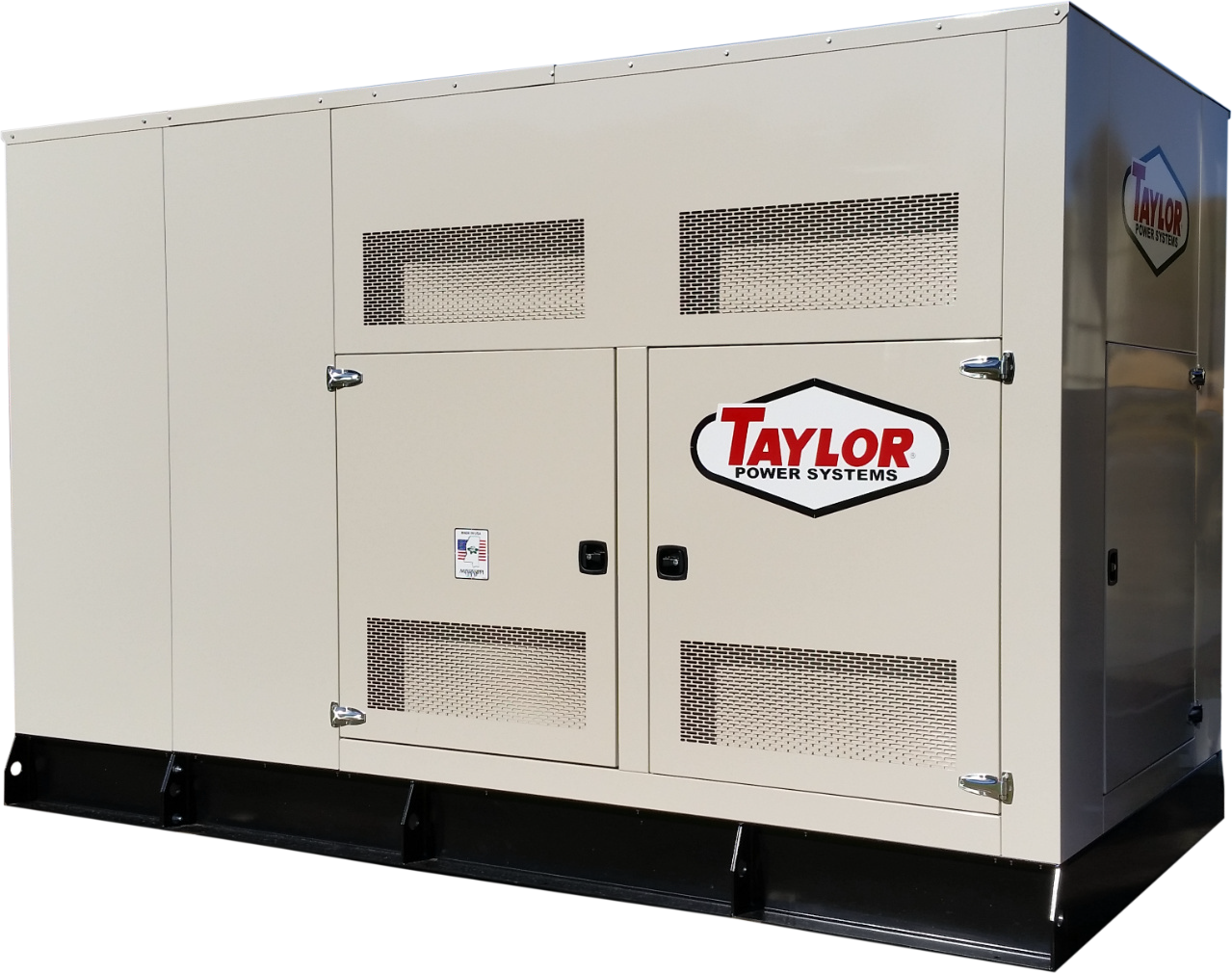

The Taylor TG1000 generator is designed to deliver 1000kW of standby power, making it ideal for large industrial facilities, data centers, and critical infrastructure. Operating on Natural Gas (NG) or Liquid Propane (LP), this generator combines a high-capacity turbocharged engine, precision alternators, and advanced controls to ensure consistent and reliable performance in the most demanding environments. Certified to UL2200, this generator meets global safety and efficiency standards.
Taylor Power System Standby-NG/LP Generator | Model TG-1000 | Horsepower 1589 HP | Power Output 1000kW (1250kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-1000 | Horsepower 1589 HP | Power Output 1000kW (1250kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-1000 | Horsepower 1589 HP | Power Output 1000kW (1250kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
Exceptional Engine Power:
- Turbocharged V-12, 4-Cycle Engine ensures outstanding power delivery.
- Designed for seamless operation with ±0.50% speed regulation for stable performance.
- Rated at 1800 RPM, offering maximum efficiency.
-
Fuel Flexibility:
- Compatible with both Natural Gas (NG) and Liquid Propane (LP) fuels.
- Optimized fuel systems for reliable operation under varying load conditions.
-
Rugged Durability:
- Heavy-duty steel base with vibration isolators provides stability and durability.
- High-capacity radiator for superior cooling during extended operations.
- Powder-coated exterior ensures resistance against corrosion and environmental wear.
-
Advanced Control Panels:
-
Features cutting-edge monitoring and control systems:
- DeepSea 7310 MKII: Equipped with Modbus RTU support and IP65-rated durability.
- Basler DGC2020: Fully customizable system controls with NFPA 110 Level 1 compliance.
- Taylor Analog: Simplified manual controls with real-time performance indicators.
-
Features cutting-edge monitoring and control systems:
-
Precision Alternators:
-
Available with Marathon PMG or Stamford PMG alternators:
- Marathon: Voltage regulation at 0.25% for Three Phase applications.
- Stamford: Voltage regulation at 1.0% for Single Phase and 0.50% for Three Phase.
-
Available with Marathon PMG or Stamford PMG alternators:
-
Certifications and Safety:
- Meets UL2200, EPA, CE, and CSA standards for safety and compliance.
- Includes protections against over-voltage, under-frequency, and over-excitation.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specification
Taylor TG1000 Generator:
| Category | Specification |
|---|---|
| Manufacturer | PSI |
| Model | 52.3L |
| Aspiration | Turbocharged |
| Arrangement | V-16, 4-Cycle |
| Displacement | 52.3 L (3192.0 in³) |
| Bore | 150.00 mm (5.91 in) |
| Stroke | 185.00 mm (7.28 in) |
| Compression Ratio | 10.5:1 |
| Gross Horsepower | 1589 HP |
| BMEP | 219.00 psi (1509.95 kPa) |
| Rated RPM | 1800 |
| Governor | Isochronous |
| Speed Regulation | ±0.50% |
| Oil System Capacity | 180.7 qt (171.0 L) |
| Cooling Capacity | 65.4 gal (248.0 L) |
| Electric Volts | DC 24 |
| Cold Cranking Amps | 1100 |
| Battery(s) Required | 2 |
| Fuel Supply Size | (2) 4.00” ANSI |
| Supply Pressure | 20-30 in. H₂O (4.98-7.47 kPa) |
| Air Filter(s) Type | Dry |
| Combustion Air Flow | 2205 CFM (62 m³/min) |
| Max Air Intake Restriction (Clean) | 5.2 in. H₂O (1.3 kPa) |
| Max Air Intake Restriction (Dirty) | 15.00 in. H₂O (3.74 kPa) |
| Radiator Air Flow | 67,300 CFM (1906 m³/min) |
| Exhaust Gas Temperature | 1212°F (655°C) |
| Exhaust Gas Flow | 6855 CFM (194 m³/min) |
| Max Back Pressure | 51.71 in. H₂O (12.87 kPa) |
| Air Cleaner Quantity | 2 |
| Oil Filter(s) Quantity | 1 |
| Fuel Consumption @ 100% Power | 12,626 CFH (358 m³/hr) |
| Fuel Consumption @ 75% Power | 9721 CFH (275 m³/hr) |
| Fuel Consumption @ 50% Power | 6949 CFH (197 m³/hr) |
| Fuel Consumption @ 25% Power | 4312 CFH (122 m³/hr) |
