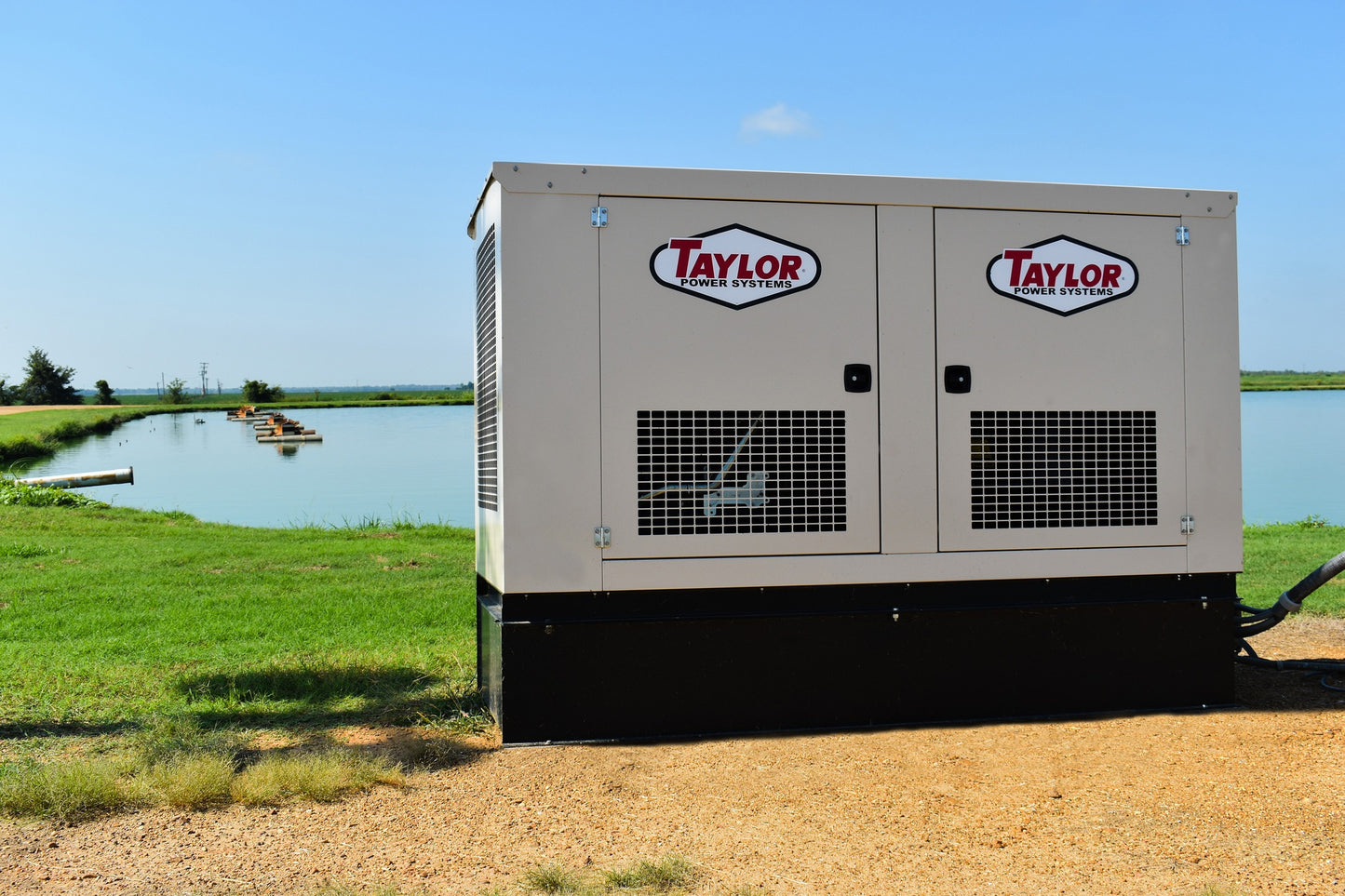

The Taylor TG125 is a high-performance 125kW standby generator designed to operate on Natural Gas (NG) or Liquid Propane (LP). Powered by a PSI 8.8L Turbocharged V-8 engine, this generator provides reliable and efficient power during outages. Certified to UL2200 standards, it ensures safety, durability, and flexibility for residential, commercial, and industrial applications. With a robust design and advanced control features, the TG125 is engineered to excel in demanding environments.
Taylor Power System Standby-NG/LP Generator | Model TG-125 | Horsepower 230-261 HP | Power Output 125kW (155kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-125 | Horsepower 230-261 HP | Power Output 125kW (155kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-125 | Horsepower 230-261 HP | Power Output 125kW (155kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
Engine Power:
- PSI 8.8L Turbocharged V-8 Engine, ensuring dependable power.
- Delivers 261.5 HP on Natural Gas and 230.1 HP on LP Vapor.
- Isochronous governor maintains steady performance with ±0.50% speed regulation.
- Operates at 1800 RPM for consistent performance.
-
Fuel Flexibility:
- Dual fuel capability allows operation on both Natural Gas and LP Vapor.
- Supports a supply pressure of 7-11 in. H₂O (1.74-2.74 kPa).
-
Durability & Maintenance:
- Heavy-duty steel base with vibration isolators for longevity and stability.
- High ambient unit-mounted radiator enhances cooling under tough conditions.
- Oil drain valve with extension ensures effortless maintenance.
-
Advanced Controls:
-
Three control panel options:
- DeepSea 7310 MKII: IP65-rated with Modbus RTU support.
- Basler DGC2020: NFPA 110 Level 1 compatibility and RS485 communication.
- Taylor Analog: User-friendly design with detailed monitoring gauges.
-
Three control panel options:
-
Efficient Fuel Consumption:
-
Natural Gas:
- 100% Load: 1511 CFH (42.8 m³/hr).
- 75% Load: 1204 CFH (34.1 m³/hr).
-
LP Vapor:
- 100% Load: 626 CFH (17.7 m³/hr).
- 75% Load: 473 CFH (13.4 m³/hr).
-
Natural Gas:
-
Superior Alternators:
-
Marathon PMG Alternator:
- Voltage Regulation: 0.25%.
- NEMA Class N insulation.
-
Stamford PMG Alternator:
- Voltage Regulation: 0.50%.
- NEMA Class H insulation.
-
Marathon PMG Alternator:
-
Certifications & Safety:
- Certified to UL2200, CE, CSA, and EPA standards.
- Safety features include over-voltage, under-frequency, and over-excitation protections.
- Built to handle overspeeds of 125% for enhanced reliability.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | PSI 8.8L Turbocharged V-8, 4-Cycle |
| Fuel Type | Natural Gas (NG) / Liquid Propane (LP) |
| Horsepower | 261.5 HP (NG) / 230.1 HP (LP) |
| Power Output | 125kW |
| Rated RPM | 1800 |
| Compression Ratio | 10.1:1 |
| Displacement | 8.8 L (535.0 in³) |
| Bore & Stroke | Bore: 110.5 mm (4.35 in) / Stroke: 114.3 mm (4.5 in) |
| Cooling Capacity | 3.62 gal (13.7 L) |
| Oil Capacity | 7.57 qt (8.00 L) |
| Exhaust Temp | 1200°F (649°C) |
| Air Flow | Combustion: 364.6 CFM (10.3 m³/min) / Radiator: 10,800 CFM (306 m³/min) |
| Fuel Consumption (Natural Gas) | 1511 CFH (42.8 m³/hr) at 100% Load |
| Fuel Consumption (LP Vapor) | 626 CFH (17.7 m³/hr) at 100% Load |
| Exhaust Outlet Size | 4.0 in (101.6 mm) |
| Control Panels | DeepSea 7310 MKII, Taylor Analog, Basler DGC2020 |
| Voltage Regulation | Marathon PMG: 0.25% / Stamford PMG: 0.50% |
| Certifications | UL2200, CE, CSA, EPA |
 |
Open Unit | Overall Size: 98”L x 40”W x 67”H Approximate Weight: 2,900 lbs. |
 |
Standard Enclosed Unit | Overall Size: 128”L x 54”W x 75”H Approximate Weight: 4,450 lbs. |
