The Taylor TG300 is a powerhouse generator, delivering up to 300kW of standby power. Designed to operate on both Natural Gas (NG) and Liquid Propane (LP), it is engineered to provide reliable backup power for critical applications in residential, commercial, and industrial environments. Certified to UL2200 standards, this generator integrates a robust turbocharged engine, advanced alternator options, and flexible control panels, ensuring efficiency, durability, and user-friendly operation.
Taylor Power System Standby-NG/LP Generator | Model TG-300 | Horsepower 322-536 HP | Power Output 300kW (375kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-300 | Horsepower 322-536 HP | Power Output 300kW (375kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-300 | Horsepower 322-536 HP | Power Output 300kW (375kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
High-Capacity Performance:
- Turbocharged engine capable of delivering 300kW of standby power.
- Efficient speed regulation with ±0.50% stability ensures steady operation.
- Operates at 1800 RPM, designed for demanding and extended operations.
-
Dual Fuel Compatibility:
- Seamlessly operates on Natural Gas or LP Vapor, offering flexibility based on fuel availability.
- Optimized fuel system for steady performance under various load conditions.
-
Durability and Stability:
- Heavy-duty steel base equipped with vibration isolators for superior stability and extended durability.
- High ambient unit-mounted radiator designed for effective cooling during prolonged operations.
-
Smart Control Options:
-
Features multiple control panels for precise monitoring and customization:
- DeepSea 7310 MKII: Modbus RTU support and IP65-rated protection.
- Basler DGC2020: NFPA 110 Level 1 compliance with advanced system controls.
- Taylor Analog: Simplified interface for easy manual operation.
-
Features multiple control panels for precise monitoring and customization:
-
Advanced Alternators:
-
Equipped with Marathon PMG or Stamford PMG alternators with precise voltage regulation:
- Marathon Alternator: 0.25% regulation for Three Phase.
- Stamford Alternator: 1.0% regulation for Single Phase and 0.50% for Three Phase.
-
Equipped with Marathon PMG or Stamford PMG alternators with precise voltage regulation:
-
Certifications and Safety:
- Fully compliant with UL2200, EPA, CE, and CSA standards.
- Enhanced safety features, including protections against over-voltage, under-frequency, and over-excitation.
- Capable of handling overspeeds up to 125%, ensuring reliability under extreme conditions.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
Taylor TG300 Generator
| Category | Specification |
|---|---|
| Manufacturer | PSI |
| Model | 14.6L HO |
| Aspiration | Turbocharged |
| Arrangement | V-8, 4-Cycle |
| Firing Order | 1-5-7-2-6-3-4-8 |
| Displacement | 14.62 L (892 in³) |
| Bore | 128.00 mm (5.04 in) |
| Stroke | 142.00 mm (5.59 in) |
| Compression Ratio | 10.5:1 |
| Gross Horsepower (NG) | 536 HP |
| Gross Horsepower (LP) | 322 HP |
| BMEP (Natural Gas) | 256.00 psi (1765.06 kPa) |
| BMEP (LP Vapor) | 159.00 psi (1096.27 kPa) |
| Rated RPM | 1800 |
| Governor | Isochronous |
| Speed Regulation | ±0.50% |
| Oil System Capacity | 29.6 qt (28.0 L) |
| Cooling Capacity | 31.6 gal (119.6 L) |
| Electric Volts | DC 24 |
| Cold Cranking Amps | 1100 |
| Battery(s) Required | 2 |
| Fuel Supply Size (NG) | 3.00” NPT |
| Fuel Supply Size (LP) | 3.00” NPT |
| Supply Pressure | 7-11 in. H₂O (1.74-2.74 kPa) |
| Air Filter(s) Type | Dry |
| Combustion Air Flow | 635 CFM (18 m³/min) |
| Max Air Intake Restriction (Clean) | 3.00 in. H₂O (1.24 kPa) |
| Max Air Intake Restriction (Dirty) | 15.00 in. H₂O (3.74 kPa) |
| Radiator Air Flow | 29,970 CFM (849 m³/min) |
| Exhaust Gas Temperature | 1030°F (554°C) |
| Exhaust Gas Flow | 2038 CFM (58 m³/min) |
| Max Back Pressure | 40.9 in. H₂O (10.2 kPa) |
| Exhaust Outlet Size | 4.0 in (101.6 mm) |
| Air Cleaner Quantity | 1 |
| Oil Filter(s) Quantity | 1 |
| Fuel Consumption (NG) @ 100% Power | 3172.0 CFH (89.8 m³/hr) |
| Fuel Consumption (LP) @ 100% Power | 926.0 CFH (26.2 m³/hr) |
 |
Open Unit | Overall Size: 120”L x 75”W x 82”H Approximate Weight: 8,900 lbs. |
 |

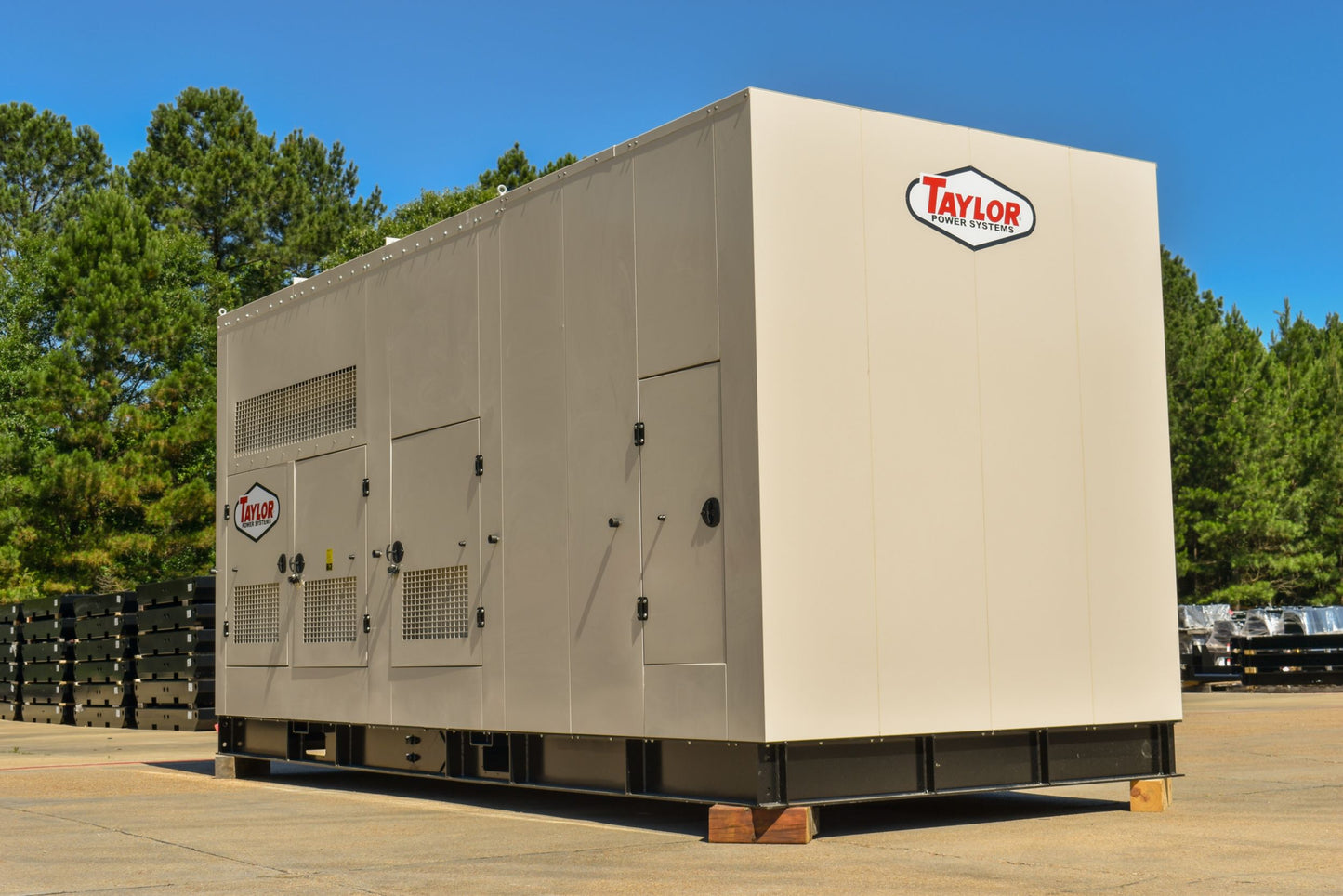

Standard Enclosed Unit | Overall Size: 150”L x 75”W x 102”H Approximate Weight: 10,900 lbs. |
