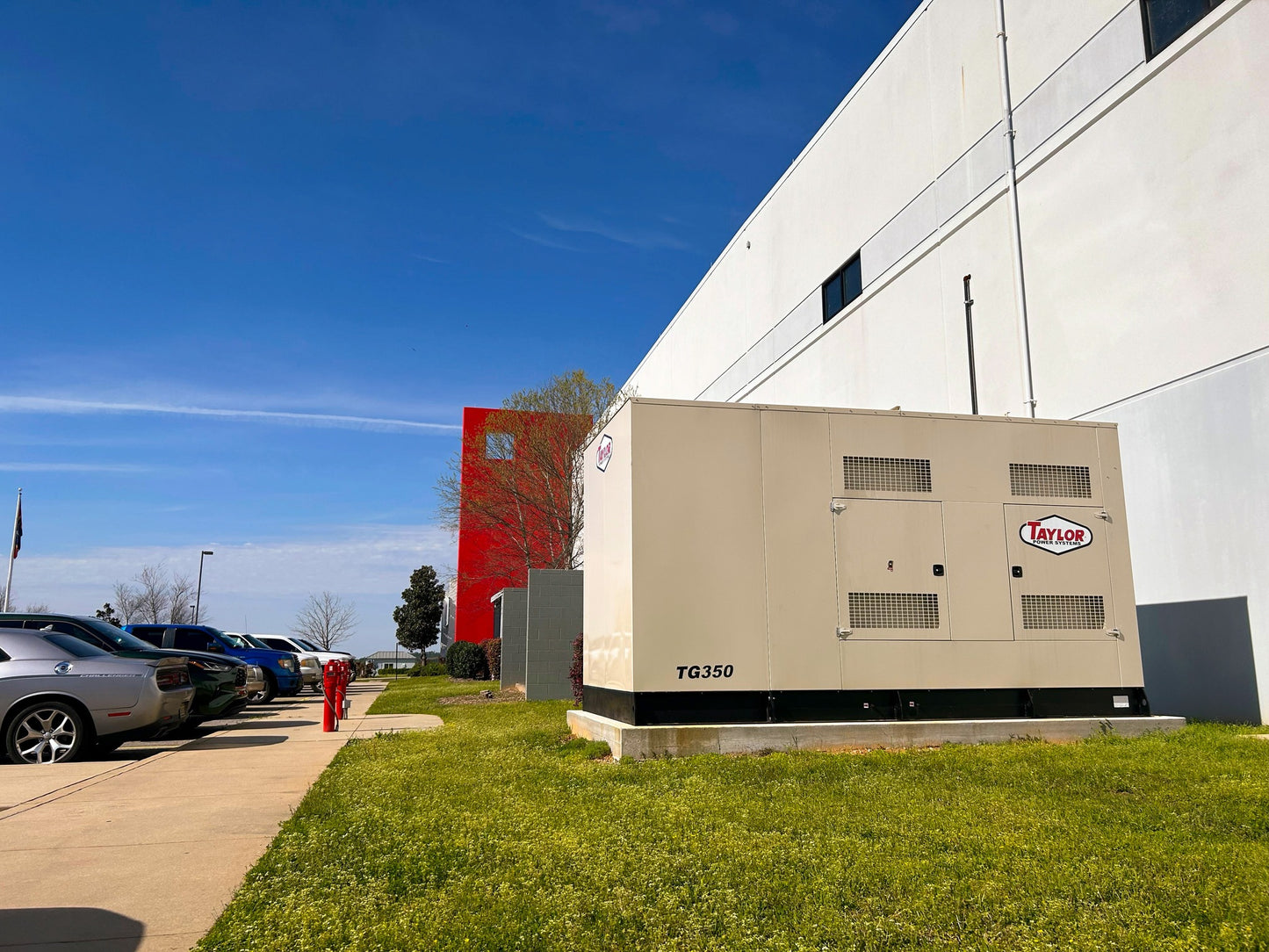

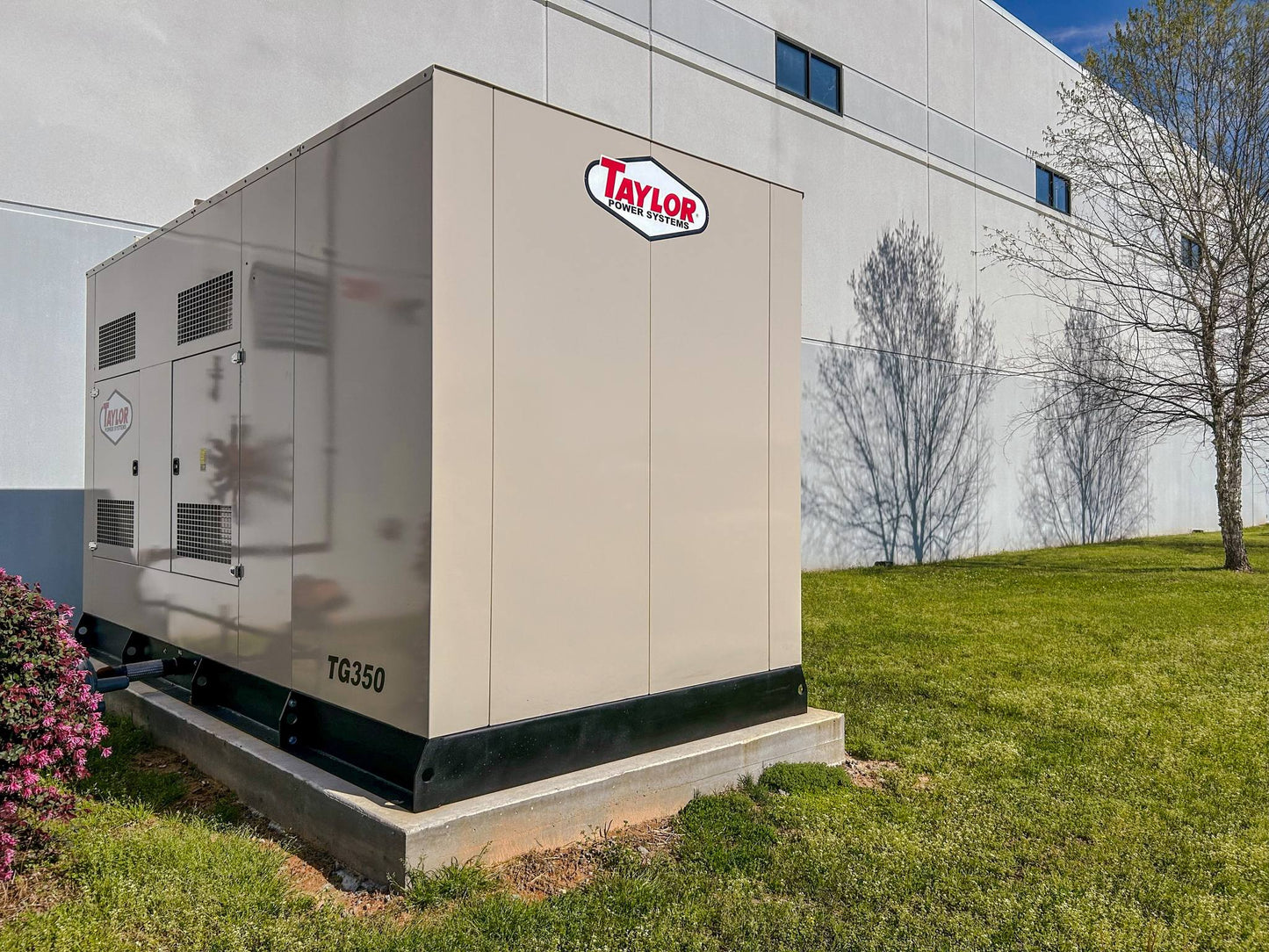

The Taylor TG350 is a high-performing generator designed to deliver 350kW of standby power. It operates on both Natural Gas (NG) and Liquid Propane (LP), offering flexibility and reliability for critical applications in residential, commercial, and industrial settings. Certified to UL2200 standards, this generator comes equipped with a turbocharged engine, durable build quality, and advanced control systems, ensuring efficiency, safety, and long-term use.
Taylor Power System Standby-NG/LP Generator | Model TG-350 | Horsepower 398-536 HP | Power Output 350kW (438kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-350 | Horsepower 398-536 HP | Power Output 350kW (438kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-350 | Horsepower 398-536 HP | Power Output 350kW (438kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
Powerful Engine Performance:
- Turbocharged V-8, 4-Cycle Engine designed for reliable and efficient operation.
- Delivers a robust 350kW of standby power, ensuring uninterrupted backup.
- Isochronous governor with ±0.50% speed regulation ensures stable performance under varying loads.
-
Fuel Versatility:
- Compatible with both Natural Gas (NG) and Liquid Propane (LP) fuels for enhanced flexibility.
- Optimized fuel systems maintain consistent performance across diverse operating conditions.
-
Durability and Reliability:
- Constructed with a heavy-duty steel base and vibration isolators for long-term stability.
- High ambient unit-mounted radiator ensures superior cooling, even under extended operation.
- Factory powder coating adds protection against corrosion and environmental wear.
-
Advanced Control Panels:
-
Features flexible and intuitive control panel options:
- DeepSea 7310 MKII: Supports Modbus RTU communication with IP65-rated durability.
- Basler DGC2020: NFPA 110 Level 1 compliance with advanced customization features.
- Taylor Analog: User-friendly for efficient manual operation with key gauges.
-
Features flexible and intuitive control panel options:
-
Precision Alternators:
-
Equipped with Marathon PMG or Stamford PMG alternators offering high-performance voltage regulation:
- Marathon Alternator: 0.25% regulation for Three Phase.
- Stamford Alternator: 1.0% regulation for Single Phase / 0.50% for Three Phase.
-
Equipped with Marathon PMG or Stamford PMG alternators offering high-performance voltage regulation:
-
Certifications and Safety:
- Certified to UL2200, EPA, CE, and CSA standards for safety and compliance.
- Safety features include over-voltage, under-frequency, and over-excitation protections.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
Taylor TG350 Generator:
| Category | Specification |
|---|---|
| Manufacturer | PSI |
| Model | 18.3L HO |
| Aspiration | Turbocharged |
| Arrangement | V-10, 4-Cycle |
| Firing Order | 1-6-5-10-2-7-3-8-4-9 |
| Displacement | 18.3 L (1115.0 in³) |
| Bore | 128.00 mm (5.04 in) |
| Stroke | 142.00 mm (5.59 in) |
| Compression Ratio | 10.5:1 |
| Gross Horsepower (NG) | 536 HP |
| Gross Horsepower (LP) | 398 HP |
| BMEP (Natural Gas) | 212.0 psi (1461.7 kPa) |
| BMEP (LP Vapor) | 157.0 psi (1082.5 kPa) |
| Rated RPM | 1800 |
| Governor | Isochronous |
| Speed Regulation | ±0.50% |
| Oil System Capacity | 33.25 qt (31.47 L) |
| Cooling System Capacity | 63.5 gal (289.0 L) |
| Electric Volts | DC 24 |
| Cold Cranking Amps | 1100 |
| Battery(s) Required | 2 |
| Fuel Supply Size (NG) | 3.00” NPT |
| Fuel Supply Size (LP) | 3.00” NPT |
| Supply Pressure | 7-11 in. H₂O (1.74-2.74 kPa) |
| Air Filter(s) Type | Dry |
| Combustion Air Flow | 664.0 CFM (19.4 m³/min) |
| Max Air Intake Restriction (Clean) | 3.00 in. H₂O (1.24 kPa) |
| Max Air Intake Restriction (Dirty) | 15.00 in. H₂O (3.74 kPa) |
| Radiator Air Flow | 36,000 CFM (1019 m³/min) |
| Exhaust Gas Temperature | 1030°F (554°C) |
| Exhaust Gas Flow | 2366.0 CFM (66.9 m³/min) |
| Max Back Pressure | 40.9 in. H₂O (10.2 kPa) |
| Air Cleaner Quantity | 1 |
| Oil Filter(s) Quantity | 1 |
| Fuel Consumption (NG) @ 100% Power | 3984 CFH (112.9 m³/hr) |
| Fuel Consumption (NG) @ 75% Power | 3053 CFH (86.5 m³/hr) |
| Fuel Consumption (NG) @ 50% Power | 2109 CFH (59.8 m³/hr) |
| Fuel Consumption (NG) @ 25% Power | 1253 CFH (35.5 m³/hr) |
| Fuel Consumption (LP) @ 100% Power | 1289 CFH (36.5 m³/hr) |
| Fuel Consumption (LP) @ 75% Power | 979 CFH (27.7 m³/hr) |
| Fuel Consumption (LP) @ 50% Power | 701 CFH (19.9 m³/hr) |
| Fuel Consumption (LP) @ 25% Power | 446 CFH (12.6 m³/hr) |
 |
Open Unit | Overall Size: 140”L x 90”W x 98”H Approximate Weight: 9,900 lbs. |
 |
Standard Enclosed Unit | Overall Size: 186”L x 90”W x 106”H Approximate Weight: 12,900 lbs. |
