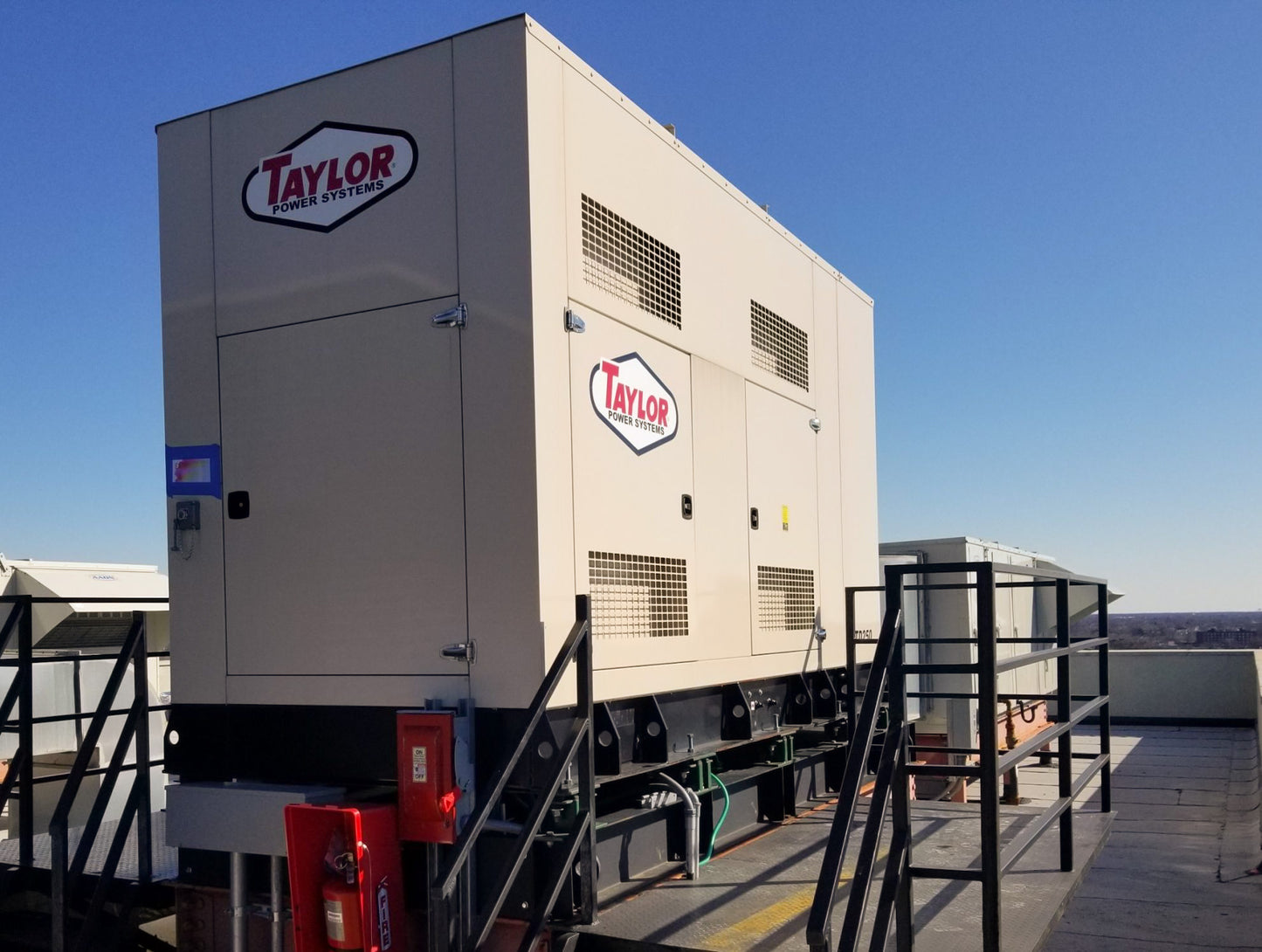

The Taylor TG450 generator delivers a robust 450kW of standby power, making it the ideal choice for critical power backup needs. Designed to operate seamlessly on both Natural Gas (NG) and Liquid Propane (LP), this generator ensures reliability in residential, commercial, and industrial environments. Powered by a turbocharged V-12 engine and equipped with advanced controls and durable components, the TG450 is engineered to handle demanding applications while meeting UL2200, EPA, and other international safety standards.
Taylor Power System Standby-NG/LP Generator | Model TG-450 | Horsepower 472-684 HP | Power Output 450kW (573kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-450 | Horsepower 472-684 HP | Power Output 450kW (573kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-450 | Horsepower 472-684 HP | Power Output 450kW (573kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
High-Powered Engine:
- Turbocharged V-12, 4-Cycle Engine providing 450kW of standby power.
- Reliable operation with ±0.50% speed regulation for stable performance under load variations.
- Rated at 1800 RPM, ensuring efficient and uninterrupted operation.
-
Dual Fuel Operation:
- Operates smoothly on Natural Gas (NG) or Liquid Propane (LP), offering flexibility based on fuel availability.
- Optimized fuel systems for steady and efficient performance at various loads.
-
Durable Construction:
- Heavy-duty steel base with vibration isolators for long-lasting stability and reduced noise.
- High ambient radiator for efficient cooling during extended operations.
- Powder-coated finish for superior protection against corrosion and wear.
-
Advanced Control Panels:
-
Equipped with versatile control options:
- DeepSea 7310 MKII: Advanced monitoring with Modbus RTU compatibility and IP65-rated protection.
- Basler DGC2020: NFPA 110 Level 1 compliance with customizable system controls.
- Taylor Analog: User-friendly for manual operation and real-time performance monitoring.
-
Equipped with versatile control options:
-
Precision Alternators:
-
Fitted with either Marathon PMG or Stamford PMG alternators:
- Marathon Alternator: 0.25% voltage regulation for Three Phase.
- Stamford Alternator: 1.0% voltage regulation for Single Phase and 0.50% for Three Phase.
-
Fitted with either Marathon PMG or Stamford PMG alternators:
-
Certifications & Safety:
- Certified to UL2200, EPA, CE, and CSA standards.
- Comprehensive safety features, including over-voltage, under-frequency, and over-excitation protections.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specification
Taylor TG450 Generator:
| Category | Specification |
|---|---|
| Manufacturer | PSI |
| Model | 21.9L |
| Aspiration | Turbocharged |
| Arrangement | V-12, 4-Cycle |
| Firing Order | 1-12-5-8-3-10-6-7-2-11-4-9 |
| Displacement | 21.9 L (1338.0 in³) |
| Bore | 128.00 mm (5.04 in) |
| Stroke | 142.00 mm (5.59 in) |
| Compression Ratio | 10.5:1 |
| Gross Horsepower (NG) | 684 HP |
| Gross Horsepower (LP) | 472 HP |
| BMEP (Natural Gas) | 225.00 psi (1551.32 kPa) |
| BMEP (LP Vapor) | 155.00 psi (1068.70 kPa) |
| Rated RPM | 1800 |
| Governor | Isochronous |
| Speed Regulation | ±0.50% |
| Oil System Capacity | 38.5 qt (36.5 L) |
| Cooling Capacity | 50.1 gal (189.6 L) |
| Electric Volts | DC 24 |
| Cold Cranking Amps | 1100 |
| Battery(s) Required | 2 |
| Fuel Supply Size (NG) | 3.00” NPT |
| Fuel Supply Size (LP) | 3.00” NPT |
| Supply Pressure | 7-11 in. H₂O (1.74-2.74 kPa) |
| Air Filter(s) Type | Dry |
| Combustion Air Flow | 968 CFM (27 m³/min) |
| Max Air Intake Restriction (Clean) | 3.00 in. H₂O (1.24 kPa) |
| Max Air Intake Restriction (Dirty) | 15.00 in. H₂O (3.74 kPa) |
| Radiator Air Flow | 40,000 CFM (1133 m³/min) |
| Exhaust Gas Temperature | 1382°F (750°C) |
| Exhaust Gas Flow | 2995.0 CFM (84.8 m³/min) |
| Max Back Pressure | 40.9 in. H₂O (10.2 kPa) |
| Air Cleaner Quantity | 1 |
| Oil Filter(s) Quantity | 1 |
| Fuel Consumption (NG) @ 100% Power | 4490.0 CFH (127.1 m³/hr) |
| Fuel Consumption (LP) @ 100% Power | 1408.0 CFH (39.9 m³/hr) |
 |
Open Unit | Overall Size: 140”L x 90”W x 98”H Approximate Weight: 11,350 lbs. |
 |
Standard Enclosed Unit | Overall Size: 186”L x 90”W x 106”H Approximate Weight: 13,650 lbs. |
