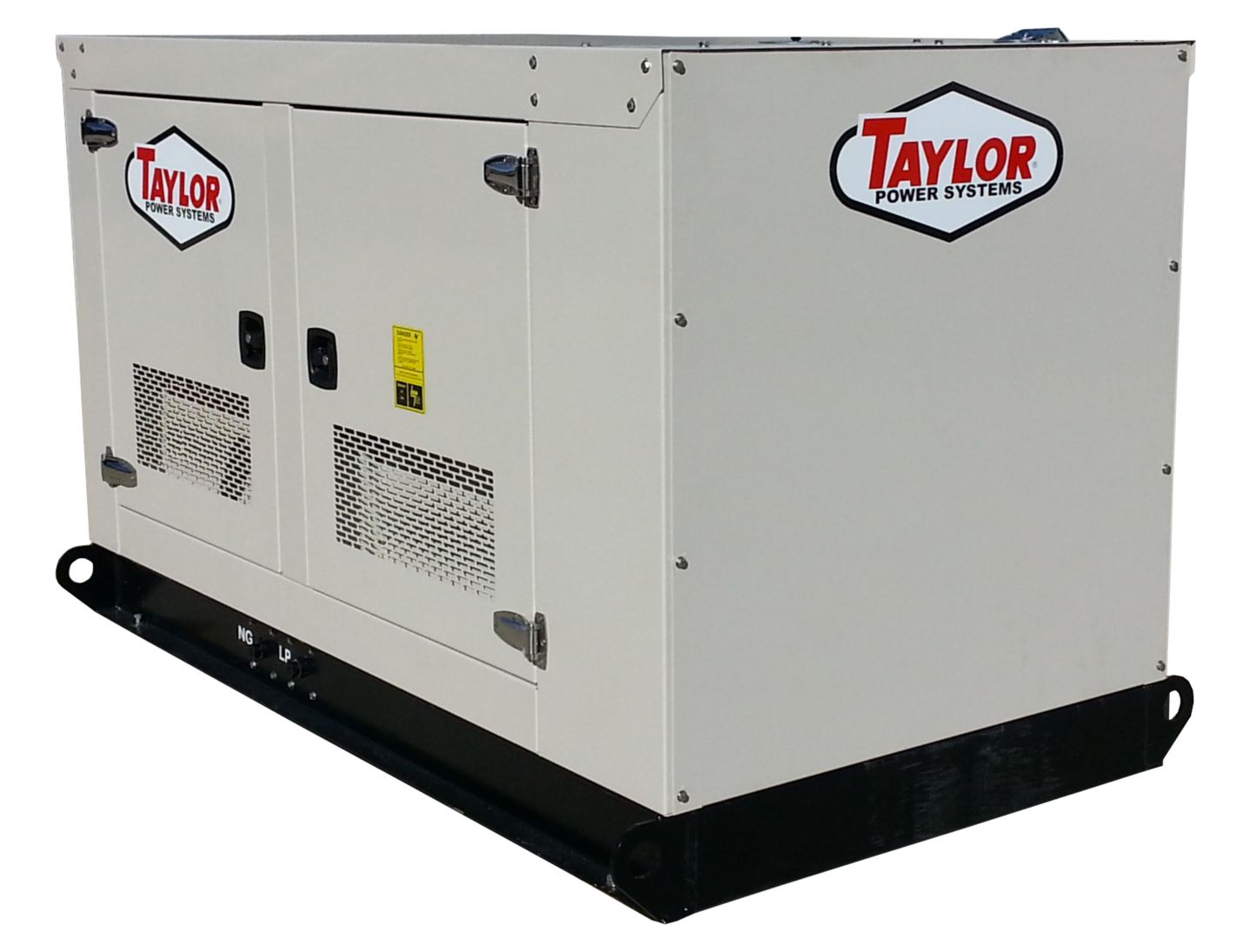

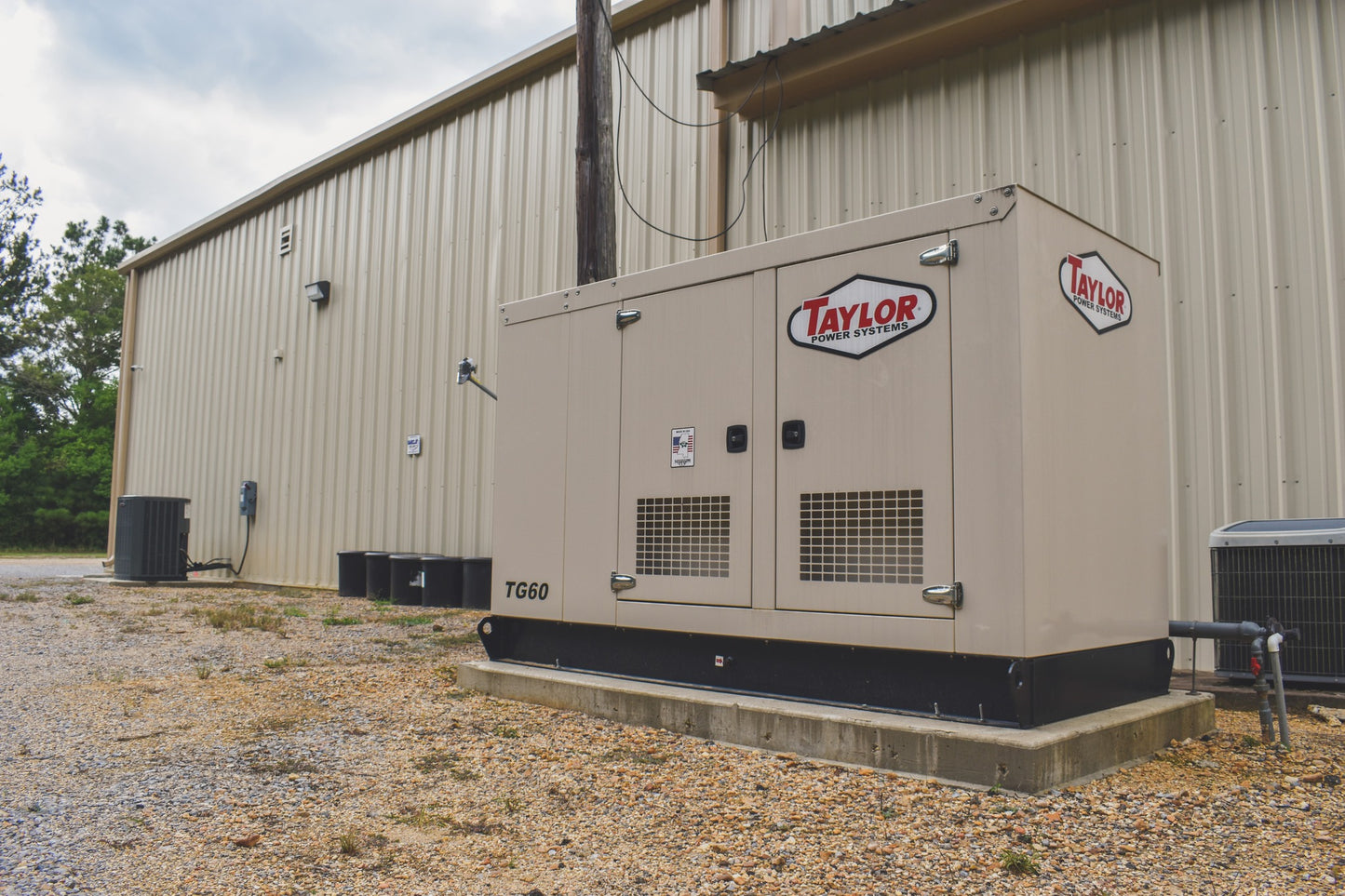

The Taylor TG60 is a 60kW standby generator designed to operate on Natural Gas (NG) or Liquid Propane (LP). It is ETL Certified to UL2200 standards, ensuring reliability and safety in emergency power applications. With a range of optional features, it caters to diverse needs across residential, commercial, and industrial setups. Its robust build and advanced alternator make it an excellent choice for dependable power solutions.
Taylor Power System Standby-NG/LP Generator | Model TG-60 | Horsepower 104-113 HP | Power Output 60kW (75kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-60 | Horsepower 104-113 HP | Power Output 60kW (75kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-60 | Horsepower 104-113 HP | Power Output 60kW (75kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
Engine & Power:
- GM 5.7L Natural Aspirated V-8 Engine.
- Delivers gross horsepower of 104.7 HP (Natural Gas) and 113.2 HP (LP Vapor).
- Isochronous governor with ±0.50% speed regulation.
- EPA Certified as a Stationary Emergency Unit.
-
Design & Durability:
- Heavy-duty steel base with vibration isolators.
- High ambient unit-mounted radiator.
- Factory powder coating for enhanced durability.
-
Convenience & Maintenance:
- Oil drain valve with extension for easier servicing.
- Includes battery rack and cables.
- Supplied with a comprehensive owner’s manual.
-
Control Panels:
- Options include DeepSea 7310 MKII, Taylor Analog, and Basler DGC2020 for flexible operation.
- Modbus RTU and NFPA 110 Level 1 compatibility.
-
Alternator Options:
- Marathon PMG or Stamford PMG alternators.
- Hybrid analog/digital voltage regulation with 0.25% or 0.50% accuracy.
-
Certifications & Protections:
- CE, CSA Certified, and UL Listed.
- Over-voltage, under-frequency, and over-excitation protection.
- Designed to handle overspeeds up to 125%.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
le
| Category | Specification |
|---|---|
| Engine | GM 5.7L, V-8, Natural Aspiration |
| Fuel Type | Natural Gas (NG) / Liquid Propane (LP) |
| Horsepower | 104.7 HP (NG) / 113.2 HP (LP) |
| Rated RPM | 1800 |
| Power Output | 60 kW/75kVA |
| Alternator | Marathon / Stamford PMG |
| Voltage Regulation | 0.25% (Marathon) / 0.50% (Stamford) |
| Cooling Capacity | 2.1 gal (7.8 L) |
| Oil Capacity | 5.0 qt (4.7 L) |
| Exhaust Temp | 1200°F (649°C) |
| Fuel Consumption | NG: 790 CFH @ 100% |
| Certifications | EPA, UL2200, CE, CSA |
 |
Open Unit | Overall Size: 78”L x 36”W x 50”H Approximate Weight: 1,650 lbs. |
 |
Standard Enclosed Unit | Overall Size: 102”L x 52”W x 64”H Approximate Weight: 3,100 lbs. |
