The Taylor TG650 generator offers a powerful 650kW of standby power, ensuring a reliable and efficient backup power solution. Designed to operate on both Natural Gas (NG) and Liquid Propane (LP), this generator is engineered for flexibility and durability. Certified to UL2200 standards, the TG650 combines a turbocharged engine, precision alternators, and advanced control systems, making it ideal for mission-critical environments.
Taylor Power System Standby-NG/LP Generator | Model TG-650 | Horsepower 966 HP | Power Output 650kW (813kVA) | Open & Enclosed Unit
Taylor Power System Standby-NG/LP Generator | Model TG-650 | Horsepower 966 HP | Power Output 650kW (813kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-NG/LP Generator | Model TG-650 | Horsepower 966 HP | Power Output 650kW (813kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
High-Performance Engine:
- Turbocharged V-12, 4-Cycle Engine, engineered for reliable, high-output performance.
- Isochronous governor with precise ±0.50% speed regulation for stable operation.
- Rated at 1800 RPM, ensuring consistent and efficient power delivery.
-
Dual Fuel Operation:
- Seamless operation on Natural Gas (NG) and Liquid Propane (LP) fuels.
- Optimized fuel systems for superior efficiency and reliability under varying loads.
-
Durable Construction:
- Heavy-duty steel base and vibration isolators ensure durability and reduced noise.
- High ambient radiator for extended cooling performance.
- Powder-coated for corrosion resistance and environmental protection.
-
Advanced Control Panels:
-
Multiple control panel options for superior monitoring and operation:
- DeepSea 7310 MKII: Advanced functionality with Modbus RTU and IP65-rated protection.
- Basler DGC2020: NFPA 110 Level 1 compliance with advanced system diagnostics.
- Taylor Analog: Simplified operation with real-time indicators for performance monitoring.
-
Multiple control panel options for superior monitoring and operation:
-
Precision Alternators:
-
Equipped with Marathon PMG or Stamford PMG alternators for high-accuracy voltage regulation:
- Marathon Alternator: 0.25% voltage regulation for Three Phase applications.
- Stamford Alternator: 1.0% voltage regulation for Single Phase and 0.50% for Three Phase.
-
Equipped with Marathon PMG or Stamford PMG alternators for high-accuracy voltage regulation:
-
Certifications and Safety:
- Certified to UL2200, EPA, CE, and CSA standards.
- Enhanced safety features, including over-voltage, under-frequency, and over-excitation protections.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485, Modbus RTU Support, Fully Configurable Using USB, RS232 &RS485, IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU, Communications, 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specification
Taylor TG650 Generator:
| Category | Specification |
|---|---|
| Manufacturer | PSI |
| Model | 31.8L |
| Aspiration | Turbocharged |
| Arrangement | V-12, 4-Cycle |
| Firing Order | 1-8-5-10-3-7-6-11-2-9-4-12 |
| Displacement | 31.8 L (1940.5 in³) |
| Bore | 150.00 mm (5.91 in) |
| Stroke | 150.00 mm (5.91 in) |
| Compression Ratio | 10.5:1 |
| Gross Horsepower | 966 HP |
| BMEP | 219.00 psi (1509.95 kPa) |
| Rated RPM | 1800 |
| Governor | Isochronous |
| Speed Regulation | ±0.50% |
| Oil System Capacity | 129 qt (122 L) |
| Cooling Capacity | 68.1 gal (257.6 L) |
| Electric Volts | DC 24 |
| Cold Cranking Amps | 1100 |
| Battery(s) Required | 2 |
| Fuel Supply Size | 3.00” NPT |
| Supply Pressure | 7-11 in. H₂O (1.74-2.74 kPa) |
| Air Filter(s) Type | Dry |
| Combustion Air Flow | 1320 CFM (37 m³/min) |
| Max Air Intake Restriction (Clean) | 3.00 in. H₂O (1.24 kPa) |
| Max Air Intake Restriction (Dirty) | 15.00 in. H₂O (3.74 kPa) |
| Radiator Air Flow | 41,200 CFM (1167 m³/min) |
| Exhaust Gas Temperature | 1183°F (639°C) |
| Exhaust Gas Flow | 4354 CFM (123 m³/min) |
| Max Back Pressure | 40.9 in. H₂O (10.2 kPa) |
| Air Cleaner Quantity | 1 |
| Oil Filter(s) Quantity | 1 |
| Fuel Consumption @ 100% Power | 7983 CFH (226 m³/hr) |
| Fuel Consumption @ 75% Power | 6202 CFH (176 m³/hr) |
| Fuel Consumption @ 50% Power | 4478 CFH (127 m³/hr) |
| Fuel Consumption @ 25% Power | 2756 CFH (78 m³/hr) |
 |
Open Unit |
 |

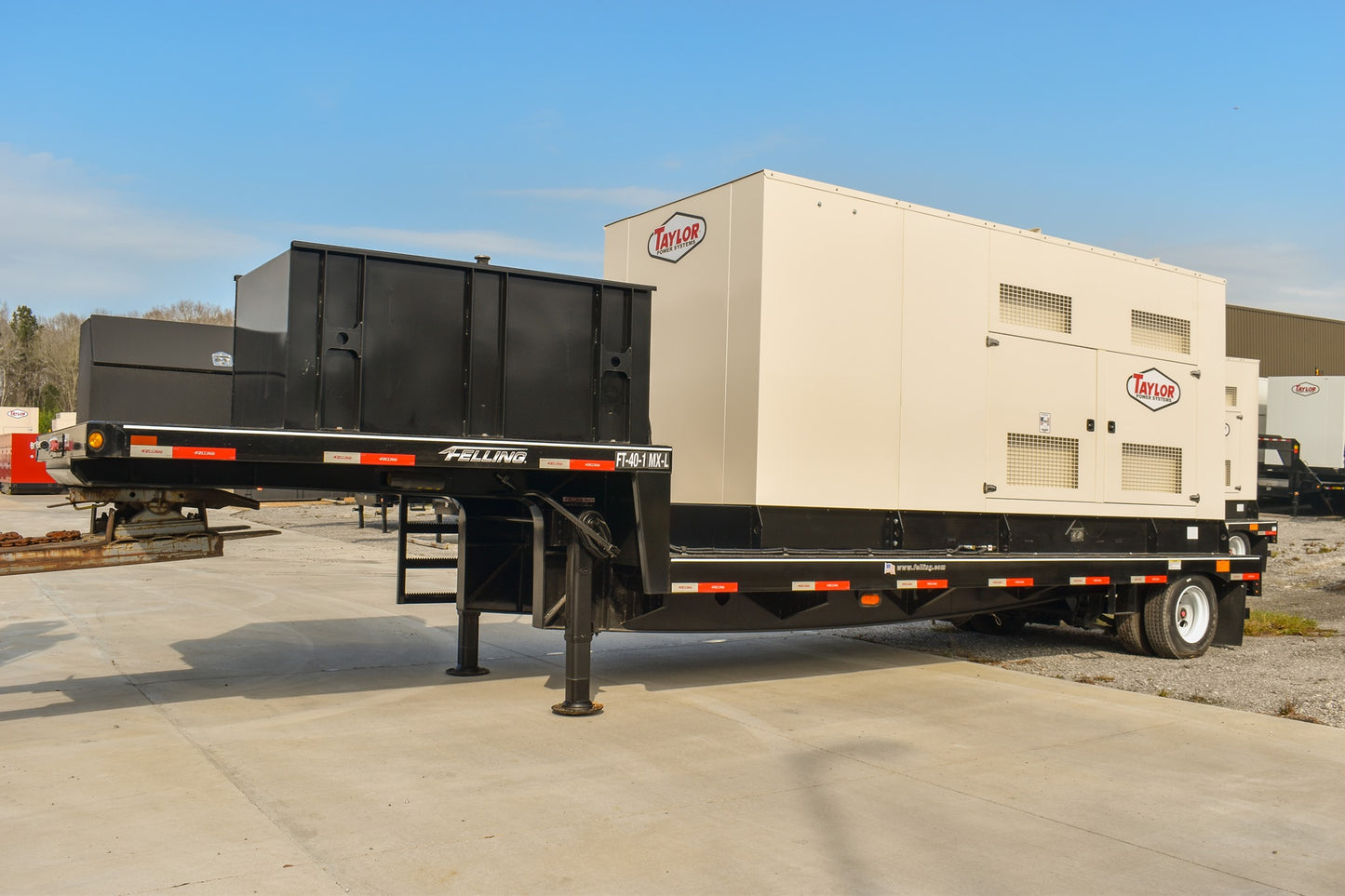

Standard Enclosed Unit |
