The Taylor Power Trailer Mounted Mobile Generator TM170 is a high-performance power solution designed for large-scale mobile applications. Powered by the reliable FPT NEF67 engine, this generator delivers 132kW of prime power with advanced fuel efficiency and emissions compliance. Built to handle demanding environments, the TM170 features a robust design, low sound levels, and flexible output options, making it an ideal choice for industrial and commercial operations.

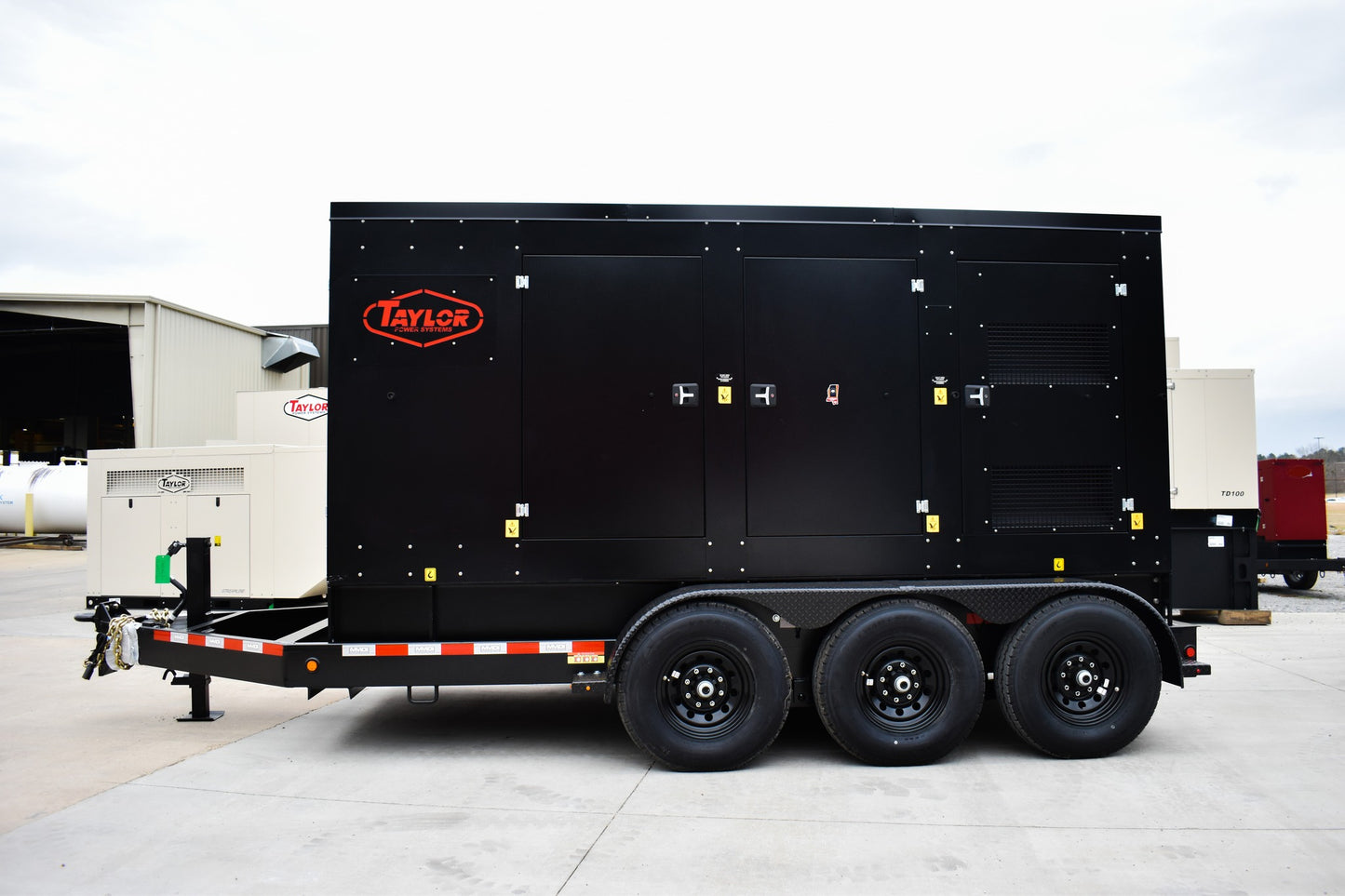

Taylor Power System Trailer Mounted Mobile Generator | Model TM-170 | Horsepower 224 HP | Standby Power 170kW
Taylor Power System Trailer Mounted Mobile Generator | Model TM-170 | Horsepower 224 HP | Standby Power 170kW
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Trailer Mounted Mobile Generator | Model TM-170 | Horsepower 224 HP | Standby Power 170kW
DESCRIPTION
Key Features
- Powerful Engine: Equipped with an FPT NEF67 turbocharged inline 6-cylinder engine delivering 224 gross horsepower.
- Flexible Voltage Options: Supports multiple voltage configurations, including 277/480V, 120/208V, and 120/240V.
- Fuel Efficiency: Consumes 6.98 gal/hr at 75% load and 9.31 gal/hr at 100% load for optimized operation.
- Durable Construction: Built with a robust steel frame and corrosion-resistant finish.
- Quiet Operation: Maintains a low sound level of 70 dBA at 23 feet for noise-sensitive environments.
- Large Fuel Capacity: 232-gallon tank with 110% containment for extended runtime.
- Advanced Safety Features: Includes automatic shutdown systems for high temperature, low oil pressure, overcrank, and overspeed conditions.
-
Convenient Connections: Offers 20A 120V receptacles, 50A 120-240V receptacles, and Cam-Lok sets.
Detailed Specification
| Category | TM170 |
|---|---|
| Manufacturer | FPT |
| Model | NEF67 |
| EPA Tier | Tier 4 Final |
| Aspiration | Turbocharged |
| Displacement (L/in³) | 6.7 (408.859) |
| Gross Horsepower | 224 |
| Rated RPM | 1800 |
| Fuel Capacity (gal) | 232 |
| Fuel Consumption @ 75% Load | 6.98 gal/hr |
| Fuel Consumption @ 100% Load | 9.31 gal/hr |
| DEF Capacity (gal) | 20 |
| Sound Level (23 ft) | 70 dBA |
| Output Connections | 1 x 20A 120V, 3 x 50A 120-240V, 1 Cam-Lok |
| Dimensions (L x W x H) | 248" x 87" x 109" |
| Wet Weight (lbs) | 10434 |
