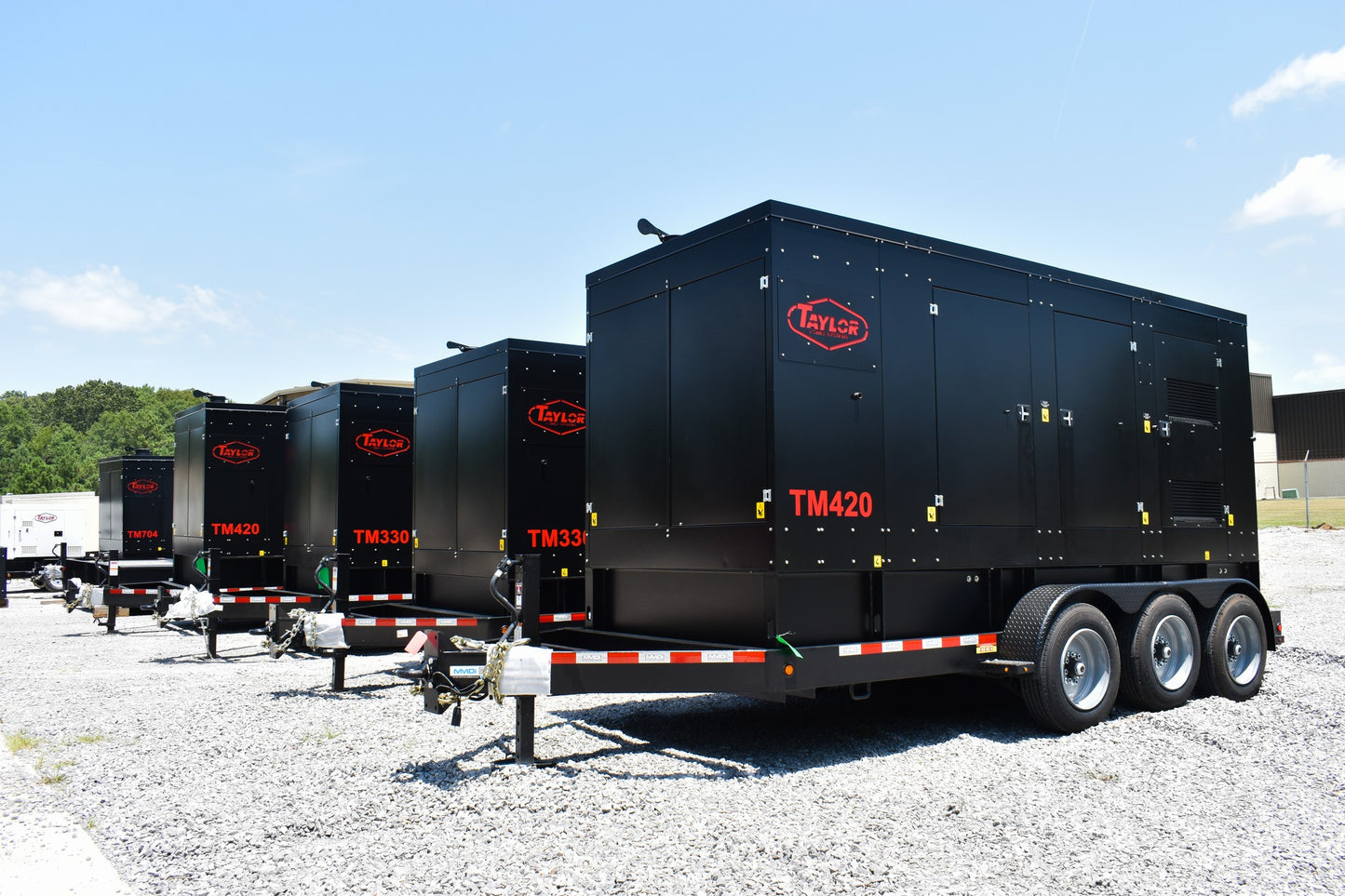

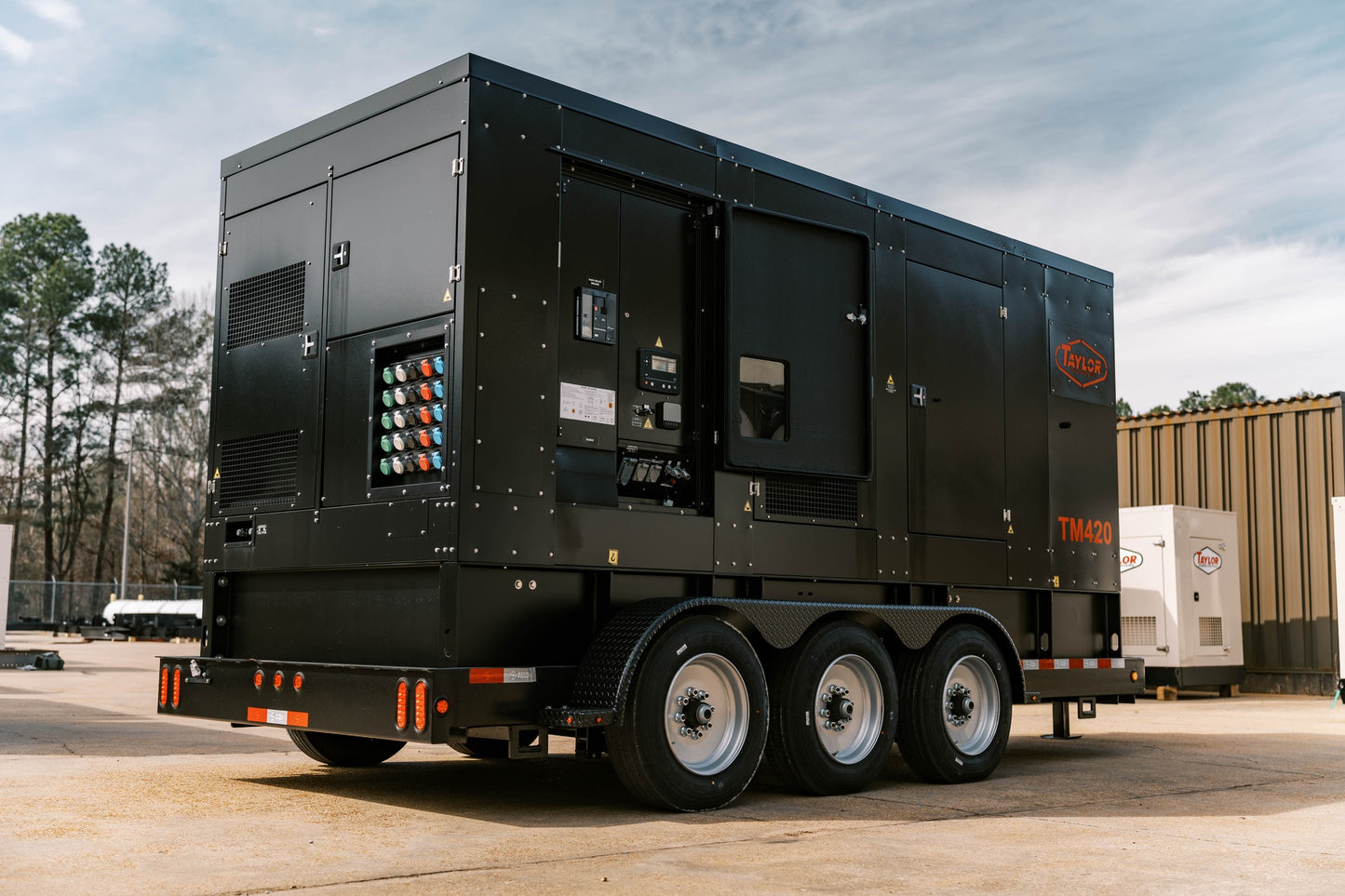

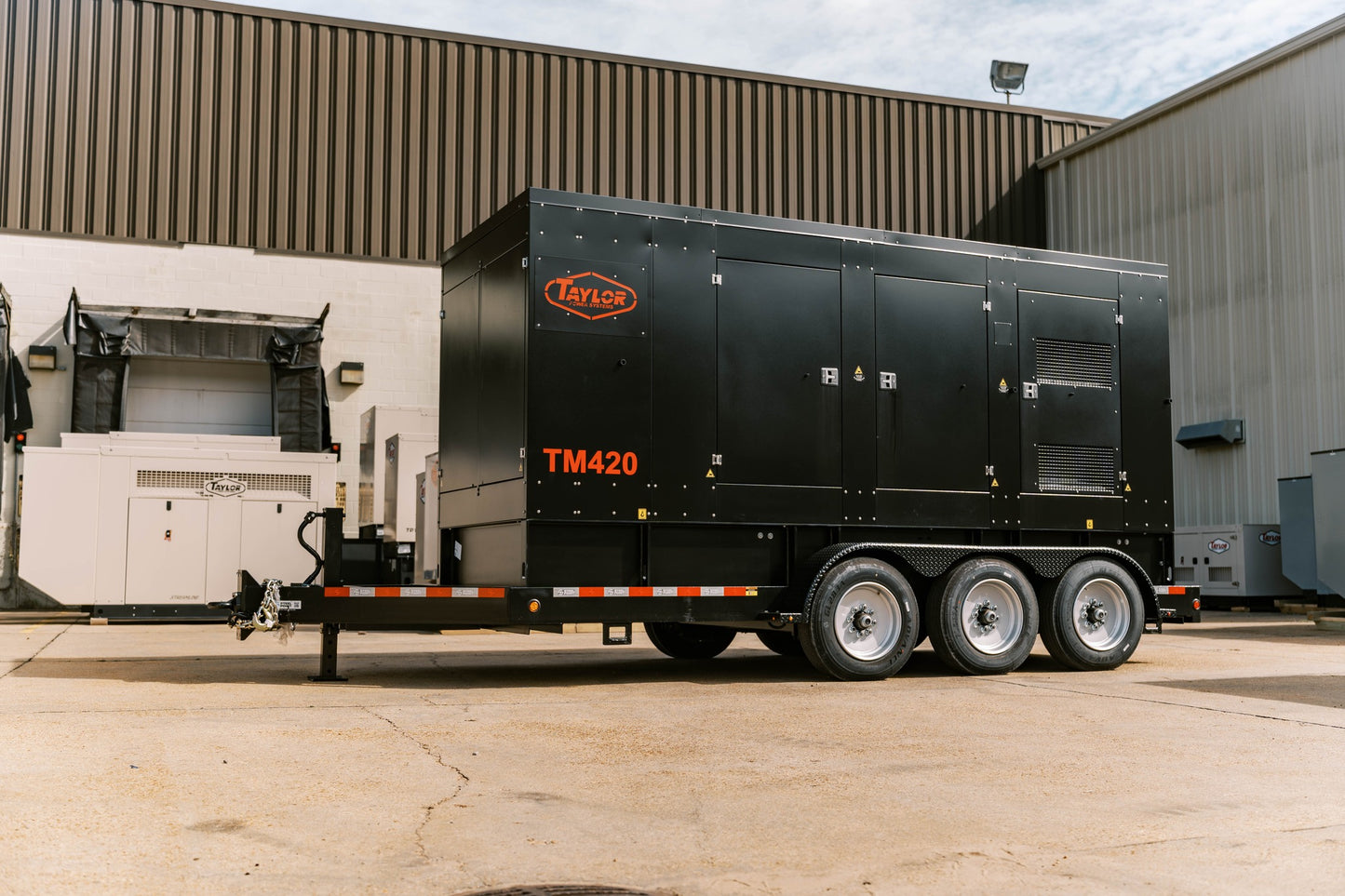

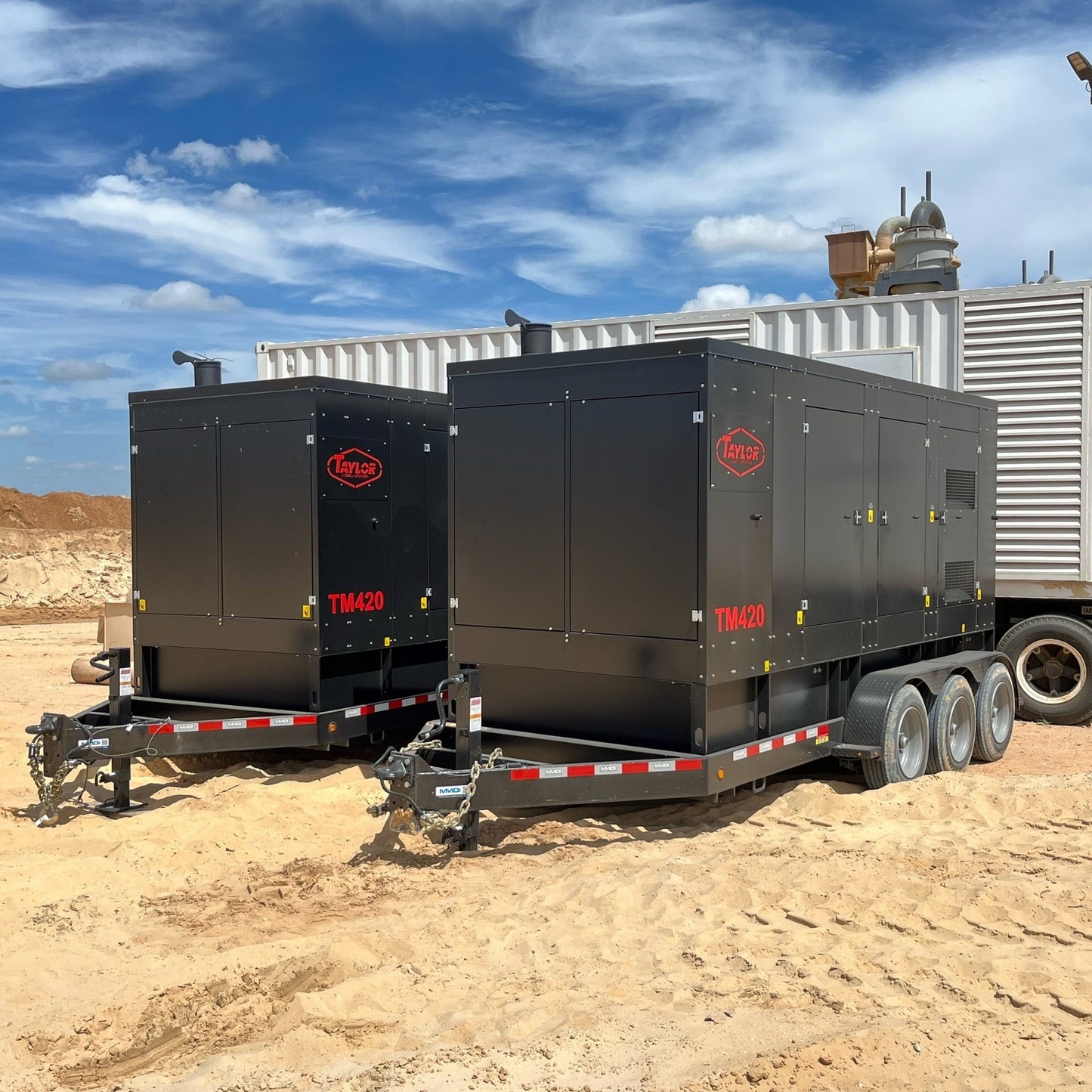

The Taylor Power Trailer Mounted Mobile Generator TM420 is a heavy-duty power solution designed to handle large-scale mobile operations with ease. Powered by the FPT Cursor13 turbocharged engine, the TM420 delivers exceptional energy output with 570 gross horsepower. Its advanced engineering includes top-tier emissions compliance, high fuel capacity, and versatile connectivity options, making it a reliable and robust choice for critical applications.
Taylor Power System Trailer Mounted Mobile Generator | Model TM-420 | Horsepower 570 HP | Standby Power 334kW (418 kVA)
Taylor Power System Trailer Mounted Mobile Generator | Model TM-420 | Horsepower 570 HP | Standby Power 334kW (418 kVA)
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Trailer Mounted Mobile Generator | Model TM-420 | Horsepower 570 HP | Standby Power 334kW (418 kVA)
DESCRIPTION
Key Features
- Enhanced Power Output: Generates significant energy with a gross horsepower of 570.
- FPT Cursor13 Engine: Turbocharged inline 6-cylinder engine tailored for high performance.
- Fuel Efficiency: Consumes 17.29 gal/hr at 75% load and 23.05 gal/hr at 100% load.
- Large Fuel Capacity: Features a 283-gallon tank with 110% containment for long-duration operation.
- DEF Integration: Equipped with a 41-gallon DEF tank for superior emissions compliance.
- Rugged Construction: Designed for heavy-duty applications with durable materials.
- Quiet Operation: Operates at a low sound level of 70 dBA at 23 feet.
- Flexible Output Connections: Includes 1 x 20A 120V receptacle and 5 Cam-Lok sets.
- Advanced Monitoring: DeepSea 8610 Controller and M835 DEF Monitor for precise operational control.
Detailed Specification
| Category | TM420 |
|---|---|
| Manufacturer | FPT |
| Engine Model | Cursor13 |
| EPA Tier Compliance | Tier 4 Final |
| Aspiration | Turbocharged |
| Displacement (L/in³) | 12.9 (787.21) |
| Gross Horsepower | 570 |
| Rated RPM | 1800 |
| Fuel Capacity (gal) | 283 |
| Fuel Consumption @ 75% Load | 17.29 gal/hr |
| Fuel Consumption @ 100% Load | 23.05 gal/hr |
| DEF Capacity (gal) | 41 |
| Sound Level (23 ft) | 70 dBA |
| Output Connections | 1 x 20A 120V, 5 Cam-Lok sets |
| Dimensions (L x W x H) | 261" x 100" x 115" |
| Wet Weight (lbs) | 19,293 |
