Product Description

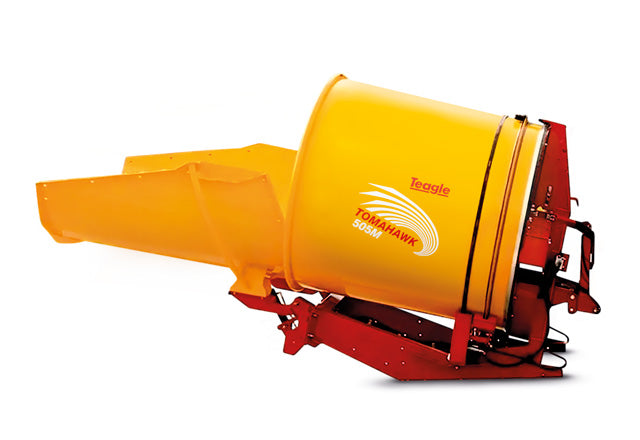

Teagle | Tomahawk Bale Blower | Model T505FSM | Width 80" | Bale Size up to 62" | Horsepower 120HP Minimum | For Tractors
DESCRIPTION
Engineered for professional livestock operations, the TEAGLE T505FSM Tomahawk Bale Blower delivers powerful short-chop straw spreading to keep cubicle bedding clean, dry, and highly absorbent. Designed for tractors with a minimum of 120HP PTO, this robust, high-capacity processor is purpose-built to shred and spread straw with precision, power, and speed.
The 72" drum handles both round and rectangular bales, with a maximum diameter of 62", giving you flexibility across various straw formats. With a unique short-chop mechanism, the T505FSM creates fine, evenly distributed bedding ideal for reducing straw usage while improving animal comfort and hygiene.
With an extended overall length of 162” and a 72” giraffe chute discharge height, this machine is ready to serve large-scale dairy or livestock farms where bedding performance directly impacts productivity.
Key Features
- Purpose-Built for Short Chop Straw Ideal for cubicle bedding systems, improving absorption and cleanliness.
- Handles Round & Rectangular Bales Processes up to 62” round bales and 48"x48" square bales for ultimate flexibility.
- High-Efficiency Giraffe Chute Delivers chopped straw up to 72" in height perfect for barns and shelters with elevated bedding areas.
- Extra-Wide Operating Width At 123" total working width, it blankets large spaces with fewer passes.
- 120HP PTO Driven Designed for higher horsepower tractors to ensure uninterrupted, high-output performance.
- Heavy-Duty Construction Built to withstand daily use in commercial environments with minimal downtime.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | T505FSM |
| Drum Diameter | 72" (6'0") |
| Max Round Bale Diameter | 62" |
| Max Rectangular Bale Size | 48” x 48” |
| Length Overall | 162" |
| Height (Ground to Top) | 102" |
| Transport Width | 80" |
| Operating Width | 123" |
| Width with Chutes Closed | 80" |
| Lower Chute Discharge Height | 22" |
| Upper Chute Discharge Height | 50" |
| Straw Giraffe Chute Height | 72" |
| Weight (Unladen) | 3,055 lb |
| PTO Power Required | 120HP |
| Straw - Short Chop Capable | Yes |
| Feed Baled Silage | No |
| Feed Clamp Silage | No |
| Bed Cubicles / Straw Processing | Yes |
| Bed Loose Housing | No |
