Product Description
Teagle Tomahawk Straw Blower | Model 6100H | Max Oil Flow Rate 75 L/Min | Horsepower 70 HP | For Skid Steers, Compact Loaders & Tractors
DESCRIPTION

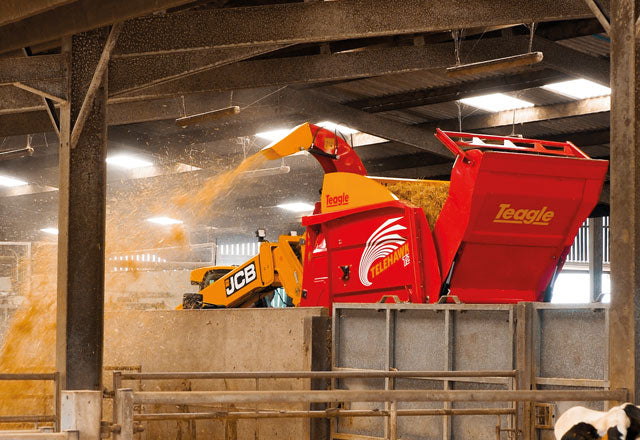

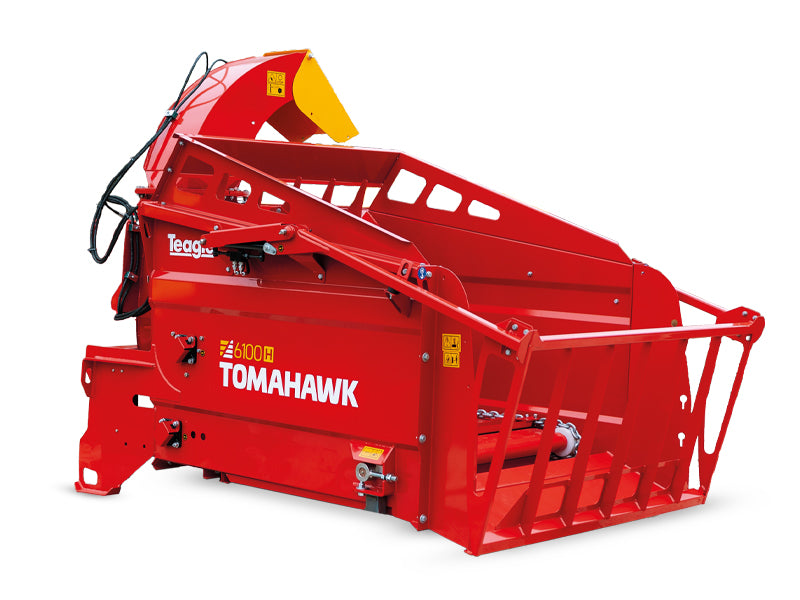

Struggling with tight spaces and big bale processing demands? The TEAGLE 6100H Skid Steer Bale Blower is purpose-built for farms where every inch counts. This compact, hydraulic-driven bale processor offers unmatched efficiency without compromising power or versatility, making it the ideal attachment for skid steers, compact wheeled loaders, and tractors equipped with front loaders or 3-point hitches.
Designed with precision, the 6100H effortlessly handles a 60-inch bale width, combining rugged durability with user-friendly operation. Its powerful 8-paddle fan, crafted from 1/4" steel, maximizes airflow to blow straw further, while the heavy-duty bed chain and low-speed crossbeater gently tear bales apart for an even, consistent feed. With its 280-degree swivel chute, you can direct straw exactly where you need it, whether to the side or in front, for superior field coverage.
This bale blower also features a Bluetooth-enabled wireless control panel, simplifying operation with seamless in-cab control. Pausing, resuming, and adjusting the chute or loading gate is as easy as a tap, making your work faster and more efficient. The TEAGLE 6100H isn’t just an attachment; it’s your farm’s new productivity partner.
Key Features

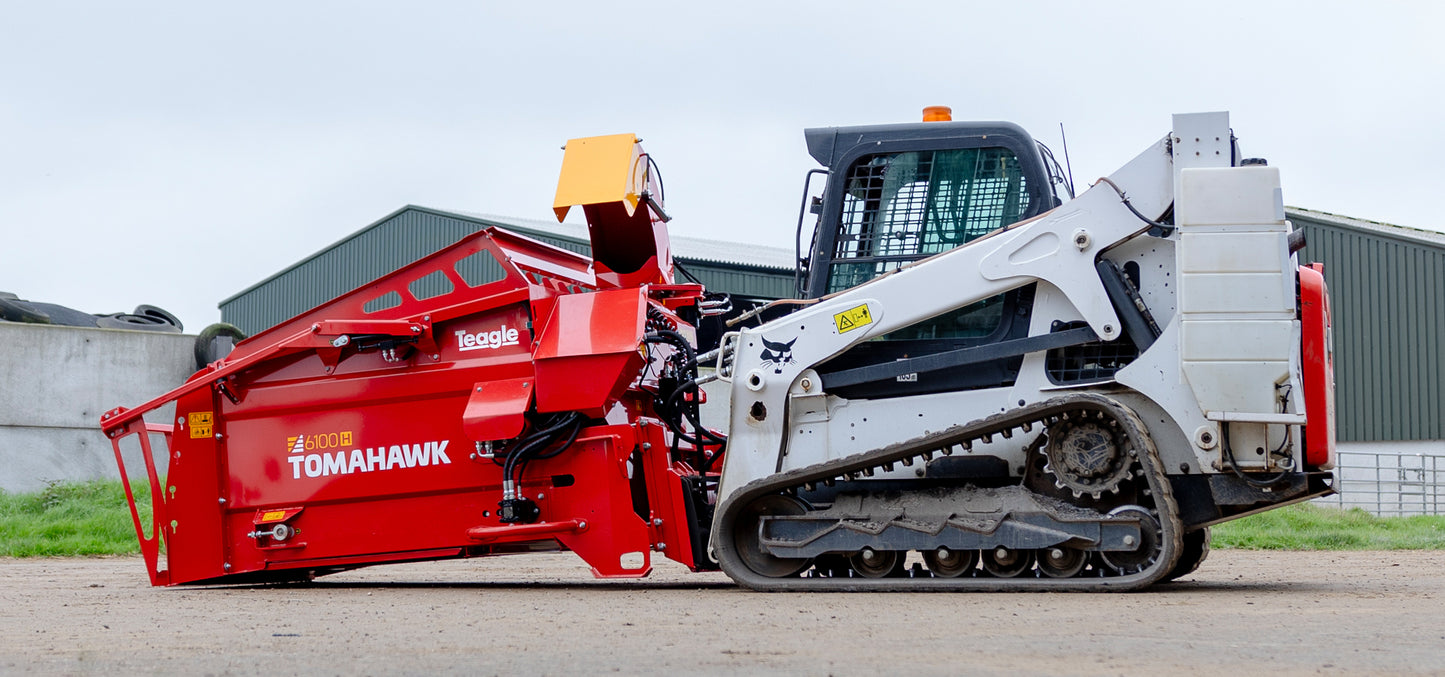

- Compact Hydraulic Drive Bale Processor: Ideal for tight farm spaces, designed to fit skid steers, compact loaders, and tractors
- 60-Inch Bale Width Capacity: Process larger bales quickly and efficiently, perfect for straw spreading and bale processing

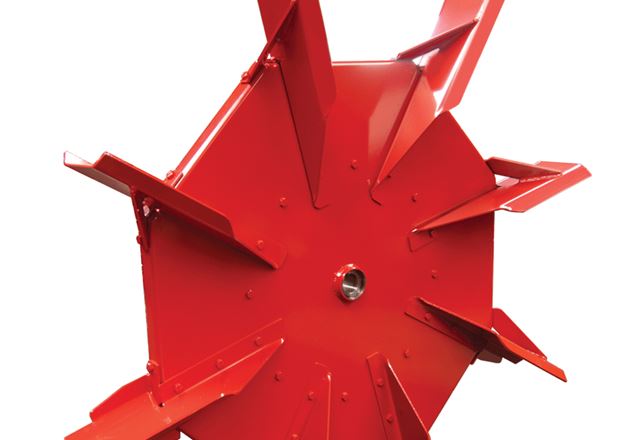

- Powerful 8-Paddle Fan: 9" wide, made from heavy-duty 1/4" steel to maximize airflow and extend straw blow distance

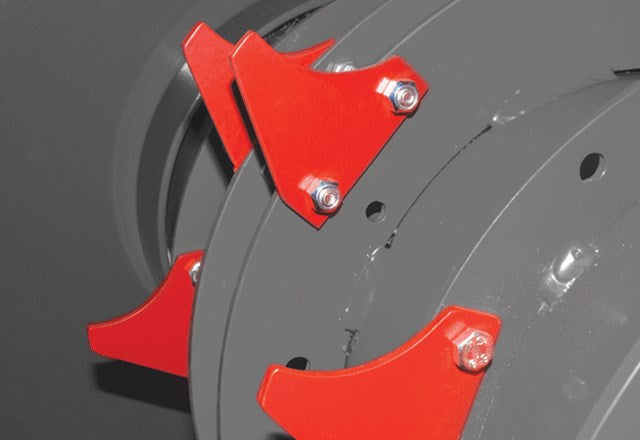

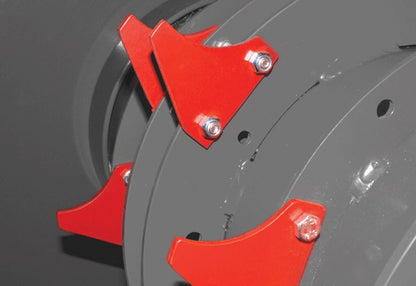

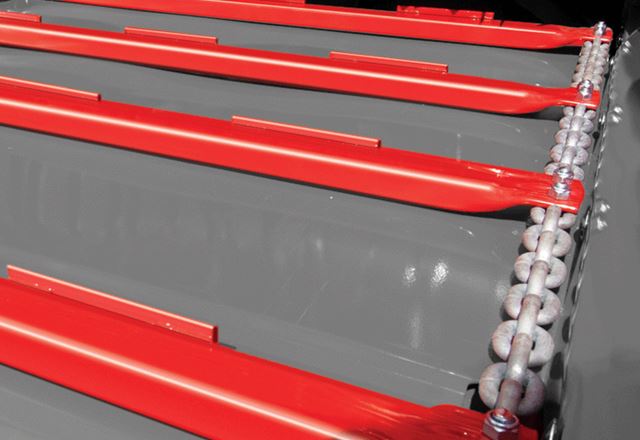

- Durable Bed Chain & Hook Rippers: 1/2" heavy-duty chain with no welded weak spots reduces maintenance and ensures gentle bale tearing

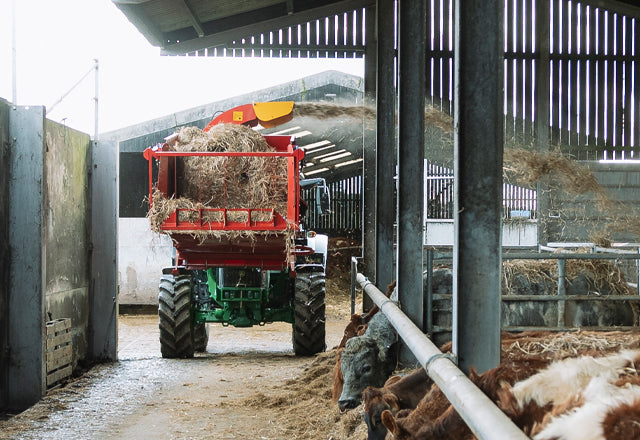

- 280-Degree Swivel Chute: Delivers straw to either side or in front for versatile application and optimal field coverage

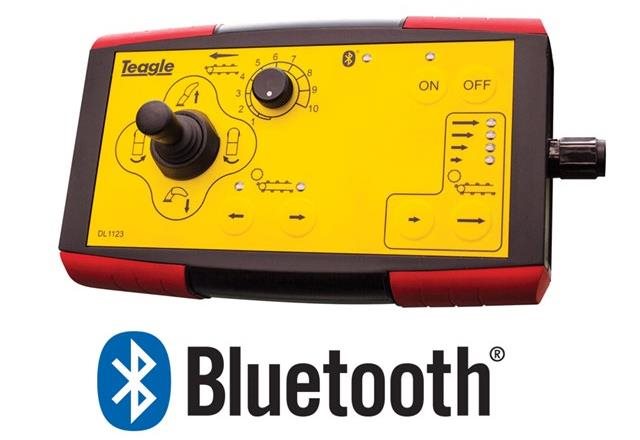

- Bluetooth Wireless Control Panel: Easy, wire-free in-cab control to pause, resume, and adjust machine settings on the fly

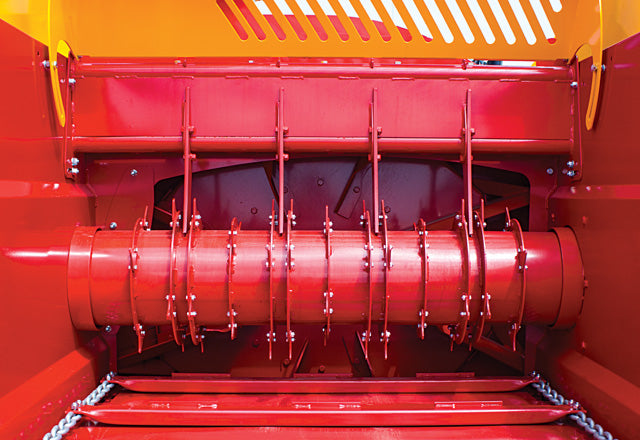

- Load Sensing Crossbeater: Automatically reverses to prevent blockages and maintain consistent straw flow

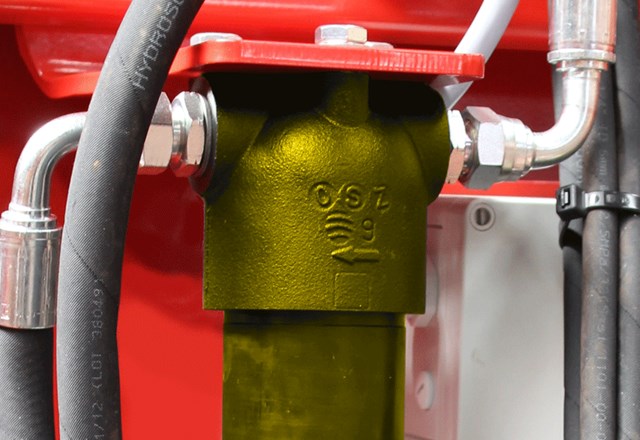

- Pressure Sensor Gauge: Helps maintain optimal operating pressure for maximum efficiency and equipment longevity

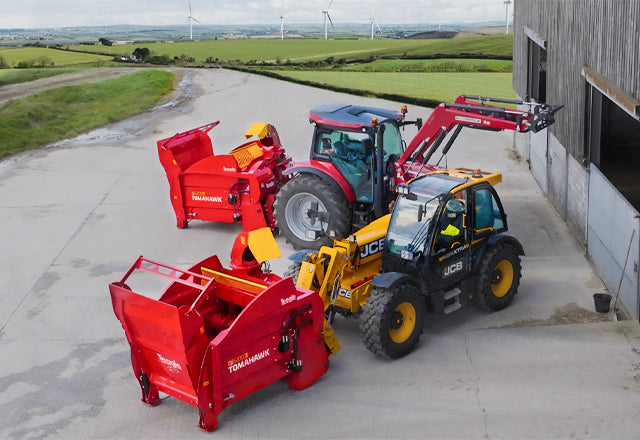

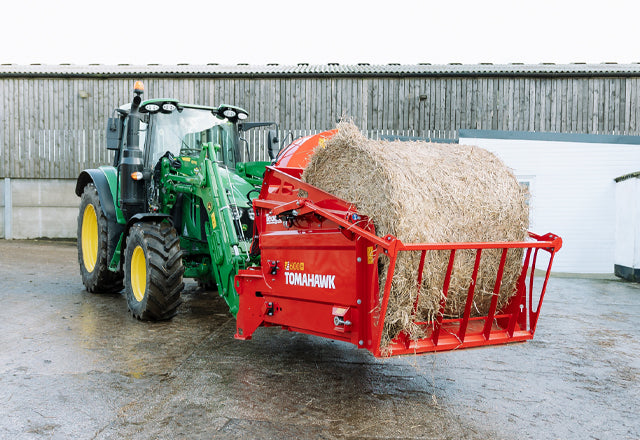

- Compatible with Multiple Machines: Fits skid steers, compact wheeled loaders, and tractors (front loader or 3-point hitch)
- Optional Hydraulic Bale Clamp: For secure bale handling, operable via in-cab tethered Wi-Fi control
Detailed Specifications
| Specification | Details |
|---|---|
| Model | TEAGLE 6100H |
| Category | Skid Steer Attachments |
| Sub-Category | Bale Blower Skid Steer |
| Bale Width | 60 inches |
| Hydraulic Flow Rate | 40 - 75 L/min |
| Required PTO Power | 70 HP |
| Fan Type | 8 Paddle Fan, 9" width, 1/4" steel |
| Bed Chain | 1/2" Heavy Duty, no welded weak spots |
| Number of Crossbeaters | 1 (Load sensing with auto-reverse) |
| Chute Rotation | 280 degrees swivel chute |
| Control System | Bluetooth wireless slimline control panel |
| Compatible Machines | Skid steers, compact wheeled loaders, tractors (front loader or 3-point hitch) |
| Bale Chamber Dimensions | 1.27m (W) x 0.8m (H) x 1.24m (D) |
| Maximum Blow Distance | Up to 12 meters |
| Overall Length | 2.43 meters |
| Overall Height | 2.05 meters |
| Overall Width (with chute) | 1.72 meters |
| Unladen Weight | 777 kg |
| Optional Hydraulic Bale Clamp | Available, operated via in-cab tethered Wi-Fi |
