TecnoGen Enermax Series 132kW 170kVA FP170TSX Generator
TecnoGen Enermax Series 132kW 170kVA FP170TSX Generator
Regular price
$125,579.70
Regular price
Sale price
$125,579.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
TecnoGen Enermax Series 132kW 170kVA FP170TSX Generator
DESCRIPTION

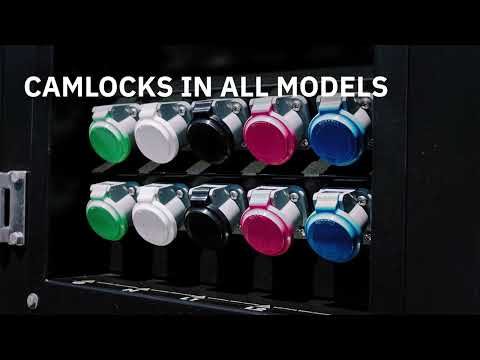

TecnoGen’s 170kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 132kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 70dBA rating.
The internal fuel capacity is 232 gallons allowing for a run time of up to 33 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.
Key Features
- Reliable Power Supply: Ideal for heavy-duty commercial use.
- Efficient Fuel Management: Engineered for optimal fuel efficiency with low emissions.
- Sturdy Construction: Designed for rugged use in challenging environments.
- Comprehensive Support: TecnoGen offers dedicated customer service and 24/7 support.
Detailed Specifications
General Specifications
| Specification | Details |
|---|---|
| Prime Power (kW) | 132 |
| Standby Power (kW) | 146 |
| Sound Level @ 23' | 70 dBA |
| Controller | Deep Sea DSE7310 |
| Alternator | Leroy Somer LSA 46.3S2 |
| Fuel Consumption @ 75% | 6.98 gal/h |
| Run Time (75% Load) | 33 hours |
Electrical Specifications
| Voltage | Amps |
|---|---|
| Three Phase 208V | 458 |
| Three Phase 240V | 397 |
| Three Phase 480V | 198 |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Make | FPT |
| Engine Model | NEF67 |
| Horsepower | 224 |
| Cylinders | 6 |
| EPA Compliance | Tier 4 Final |
Fuel Specifications
| Specification | Details |
|---|---|
| Fuel Type | Diesel |
| Fuel Capacity | 232 gallons |
| Run Time (75% Load) | 33 hours |
| DEF Tank Capacity | 20 gallons |
Dimensions and Weight
| Specification | Details |
|---|---|
| Length | 154 inches |
| Width | 48 inches |
| Height | 88 inches |
| Dry Weight | 6,967 lbs |
| Wet Weight | 8,614 lbs |
SUPERIOR PERFORMANCE
The Enermax Series has the features you want standard with the largest range of prime power in its class.
CUSTOMER FOCUSED
With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.
OVERBUILT BY TECNOGEN
Perfect for the construction, industrial and rental sectors, TecnoGen designed the Enermax Series to make it the most innovative, reliable and rugged power machine on the market.
In Package
- FPT NEF67 Engine
- Leroy Somer LSA 46.3S2 Alternator
- Deep Sea DSE7310 Controller
- Camlocks, Block Heater, and Battery Charger
- External Fuel Hookup for Extended Runtime
- User Manual for Installation and Maintenance
