TecnoGen Enermax Series 20kW 20kVA KL20TSX Generator

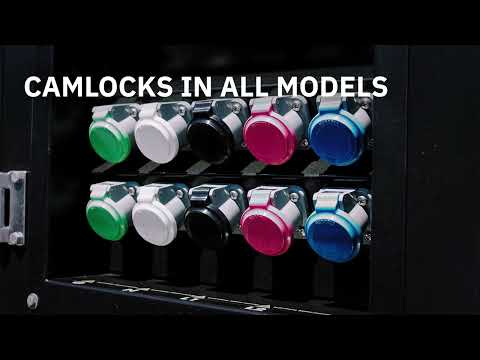

TecnoGen’s 20kVA generator uses the Kohler engine coupled to an industry standard Leroy Somer alternator producing 17kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 68 dBA rating.

The internal fuel capacity is 44 gallons allowing for a run time of up to 44 hours @ 75% load. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 17kW
• SOUND LEVEL @ 23': 68 dBA
• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: Kohler KDI1903M
• EPA LEVEL: Tier 4F
• HORSEPOWER: 24.7
• FUEL CAPACITY: 44 Gallons
• RUN TIME @ 75%: 44
• LENGTH: 69"
• WIDTH: 39"
• HEIGHT: 59"
• WEIGHT: 1,487 lbs

GENERATOR SPECS

• PRIME (kW): 17
• STANDBY (kW): 18
• RPM: 1800
• VOLTAGE 1PH: 240/120V
• VOLTAGE 3PH: 480/277V, 208/120V
• FREQUENCY (Hz): 60
• CONTROLLER BRAND: Deep Sea
• CONTROLLER MODEL: DSE7310
• ALTERNATOR MAKE: Leroy Somer
• ALTERNATOR MODEL: LSA 40M5
• SYSTEM VOLTAGE: 12V
• SOUND LEVEL @ 23 FEET: 68

AMPS

• SINGLE PHASE 120V zz (P.F. 0,8): 63 x 2 zz
• SINGLE PHASE 240V (P.F. 0,8): 63
• THREE PHASE 208V (P.F. 0,8): 51
• THREE PHASE 240V (P.F. 0,8): 44
• THREE PHASE 480V (P.F. 0,8): 22

ENGINE SPECS

• MAKE: Kohler
• MODEL: KDI1903M
• EPA LEVEL: TIer 4F
• No. Cylinders: 3
• Gross HP: 24.7
• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• FUEL CAPACITY (Gallons): 44
• 75%: 1.00 gal/h
• RUN TIME @ 75%: 44

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 1345
• Wet WEIGHT (lbs.): 1487
• LENGTH (in.): 69
• WIDTH (in.): 39
• HEIGHT (in.): 59

SUPERIOR PERFORMANCE

The Enermax Series has the features you want standard with the largest range of prime power in its class.

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

OVERBUILT BY TECNOGEN

Perfect for the construction, industrial and rental sectors, TecnoGen designed the Enermax Series to make it the most innovative, reliable and rugged power machine on the market.
