TecnoGen Enermax Series 25kW 30kVA KL30TSX Generator

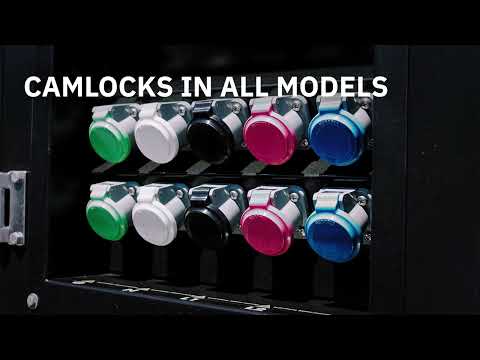

TecnoGen’s 30kVA generator uses the Kohler engine coupled to an industry standard Leroy Somer alternator producing 25kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 68dBA rating.

The internal fuel capacity is 49 gallons allowing for a run time of up to 40 hours @ 75% load. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 25 kW
• SOUND LEVEL @ 23': 68 DBA
• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: Kohler KDI1903TCR
• EPA LEVEL: Tier 4F
• HORSEPOWER: 47
• FUEL CAPACITY: 47 Gallons
• RUN TIME @ 75%: 38 Hours
• LENGTH: 78"
• WIDTH: 40"
• HEIGHT: 54"
• WEIGHT: 2,454 lbs

GENERATOR SPECS

• Prime Power (PRP) kW: 25,0
• Prime Power (PRP) kVA: 31,2
• Standby Power (LTP) kW: 27,5
• Standby Power (LTP) kVA: 34,4
• Rated Power Factor (cos φ): 0,8
• RPM: 1800
• Voltage 1PH V : 240/120V
• Voltage 3PH V : 480/277V , 208/120V
• Rated frequency Hz: 60
• Controller Brand : Deep Sea
• Controller Model : DSE7310
• Sound Level @23 Feet (no load) dB : 68

AMPS

• Single Phase 120V zz : 79x2 zz
• Single Phase 240V : 79
• Three Phase 208V : 86
• Three Phase 480V : 38

ENGINE SPECS

• MAKE: Kohler
• MODEL: KDI1903TCR
• EPA LEVEL: TIER4 FINAL
• No. Cylinders: 3
• Gross HP: 47
• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• Fuel Type : Diesel
• FUEL CAPACITY (Gallons): 47
• Fuel Cons. at 75% (P.R.P.) gal/h : 1,25
• Run Time @ 75% gal/h : 37,60

DEF

• DEF Tank Capacity gal. N/A

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 2120
• Wet WEIGHT (lbs.): 2454
• LENGTH (in.): 78
• WIDTH (in.): 39,4
• HEIGHT (in.): 54,0

SUPERIOR PERFORMANCE

The Enermax Series has the features you want standard with the largest range of prime power in its class.

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

OVERBUILT BY TECNOGEN

Perfect for the construction, industrial and rental sectors, TecnoGen designed the Enermax Series to make it the most innovative, reliable and rugged power machine on the market.
