TecnoGen Enermax Series 334kW 420kVA FP420TSX Generator

TecnoGen Enermax Series 334kW 420kVA FP420TSX Generator

Regular price $237,833.55
Regular price Sale price $237,833.55
Sale Sold out
Customizable
Fast
24/7 Support
  • 334kW Prime Power: Powered by the FPT CURSOR13 engine, delivering reliable 334kW prime power.
  • Fuel Efficiency: 283-gallon internal fuel capacity for up to 16 hours of runtime at 75% load.
  • Low Noise: Sound level of just 70 dBA at 23 feet, ideal for noise-sensitive environments.
  • Rugged Design: Sealed doors and 2-inch insulation provide protection and durability in tough conditions.
  • Efficient Control: Features Deep Sea controller for easy monitoring of fuel levels, runtime, and logs.
View full details

Product Description

TecnoGen Enermax Series 334kW 420kVA FP420TSX Generator

DESCRIPTION

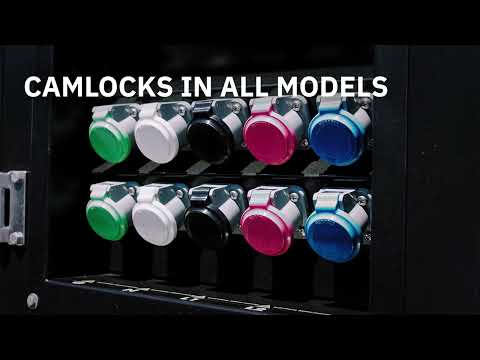

TecnoGen’s 420kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 334kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 70dBA rating.

The internal fuel capacity is 283 gallons allowing for a run time of up to 16 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.

Key Features

  • Prime Power: 334 kW with FPT CURSOR13 engine.
  • Fuel Efficiency: 283-gallon capacity for long runtime.
  • Quiet Operation: 70 dBA sound level at 23 feet.
  • Advanced Control: Deep Sea controller for real-time data.
  • Durable Design: Rugged build with sealed doors and insulation.

Detailed Specifications

General Specifications

Specification Details
Prime Power (kW) 334
Standby Power (kW) 370
Sound Level @ 23' 70 dBA
Controller Deep Sea DSE8610
Alternator Leroy Somer LSA 47.2S4
Fuel Consumption @ 75% 17.29 gal/h
Run Time @ 75% Load 16 hours

Electrical Specifications

Voltage Amps
Three Phase 208V 1159
Three Phase 240V 1004
Three Phase 480V 502

Engine Specifications

Specification Details
Engine Make FPT
Engine Model CURSOR13
Horsepower 570
Cylinders 6
EPA Compliance Tier 4F

Fuel Specifications

Specification Details
Fuel Type Diesel
Fuel Capacity 283 gallons
Run Time (75% Load) 16 hours
DEF Tank Capacity 41 gallons

Dimensions and Weight

Specification Details
Length 189 inches
Width 76 inches
Height 94 inches
Dry Weight 12,787 lbs
Wet Weight 15,087 lbs

    SUPERIOR PERFORMANCE

    The Enermax Series has the features you want standard with the largest range of prime power in its class.

    CUSTOMER FOCUSED

    With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

    OVERBUILT BY TECNOGEN

    Perfect for the construction, industrial and rental sectors, TecnoGen designed the Enermax Series to make it the most innovative, reliable and rugged power machine on the market.

    In Package

    • FPT CURSOR13 Engine
    • Leroy Somer LSA 47.2S4 Alternator
    • Deep Sea DSE8610 Controller
    • Camlocks, Block Heater, and Battery Charger
    • External Fuel Hookup for Extended Runtime
    • User Manual for Installation and Maintenance
